TC716B 1/2 Classical Cove Router Bit with Ball Bearing — 1/2″ Shank
Part No: TC 716 B 1/2 | Barcode: 9314350006683 | Product Group: R626 | Discount Group: Z0904

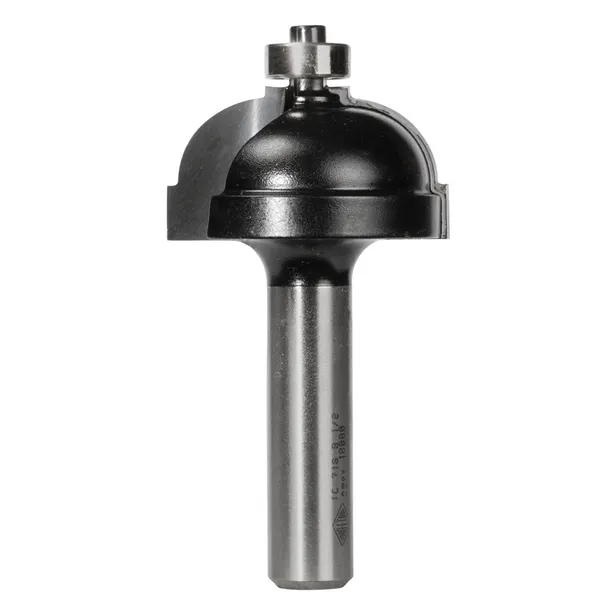

The Carbitool TC 716 B 1/2 is a 2-flute carbide-tipped classical cove router bit with ball bearing guide and 1/2″ shank. It produces a decorative classical cove with an optional edge bead, suited to furniture mouldings, panel doors, architraves, and cabinet edge work.
2 Flute
Carbide Tipped
Ball Bearing Guide
1/2″ Shank
Classical Cove Profile
Edge Moulding
Suitable For
Hardwood
Softwood
Furniture Mouldings
Panel Doors
Architraves
Cabinet Edges
Key Features & Benefits
- Classical cove profile — a swept cove shape that is the basis of traditional furniture and joinery moulding; sits alongside standard cove bits but with a more refined, compound curve geometry.
- Variable bead inclusion — fit the included TB9 ball bearing (smaller diameter) to expose the bottom corner of the cutter and produce a classic cove with bottom bead. Swap to the larger TB11 bearing to eliminate the bottom bead for a clean cove-only profile. Use the machine’s height adjustment to include or exclude the top bead independently.
- 2-flute carbide-tipped construction — handles continuous production runs through hardwood mouldings without losing profile definition.
- Ball bearing guide — rides the workpiece edge for consistent depth without a fence, enabling use on curved or shaped stock.
- 1/2″ shank — provides stability for the wider cutting width required by a classical cove profile; router table use is strongly recommended.
When to Use This Bit
Use the TC 716 B 1/2 when your moulding design calls for a classical cove rather than a simple radius cove. The profile is well-suited to reproduction furniture, colonial-style cabinetry, picture frame moulding, and matching existing traditional joinery profiles. Fit the TB9 bearing for a bottom bead; TB11 for no bead — and use height adjustment to control whether the top bead is engaged. The smaller variants in the R626 series (TC 708 B and TC 712 B) are available for finer-scale classical cove work.
Pro Tip: Set up bearing changes and height adjustments on scrap stock first. The combination of bearing size and height determines three distinct profile variations — test each before committing to a production run.

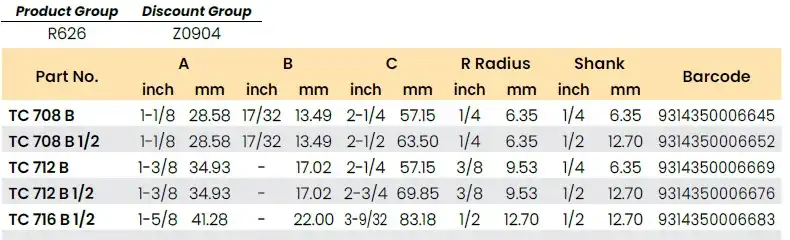

Product Specifications

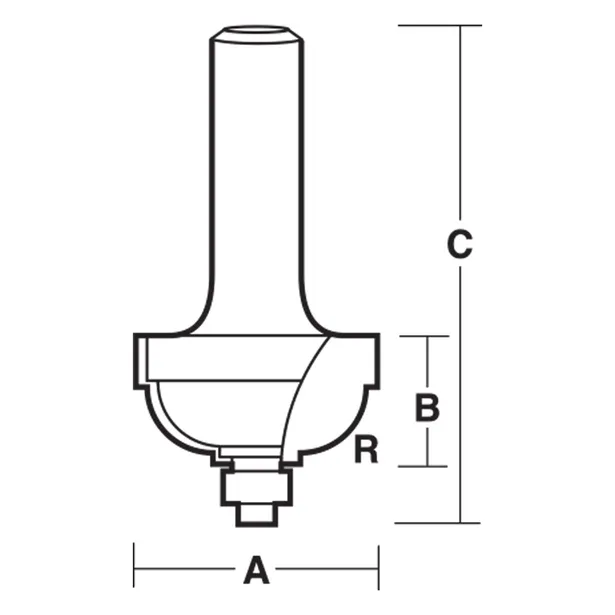

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | R Radius inch | R mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TC 708 B | 1-1/8 | 28.58 | 17/32 | 13.49 | 2-1/4 | 57.15 | 1/4 | 6.35 | 1/4 | 6.35 | 9314350006645 |
| TC 708 B 1/2 | 1-1/8 | 28.58 | 17/32 | 13.49 | 2-1/2 | 63.50 | 1/4 | 6.35 | 1/2 | 12.70 | 9314350006652 |
| TC 712 B | 1-3/8 | 34.93 | — | 17.02 | 2-1/4 | 57.15 | 3/8 | 9.53 | 1/4 | 6.35 | 9314350006669 |
| TC 712 B 1/2 | 1-3/8 | 34.93 | — | 17.02 | 2-3/4 | 69.85 | 3/8 | 9.53 | 1/2 | 12.70 | 9314350006676 |
| TC 716 B 1/2 ★ | 1-5/8 | 41.28 | — | 22.00 | 3-9/32 | 83.18 | 1/2 | 12.70 | 1/2 | 12.70 | 9314350006683 |
★ You are viewing the highlighted variant. Replacement bearing: TB9 (includes bottom bead) or TB11 (excludes bottom bead).
