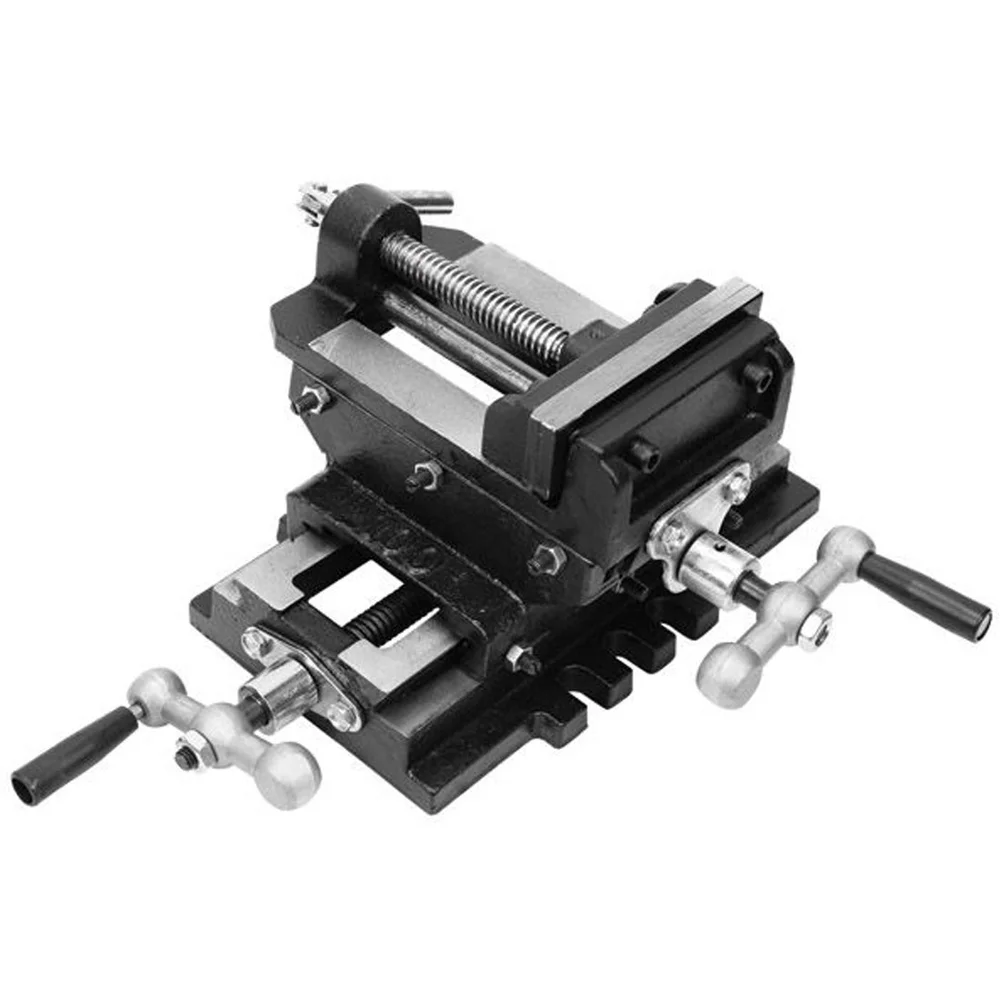

ITM Cross-Slide Drill Press Vice 100mm TM130-100
Part No: TM130-100 | Barcode: 9328042030610
The ITM TM130-100 is a 100mm cross-slide drill press vice for precise X-Y workpiece positioning under a drill press, mill or tapping machine. Its cast iron body and machined steel jaws make it ideal for machine shops, fabrication workshops and tool rooms around Geelong that need repeatable, accurate hole placement.
100mm Jaw Width
Jaw Opening 90mm
X Travel 85mm
Y Travel 110mm
Cast Iron Body
7kg Net Weight
Suitable For
Drill Presses
Milling Machines
Tapping Work
Pattern Drilling
Key Features & Benefits
- Cross-slide X-Y table — twin lead-screws move the work in two axes so you can position holes precisely without re-clamping.
- Cast iron body — rigid, vibration-damping casting holds accuracy under drilling, tapping and light milling loads.
- Machined steel jaws — ground gripping faces hold the workpiece square and secure for clean, on-centre holes.
- Calibrated handwheels — let you dial in repeatable offsets for production runs and pattern drilling.
- Bench-mount slots — let you bolt the vice straight to a drill-press table for a stable set-up.
When to Use This Vice
Choose the ITM TM130-100 when you need controlled X-Y movement under a drill press or mill — pattern drilling, jig work, tapping and precise hole spacing. The 100mm model suits smaller bench drills and lighter parts. Step up to the 150mm TM130-150 for wider jaws and longer travel, or down to the 100mm TM130-100 for compact bench drills.
Authorised Australian Dealer — This product is sourced directly from ITM Australia and is backed by full Australian manufacturer warranty and local support.
| Part No. | Jaw Width | Jaw Opening | X × Y Travel | Weight |
|---|---|---|---|---|
| TM130-100 ★ | 110mm | 90mm | 85mm × 110mm | 7kg |
| TM130-150 | 160mm | 150mm | 160mm × 155mm | 14.5kg |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
