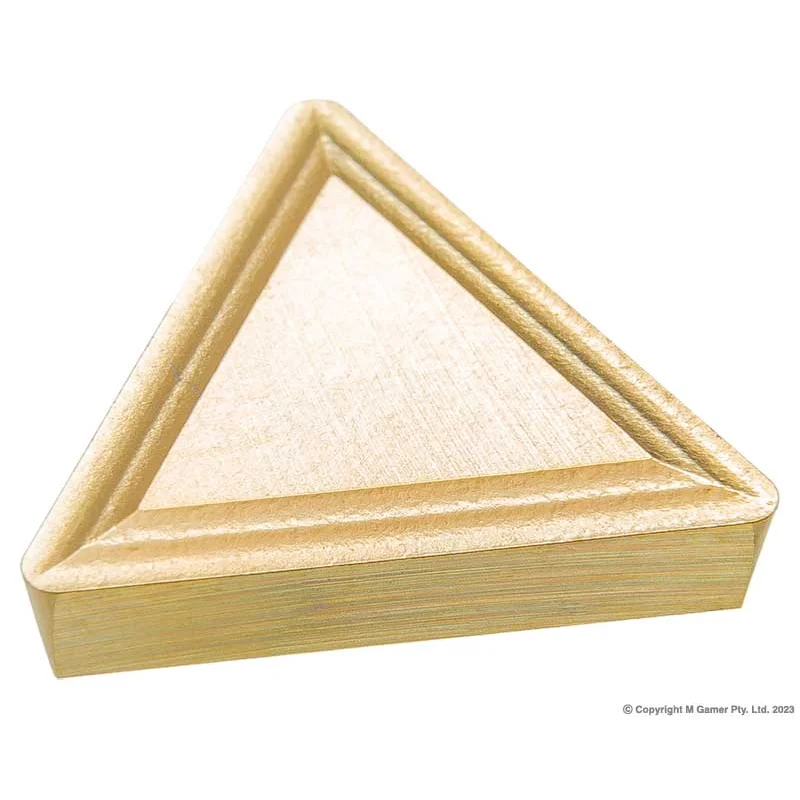

Harlingen TPMR160308 Triangle Turning Insert — Pack of 10
Part No: TPMR160308 | Barcode: 9346967026211 | Brand: Harlingen
Top-clamp triangle turning insert in TiAlN-coated micro-grain carbide. The TPMR geometry has positive top-rake with a 0.8mm corner radius — designed for semi-finishing in steel, stainless and cast iron at moderate depths.
Triangle Insert
16mm IC
0.8mm Radius
TiAlN Coated
Pack of 10
Top Clamp
Suited For
Cast Iron
General Purpose Steel
Stainless Steel
Key Features & Benefits
- ISO TPMR160308 designation — Standard 60° triangle, 16mm inscribed circle, 3.18mm thick, 0.8mm corner radius — fits any TPMR-pocket holder.
- Top-clamp retention — TPMR has no centre hole — uses a top clamp on the holder for rigid support against cutting forces.
- Positive rake geometry — Easier on the spindle than negative-rake inserts; suits lighter lathes and softer materials.
- TiAlN coating — Hard violet-gold coating resists wear and crater formation at higher cutting temperatures.
- Three indexable corners — Three usable cutting tips per insert means 30 working corners in a pack of ten.
When to Use This Insert
Choose TPMR160308 for general-purpose semi-finishing turning in steel, stainless and cast iron when your holder accepts top-clamp triangle inserts. Stick to moderate depths (0.5-3mm) — TPMR is not a heavy roughing geometry.
Authorised Australian Distributor — This product is sourced via Australia’s Harlingen distributor Gamer Industries and is backed by full Australian warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Shape | Triangle (60°) |
| Inscribed Circle | 16 mm |
| Thickness | 3.18 mm |
| Corner Radius | 0.8 mm |
| Clearance Angle | 11° |
| Retention | Top Clamp |
| Tolerance | +0.002 / −0.004 |
| Pack Qty | 10 |
