TX1419M 2 Flute Carbide Tipped Straight Router Bit 19.00mm 1/2" Shank Carbitool
TX1419M 2 Flute Carbide Tipped Straight Router Bit 19.00mm 1/2" Shank Carbitool - Image 2
TX1419M 2 Flute Carbide Tipped Straight Router Bit 19.00mm 1/2" Shank Carbitool - Image 3
TX1419M 2 Flute Carbide Tipped Straight Router Bit 19.00mm 1/2" Shank Carbitool - Image 4
,

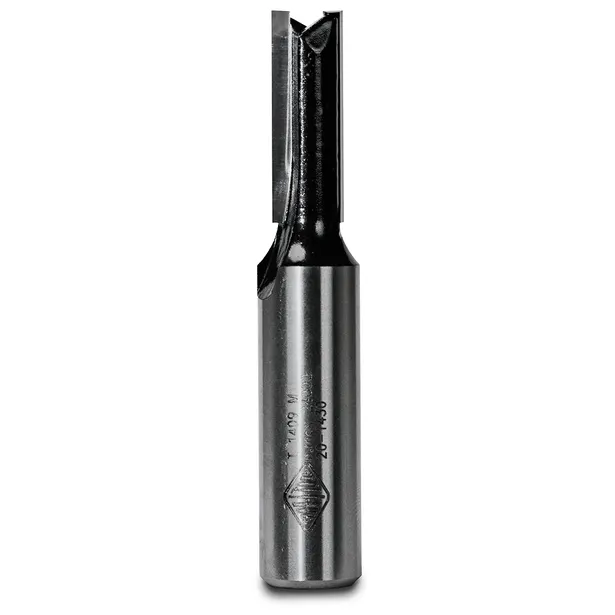

TX1419M 2 Flute Carbide Tipped Straight Router Bit 19.00mm 1/2″ Shank Carbitool

$55.10

Carbitool TX 1419 M — 2-flute carbide-tipped straight router bit. 19.00mm cutting diameter, 1/2″ shank. Product Group R509.

Out of stock

Barcode: 9314350003873 Brand:
Carbitool

2 Flute Straight Router Bit — Carbide Tipped, 19.00mm Cutting Diameter, 1/2″ Shank

Part No: TX 1419 M  |  Barcode: 9314350003873  |  Product Group: R509

A 2-flute carbide-tipped straight router bit with 1/2″ shank for general purpose routing, grooving and rebating. An extensive metric and imperial range from 9mm to 22mm covers the most common routing applications in hardwood, softwood and sheet materials.

Carbide Tipped
2 Flute
Straight Flute
1/2″ Shank
19.00mm Cutting Dia.

Suitable For

Hardwood
Softwood
MDF
Plywood
Laminates

Key Features & Benefits

  • 2-flute straight geometry — clean, consistent groove walls for dadoes, rebates and housings across all timber and sheet materials.
  • Carbide-tipped with 1/2″ shank — the heavy 1/2″ shank combined with carbide tips provides both rigidity and wear resistance for accurate, long-lasting routing performance.
  • Extensive size range — metric and imperial sizes with TX extended-length variants for deep routing operations.

When to Use This Bit

Use the TX 1419 M for dadoes, housing joints, rebates, grooves and through-cuts in solid timber and sheet goods where a 1/2″ shank is preferred. TX variants offer extended cut lengths for deeper work.

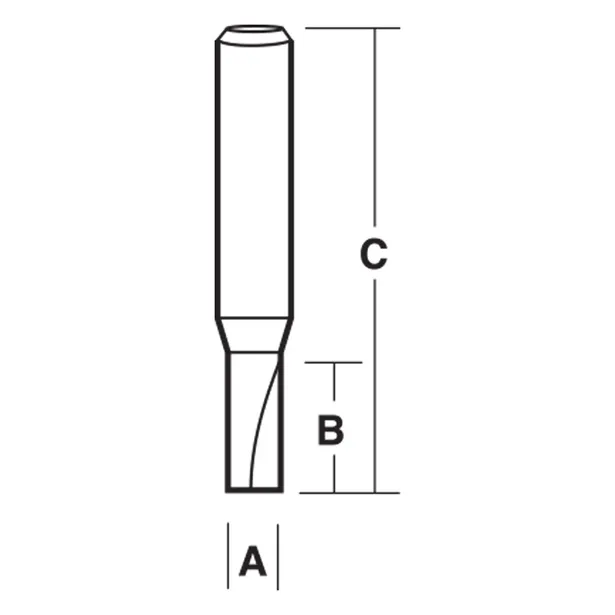

Product Specifications

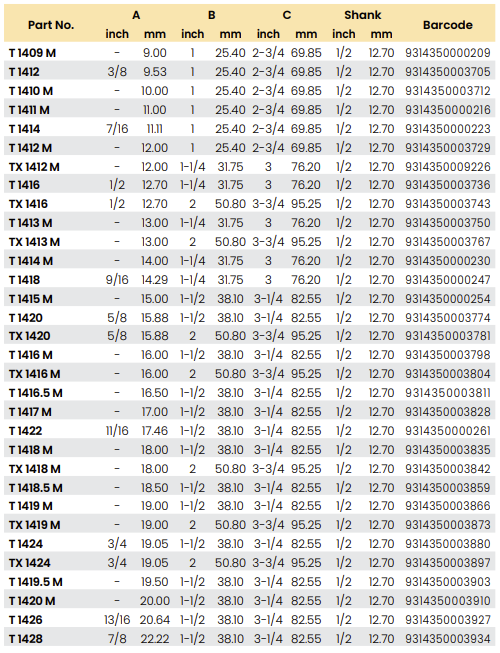

Carbitool T 1400 Series — 2 Flute Carbide Tipped, 1/2″ Shank (R509)
Part No. A inch A mm B inch B mm C inch C mm Shank inch Shank mm Barcode
T 1409 M – 9.00 1 25.40 2-3/4 69.85 1/2 12.70 9314350000209
T 1412 3/8 9.53 1 25.40 2-3/4 69.85 1/2 12.70 9314350003705
T 1410 M – 10.00 1 25.40 2-3/4 69.85 1/2 12.70 9314350003712
T 1411 M – 11.00 1 25.40 2-3/4 69.85 1/2 12.70 9314350000216
T 1414 7/16 11.11 1 25.40 2-3/4 69.85 1/2 12.70 9314350000223
T 1412 M – 12.00 1 25.40 2-3/4 69.85 1/2 12.70 9314350003729
TX 1412 M – 12.00 1-1/4 31.75 3 76.20 1/2 12.70 9314350009226
T 1416 1/2 12.70 1-1/4 31.75 3 76.20 1/2 12.70 9314350003736
TX 1416 1/2 12.70 2 50.80 3-3/4 95.25 1/2 12.70 9314350003743
T 1413 M – 13.00 1-1/4 31.75 3 76.20 1/2 12.70 9314350003750
TX 1413 M – 13.00 2 50.80 3-3/4 95.25 1/2 12.70 9314350003767
T 1414 M – 14.00 1-1/4 31.75 3 76.20 1/2 12.70 9314350000230
T 1418 9/16 14.29 1-1/4 31.75 3 76.20 1/2 12.70 9314350000247
T 1415 M – 15.00 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350000254
T 1420 5/8 15.88 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003774
TX 1420 5/8 15.88 2 50.80 3-3/4 95.25 1/2 12.70 9314350003781
T 1416 M – 16.00 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003798
TX 1416 M – 16.00 2 50.80 3-3/4 95.25 1/2 12.70 9314350003804
T 1416.5 M – 16.50 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003811
T 1417 M – 17.00 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003828
T 1422 11/16 17.46 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350000261
T 1418 M – 18.00 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003835
TX 1418 M – 18.00 2 50.80 3-3/4 95.25 1/2 12.70 9314350003842
T 1418.5 M – 18.50 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003859
T 1419 M – 19.00 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003866
TX 1419 M ★ – 19.00 2 50.80 3-3/4 95.25 1/2 12.70 9314350003873
T 1424 3/4 19.05 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003880
TX 1424 3/4 19.05 2 50.80 3-3/4 95.25 1/2 12.70 9314350003897
T 1419.5 M – 19.50 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003903
T 1420 M – 20.00 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003910
T 1426 13/16 20.64 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350000285
T 1428 7/8 22.22 1-1/2 38.10 3-1/4 82.55 1/2 12.70 9314350003934

★ You are viewing the highlighted variant. TX = extended length.

Brand: CarbitoolProduct Group: R509Discount Group: Z0904Material: Carbide TippedFlutes: 2Shank: 1/2″ (12.70mm)
