VERTEX

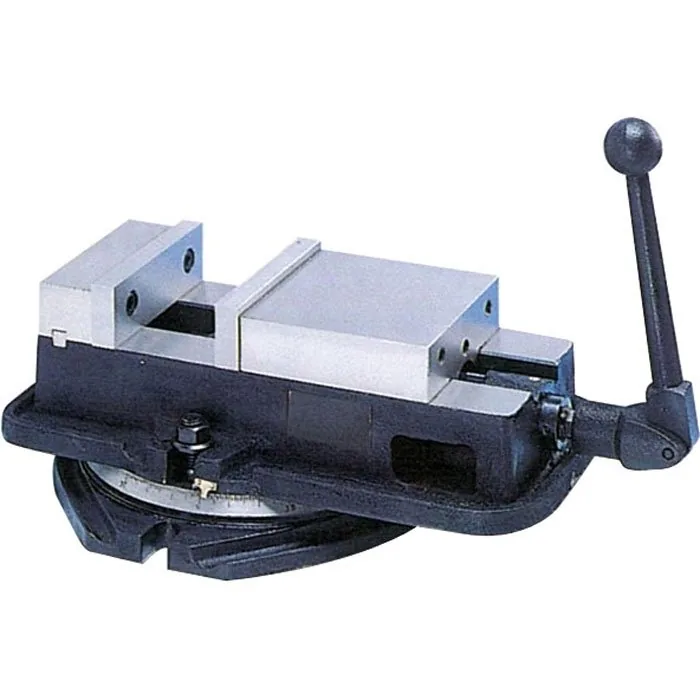

Vertex Anglock Machine Vice — VA-5, 127mm Jaw Width 110mm Jaw Opening
Part No: V305 | Barcode: 9344195019173 | Model: VA-5
VERTEX VA-5 Vertex Anglock Machine Vice (127mm Jaw Width 110mm Jaw Opening). The VERTEX Anglock vice has a Ductile steel body with hardened and ground movable steel jaw.
Model VA-5
127mm Jaw Width
110mm Jaw Opening
Key Features & Benefits
- All surfaces are precision ground and the bed is flame hardened
- Spherical segment allows for all directional alignment
- When clamping, a downward pressure of 1kg is exerted by the movable jaw for every 2kg of clamping pressure, preventing the work piece from tilting
- Bearing thrust collar cuts friction and increases clamping pressure
- Swivel base is graduated to 360º
About This Product
The VERTEX Anglock vice has a Ductile steel body with hardened and ground movable steel jaw. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code V305) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| A – Jaw Width (mm) | 127 |
| F – Jaw Opening (mm) | 110 |
| E – Jaw Depth (mm) | 33 |
| B (mm) | 369 |
| C (mm) | 193 |
| D (mm) | 128 |
| G (mm) | 254 |
| H (mm) | 32 |
| Nett Weight (kg) | 31 |
