VERTEX

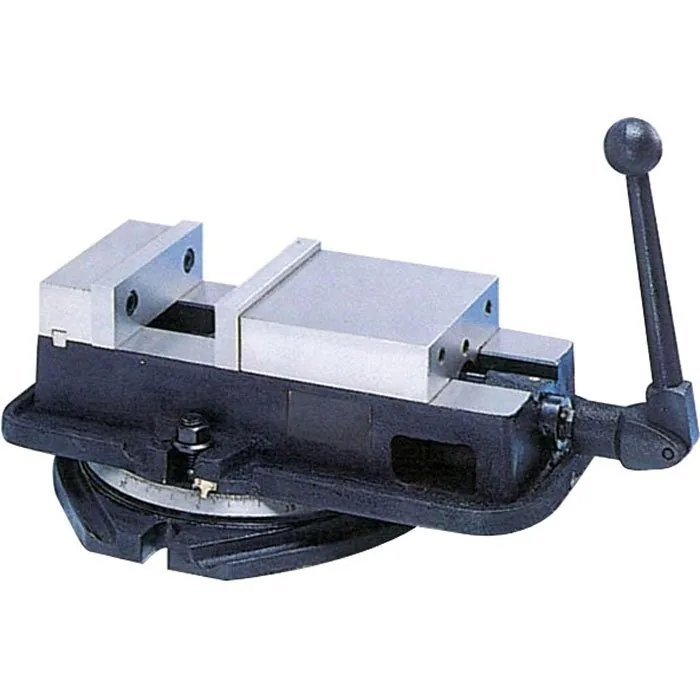

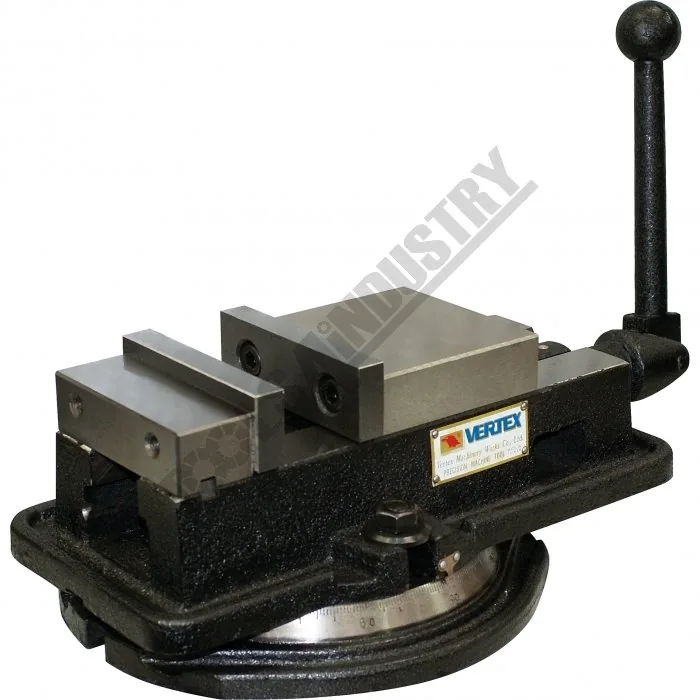

Vertex Anglock Machine Vice — VA-8, 203mm Jaw Width 197mm Jaw Opening
Part No: V307 | Barcode: 9344195016509 | Model: VA-8
VERTEX VA-8 Vertex Anglock Machine Vice (203mm Jaw Width 197mm Jaw Opening). Ductile steel body with hardened and ground movable steel jaw.
Model VA-8
203mm Jaw Width
197mm Jaw Opening
Key Features & Benefits
- All surfaces are precision ground and the bed is flame hardened
- Spherical segment allows for all directional alignment
- When clamping, a downward pressure of 1kg is exerted by the movable jaw for every 2kg of clamping pressure, preventing the work piece from tilting
- Bearing thrust collar cuts friction and increases clamping pressure
- Swivel base is graduated to 360º
About This Product
Ductile steel body with hardened and ground movable steel jaw. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code V307) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| A – Jaw Width (mm) | 203 |
| F – Jaw Opening (mm) | 197 |
| E – Jaw Depth (mm) | 50 |
| B (mm) | 552 |
| C (mm) | 295 |
| D (mm) | 178 |
| G (mm) | 368 |
| H (mm) | 44 |
| Nett Weight (kg) | 97 |
