Description
SAFEWAY

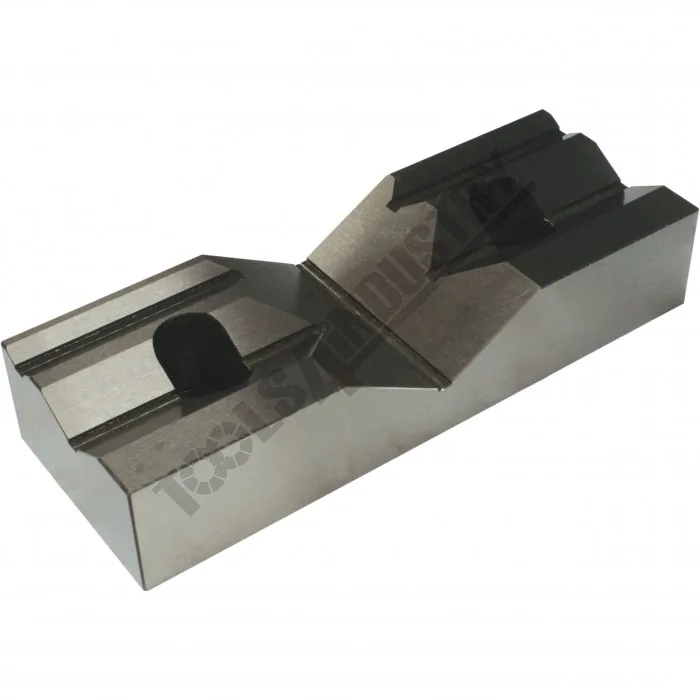

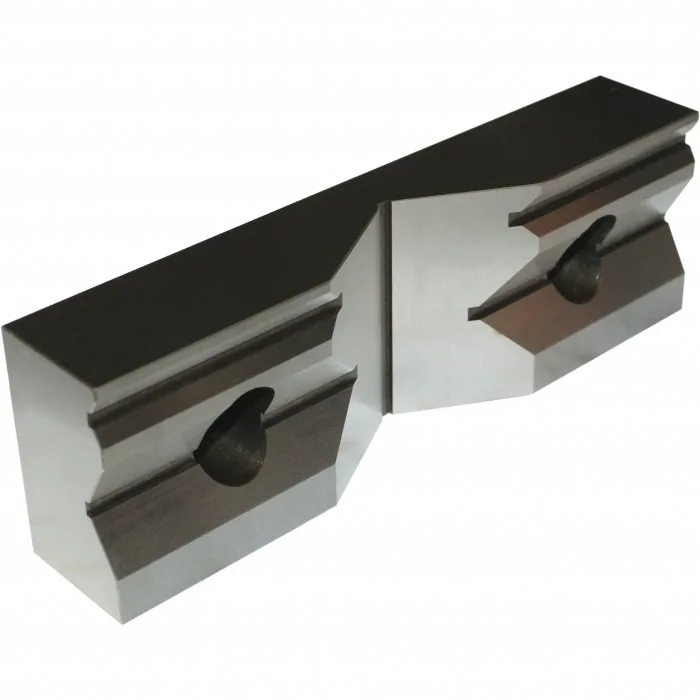

Safeway Vee Hardened Jaw – 200mm — CJ-200, #07888056
Part No: V3209 | Barcode: 9344195013799 | Model: CJ-200
SAFEWAY CJ-200 Safeway Vee Hardened Jaw – 200mm (#07888056). Hardened jaws suitable for clamping work pieces were the finished surface is smooth and needs to be protected.
Model CJ-200
#07888056
Key Features & Benefits
- Hardened Jaws to HRC55°-58°
- Holds round work piece 50 -140mm
About This Product
Hardened jaws suitable for clamping work pieces were the finished surface is smooth and needs to be protected. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code V3209) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Type | Vee Jaw – Single |
| A (mm) | 120 |
| B (mm) | 200 |
| C (mm) | 28 |
| D (mm) | 63 |
| E (mm) | 36 |
| F (mm) | 70 |
| G (mm) | 12 |
| H (mm) | 30 |
| L (mm) | M12 x 16 Long |
| Nett Weight (kg) | 3 |
