SAFEWAY

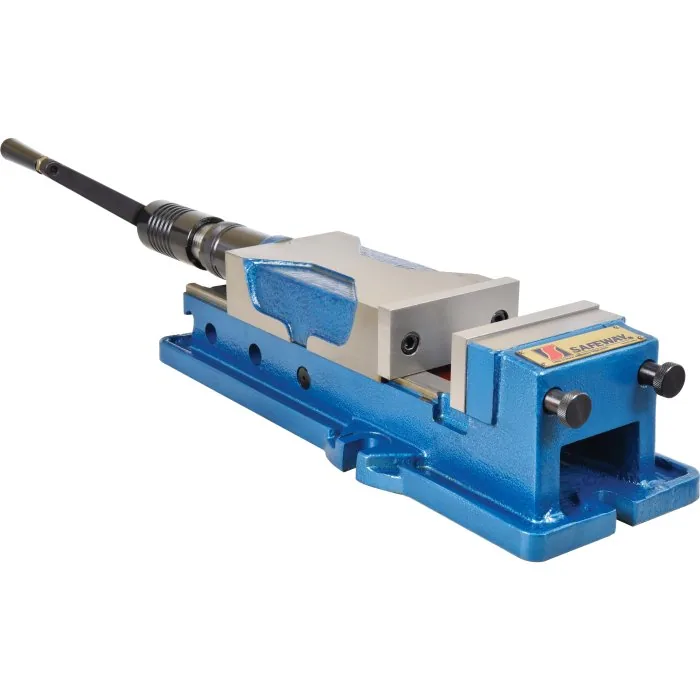

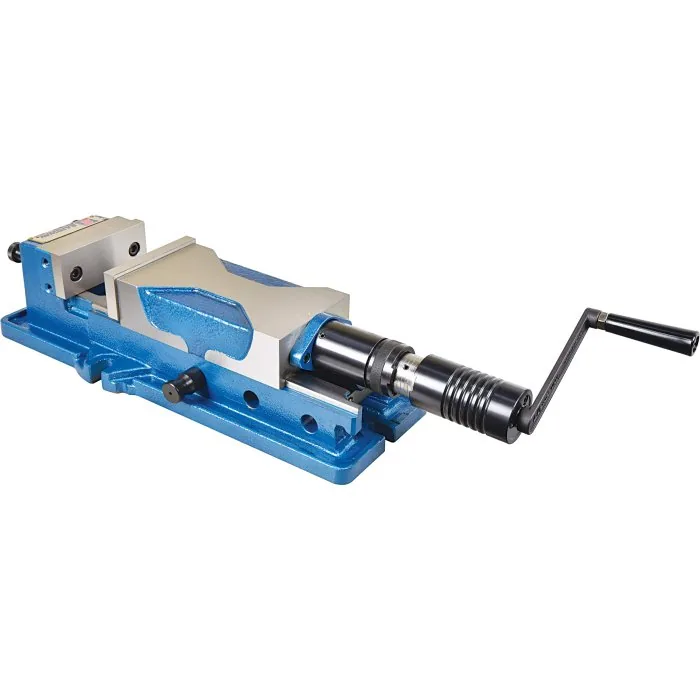

Safeway Mechanical/Hydraulic Machine Vice — PHV-160, 160mm Jaw Width 310mm Jaw Opening
Part No: V332 | Barcode: 9344195013560 | Model: PHV-160
SAFEWAY PHV-160 Safeway Mechanical/Hydraulic Machine Vice (160mm Jaw Width 310mm Jaw Opening). 160mm MECHANICAL/HYDRAULIC MACHINE VICE:Precision manufactured from rigid material – Ductile iron FCD60JIS (equal to GGG60) with 60kg/mm2 or 80,000 psi tensile strength. ;All Safeway vices are precision ground and the…
Model PHV-160
160mm Jaw Width
310mm Jaw Opening
Max. – Jaw Opening: 310 mm
Max. Pressure: 4000 kgf
Key Features & Benefits

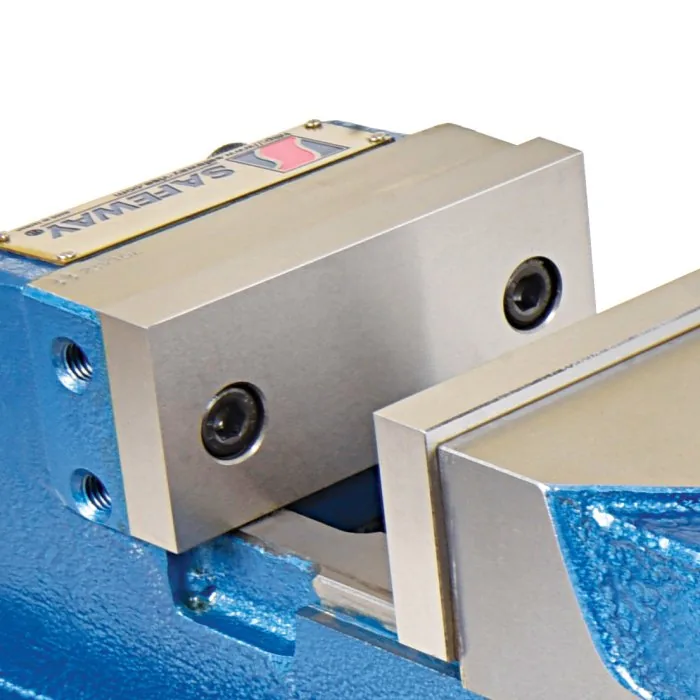

- Flame-hardened to HRC 45 to take up wear and maintain accuracy
- The semi-sphere segment eliminates movable jaw lifting and creates a down force of 1kg for every 2kg of clamping force, preventing the work piece from tilting

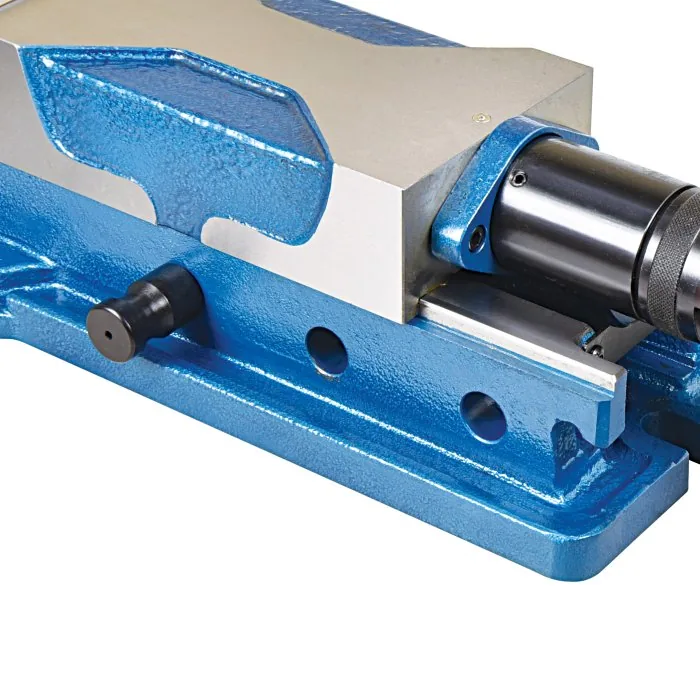

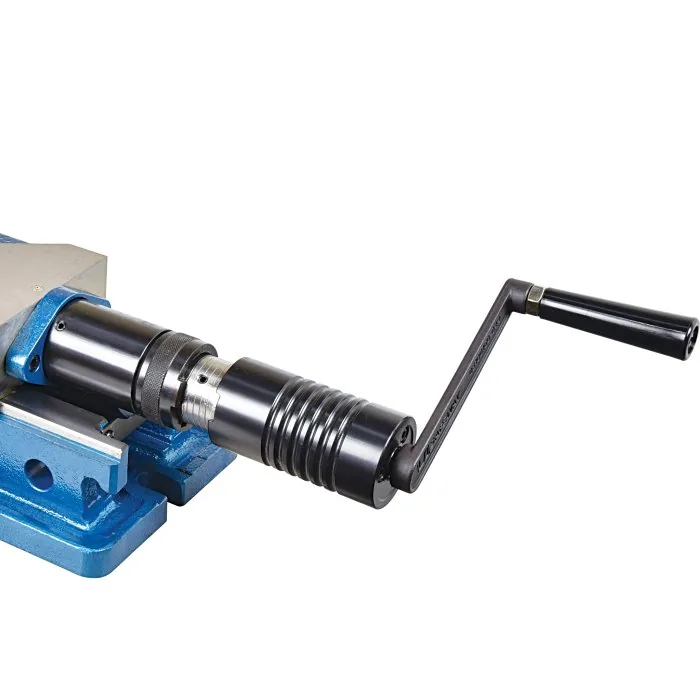

- The hydraulic cylinder is mounted externally for easy maintenance

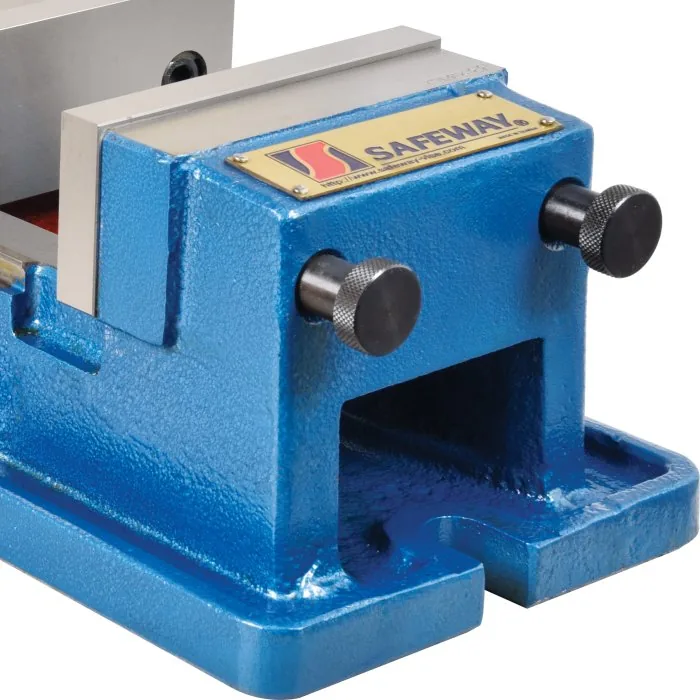

- Large clamping range through screw adjustment and 3 pin positions in the base.
- The vise can be used in either a mechanical mode or in a hydraulic mode
About This Product
160mm MECHANICAL/HYDRAULIC MACHINE VICE:Precision manufactured from rigid material – Ductile iron FCD60JIS (equal to GGG60) with 60kg/mm2 or 80,000 psi tensile strength. ;All Safeway vices are precision ground and the surfaces set to the tolerances set out below. This allows these vices to be used in pairs and multiple configurations. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code V332) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| C – Jaw Width (mm) | 160 |
| Max. – Jaw Opening (mm) | 310 |
| F – Jaw Height (mm) | 58 |
| Max. Pressure (kgf) | 4000 |
| A (mm) | 625 |
| B (mm) | 240 |
| D (mm) | 205 |
| E (mm) | 140 |
| G (mm) | 82 |
| H (mm) | 179 |
| I (mm) | 39 |
| J (mm) | 105 |
| K (mm) | 340 |
| L (mm) | 125 |
| M (mm) | 208 |
| N (mm) | 300 |
| O (mm) | 196 |
| P (mm) | 750 |
| Q (mm) | 640 |
| X (mm) | 18 |
| Keyway (W) (mm) | 16 |
| Nett Weight (kg) | 57 |
