Description
SAFEWAY

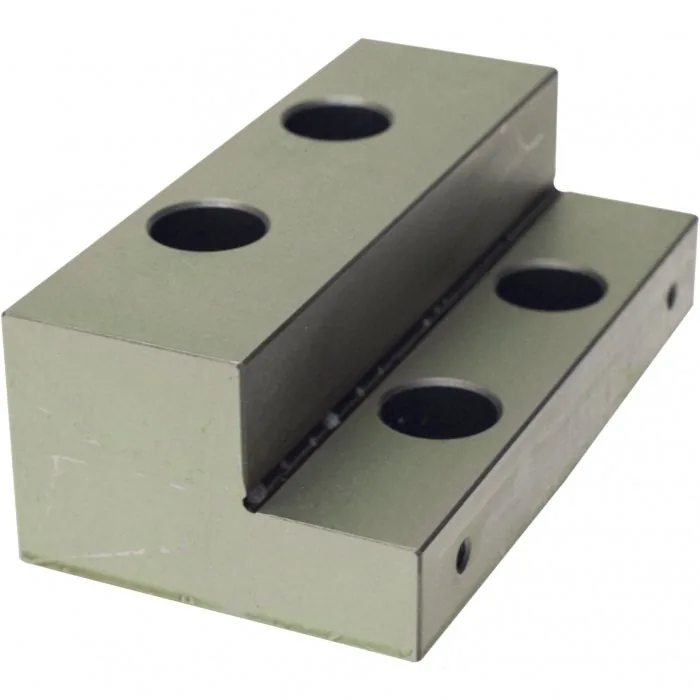

Safeway Stepped Moveable Hardened Jaw – 160mm — MD-160A, #10930160
Part No: V3562 | Barcode: 9344195014055 | Model: MD-160A
SAFEWAY MD-160A Safeway Stepped Moveable Hardened Jaw – 160mm (#10930160). Additional stepped stationary jaw designed to be used when thin work is to be held.
Model MD-160A
#10930160
Key Features & Benefits
- Hardened and Ground to HRC52º-55º
- Easy to change
About This Product
Additional stepped stationary jaw designed to be used when thin work is to be held. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code V3562) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Type | Step Jaw – Moveable |
| A (mm) | 160 |
| B (mm) | 86 |
| C (mm) | 55 |
| D (mm) | 60 |
| E (mm) | 50 |
| F (mm) | 18 |
| G (mm) | 8.5 |
| H (mm) | 28 |
| J (mm) | 29 |
| K (mm) | M14 x 65 Long |
| L (mm) | 35 |
| M (mm) | 30 |
| N (mm) | M14 x 30 Long |
| Nett Weight (kg) | 4.2 |
