STRONG HAND TOOLS

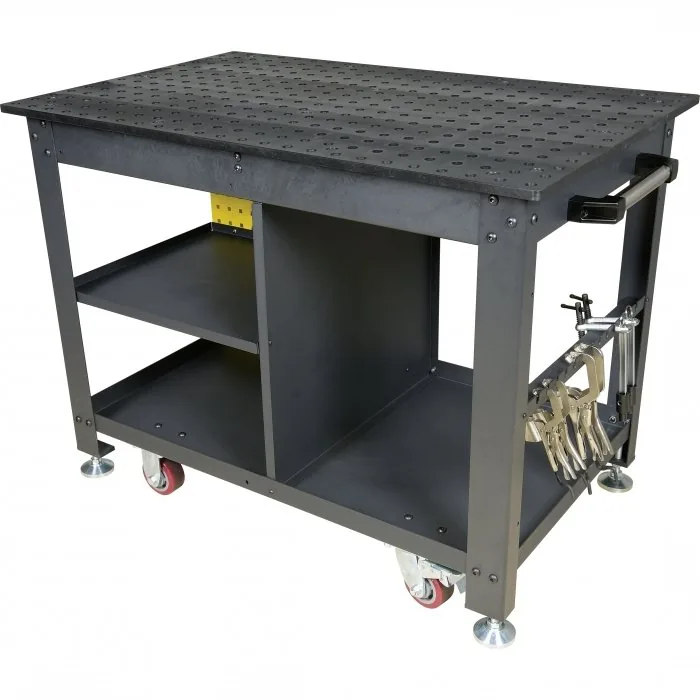

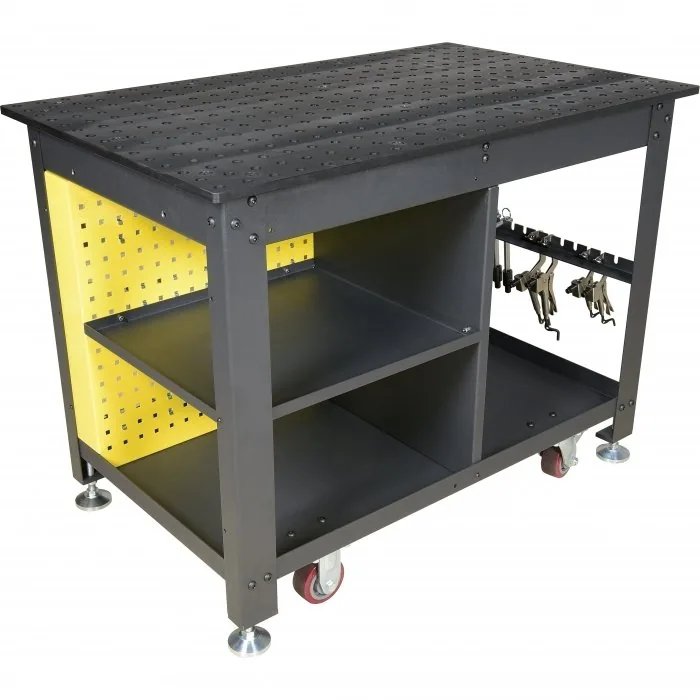

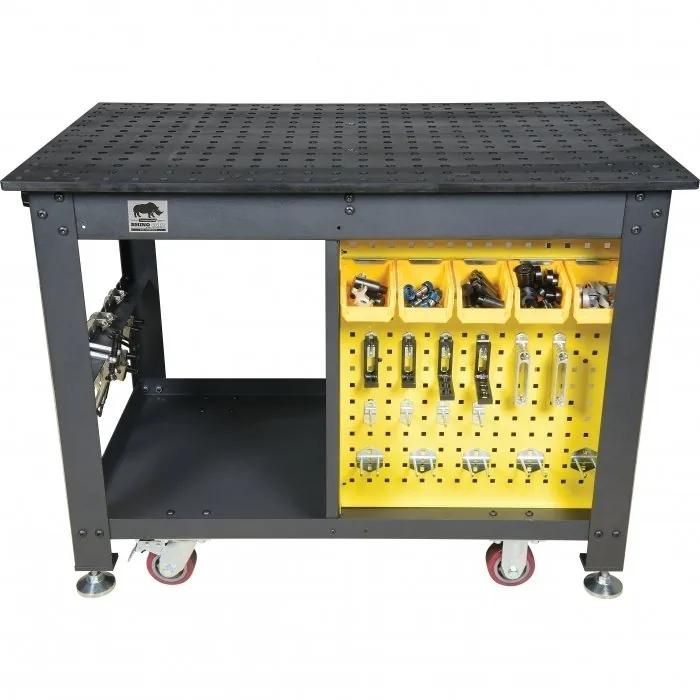

66 Piece – Rhino Cart Mobile Fixturing Station — TDQ612075, 1200 x 750 x 910mm (LxWxH) Ø16mm Holes
Part No: W07705 | Barcode: 9344195180521 | Model: TDQ612075
STRONG HAND TOOLS TDQ612075 66 Piece – Rhino Cart Mobile Fixturing Station (1200 x 750 x 910mm (LxWxH) Ø16mm Holes). The Rhino Cart Mobile Fixturing Station is a turnkey system for fixturing and clamping in welding and fabrication. Clamp and fixture at any point on the reversible, flat, nitrided (heat treated) 1200…
Model TDQ612075
1200 x 750 x 910mm (LxWxH)
Ø16mm Holes
Static Load Capacity: 700 kg
Key Features & Benefits

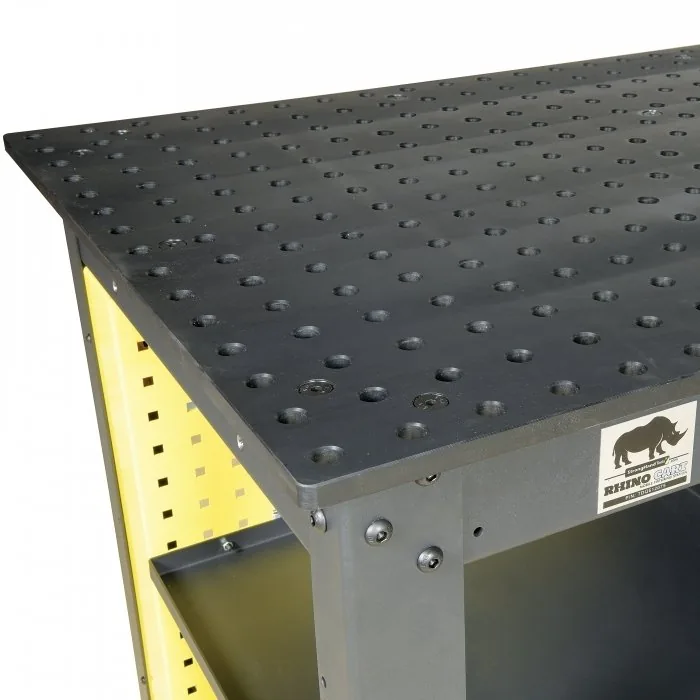

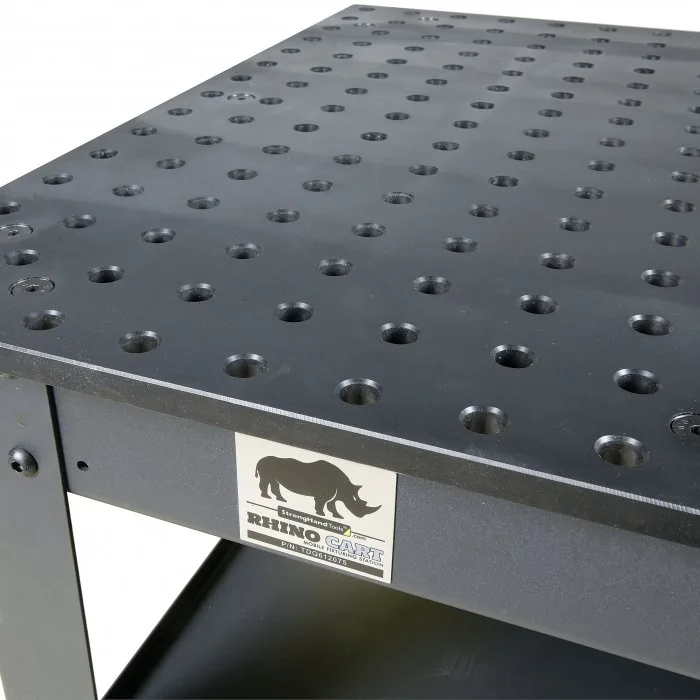

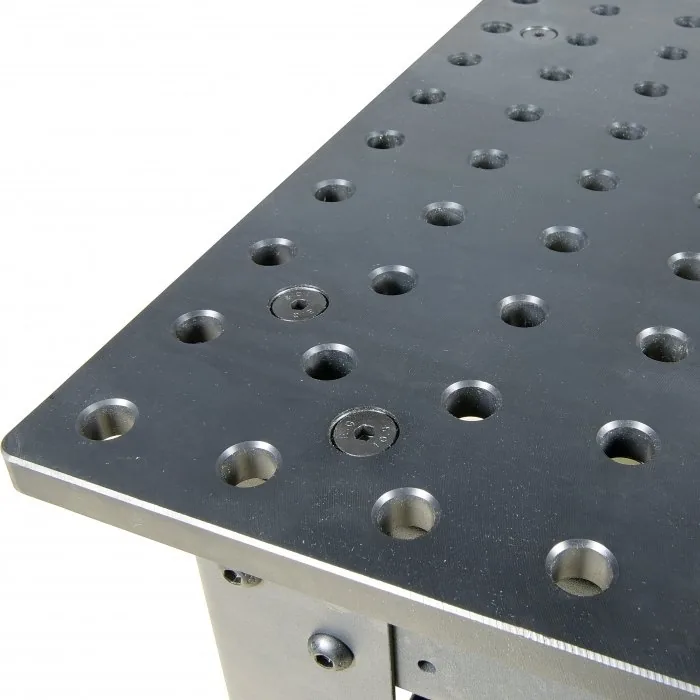

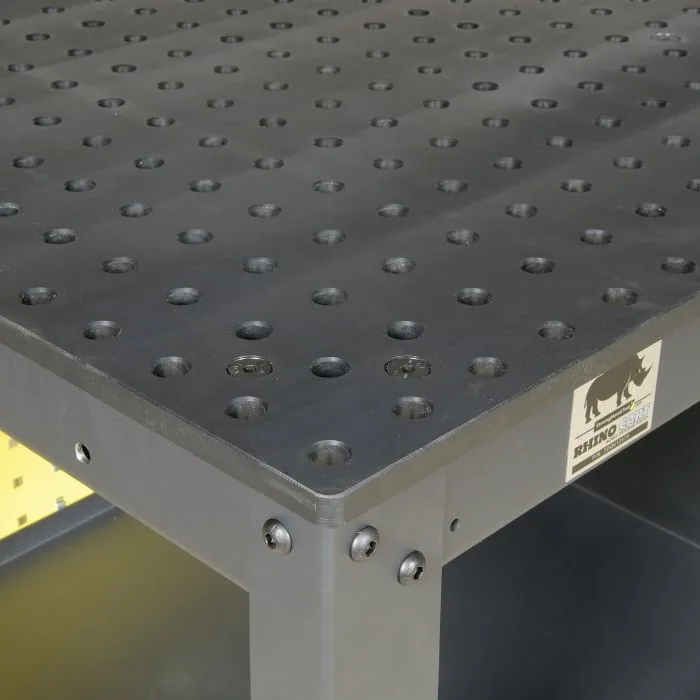

- Tabletop Life: Nitrided and black oxide table plate is reversible. Weld spatter, rust and scratch resistant.
- Tabletop Size: 1200 x 750mm
- Tabletop Thickness: 16mm

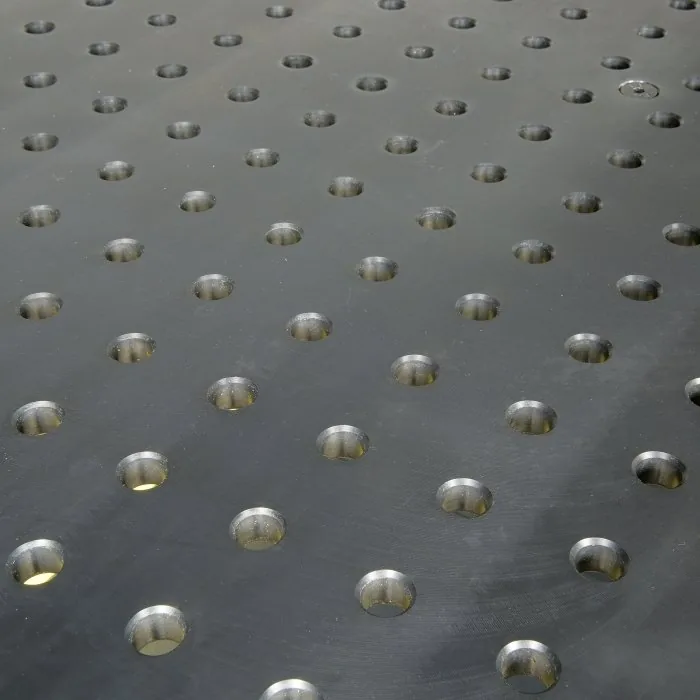

- Hole Diameter: Ø16mm

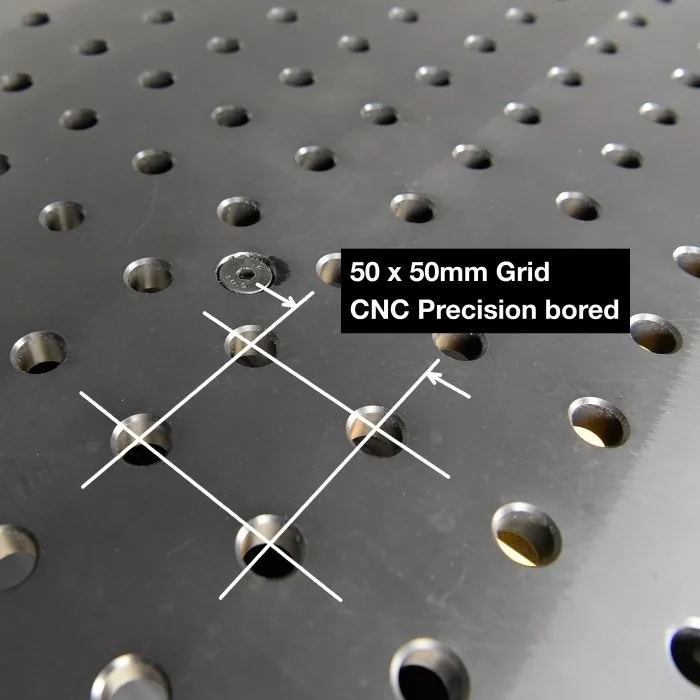

- Grid Pattern: 50 x 50mm
- Table Height: 910mm
- Static Loading Capacity: 700kg
- Package Net Weight: 195kg

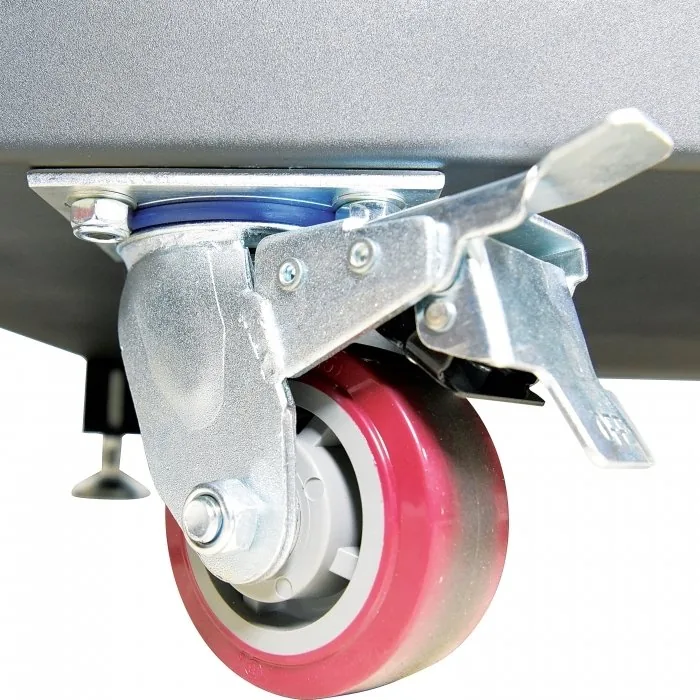

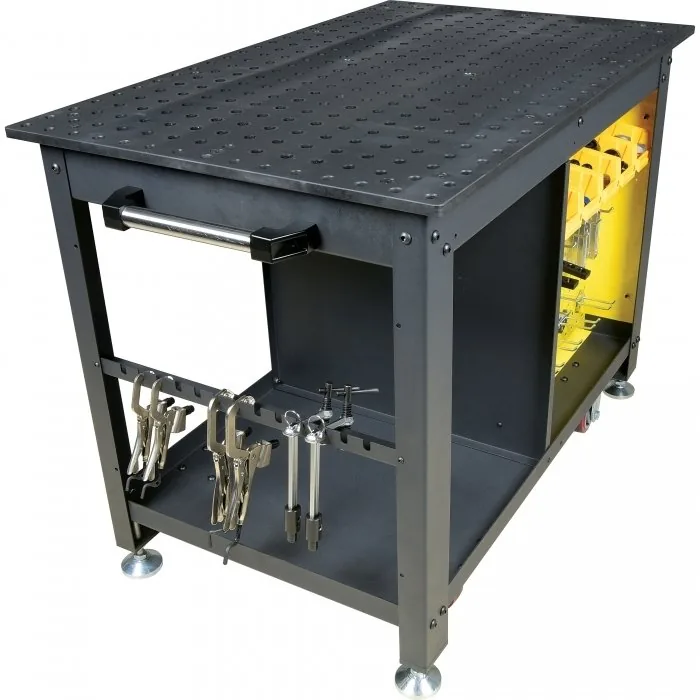

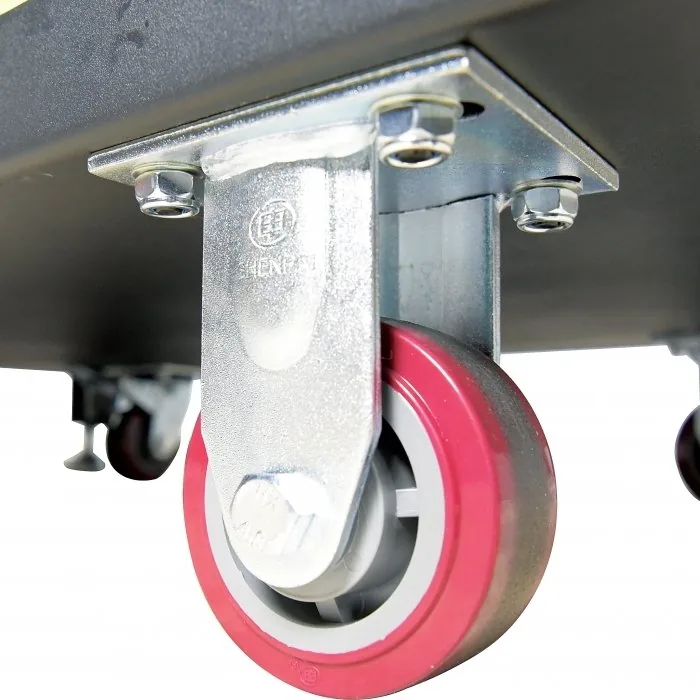

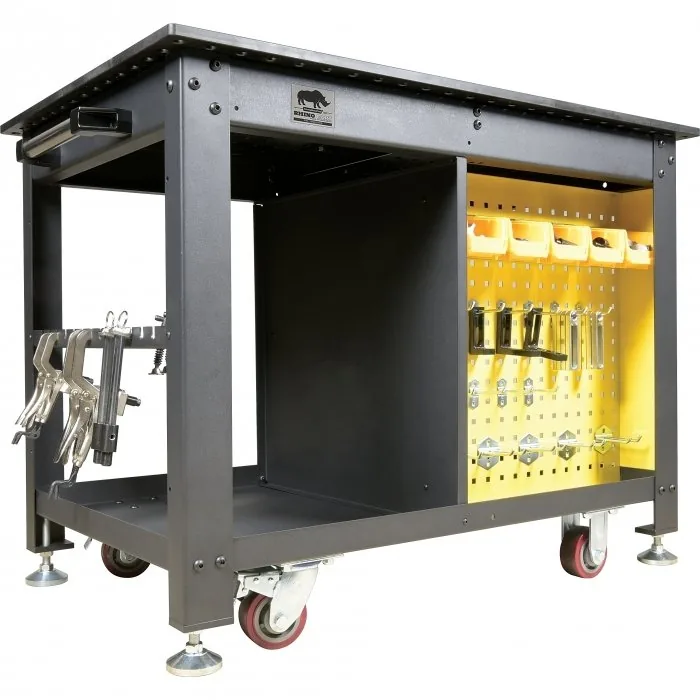

- 2 x fixed & 2 x swivel brake caster wheels

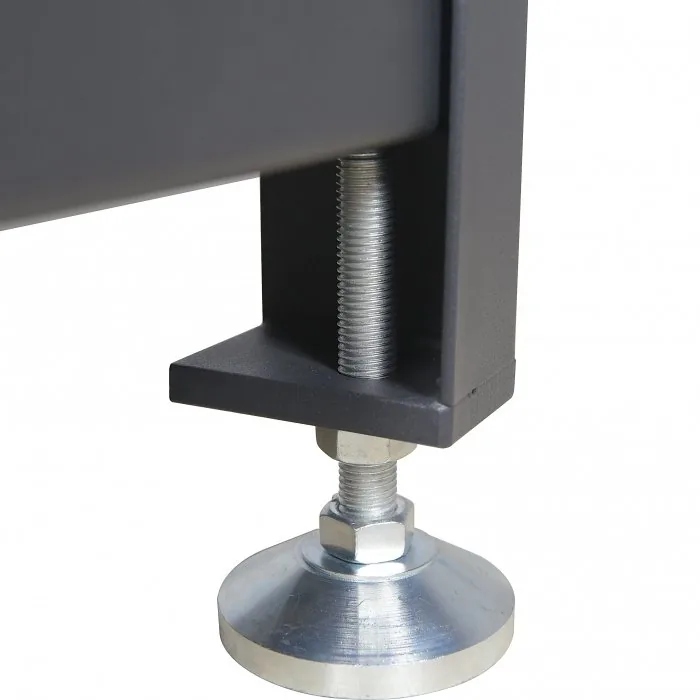

- Levelling feet for mobile or stationary use

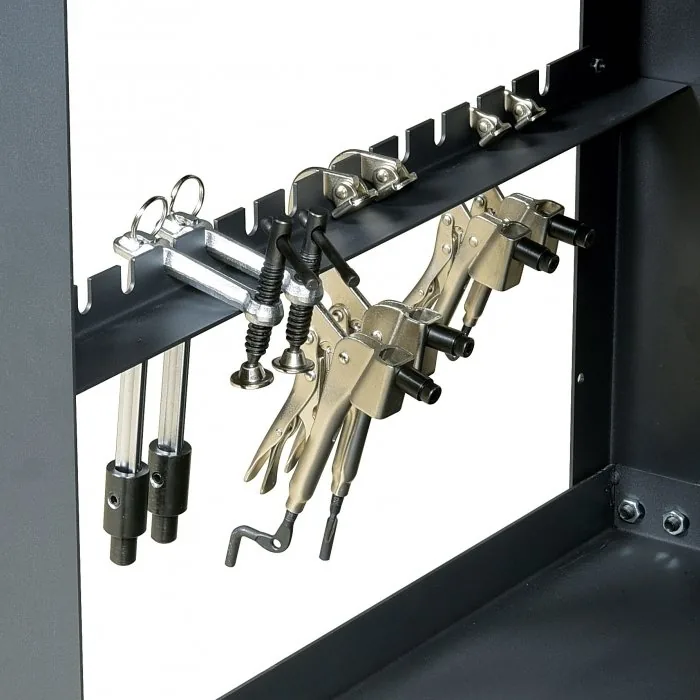

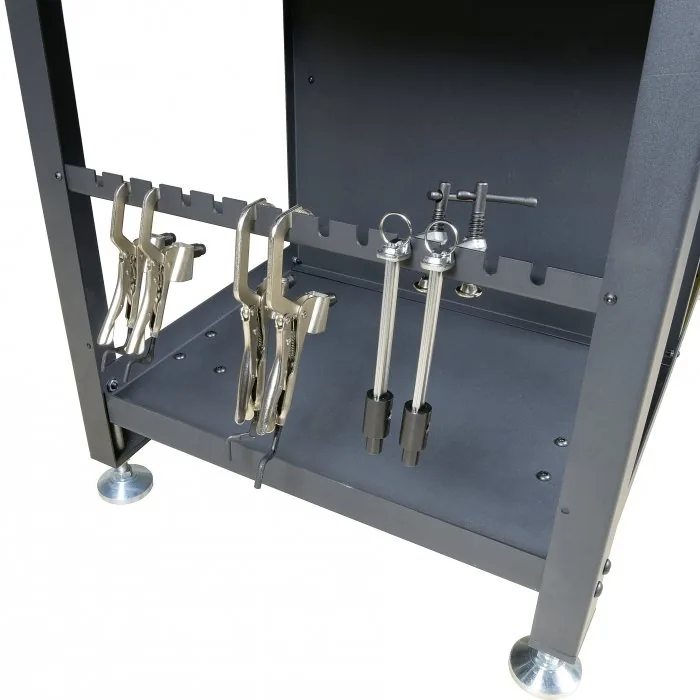

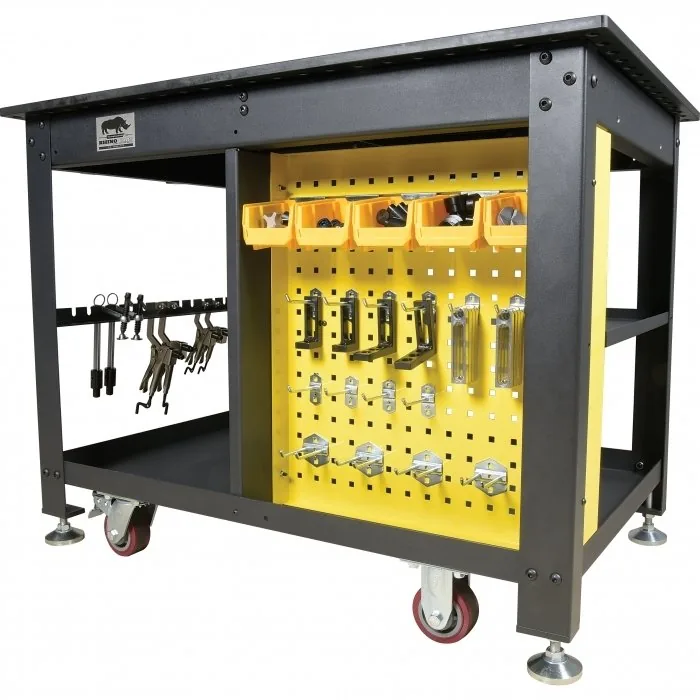

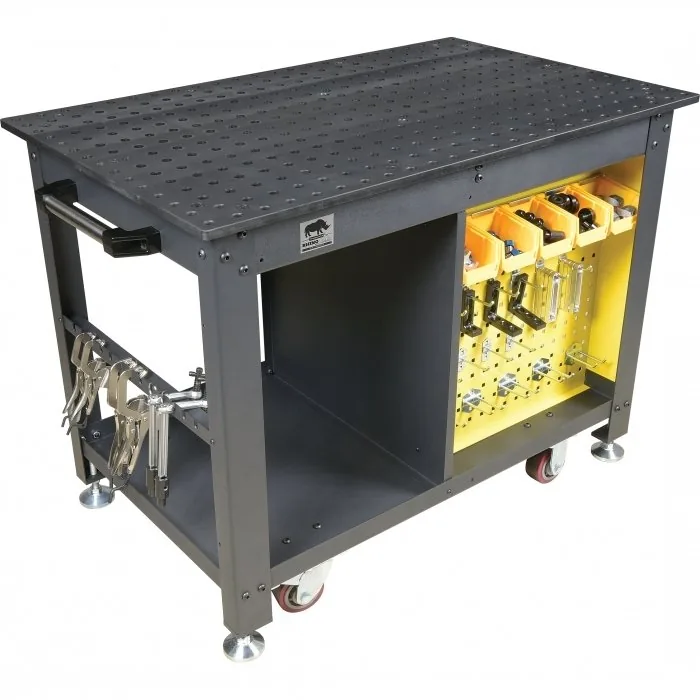

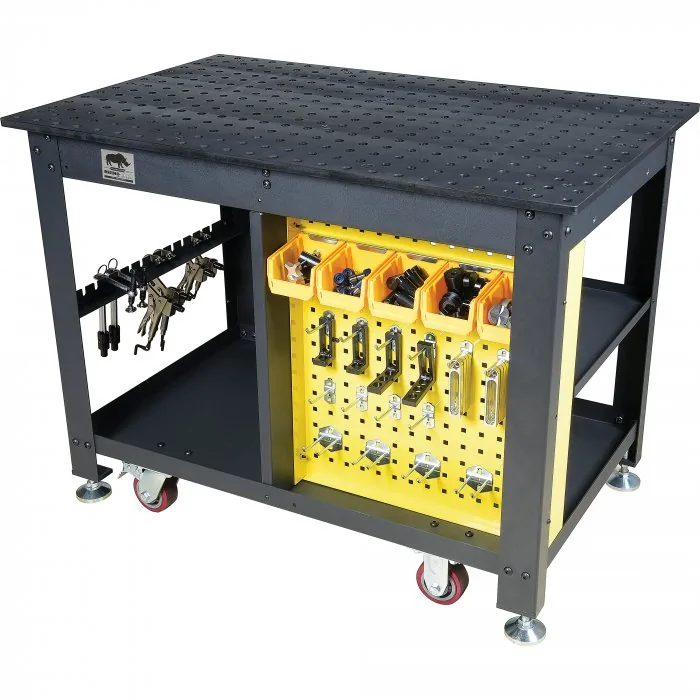

- Rhino shelves, racks and pegboard keep your fixing tools organised and within easy reach!
About This Product

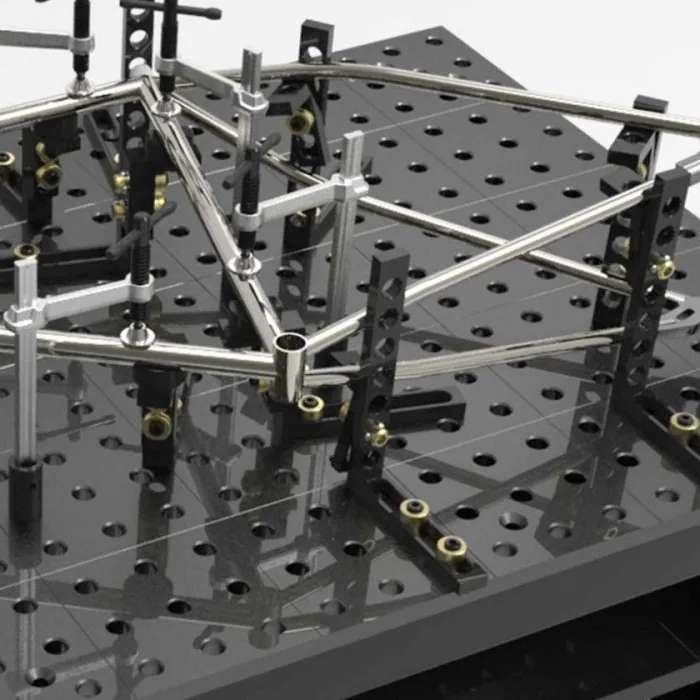

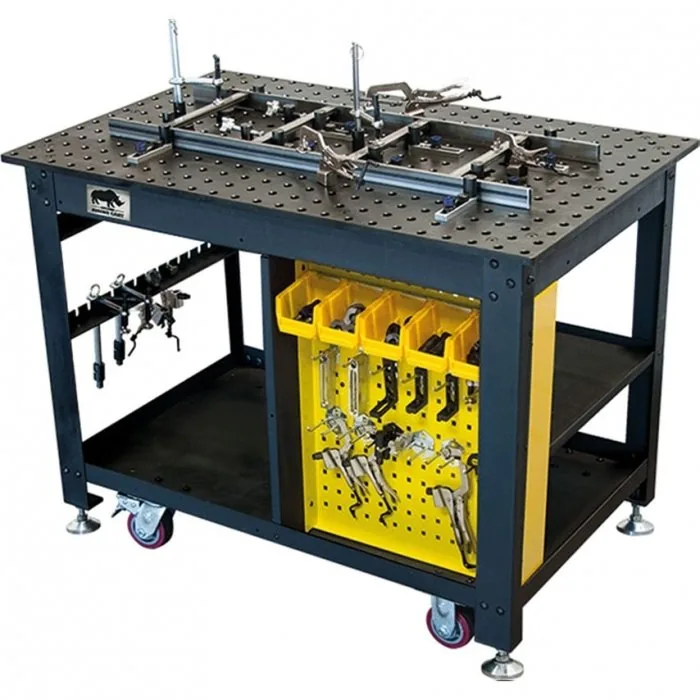

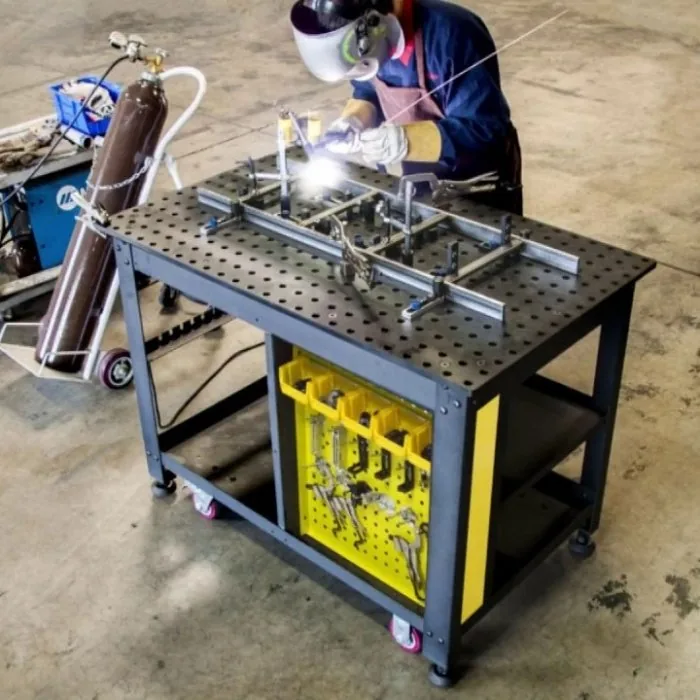

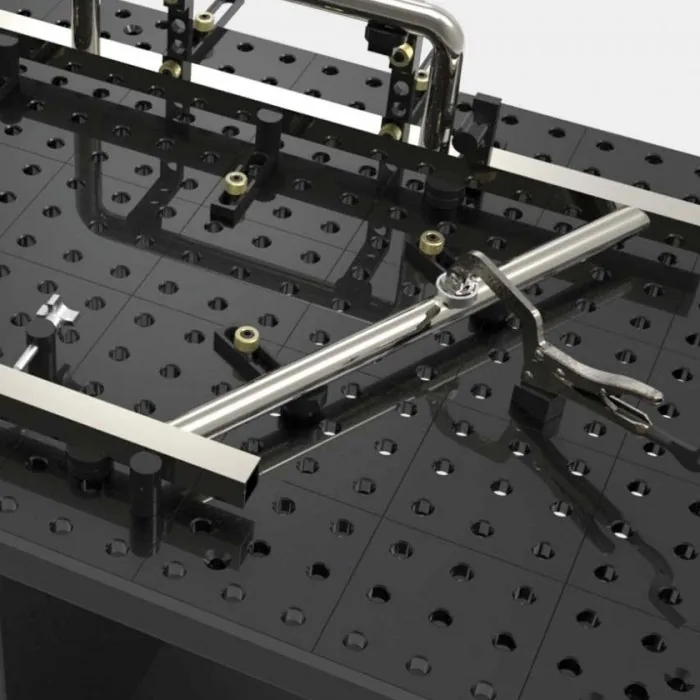

The Rhino Cart Mobile Fixturing Station is a turnkey system for fixturing and clamping in welding and fabrication. Clamp and fixture at any point on the reversible, flat, nitrided (heat treated) 1200 x 750mm tabletop for accuracy in all of your setups. Accurately fit-up and hold work pieces for tacking and welding with the Rhino Cart package, including: The Rhino Cart Welding Table + 66 piece Fixture Kit. Rhino Package Part No.: TDQ612075-K1 16mm thick steel plate reversible tabletop with nitrided black oxide protective finish for wear, rust and weld spatter resistance. Accurately position parts in CNC precision bored 16mm diameter holes in 50 x 50mm spacing pattern This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W07705) for collection in store.

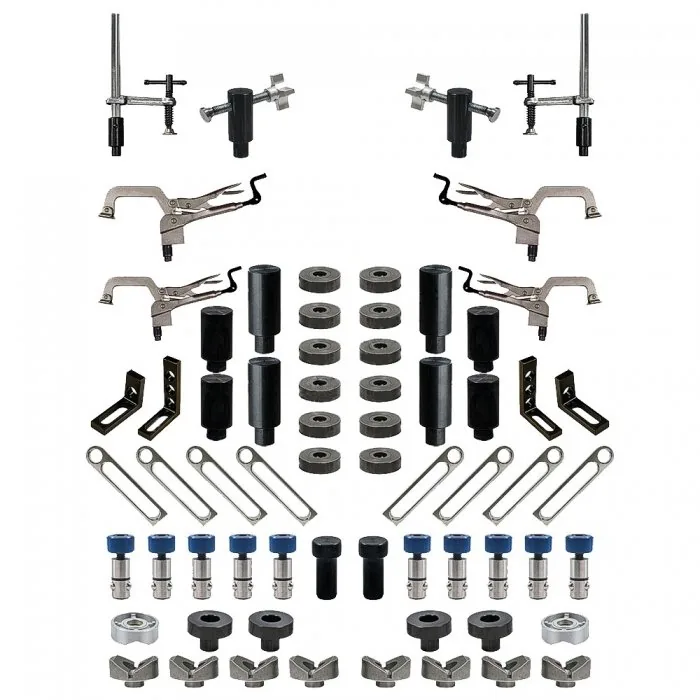

In the Box
- 1 x TDQ612075 – 1200 x 750 x 910mm Welding table cart

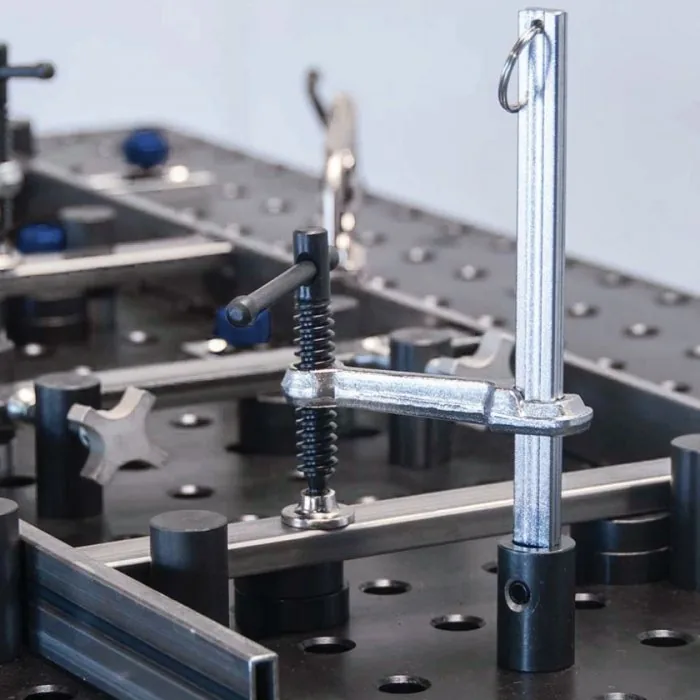

- 10 x T65055 – Ball lock bolt, adjustable range: 24 ~ 28mm
- 2 x T64201 – Ø16mm locating pin
- 2 x PT07K – Inserta pliers, 60mm opening, Max. 50mm reach
- 2 x PT09K – Inserta pliers, 85mm opening, Max. 75mm reach
- 2 x UDN6150 – Inserta clamp, 150mm opening, 83mm reach, 16 x 8mm (D Rail), T-handle
- 2 x T64217 – Magnetic top V pads for inserta pliers and inserta clamps
- 2 x TCX6210 – Side clamp, 38mm stroke
- 4 x T64203 – Stop, Ø25 x 38mm
- 4 x T64205 – Stop, Ø25 x 50mm
- 8 x T64216 – V-Block, Ø40 x 23mm
- 4 x T64211 – V-Block spacer, Ø40 x 27mm
- 8 x T60630 – D-Stop bar, 120 x 25 x 11.5mm
- 12 x T50737 – Magnetic rest button, Ø40 x 11.5mm
- 2 x T60304 – Right angle bracket, 41 x 91 x 30mm
- 2 x T60305 – Right angle bracket, 91 x 91 x 30mm

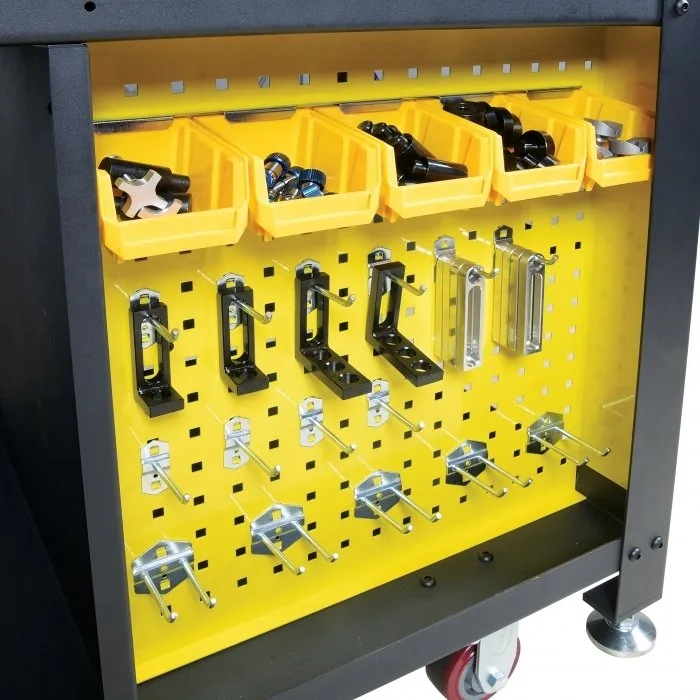

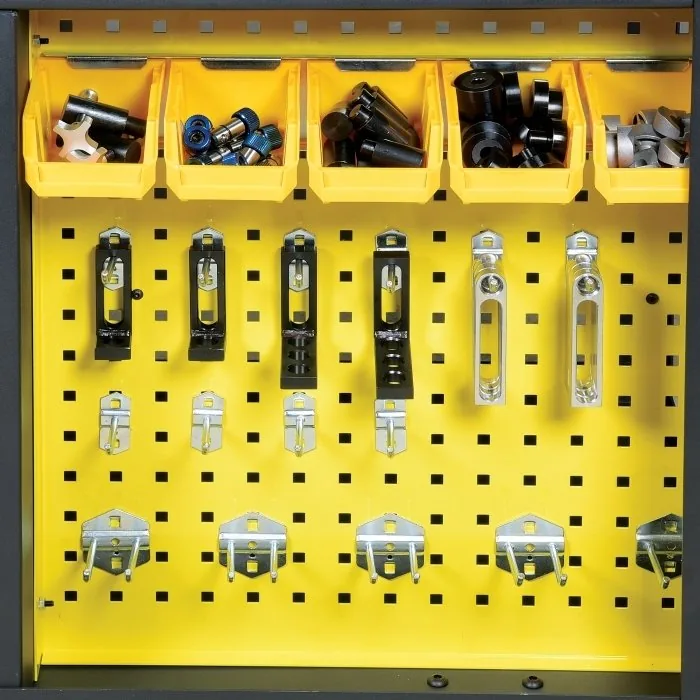

- 1 x Backing panel with square holes to suits hooks & holders
- 5 x Plastic buckets
- 1 x Bucket holder
- 10 x Single prong hooks
- 5 x Double prong hooks
Product Specifications
| Specification | Detail |
|---|---|
| Table Top Finish (Type) | Nitrided Black Oxide |
| Table Top Size (mm) | 1200 x 750 |
| Table Height (mm) | 910 |
| Top Plate Thickness (mm) | 16 |
| Grid Pattern (mm) | 50 x 50 |
| Table Hole Diameter (Ø) | 16 |
| Static Load Capacity (kg) | 700 |
| Nett Weight (kg) | 195 |
