Description
METALMASTER

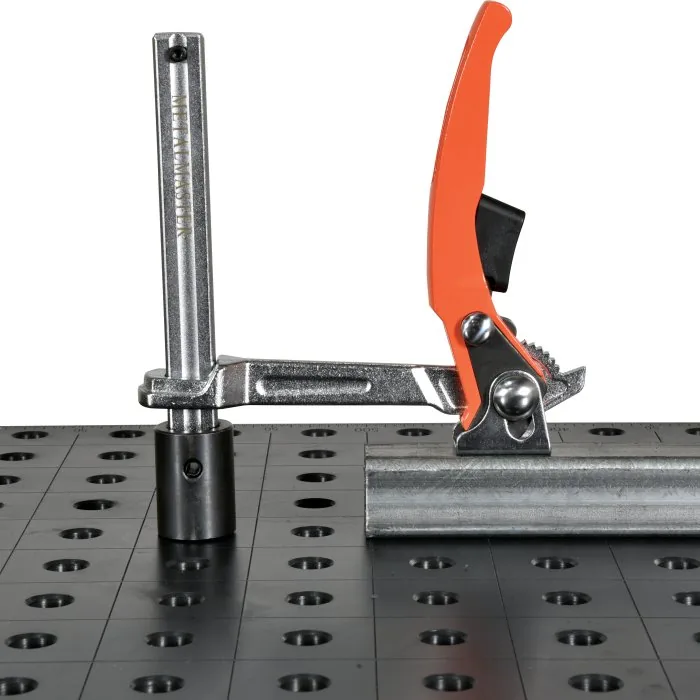

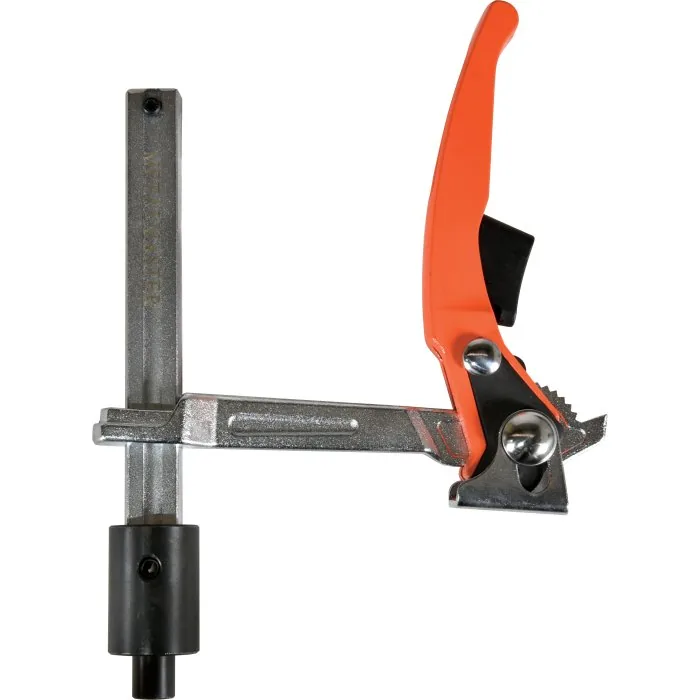

Ratchet Welding Table Clamp — WT16-C1220R, 120mm Throat Depth, 200mm Height Opening Suits Ø16mm Welding Tables Holes
Part No: W07834 | Barcode: 9344195306686 | Model: WT16-C1220R
METALMASTER WT16-C1220R Ratchet Welding Table Clamp (120mm Throat Depth, 200mm Height Opening Suits Ø16mm Welding Tables Holes). Designed to simply insert into any 16mm welding table holes with the added efficiency gained by the quick action ratchet action handle. The 120mm throat & 200mm clamping height capacity…
Model WT16-C1220R
Suits Ø16mm Welding Tables Holes
Throat Depth: 120 mm
Key Features & Benefits
- Forged clamp arm
- Ratchet handle
- 120mm throat depth
- 200mm clamp height opening
- Suits welding tables with Ø16mm holes
About This Product
Designed to simply insert into any 16mm welding table holes with the added efficiency gained by the quick action ratchet action handle. The 120mm throat & 200mm clamping height capacity it provides a compact & easy to use clamping solution. Use in conjunction with our optional magnetic V-Pads on the clamp pad to aid in clamping of round material. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W07834) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Mount Type | Ø16mm Spigot |
| Suits Table Hole Size (Ø) | 16mm |
| Throat Depth (mm) | 120 |
| Clamp Height Opening (mm) | 200 |
| Quantity Per Pack (No.) | 1 |
| Nett Weight (kg) | 1.2 |
