Description
HAFCO-METALMASTER

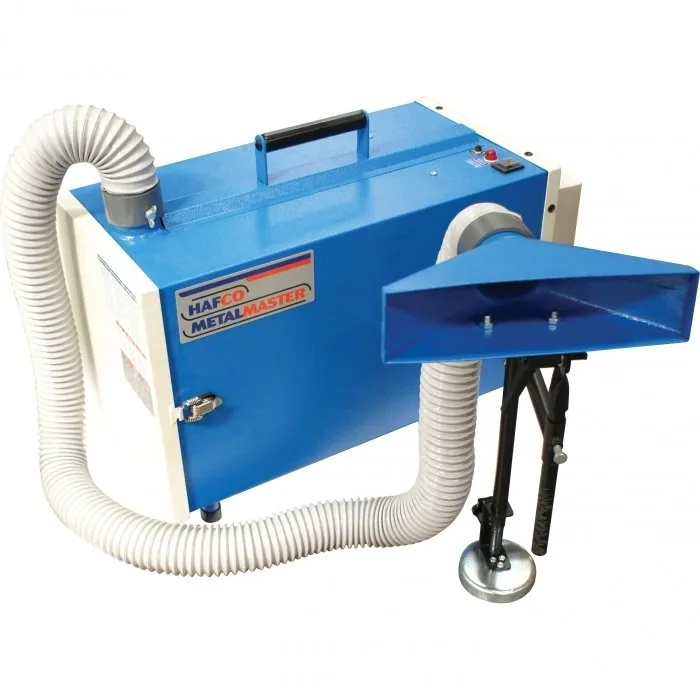

Welding Fume Extractor — WE-100, Captures up to 99.97% of 0.3 Micron Noxious Fumes
Part No: W270 | Barcode: 9344195010828 | Model: WE-100
HAFCO-METALMASTER WE-100 Welding Fume Extractor (Captures up to 99.97% of 0.3 Micron Noxious Fumes). Ideal for extracting harmful welding fumes
Model WE-100
Voltage / Amperage: 240 / 10
Motor Power: 800 x 2 kW
Key Features & Benefits
- Portable and light weight design
- 390 m3/hour
- 2 x 800W 240V motor, 2 speeds
- 5 layers of filters
- Captures up to 99.97% of 0.3 micron noxious fumes
- Includes 3 metre x 2-1/2″ hose and magnetic base hood with arm support
About This Product
Ideal for extracting harmful welding fumes This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W270) for collection in store.
In the Box

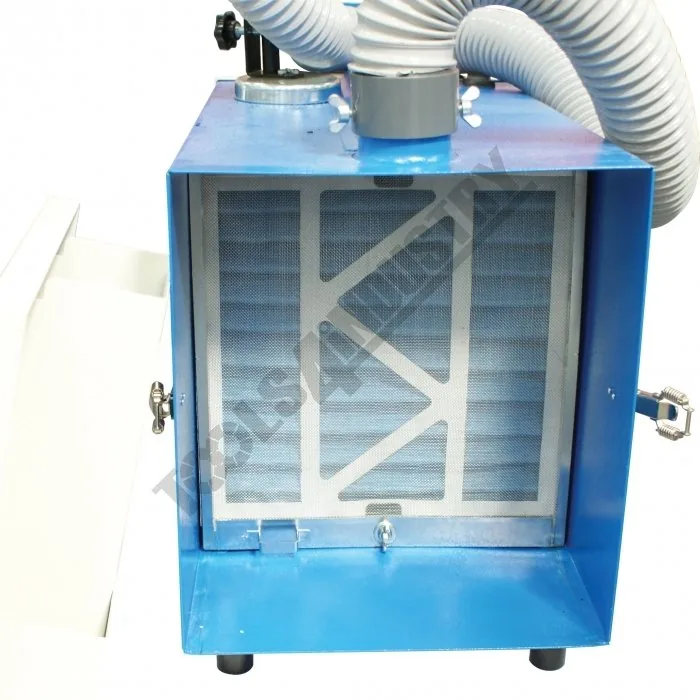

- Stage 1. Air enters from the extraction hood & passes through five layer of high efficiency filters
- Stage 2. The air passes through the first stainless steel layer net, which captures 95% of the sparks and steel chips
- Stage 3. Air then enters the 35% & 85% pre-filter for screening small particles and absorbs the oil
- Stage 4. The pleated filter captures up to 85% of the 1 micron particles & fine dust
- Stage 5. Finally the pleated HEPA filter cleans noxious fumes and captures up to 99.97% of the 0.3 micron particles.
Product Specifications
| Specification | Detail |
|---|---|
| Extraction Arm/Hose Length (Metre) | 3 |
| Extraction Arm Diameter (mm) | 63.5 |
| Voltage / Amperage (V / A) | 240 / 10 |
| Motor Power (kW) | 800 x 2 |
| Nett Weight (kg) | 28.4 |
