HAFCO-WOODMASTER

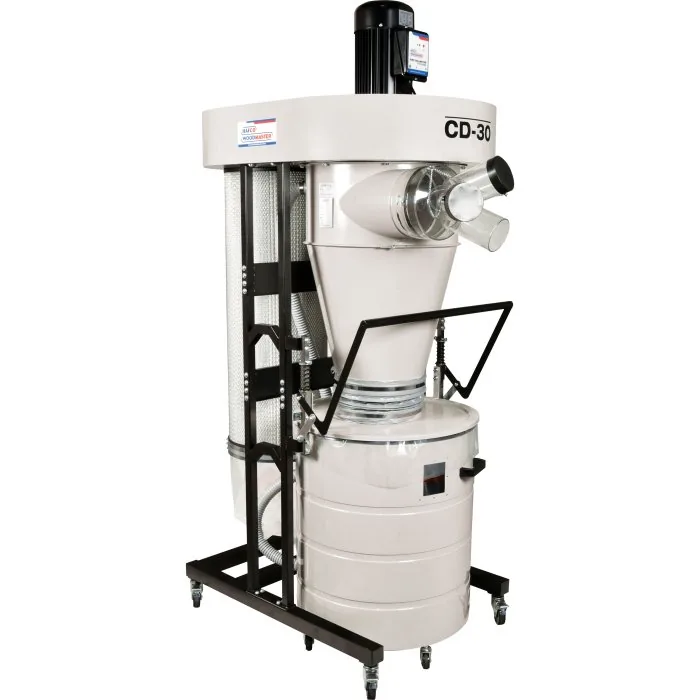

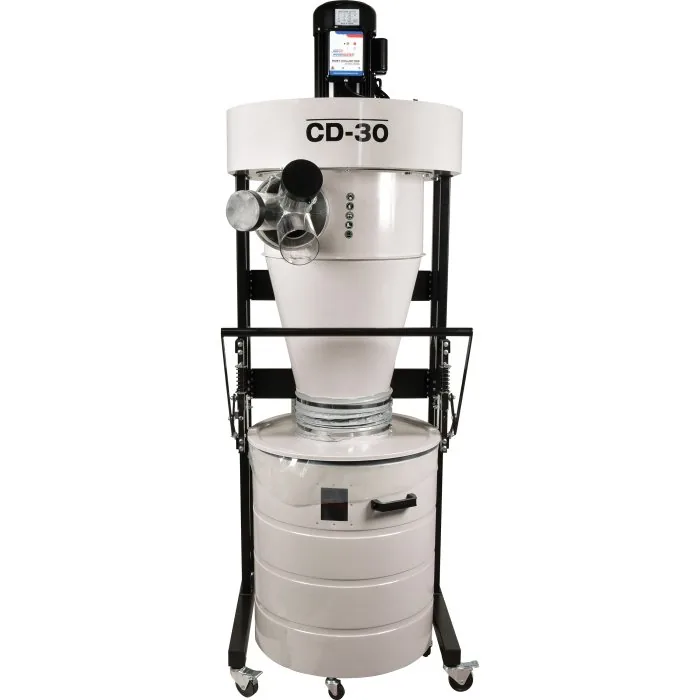

Cyclone Dust Collector — CD-30, 3HP Two-Stage 2204cfm
Part No: W320 | Barcode: 9344195317217 | Model: CD-30
HAFCO-WOODMASTER CD-30 Cyclone Dust Collector (3HP Two-Stage 2204cfm). The wood dust and shavings of LPHV extractor are sucked through by the impeller fan blade, the heavy wood chips fall straight below in the steel canister waste bin and the finer dust continues through the blade into the next section passing…
Model CD-30
3HP
Two-Stage 2204cfm
Airflow: 2204 CFM
Motor Power: 2.2 / 3
Voltage: 240 / 15
Key Features & Benefits
- Portable 2 stage 2204cfm cyclone dust collector on wheels

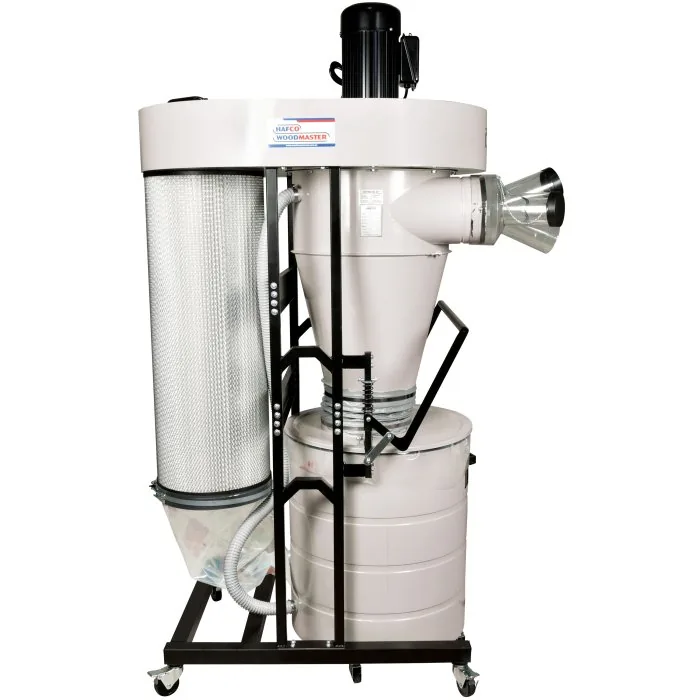

- Cyclone design to separate large particles before reaches filter
- 1 micron pleated fine filter cartridge
- 190 litre steel drum capacity
- Triple Ø100mm inlets

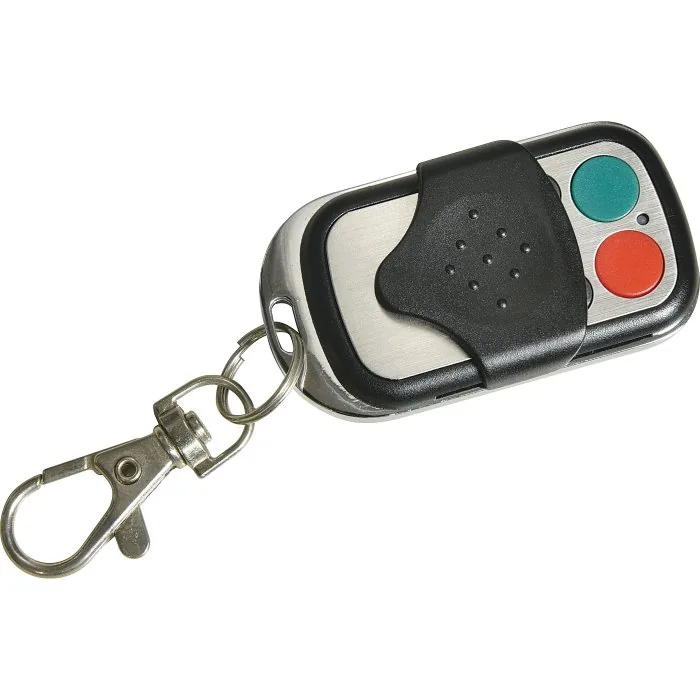

- Remote control start / stop function

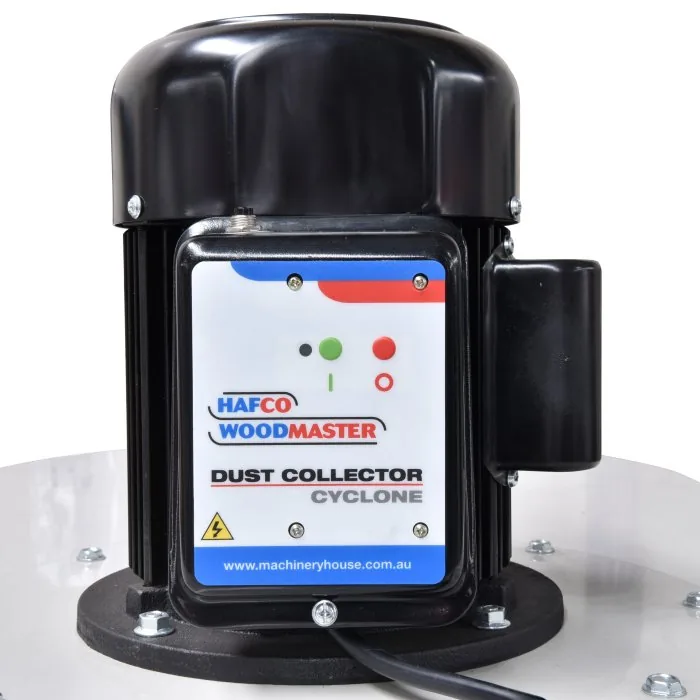

- 2.2kW / 3hp 240V motor
- Steel drum with caster wheels for easy dust disposal
- Built-in plastic bag holding system, fits in steel drum

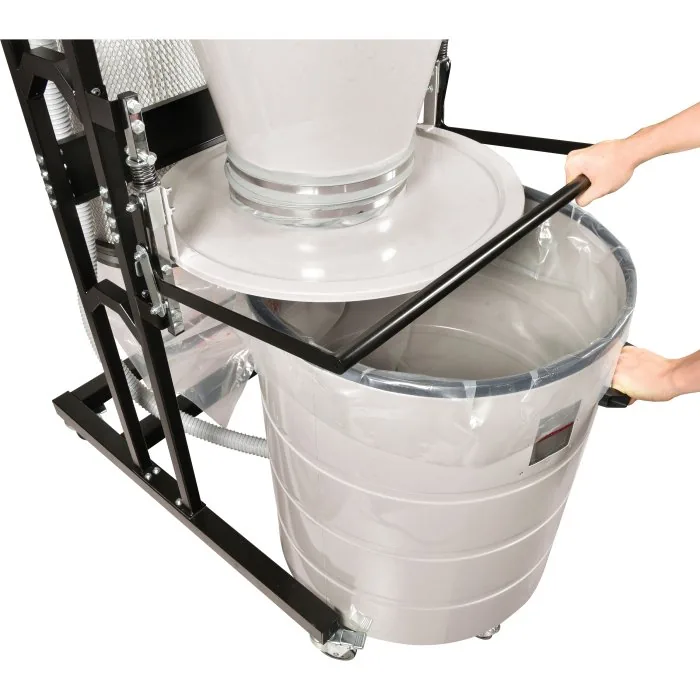

- Quick drum release lever for easy drum removal

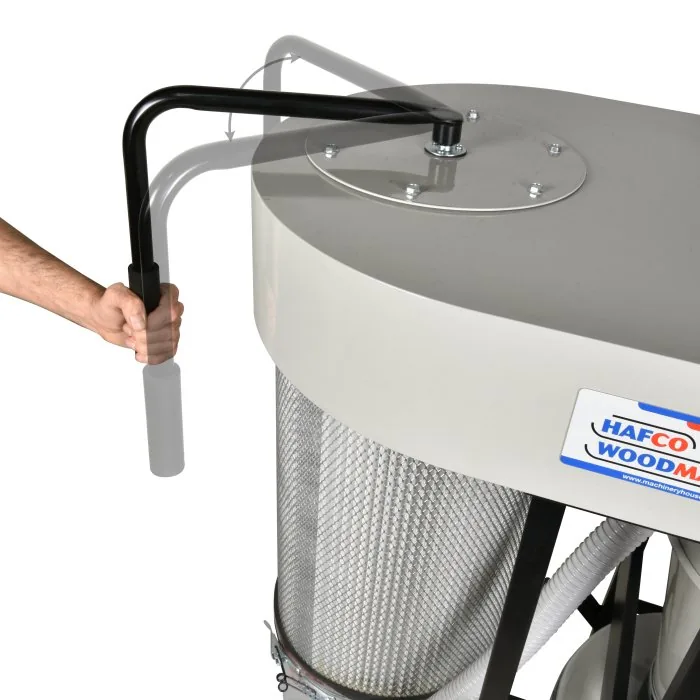

- Quick-action release clamp on dust collection bag
About This Product
The wood dust and shavings of LPHV extractor are sucked through by the impeller fan blade, the heavy wood chips fall straight below in the steel canister waste bin and the finer dust continues through the blade into the next section passing through a 1 micron filtration cartridge where the air is exhausted and then fine dust falls into the lower plastic collection bag. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing & separating bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W320) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Type | Dust Collector & Cyclone Separator |
| Airflow (CFM) | 2204 |
| LPHV – Low Pressure High Volume (Yes / No) | Yes |
| HPLV – High Pressure Low Volume (Yes / No) | No |
| Inlets / Diameter (No. / mm) | 3 x Ø100 |
| Motor Power (kW / hp) | 2.2 / 3 |
| Voltage (V / amp) | 240 / 15 |
| Nett Weight (kg) | 152 |
