HAFCO-WOODMASTER

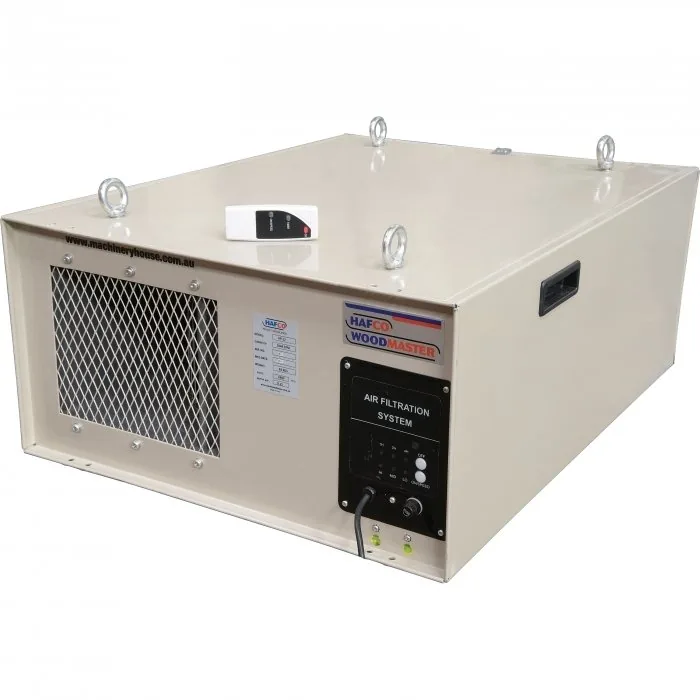

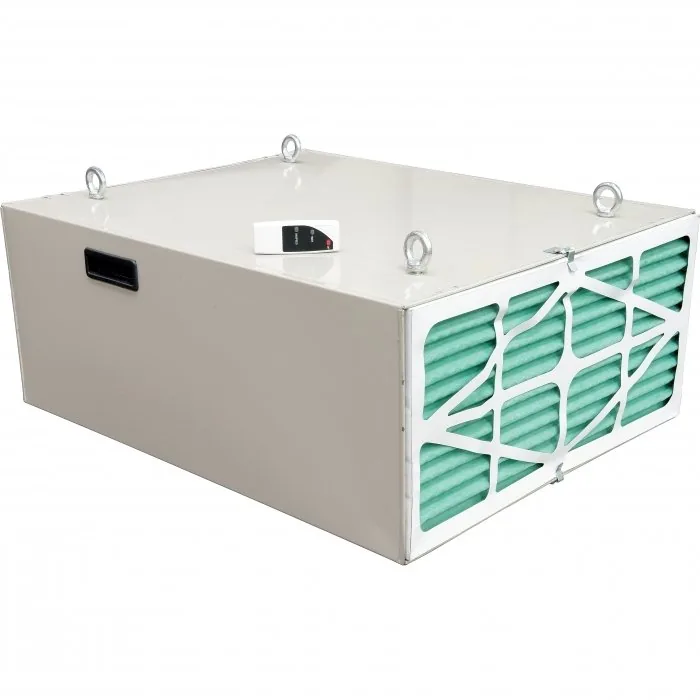

Two Stage Air Filtration Unit — AP-12, 1044cfm Air Flow Capacity 1 Micron Filtration System
Part No: W326 | Barcode: 9344195007996 | Model: AP-12
HAFCO-WOODMASTER AP-12 Two Stage Air Filtration Unit (1044cfm Air Flow Capacity 1 Micron Filtration System). With a 150W motor the AP-12 is great for home or lite industrial workshops. The air passes through a 2 stage filter system, with the pleated pre-filter firstly captures 98% of all particles at 5 microns in…
Model AP-12
1044cfm Air Flow Capacity
1 Micron Filtration System
Air Flow Capacity: 1044 CFM
Motor Power: 150 / 0.2
Voltage / Amperage: 240 / 10
Key Features & Benefits
- 1044cfm air flow capacity

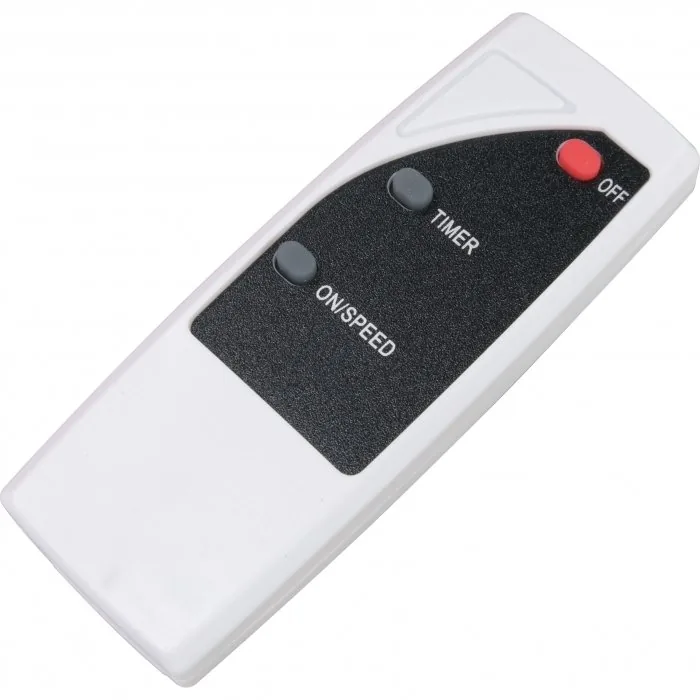

- Remote control ON/OFF
- Two stage air filter
- Filtering 98% of all particles 5 microns in size and 85% of all particles 1 micron in size
- Quiet running with 3 x motor speeds (High-1044CFM @ 69dB, Medium-702CFM @ 67dB, Low-556CFM @ 62dB)

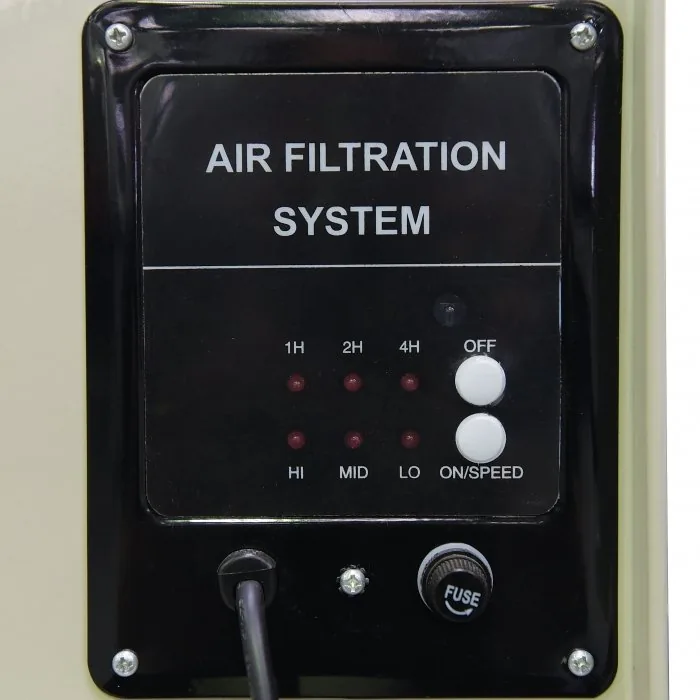

- 3 x timer settings (1Hr, 2Hr , 4Hr)

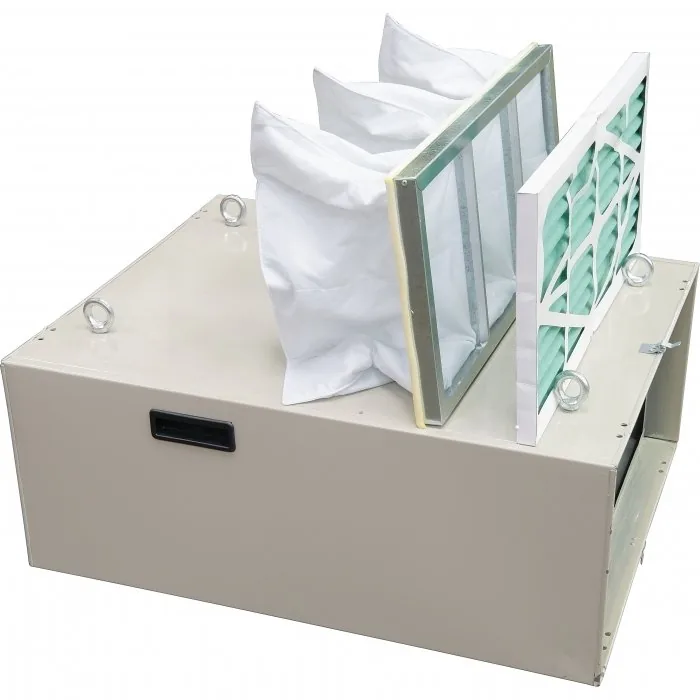

- Easy removal to clean filter element
- Designed for ceiling mount
About This Product

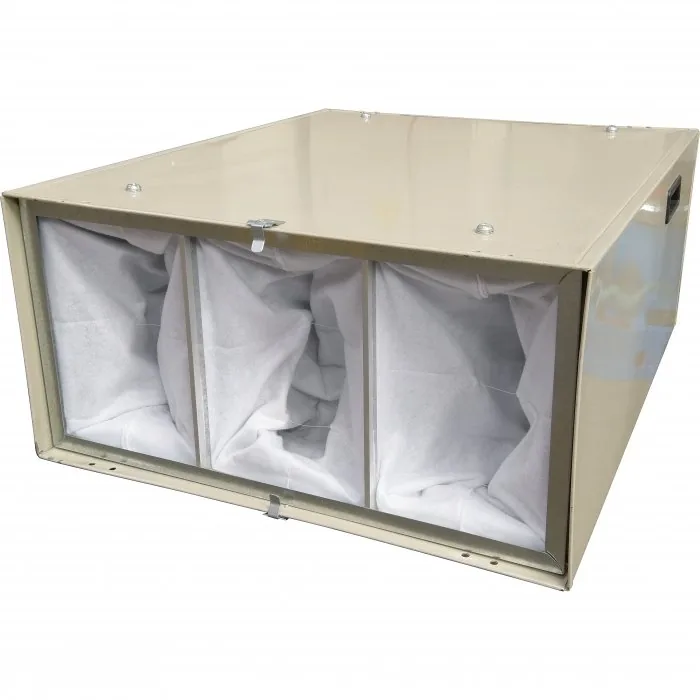

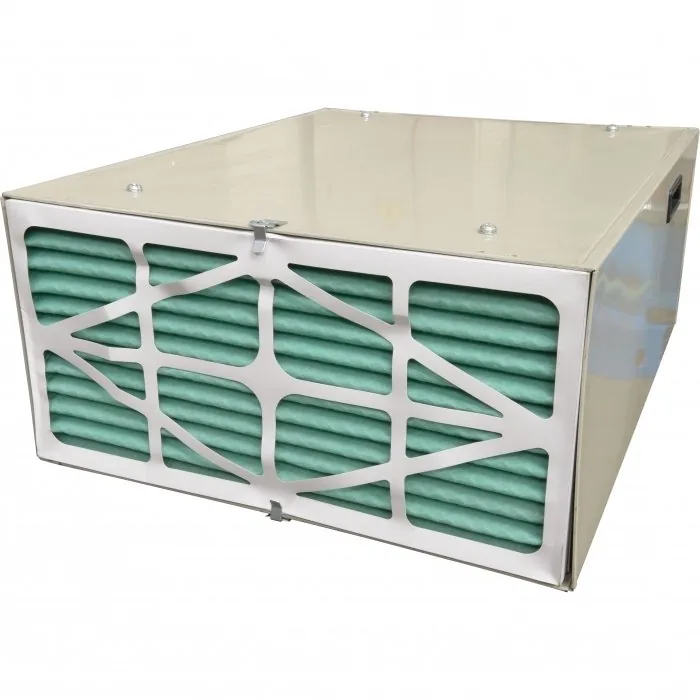

With a 150W motor the AP-12 is great for home or lite industrial workshops. The air passes through a 2 stage filter system, with the pleated pre-filter firstly captures 98% of all particles at 5 microns in size and 85% of all particles 1 micron in size when it passes through the second stage filter. The remote control unit has three settings for the motor speed (High-1044CFM @ 69dB, Medium-702CFM @ 67dB, Low-556CFM @ 62dB) and three different time settings of 1 hour, 2 hours and 4 hours, which can be used to clear the workshop after work has finished for the day. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W326) for collection in store.

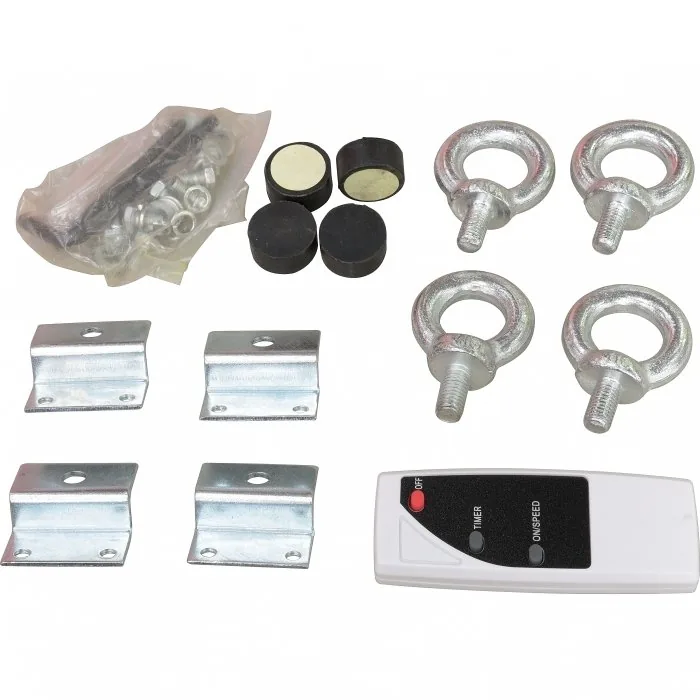

In the Box
- Flange brackets for wall or ceiling mounting

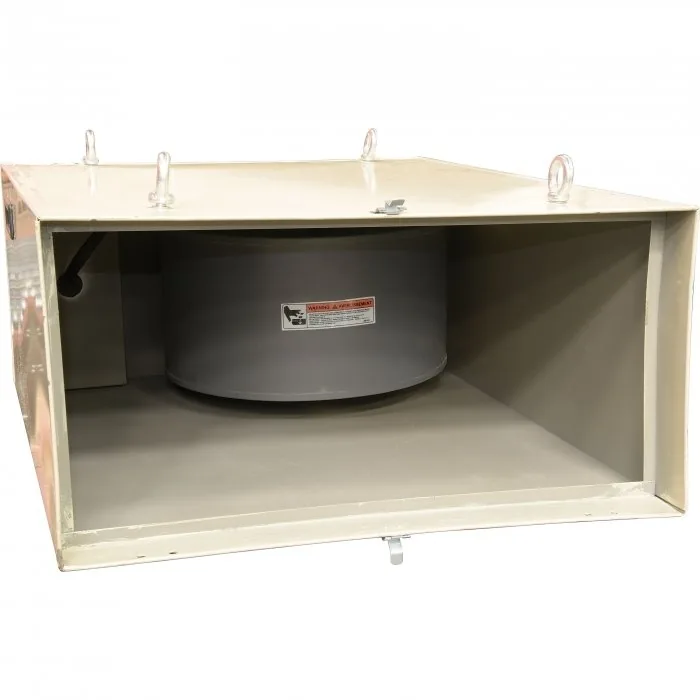

- Eye bolts for mounting to ceiling rafters
- Rubber feet for placing unit on workbench
Product Specifications
| Specification | Detail |
|---|---|
| Filtration Type | 2 Stage |
| Filtration Particle (Micron) | 1 |
| Air Flow Capacity (CFM) | 1044 |
| Noise Level (dB) | 62 69 |
| Room Volume Efficiency (m³) | 300 |
| Motor Power (W / hp) | 150 / 0.2 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Floor Space (W x D x H) (mm) | 610 x 770 x 350 |
| Nett Weight (kg) | 27 |
