HAFCO-WOODMASTER

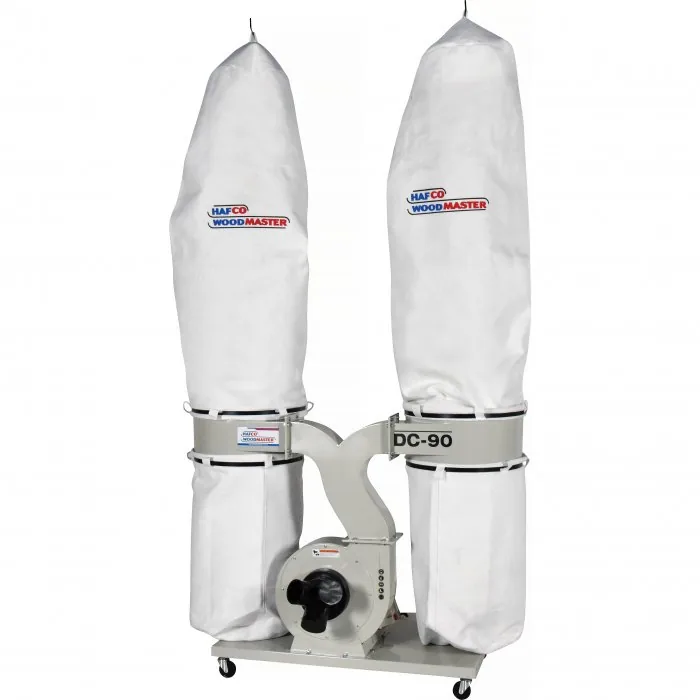

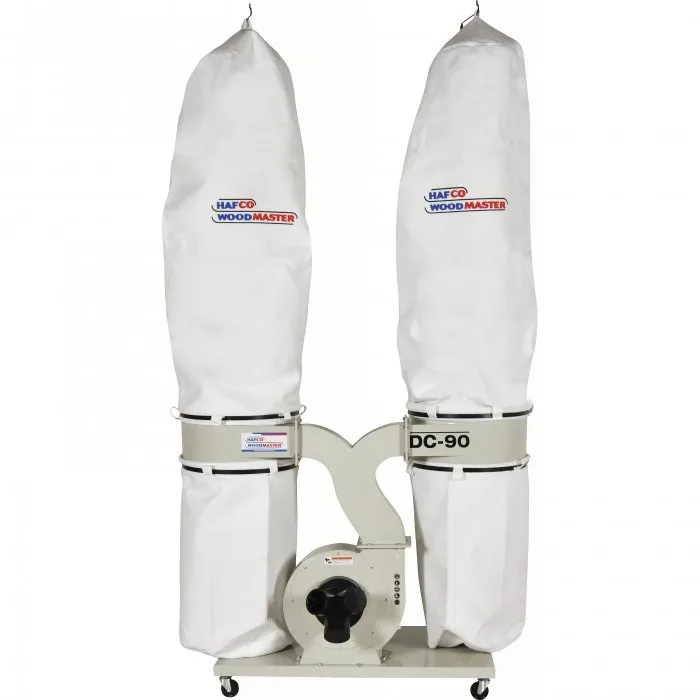

Industrial Dust Collector — DC-90, 5HP 3200cfm – LPHV System
Part No: W331 | Barcode: 9344195010859 | Model: DC-90

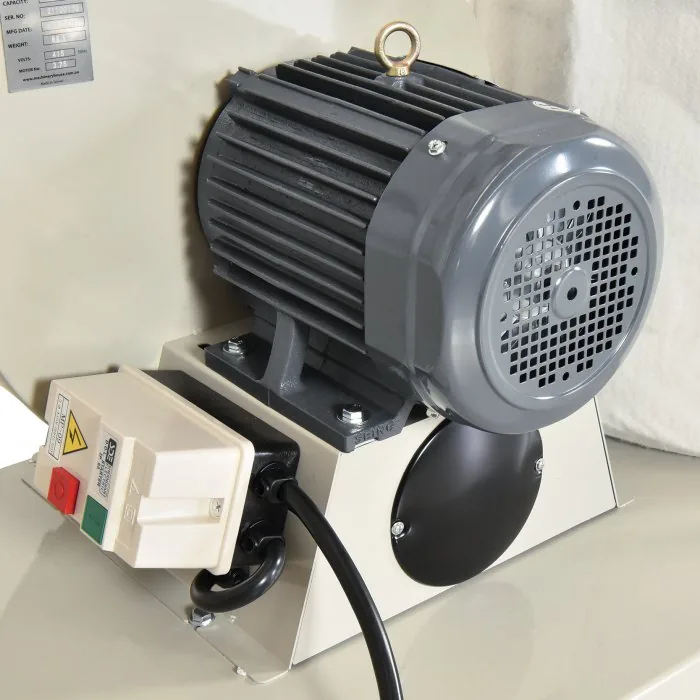

HAFCO-WOODMASTER DC-90 Industrial Dust Collector (5HP 3200cfm – LPHV System). The Hafco Woodmaster DC-90 Industrial Twin Bag Dust Extractor is the ideal unit for the professional workshop. The powerful 3.75kW / 5hp 415V motor, delivers an exceptional 3200cfm suction.
Model DC-90
5HP
3200cfm – LPHV System
Airflow: 3200 CFM
Motor Power: 3.75 / 5
Voltage: 415
Key Features & Benefits
- 3,200cfm air flow suction
- Heavy duty motor and solid construction to effectively handle the collection of wood chips and sawdust
- Ø355mm metal impeller, precision balanced and designed for maximum air flow performance

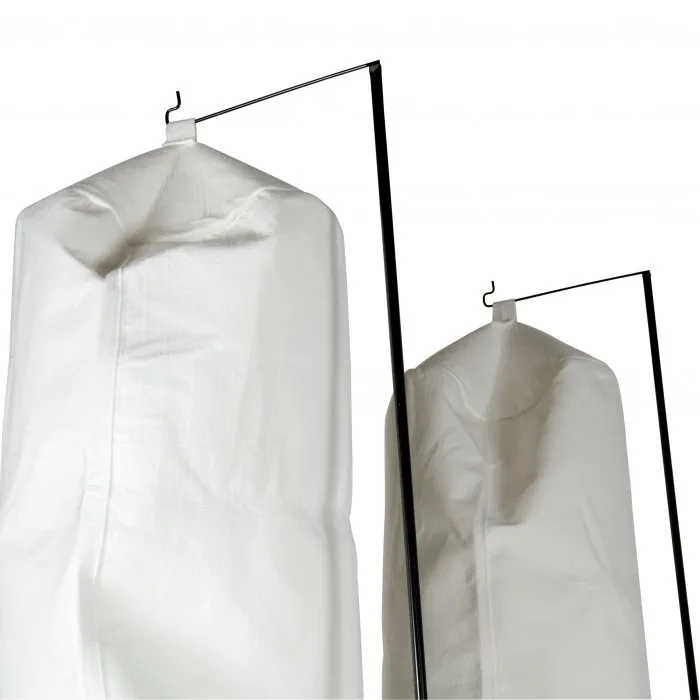

- 2 Micron, 1600mm high upper felt bags, offering optimum air flow efficiency
- Lower plastic see-through bags

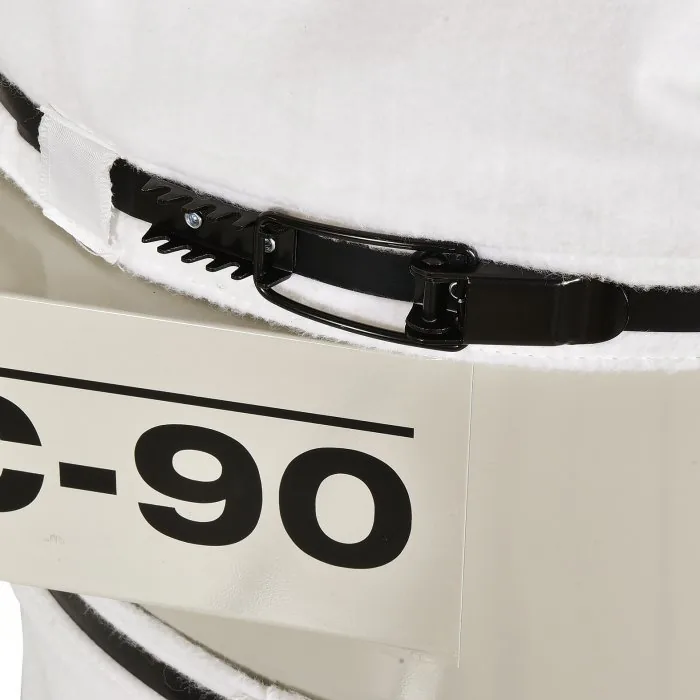

- Quick-action bag clamps

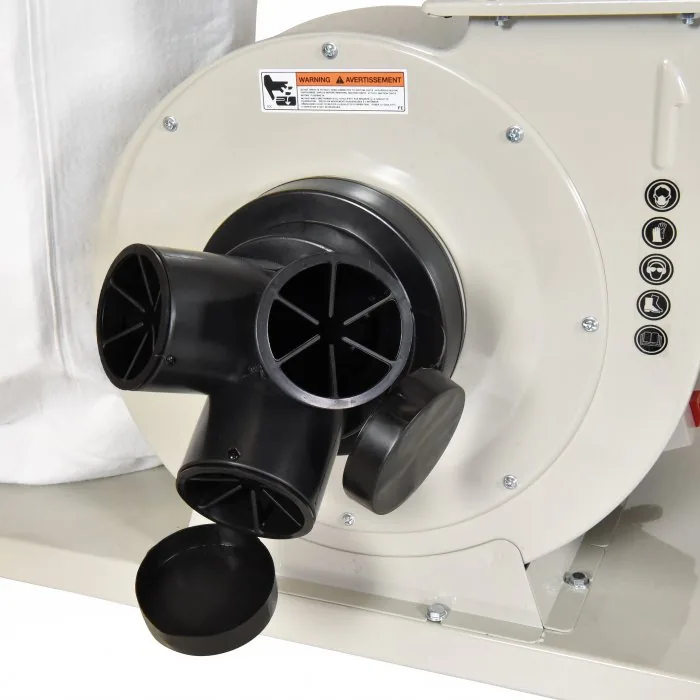

- Triple Ø100mm inlets for attaching up to 3 machines

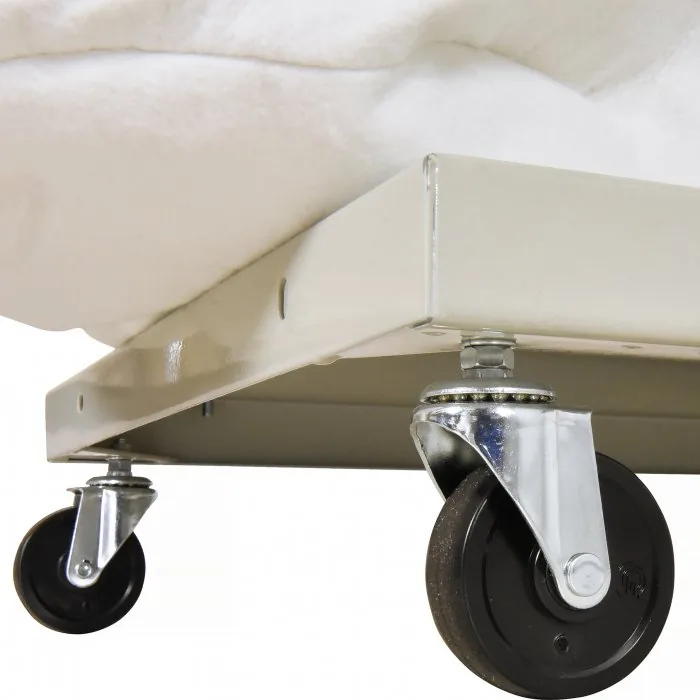

- Complete with 4-wheel castors for portability
About This Product
The Hafco Woodmaster DC-90 Industrial Twin Bag Dust Extractor is the ideal unit for the professional workshop. The powerful 3.75kW / 5hp 415V motor, delivers an exceptional 3200cfm suction. Triple 100mm inlets allows for attaching up to 3 machines and fitted with dual 2 micron filter bags and collection bags, this unit will cater to the cabinetmaker cutting particle board and MDF, or the furniture maker using solid timber. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W331) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Type | Dust Collector |
| Airflow (CFM) | 3200 |
| LPHV – Low Pressure High Volume (Yes / No) | Yes |
| HPLV – High Pressure Low Volume (Yes / No) | No |
| Inlets / Diameter (No. / mm) | 3 x Ø100 |
| Motor Power (kW / hp) | 3.75 / 5 |
| Voltage (V / amp) | 415 |
| Floor Space (W x D x H) (mm) | 1600 x 800 x 2840 |
| Nett Weight (kg) | 109 |
