SCHEPPACH
Chisel Morticer — Chisa 7.0, 145mm timber width capacity
Part No: W3465 | Barcode: 4014915079422 | Model: Chisa 7.0

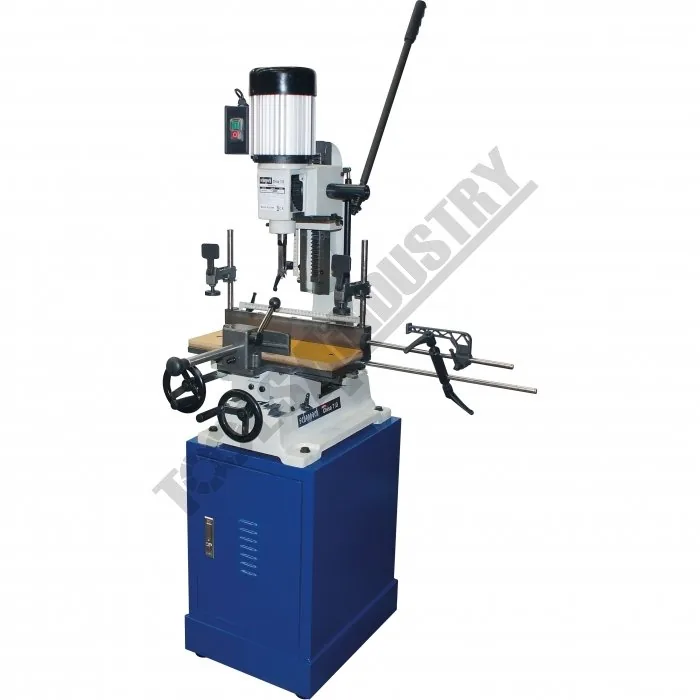

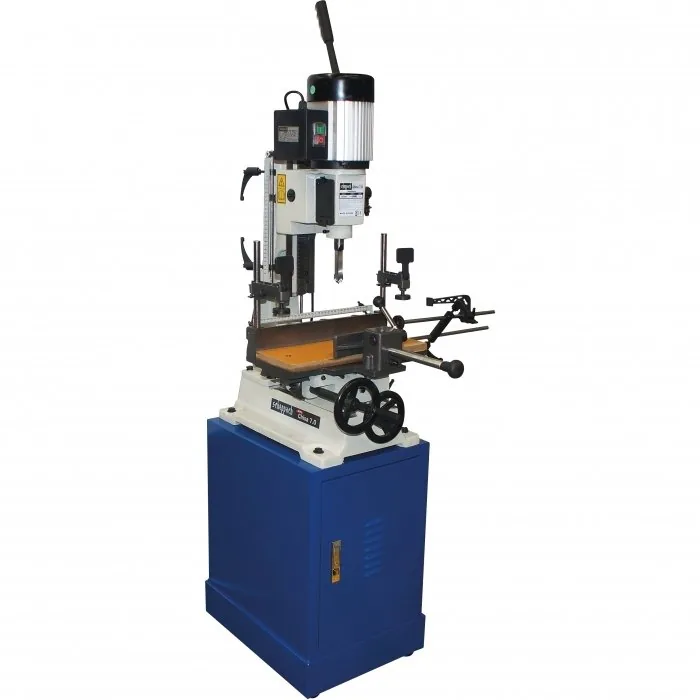

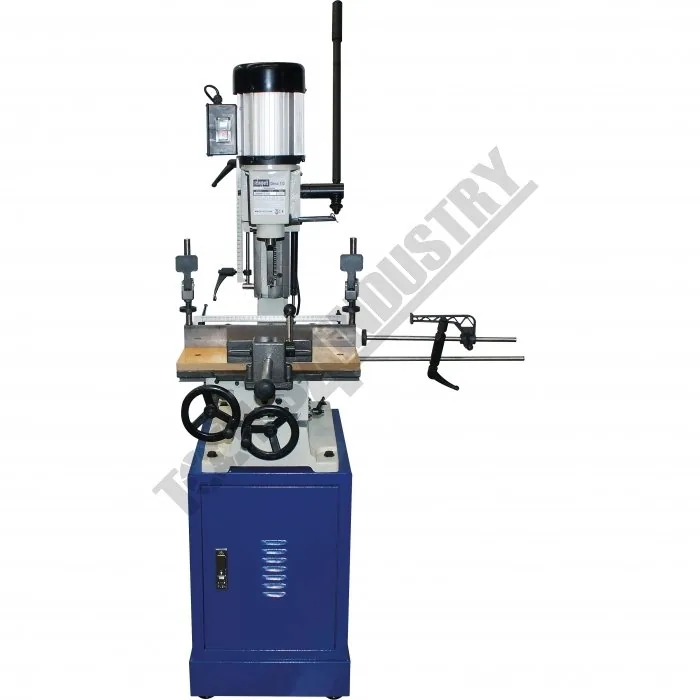

SCHEPPACH Chisa 7.0 Chisel Morticer (145mm timber width capacity). The scheppach Chisa 7.0 is a classic floor standing hollow chisel mortising machine. Due to its robust construction this machine is stable in use and offers the best results at an economic price.
Model Chisa 7.0
145mm timber width capacity
Timber Capacity: 145 mm
Vertical Head Stroke: 220 mm
Motor Power: 0.75 / 1
Voltage: 240 V
Key Features & Benefits
- Heavy duty cast iron frame
- 145mm timber width capacity

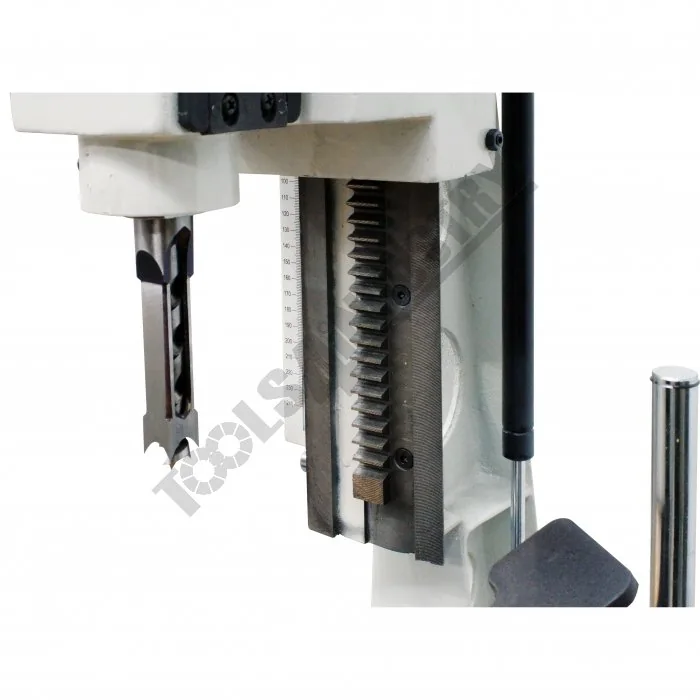

- 220mm vertical head stroke
- 200mm maximum workpiece height
- 400 x 150mm table size
- 170 x 140mm table movement

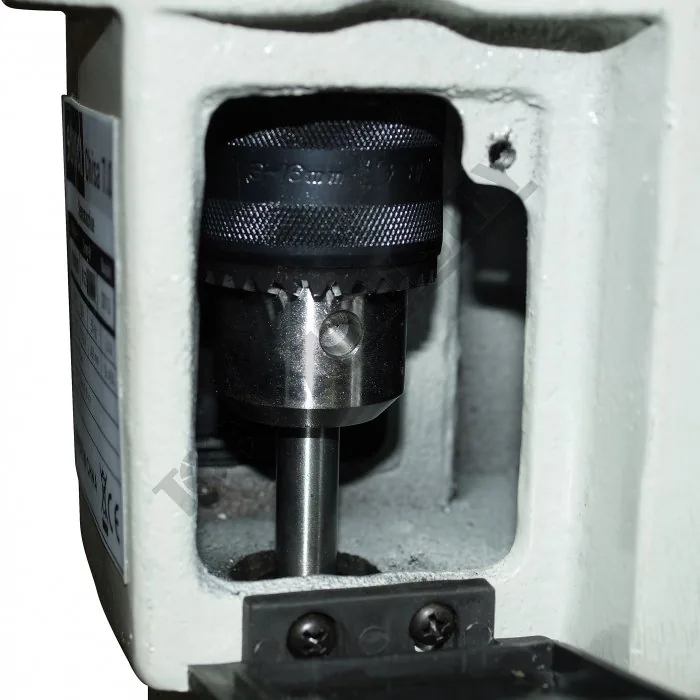

- 16mm keyed drill chuck

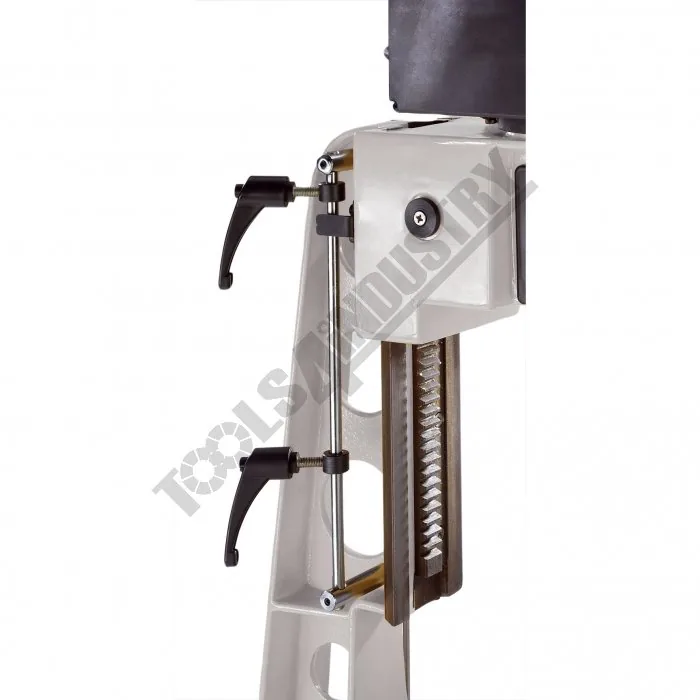

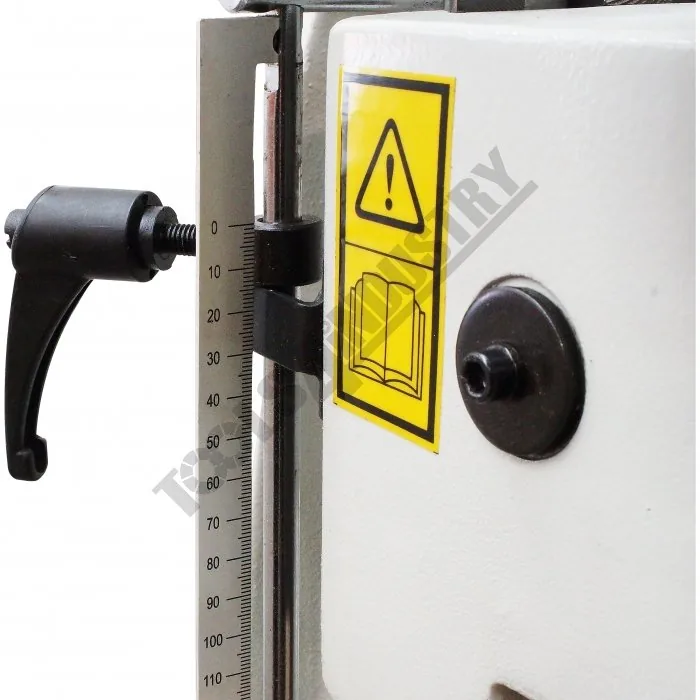

- Adjustable depth stop

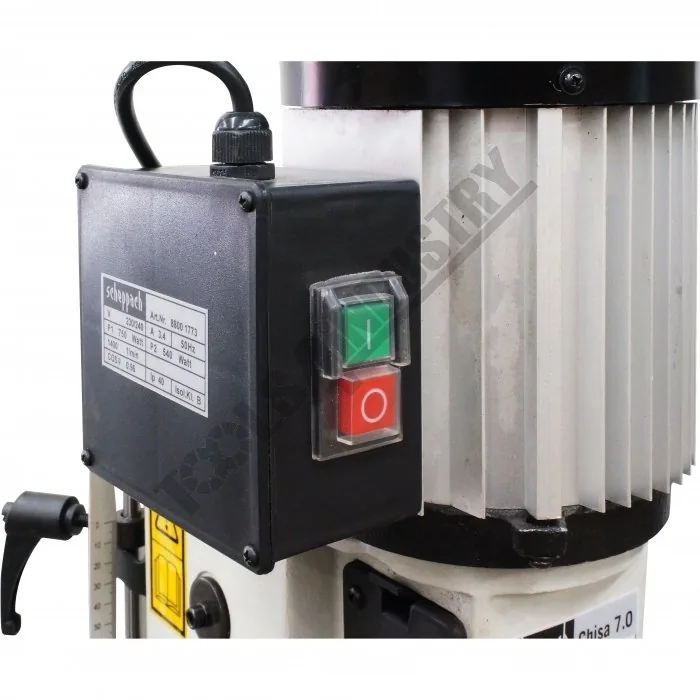

- Magnetic safety switch

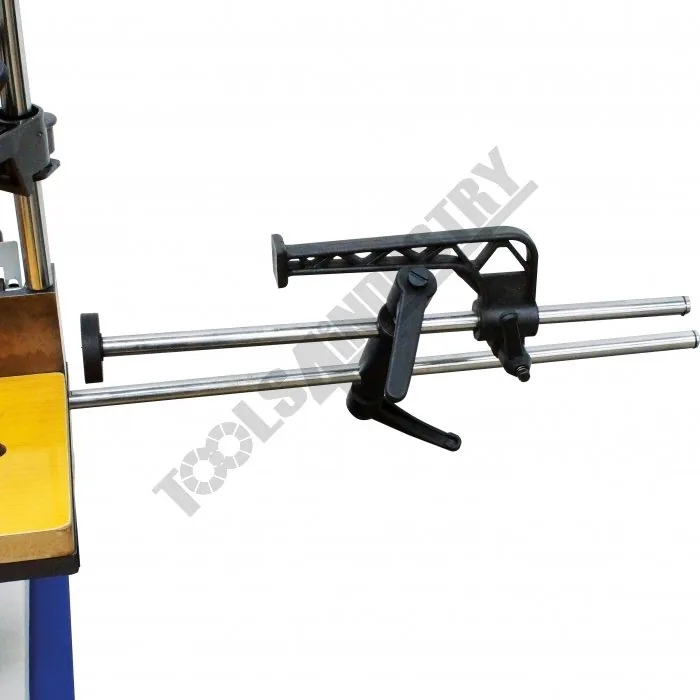

- Adjustable material length stop

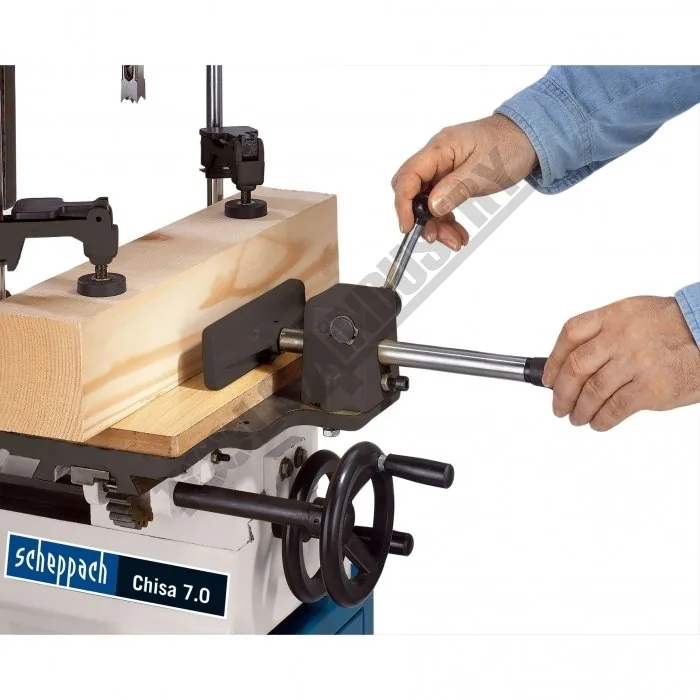

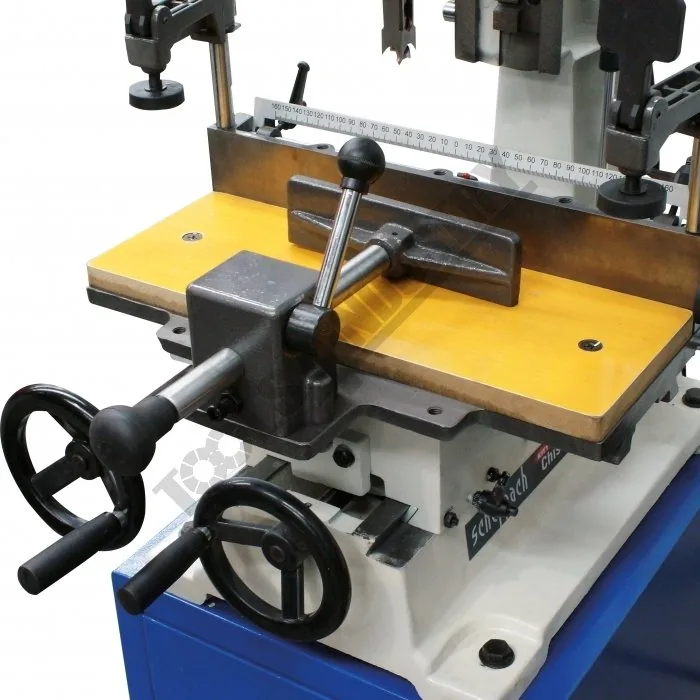

- Quick action cam lever material clamp

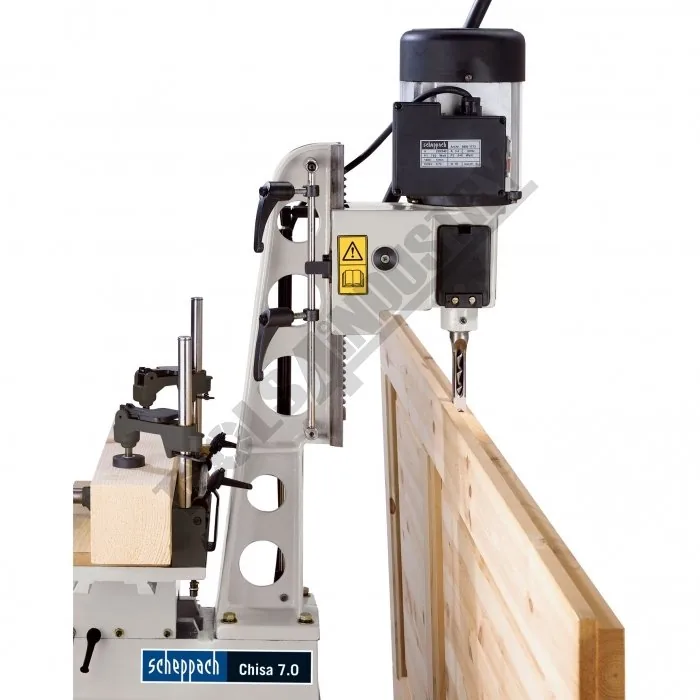

- Mortice head can be reversed for door locks or hinge holes

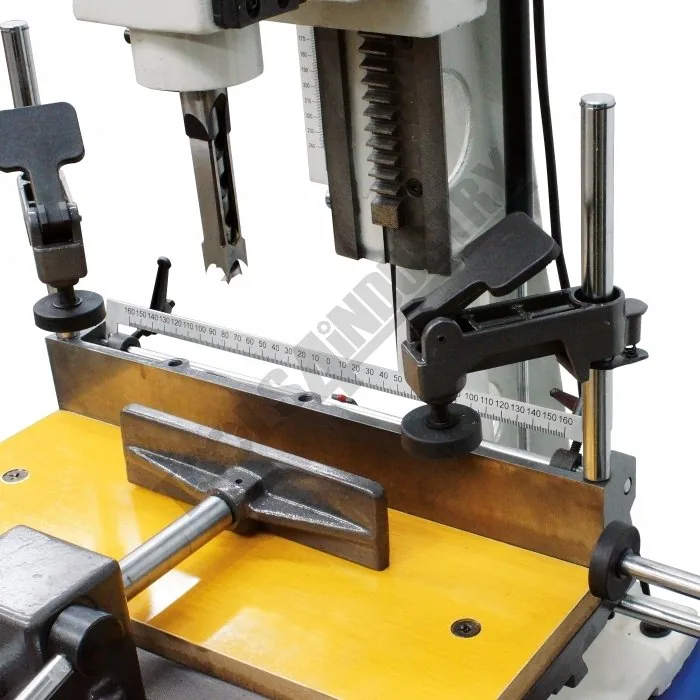

- Adjustable overhead cam action lever material clamp

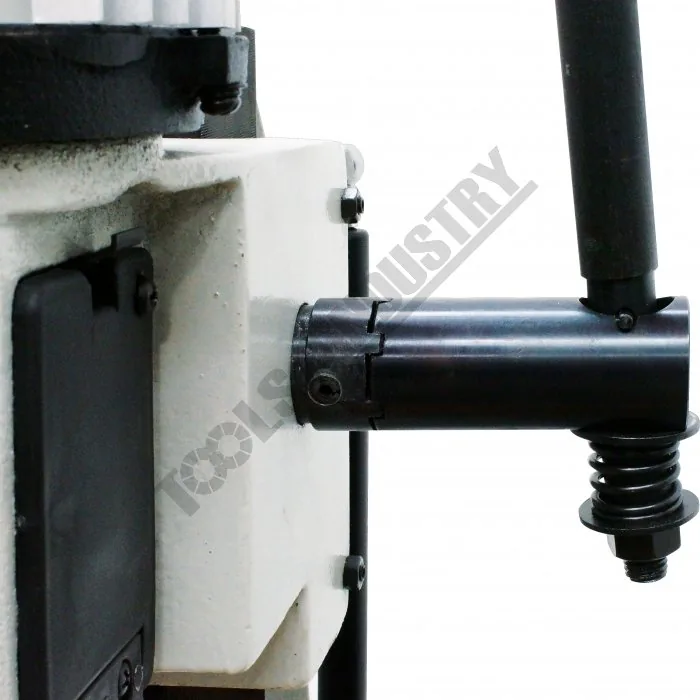

- Mortice head lever can be reposition via spring loaded drive dog system
- 0.75kW / 1hp 240V motor
About This Product
The scheppach Chisa 7.0 is a classic floor standing hollow chisel mortising machine. Due to its robust construction this machine is stable in use and offers the best results at an economic price. Equipped with a useful cabinet storage base and facility to reverse the headstock for mortising door locks, the Chisa 7.0 is the ideal choice for both professional and amateur workshops. Morticer Capacity: 25mm chisel in softwood 20mm chisel in hardwood This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W3465) for collection in store.
In the Box

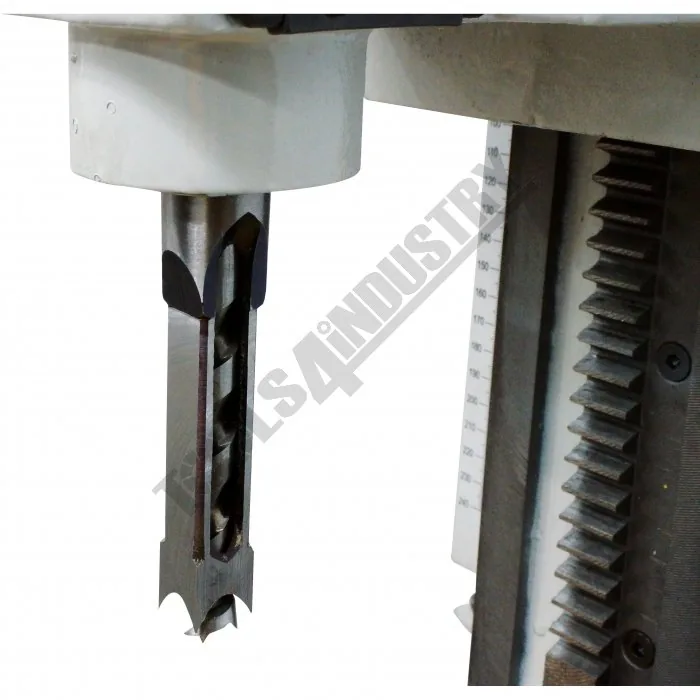

- 1 x Ø5/8″ Chisel bit for softwood
- 1 x Ø5/8″ Chisel bit for hardwood
- 2 x Collar reducing bushes Ø30.2mm OD – Ø19mm ID & Ø30.2mm OD – Ø20.65mm ID

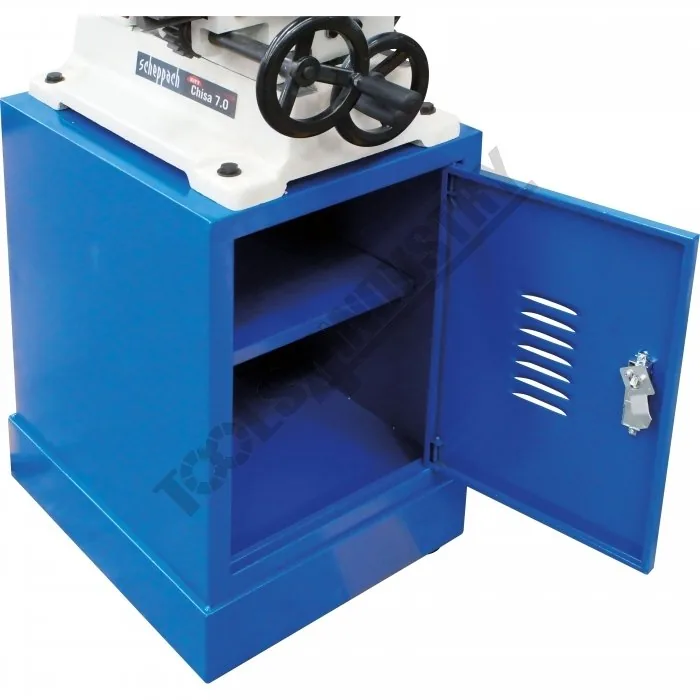

- Storage cabinet with lock
Product Specifications
| Specification | Detail |
|---|---|
| Timber Capacity (mm) | 145 |
| Table Movement (mm) | 170 x 140 |
| Vertical Head Stroke (mm) | 220 |
| Collar Reducing Bush (ID) (mm) | Ø19 & Ø20.65 |
| Motor Power (kW / hp) | 0.75 / 1 |
| Voltage (V) | 240 |
| Floor Space (W x D x H) (mm) | 1200 x 770 x 1650 |
| Nett Weight (kg) | 98 |
