HAFCO-WOODMASTER

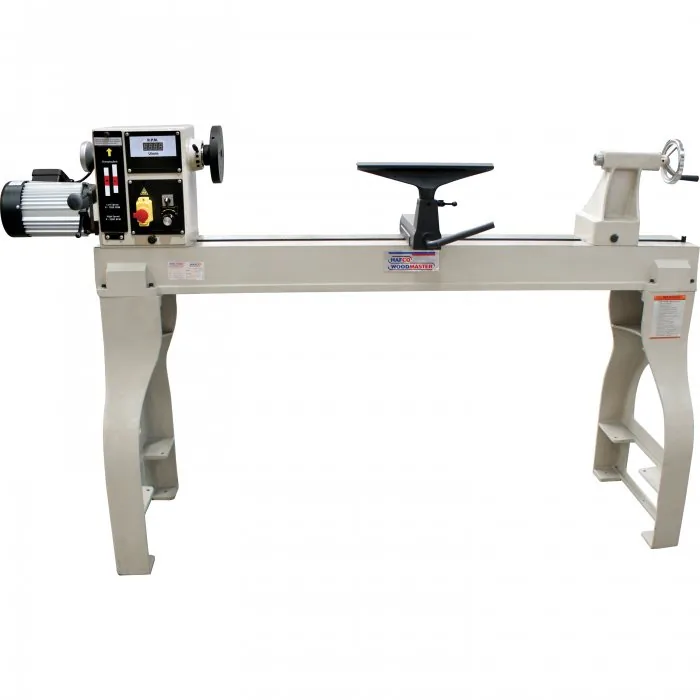

Electronic Variable Speed Wood Lathe — WL-46A, Ø462mm Swing x 1194mm Between Centres Electronic Variable Speed 100 ~ 3200rpm & Heavy Duty Cast Iron Legs
Part No: W387 | Barcode: 9344195008603 | Model: WL-46A
HAFCO-WOODMASTER WL-46A Electronic Variable Speed Wood Lathe (Ø462mm Swing x 1194mm Between Centres Electronic Variable Speed 100 ~ 3200rpm & Heavy Duty Cast Iron Legs). The WL-46A is built to a high standard and capable of turning a 462mm diameter bowl over the bed and the bed is long enough to turn a 1194mm table…
Model WL-46A
Ø462mm Swing x 1194mm Between Centres
Swing Over Bed: 462 mm
Spindle Nose Thread: 30 x 3.5mm
Spindle Nose Taper: 2 MT
Spindle Speeds: Variable 100 – 3200 rpm
Motor Power: 1.5 / 2
Key Features & Benefits
- Cast iron construction, bed, head and tailstock
- Electronic variable speed (100-3200rpm) with a digital readout
- Headstock is free to slide along the length of the bed
- Forward & reversing spindle direction switch
- 1.5kW / 2hp 240V motor
- Dust proof magnetic switch
- Heavy duty cast iron legs
About This Product

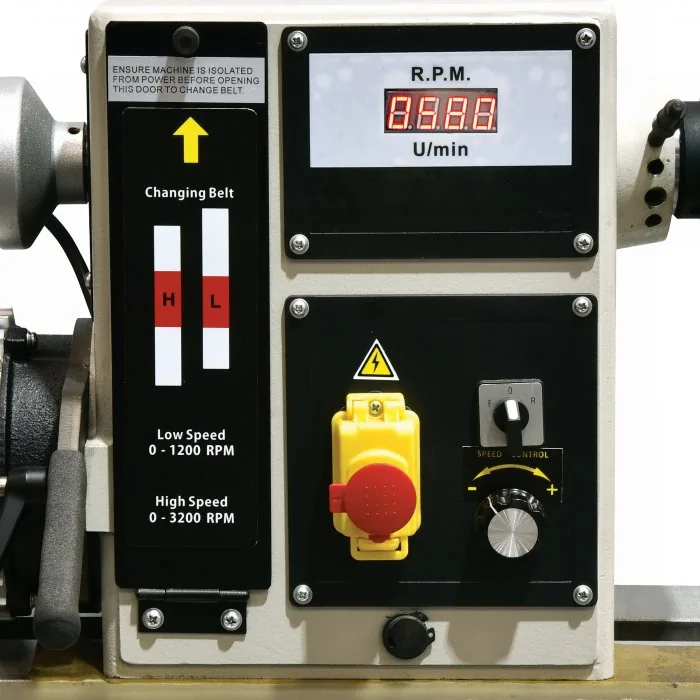

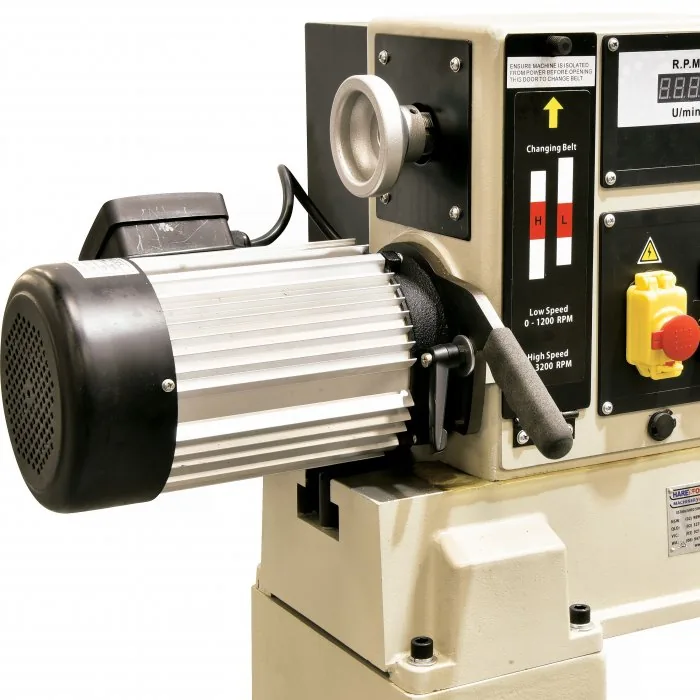

The WL-46A is built to a high standard and capable of turning a 462mm diameter bowl over the bed and the bed is long enough to turn a 1194mm table leg or spindle. All the major castings are made up of thick section cast iron which gives a very solid feel to the lathe and guarantees a vibration-free experience in most applications. Power is provided by a 1.5kW / 2hp motor driving the spindle through a pair of pulleys and controlled by a variable speed control situated at front of the head. The low speed range provides plenty of torque for the big turning jobs whilst the high speed range allows the necessary adequate speeds for smaller components that’s required for finishing. The front panel of the head has a digital rpm speed indicator, a safety on/off switch, a forward & reversing switch and an access panel for changing the belt pulley positions. Includes four prong drive centre, revolving tail centre, tool rest & faceplate. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W387) for collection in store.
In the Box
- Stand
- Drive Centre
- Live Centre
- 150mm Faceplate

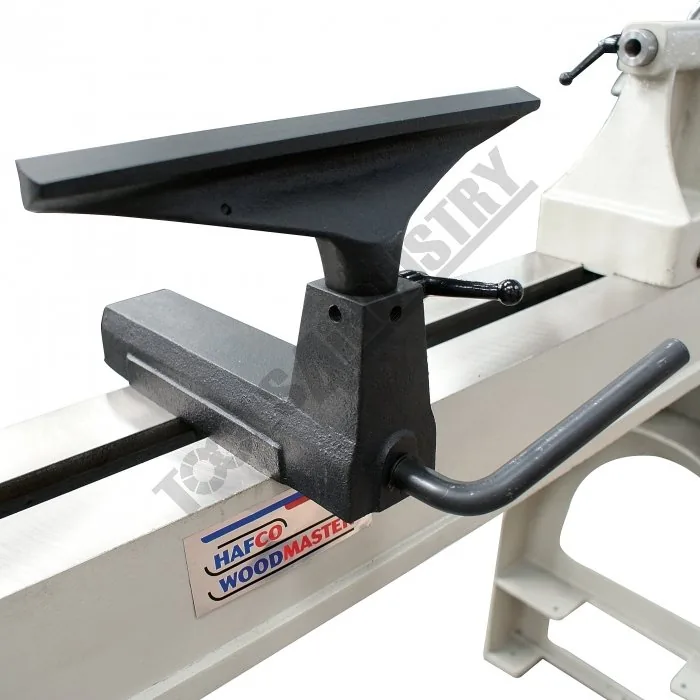

- 355mm Toolrest

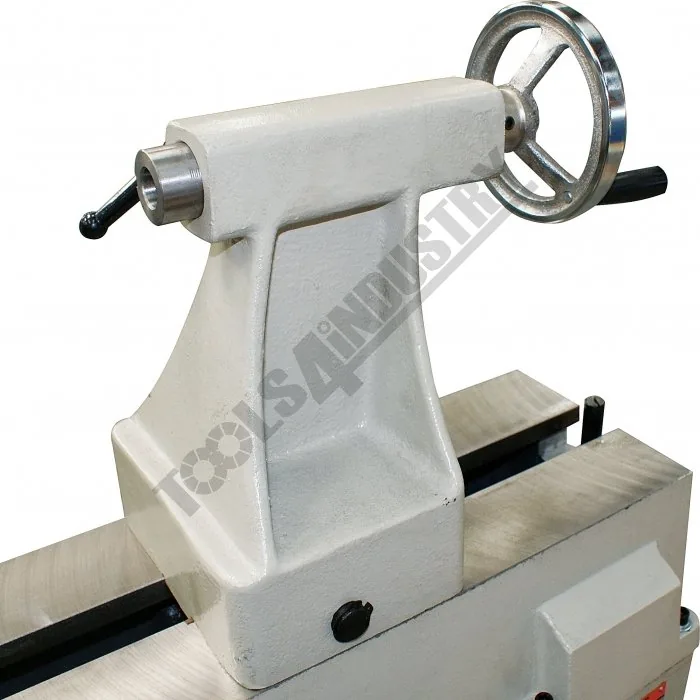

- Tailstock
Product Specifications
Electronic Variable Speed Wood Lathe — Specifications
| Specification |
Detail |
| Swing Over Bed (mm) |
462 |
| Between Centres (mm) |
1194 |
| Spindle Nose Thread |
30 x 3.5mm |
| Spindle Nose Taper (MT) |
2 |
| Spindle Speeds (rpm) |
Variable 100 – 3200 |
| Tailstock Taper (MT) |
2 |
| Motor Power (kW / hp) |
1.5 / 2 |
| Voltage / Amperage (V / amp) |
240 / 10 |
| Floor Space (W x D x H) (mm) |
2130 x 630 x 1220 |
| Nett Weight (kg) |
228 |
Brand: HAFCO-WOODMASTERModel: WL-46AOrder Code: W387Barcode: 9344195008603Availability: Special order — collect in store
