HAFCO-WOODMASTER

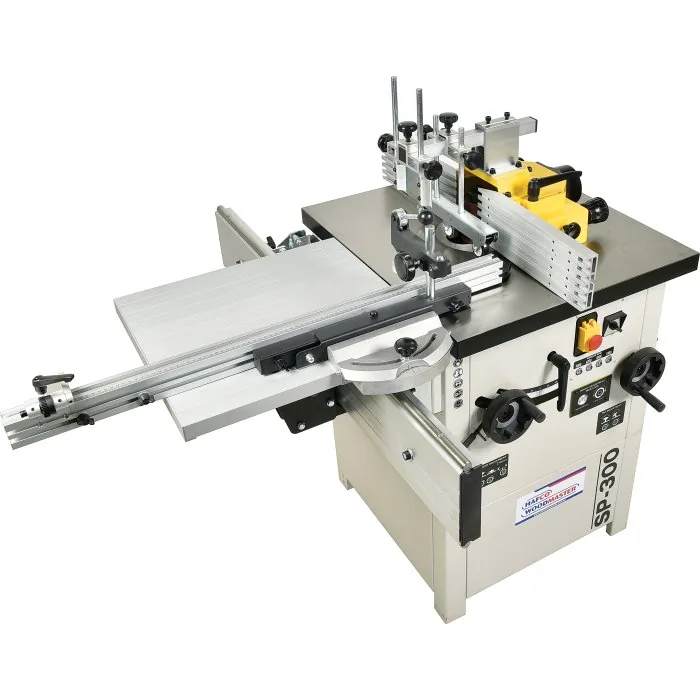

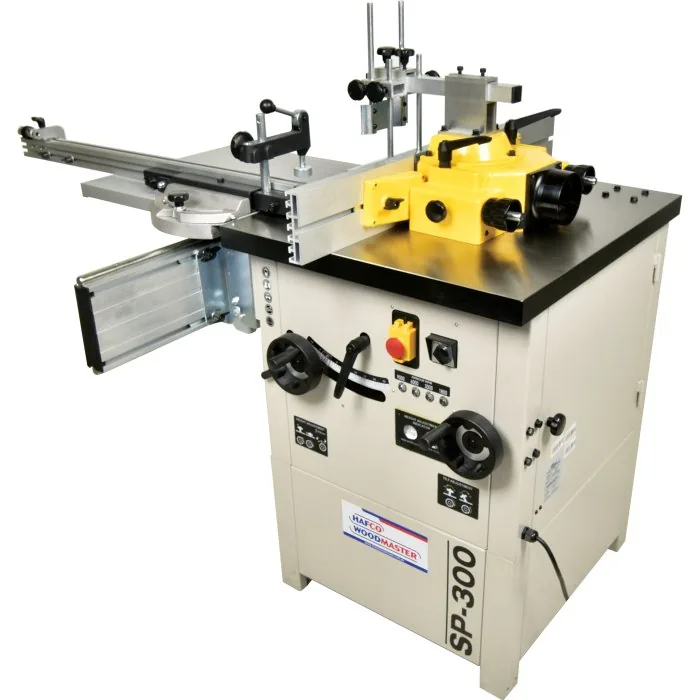

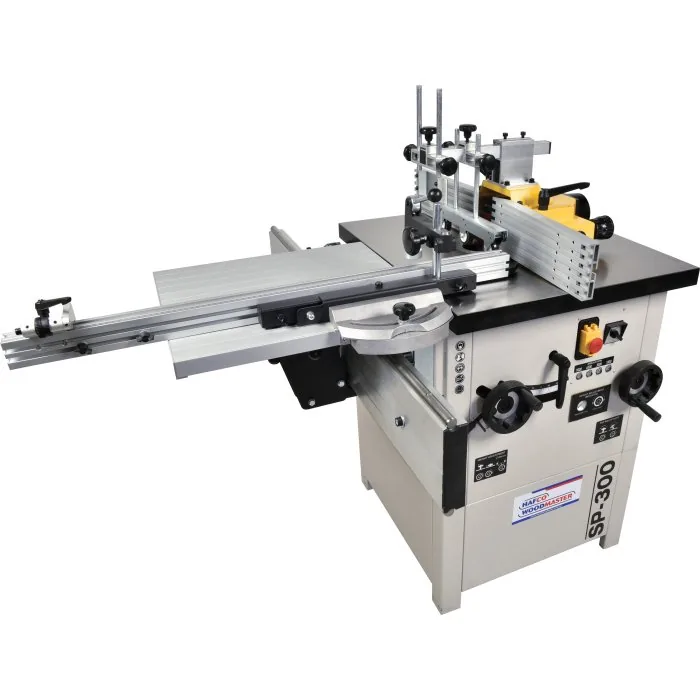

Spindle Moulder — SP-300, 710 x 640mm Table Size
Part No: W640 | Barcode: 9344195016110 | Model: SP-300
HAFCO-WOODMASTER SP-300 Spindle Moulder (710 x 640mm Table Size). Available to order through Alltools Geelong for collection in store.
Model SP-300
710 x 640mm Table Size
Table Size: 710 x 640 mm
Spindle Arbour Diameter: Ø30 mm
Spindle Arbour Travel: 100 mm
Tilting Spindle Arbour: -5º +30º Deg.
Motor Power: 2.8 / 3.75
Key Features & Benefits

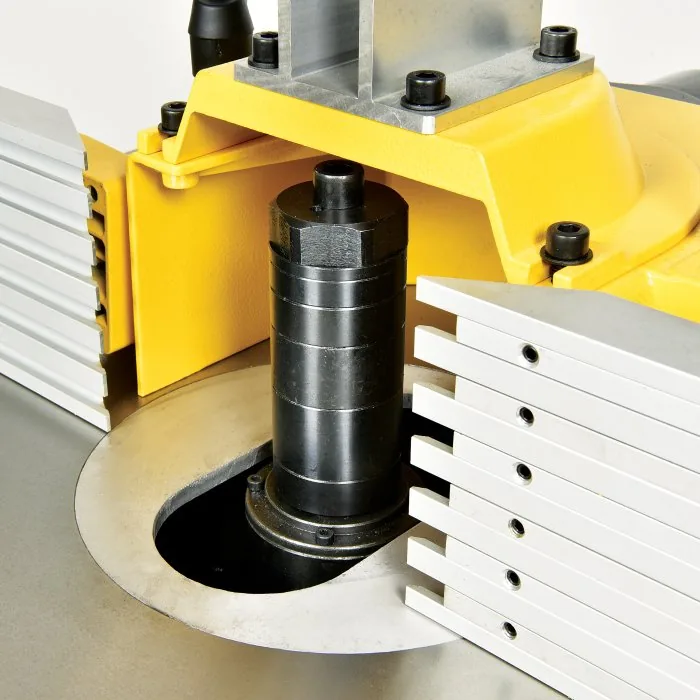

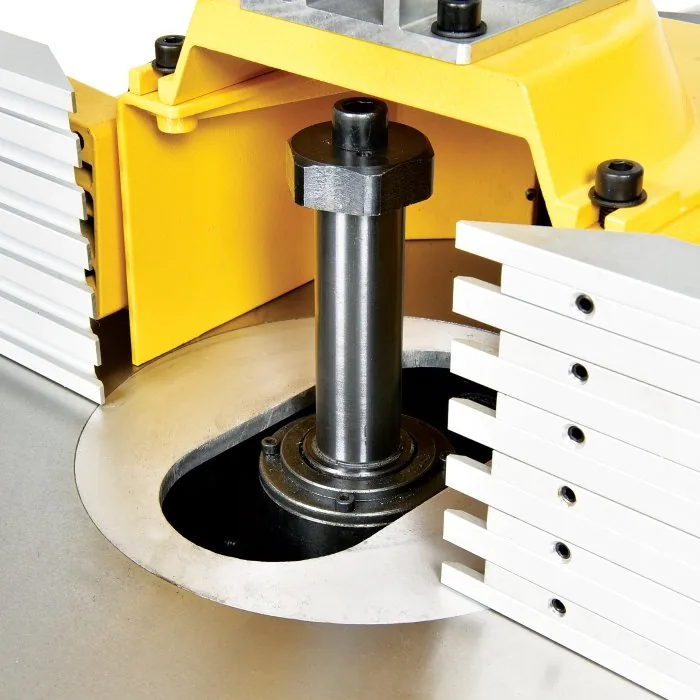

- Ø30mm spindle arbor diameter
- 100mm up & down spindle travel
- 200mm total spindle length
- 900mm table work height
- Tilting arbor to -5º ~ +30º for various profiles
- 710 x 640mm cast iron work table

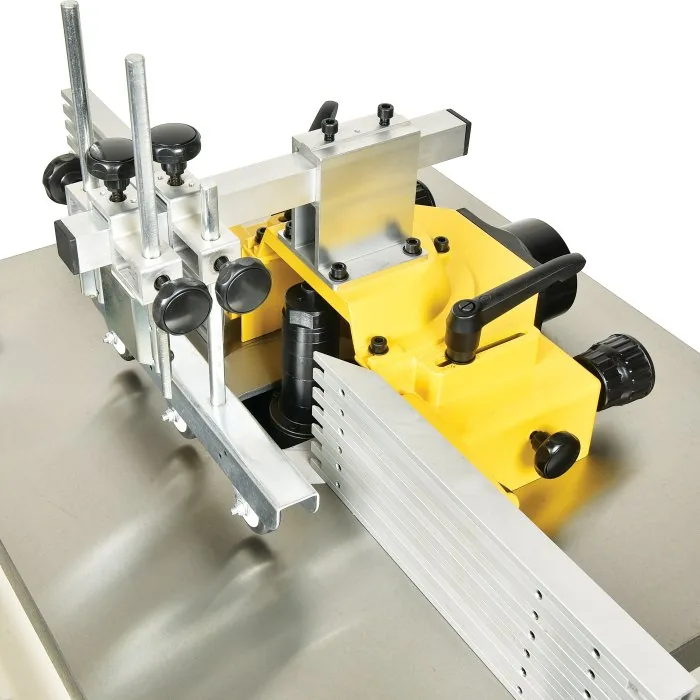

- Cast cutter guard with Ø100mm dust collector port

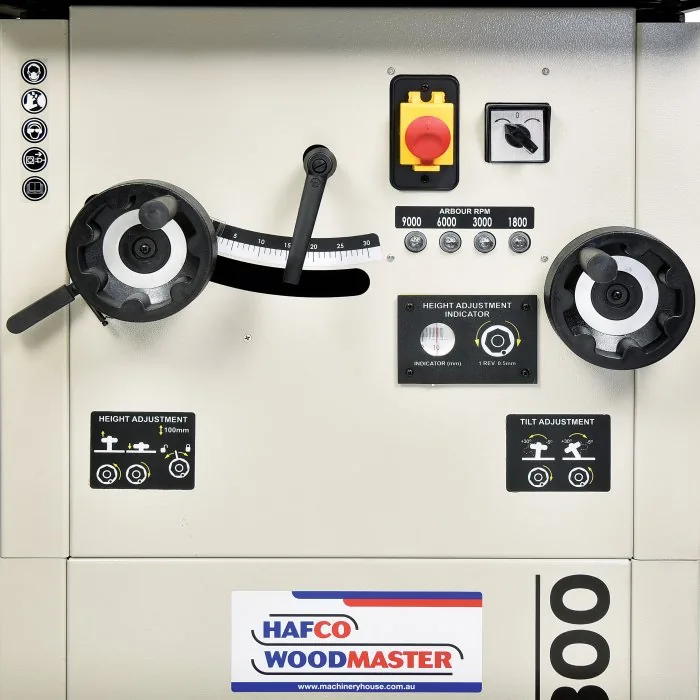

- Rise and fall adjustment and spindle lock for easy cutter change
- 4 spindle speeds with FWD/REV 1800, 3000, 6000, 9000rpm
- 2.8kW / 3.75hp 15Amp 240V motor
About This Product
Spindle Moulder (710 x 640mm Table Size). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code W640) for collection in store.
In the Box

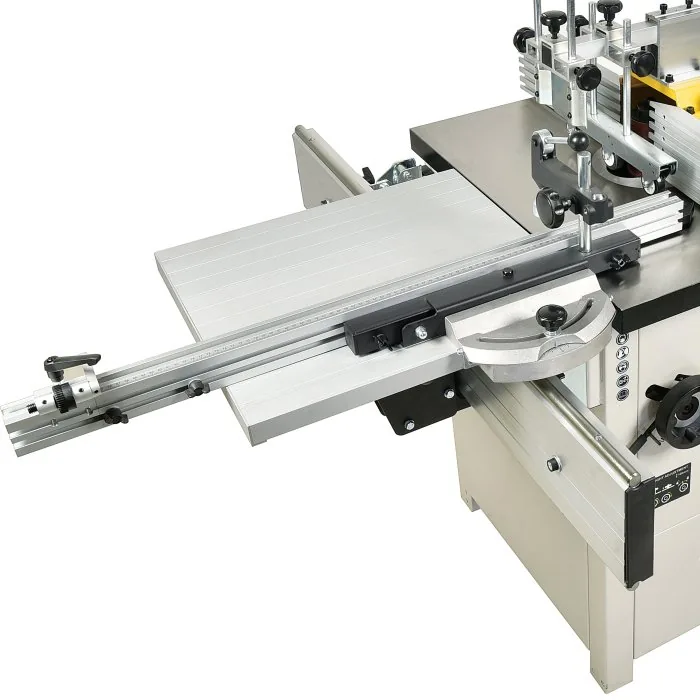

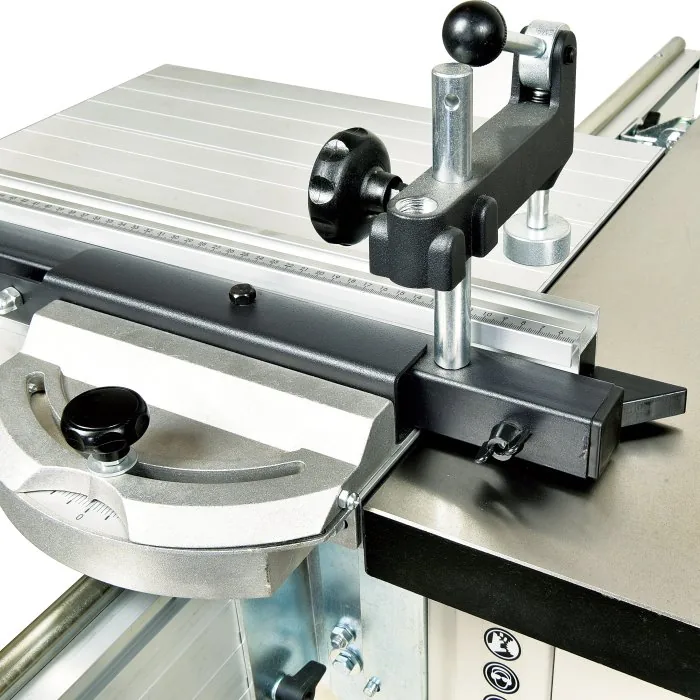

- Sliding table with mitre guide
- Cutter guard with dust chute

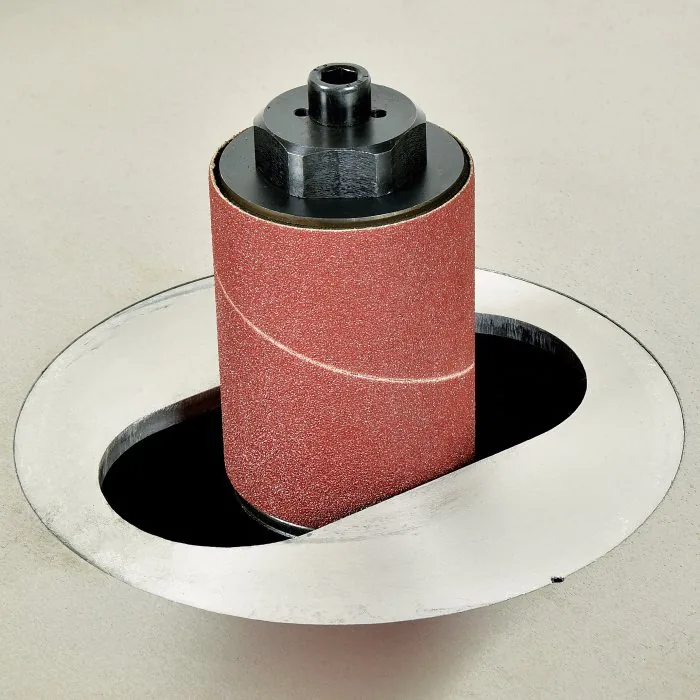

- Ø74mm sanding sleeve attachment
Product Specifications
| Specification | Detail |
|---|---|
| Table Size (mm) | 710 x 640 |
| Spindle Arbour Speeds (rpm) | 1800, 3000, 6000, 9000 |
| Spindle Arbour Diameter (mm) | Ø30 |
| Spindle Arbour Travel (mm) | 100 |
| Tilting Spindle Arbour (Deg.) | -5º +30º |
| Table Height (mm) | 900 |
| Table Opening (mm) | Ø200 |
| Motor Power (kW / hp) | 2.8 / 3.75 |
| Voltage / Amperage (V / amp) | 240 / 15 |
| Floor Space (W x D x H) (mm) | 1230 x 1500 x 1300 |
| Nett Weight (kg) | 221 |
