HAFCO-WOODMASTER

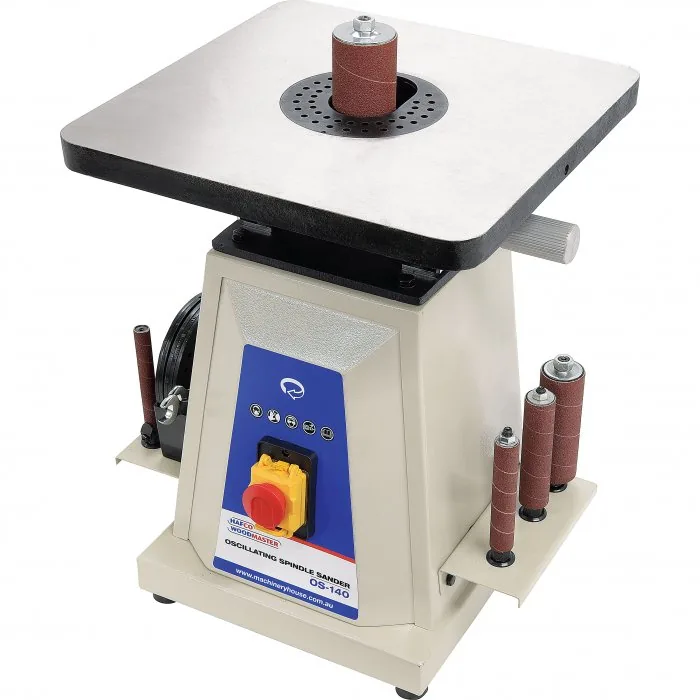

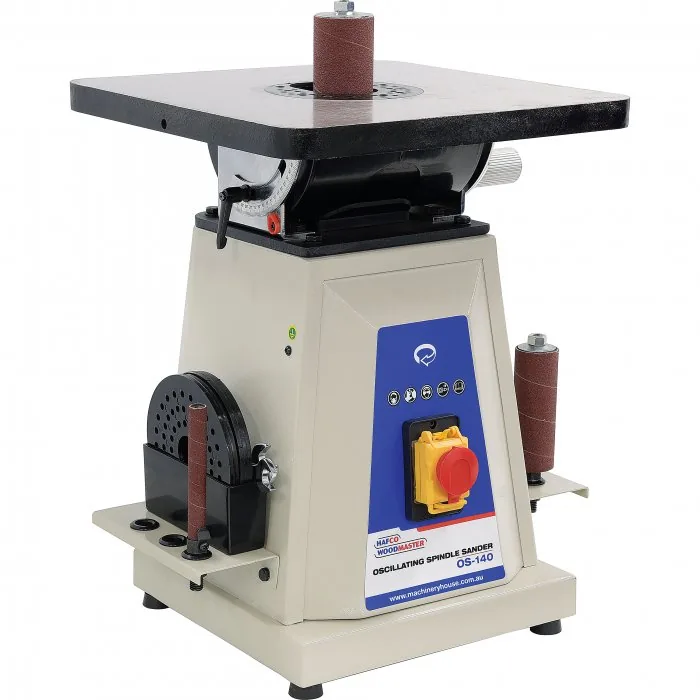

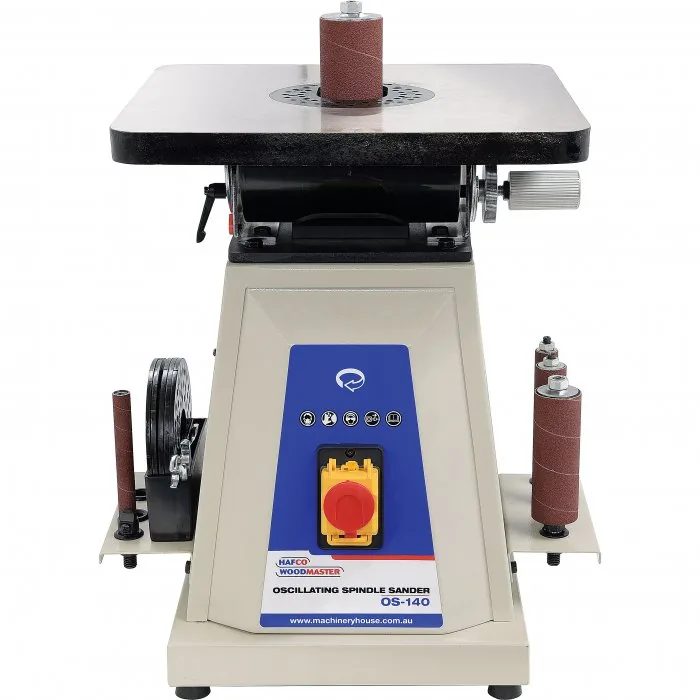

Vertical Oscillating Bench Bobbin Sander — OS-140, Ø1/2 – 2″ Sanding Sleeves Tilting Table To 45 Degrees
Part No: W792 | Barcode: 9344195211393 | Model: OS-140
HAFCO-WOODMASTER OS-140 Vertical Oscillating Bench Bobbin Sander (Ø1/2 – 2″ Sanding Sleeves Tilting Table To 45 Degrees). Used for sanding deep and wide work pieces, front edges, narrow inner curves, horizontal, vertical, diagonal, with or across the grain
Model OS-140
Ø1/2 – 2″ Sanding Sleeves
Tilting Table To 45 Degrees
Table Size: 370 x 370 mm
Oscillating Stroke: 24 mm
Sanding Spindle Speed: 1425 rpm
Motor Power: 0.37 / 0.5
Key Features & Benefits
- Rotating & oscillating action 24mm stroke @ 26 times per minute
- Heavy duty cast iron work table

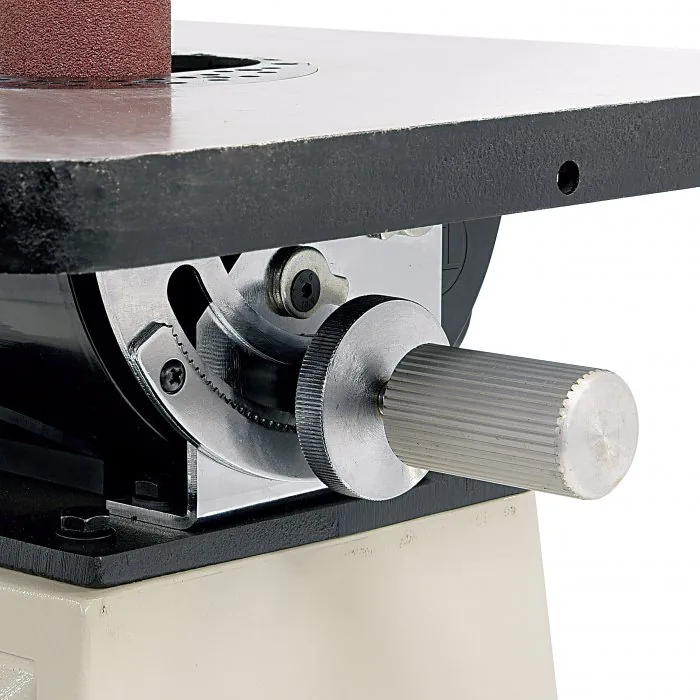

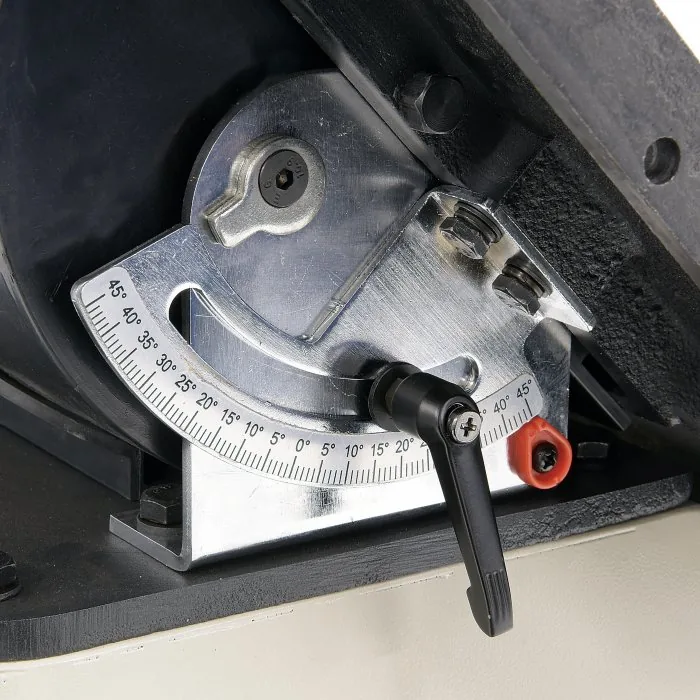

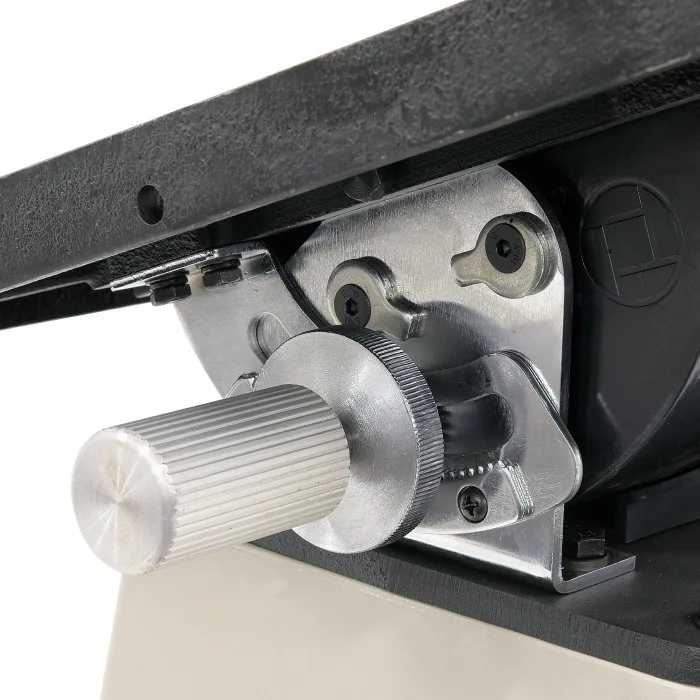

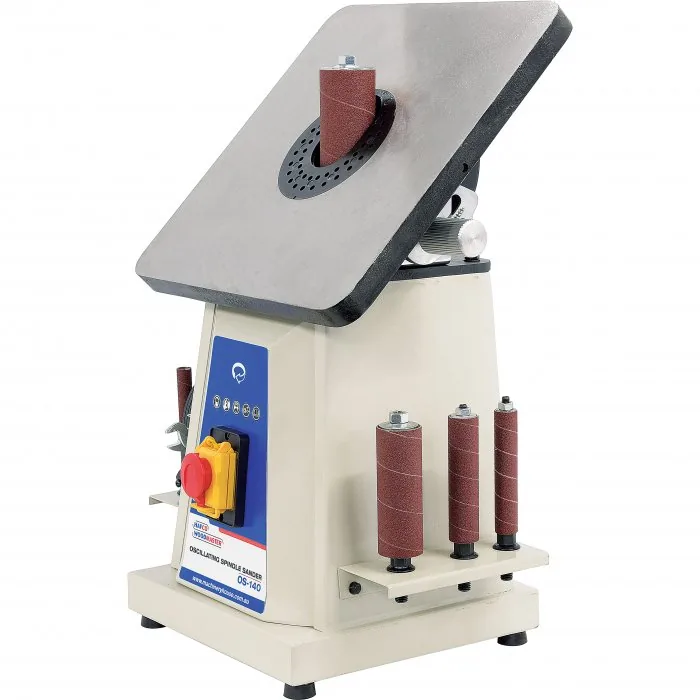

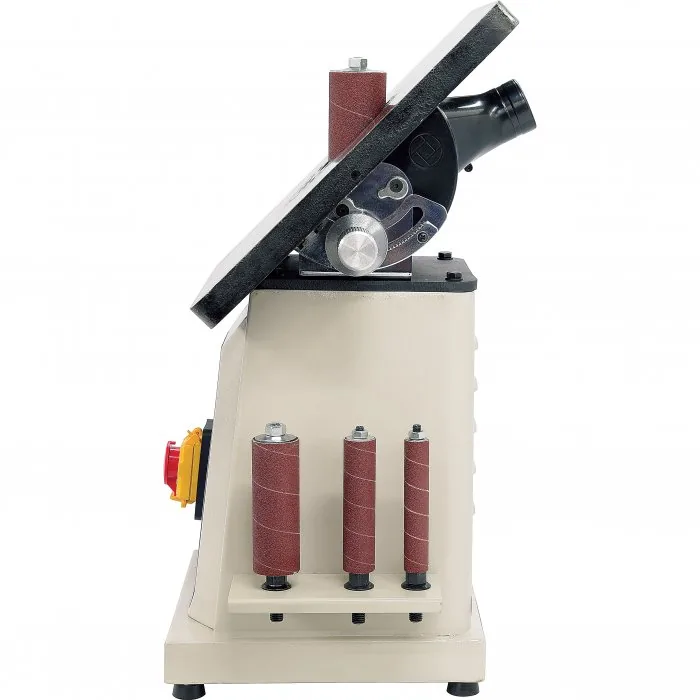

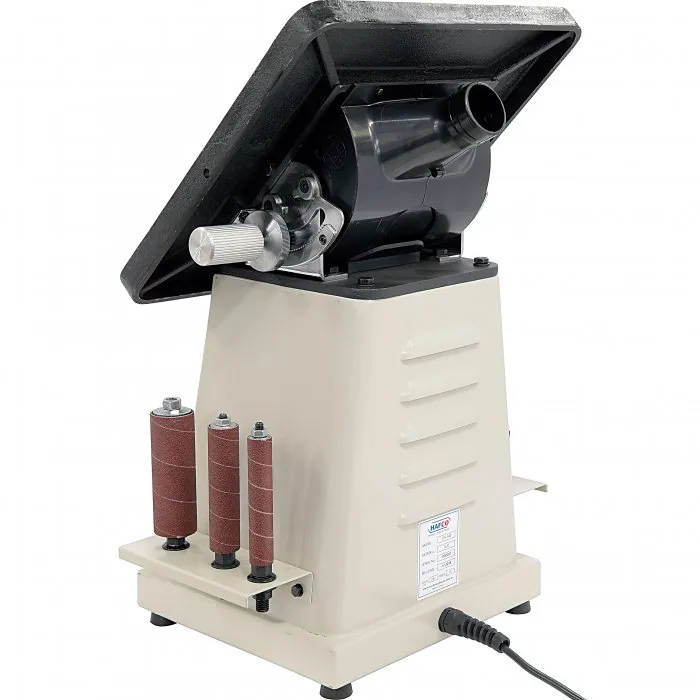

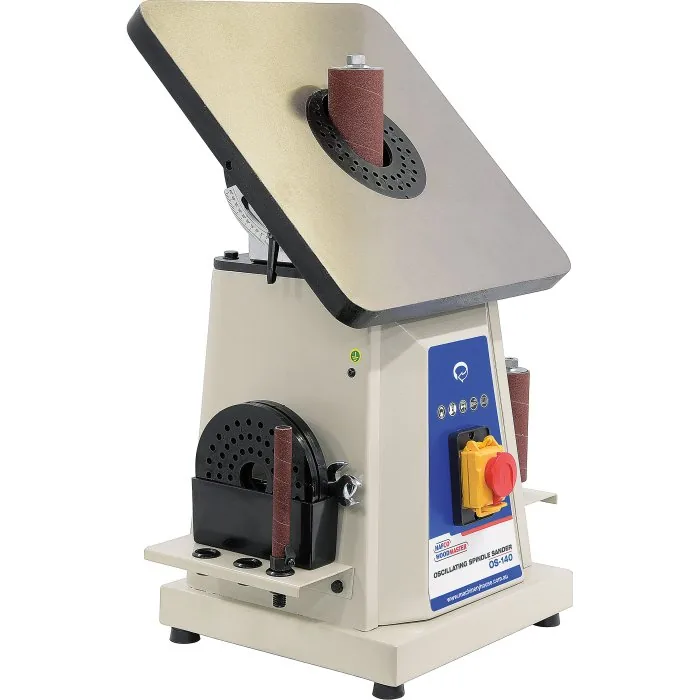

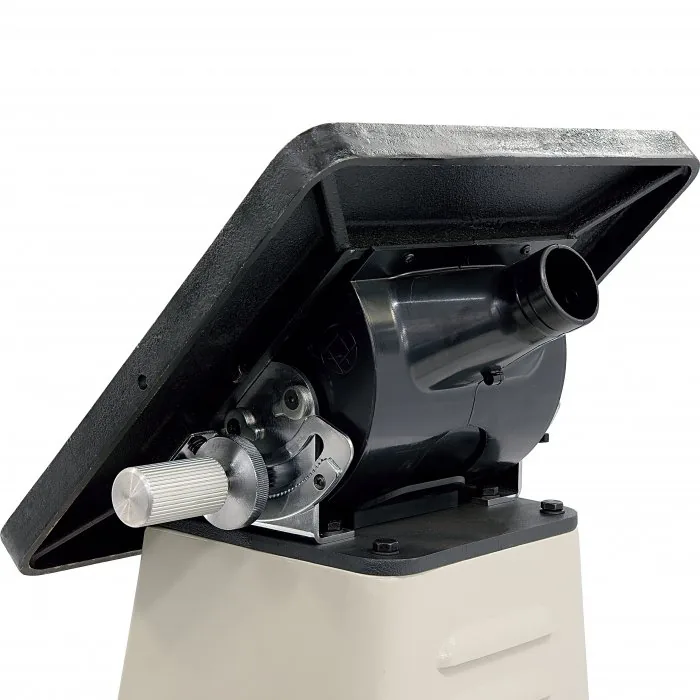

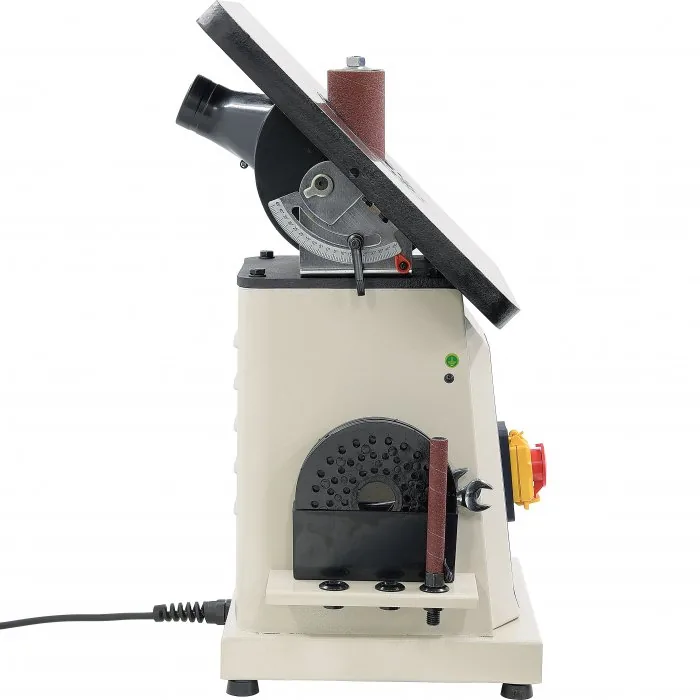

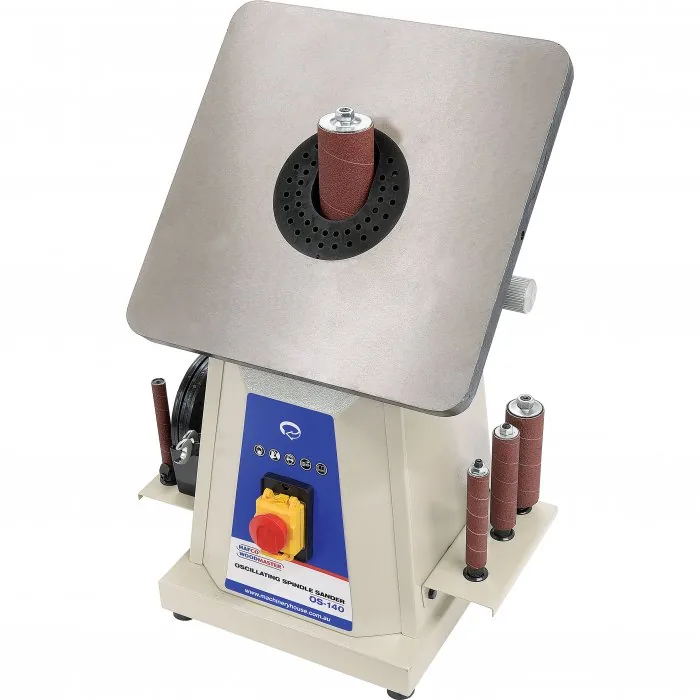

- Table tilts up to 45º with graduated scale

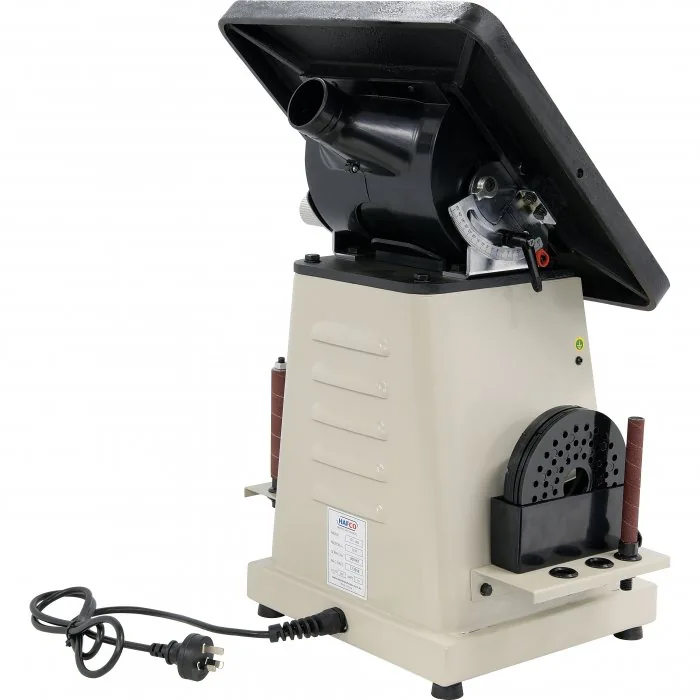

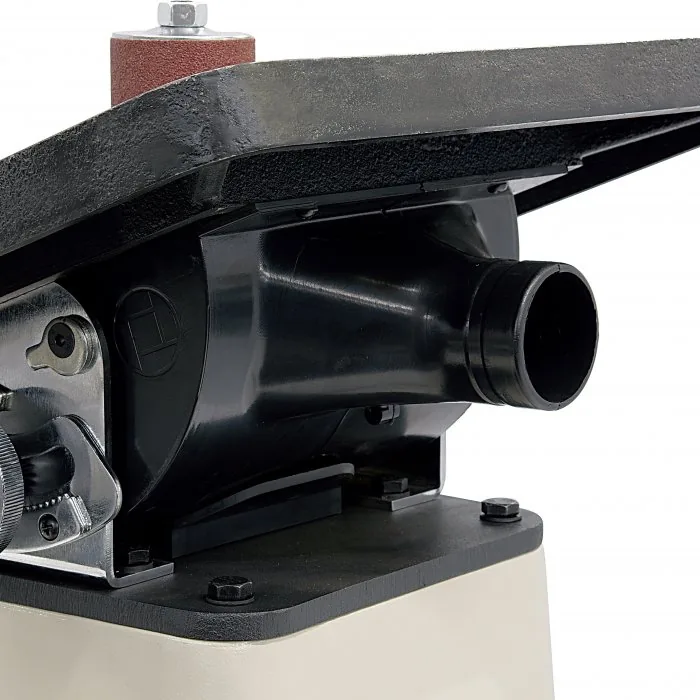

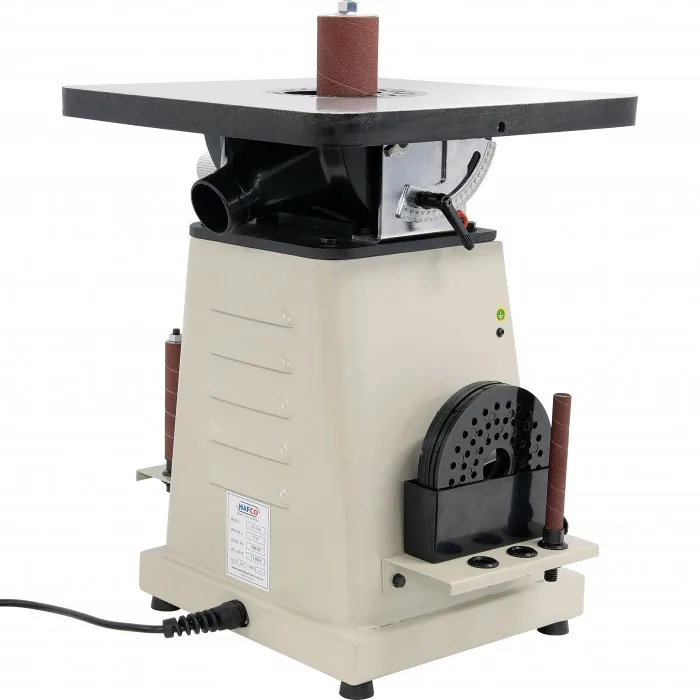

- Ø50mm rear dust chute port

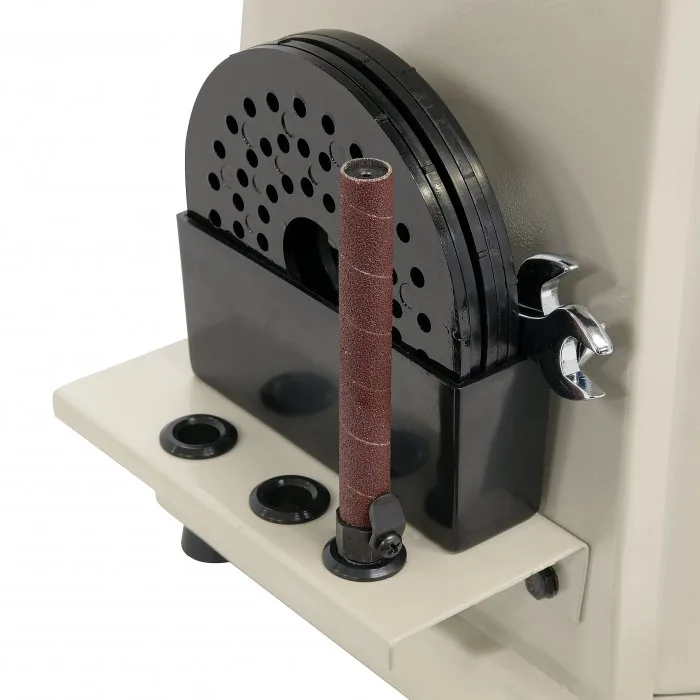

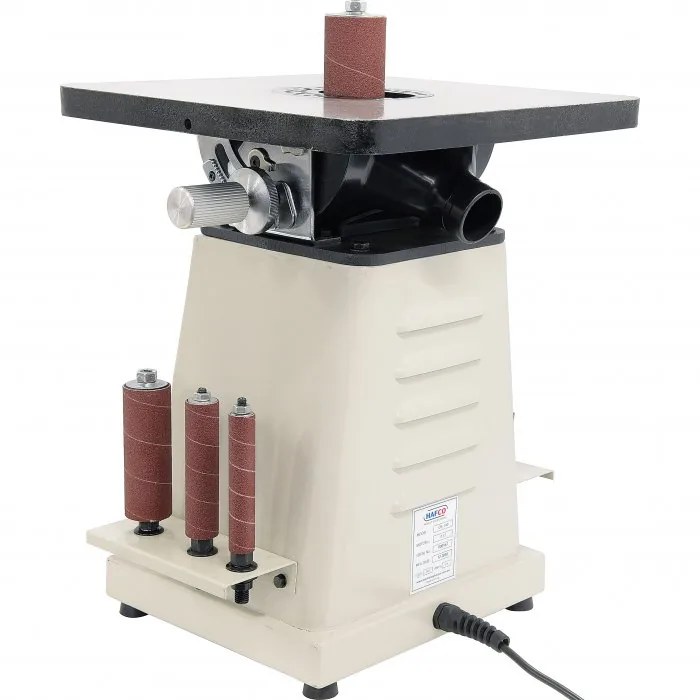

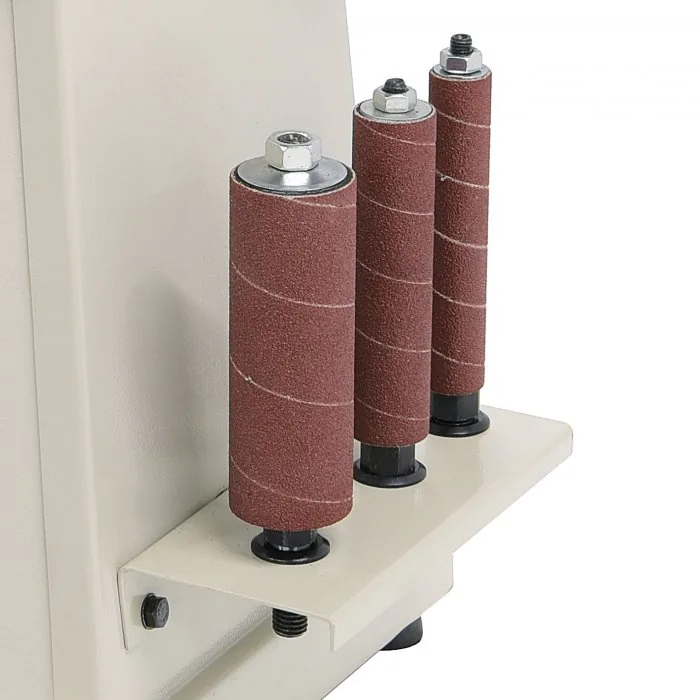

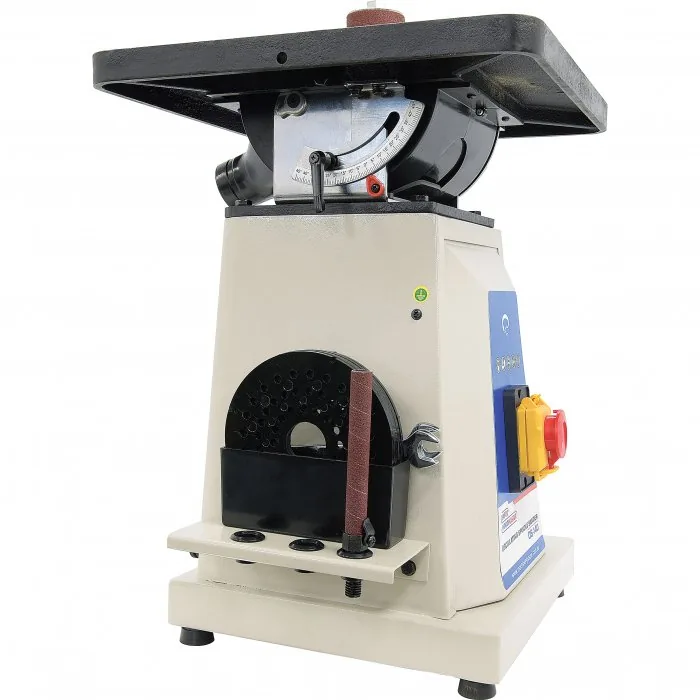

- Storage trays for sanding spindles, sleeves & table inserts

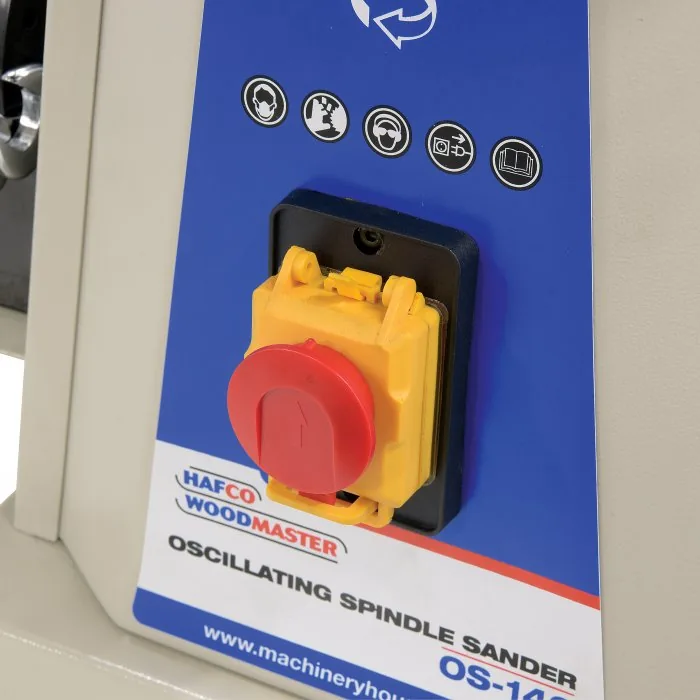

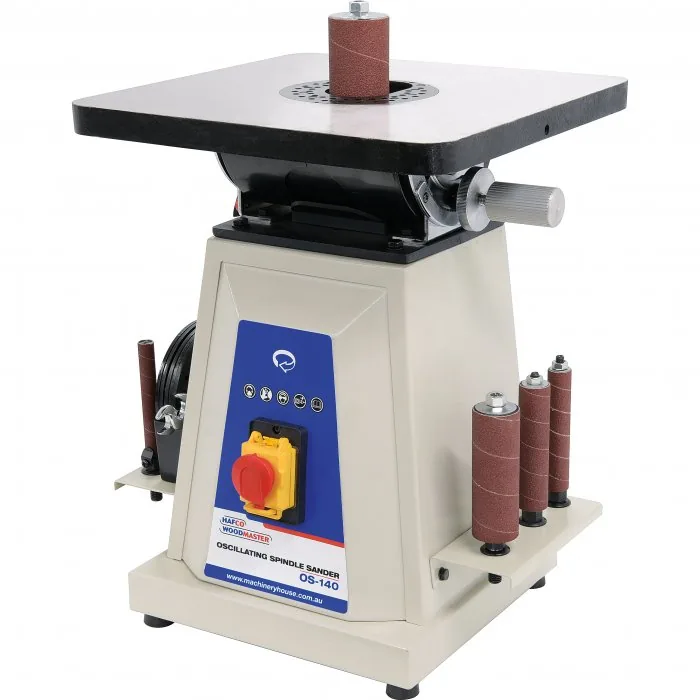

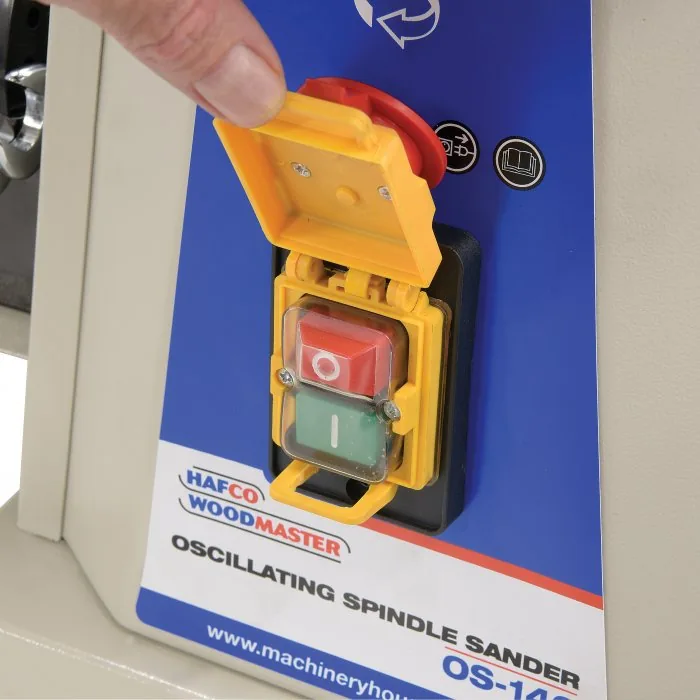

- Safety magnetic switch with emergency stop
- Anti vibration rubber feet

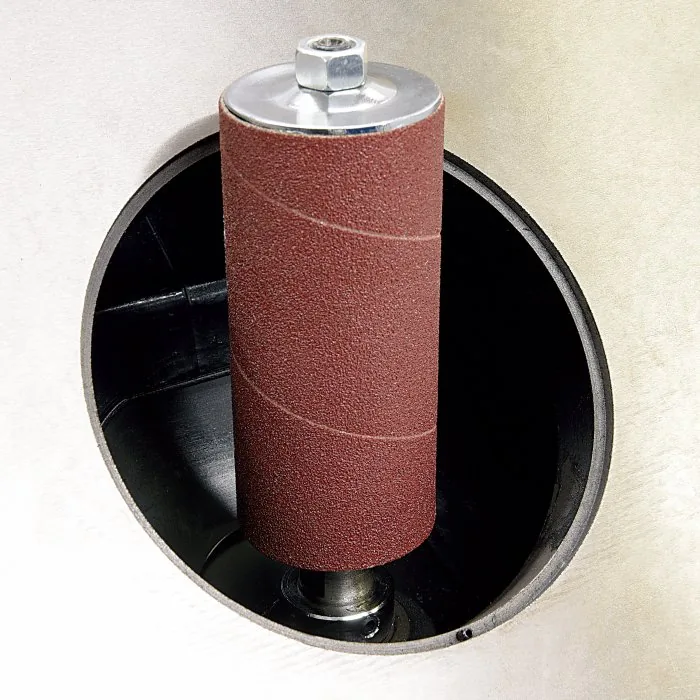

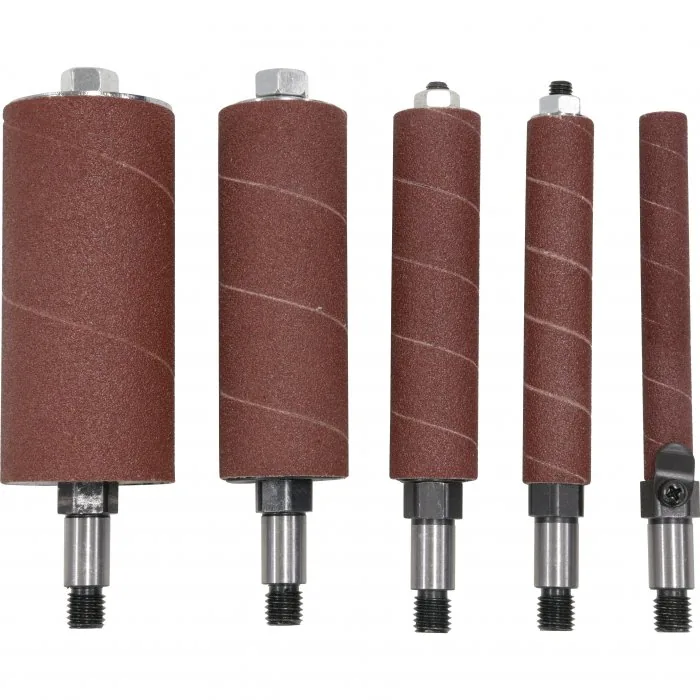

- Sanding sleeves (1/2”, 3/4”, 1”, 1-1/2”, 2”),

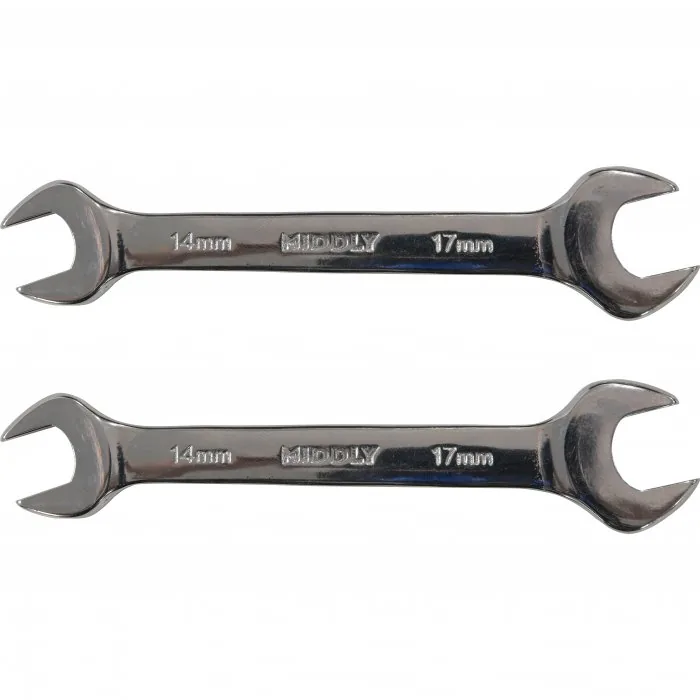

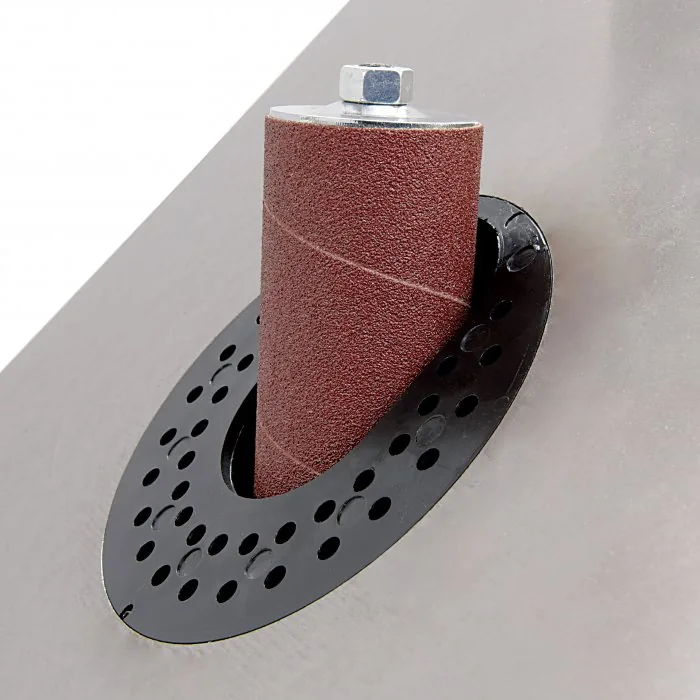

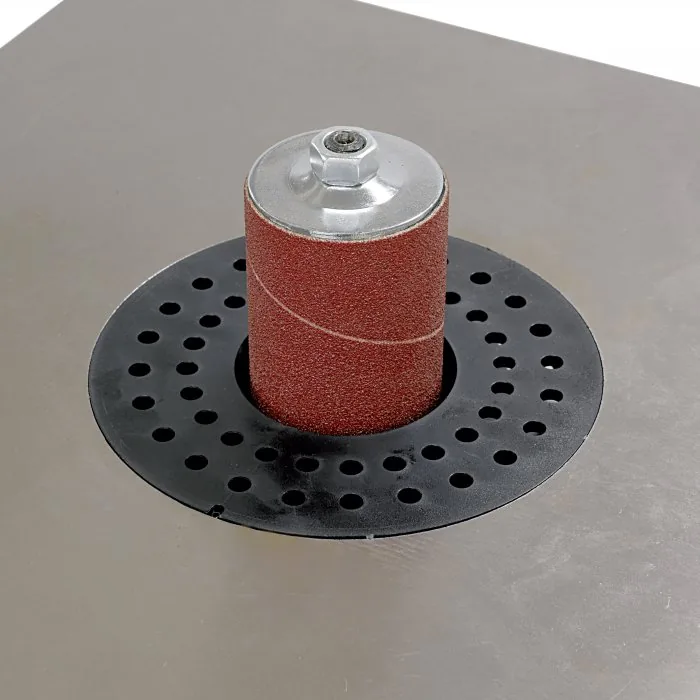

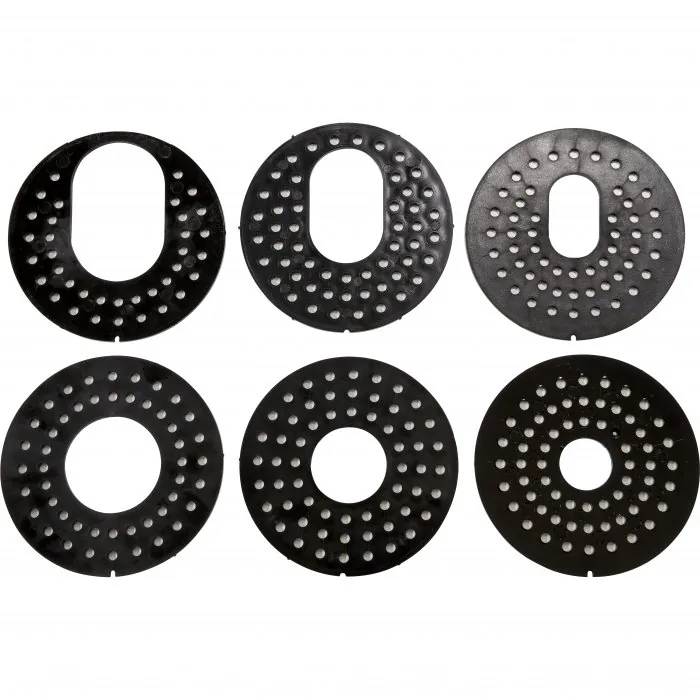

- 6 x table inserts & 1 x sleeve spanner
About This Product
Used for sanding deep and wide work pieces, front edges, narrow inner curves, horizontal, vertical, diagonal, with or across the grain This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W792) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Sanding Spindle Sleeve Sizes (Inch) | 1/2″, 3/4″, 1″, 1-1/2″, 2″ |
| Table Size (mm) | 370 x 370 |
| Table Height (mm) | 485 |
| Oscillating Stroke (mm) | 24 |
| Sanding Spindle Speed (rpm) | 1425 |
| Tilting Work Table (Deg.) | 45º |
| Dust Port Size (mm) | Ø50 |
| Motor Power (kW / hp) | 0.37 / 0.5 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Floor Space (W x D x H) | 370 x 370 x 500 |
| Weight (kg) | 34.5 |
