HAFCO-WOODMASTER

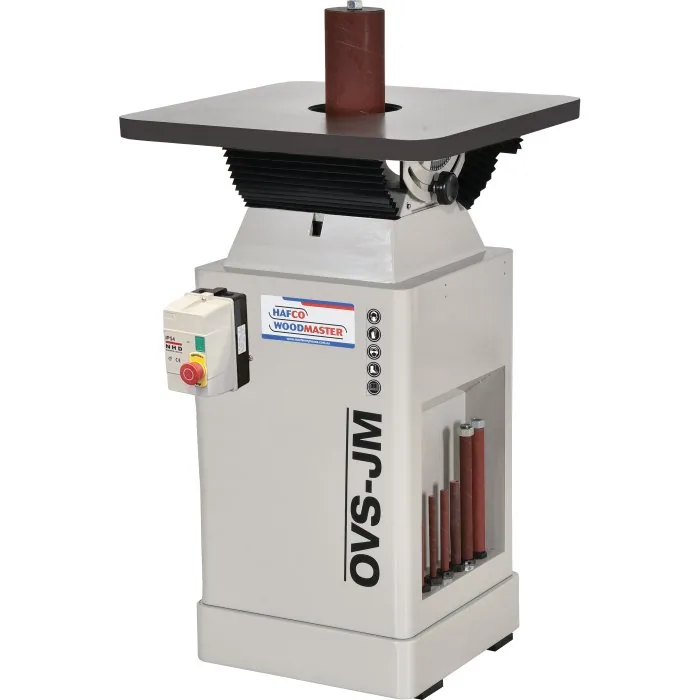

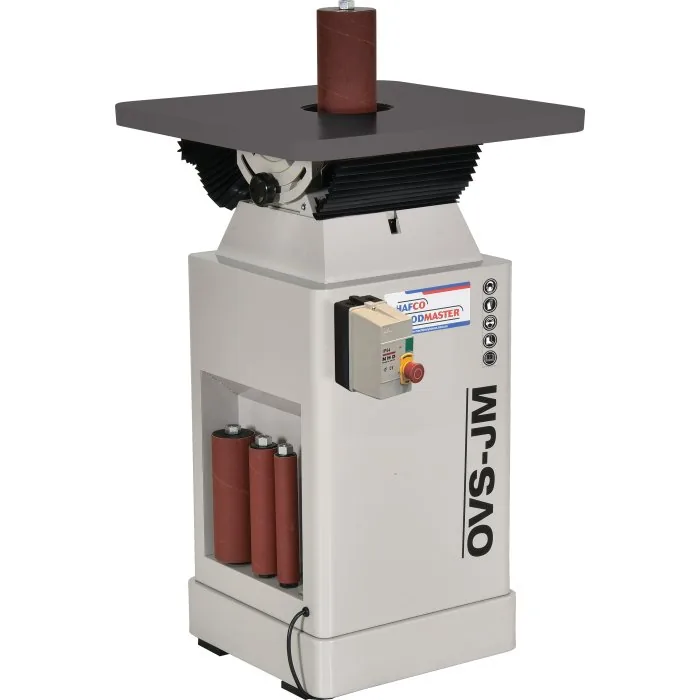

Vertical Oscillating Bobbin Sander with Cabinet Stand — OVS-JM, Ø1/4 – 4″ Sanding Sleeves Tilting Table To 45 Degrees
Part No: W795 | Barcode: 9344195021138 | Model: OVS-JM
HAFCO-WOODMASTER OVS-JM Vertical Oscillating Bobbin Sander with Cabinet Stand (Ø1/4 – 4″ Sanding Sleeves Tilting Table To 45 Degrees). Available to order through Alltools Geelong for collection in store.
Model OVS-JM
Ø1/4 – 4″ Sanding Sleeves
Tilting Table To 45 Degrees
Table Size: 609 x 609 mm
Oscillating Stroke: 38 mm
Sanding Spindle Speed: 1725 rpm
Motor Power: 0.75 / 1
Key Features & Benefits
- Quality Taiwanese manufacture
- Used for sanding deep and wide work pieces, front edges, narrow inner curves, horizontal, vertical, diagonal, with or across the grain
- Rotating and oscillating action ensures exceptional finishing results
- Precision ground cast iron tilting table 609 x 609mm
- Heavy gauge steel frame construction

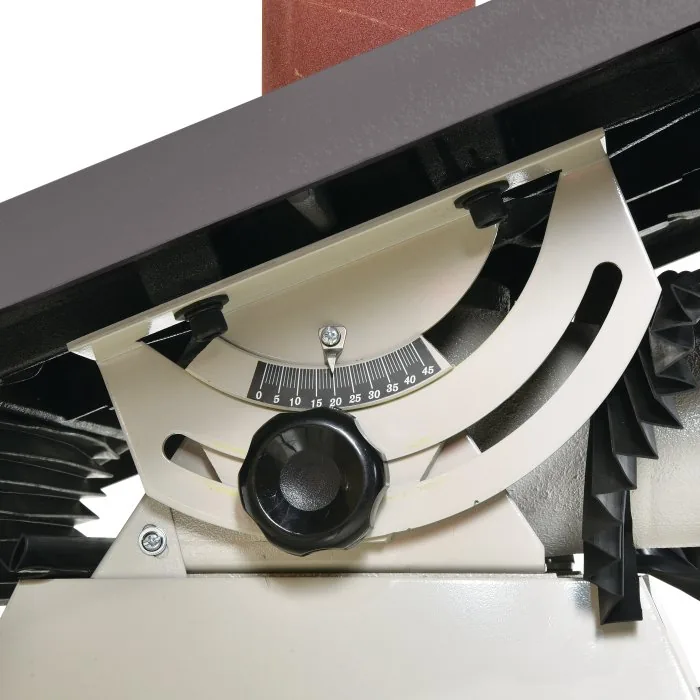

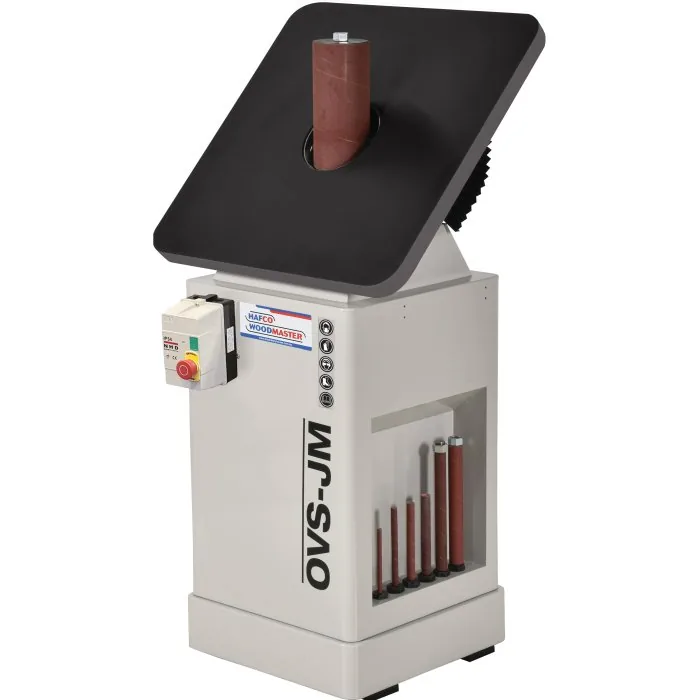

- Table tilting mechanism allows a tilt from 0° to 45°
- Supplied with 10 bobbin spindles ranging from Ø6.35mm (1/4″) to Ø101.6mm (4″)
- Supplied with table inserts with round and oval openings for various sanding positions
- Spindle change is easily made by using the supplied wrench

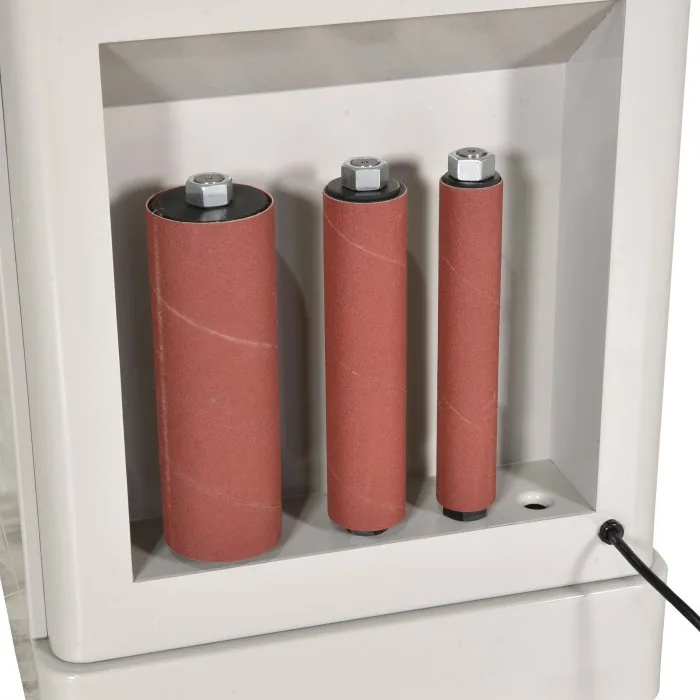

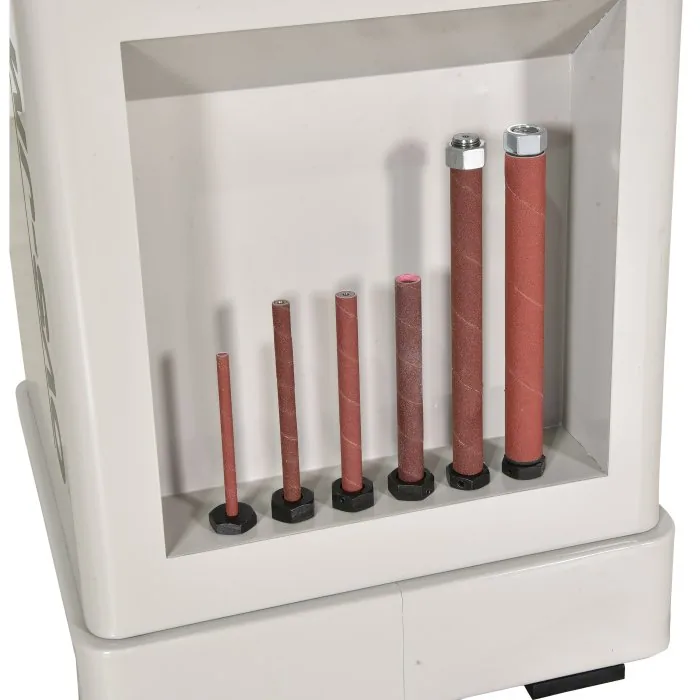

- On-board accessory storage ensures convenient storage of all drums and table inserts plates
- 1hp 240V motor provides ample power

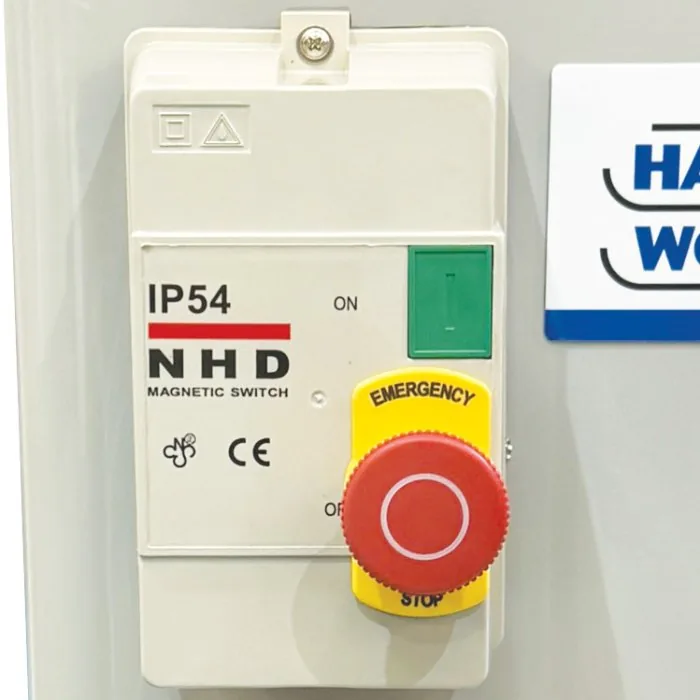

- DOL starter switch with overload protection and raised red stop button

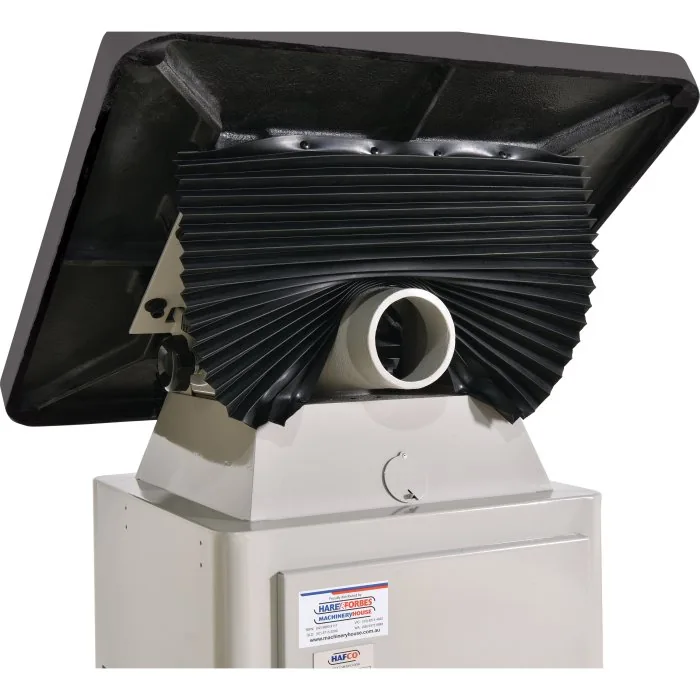

- Ø100mm (4″) dust port for efficient dust extraction
- Oscillating per minute: 75 times
About This Product
Vertical Oscillating Bobbin Sander with Cabinet Stand (Ø1/4 – 4″ Sanding Sleeves Tilting Table To 45 Degrees). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code W795) for collection in store.

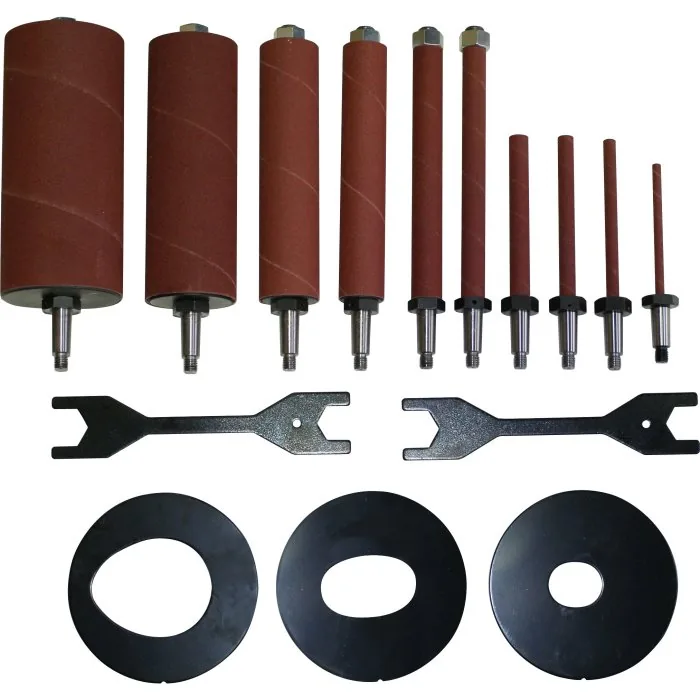

In the Box
- Sanding Spindles & Sleeves:
- 1/4″ x 5″ long
- 3/8″ x 6″ long
- 1/2″ x 6″ long
- 5/8″ x 6″ long
- 3/4″ x 9″ long
- 1″ x 9″ long
- 1-1/2″ x 9″ long
- 2″ x 9″ long
- 3″ x 9″ long
- 4″ x 9″ long
Product Specifications
| Specification | Detail |
|---|---|
| Sanding Spindle Sleeve Sizes (Inch) | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″ 1″, 1-1/2″, 2″, 3″ & 4″ |
| Table Size (mm) | 609 x 609 |
| Table Height (mm) | 990 |
| Oscillating Stroke (mm) | 38 |
| Sanding Spindle Speed (rpm) | 1725 |
| Tilting Work Table (Deg.) | 45º |
| Dust Port Size (mm) | Ø100 |
| Motor Power (kW / hp) | 0.75 / 1 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Floor Space (W x D x H) | 620 x 620 x 1200 |
| Weight (kg) | 145 |
