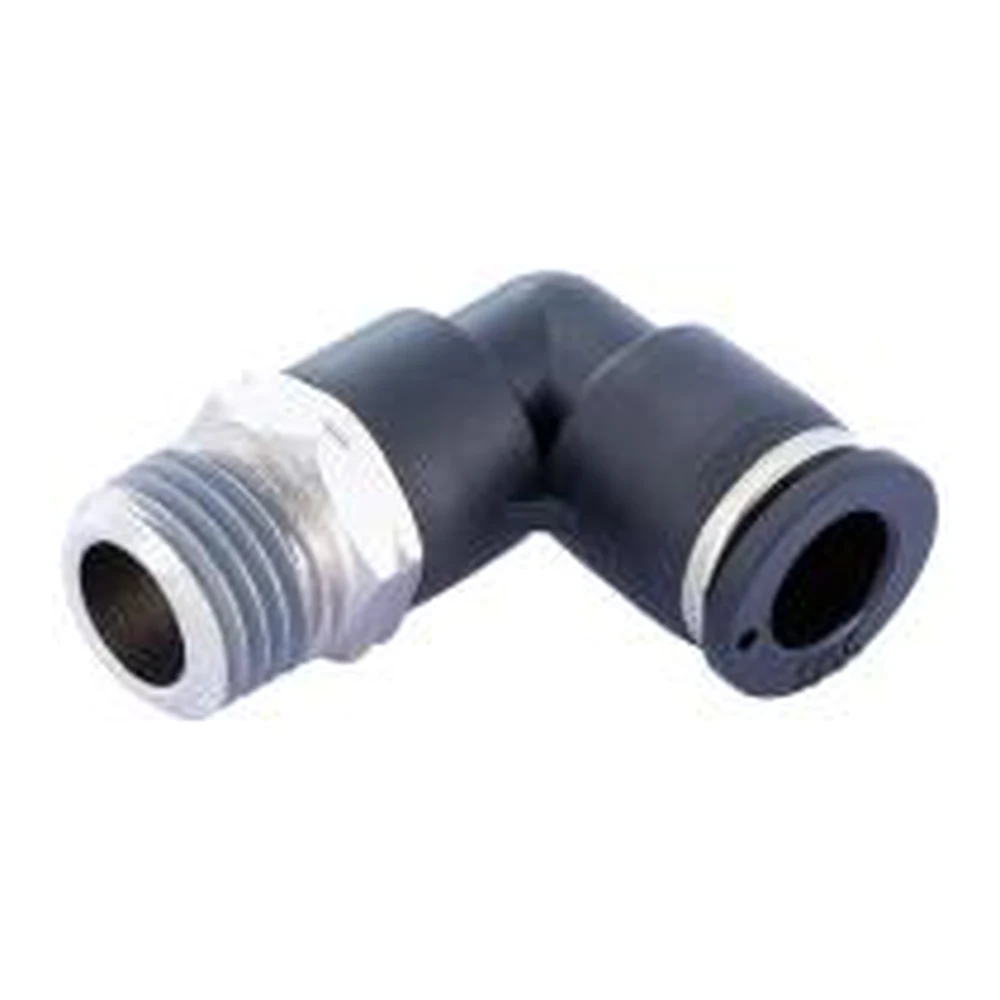

Push-In Male Elbow 8mm to 1/4″ BSP
Part No: 20-M005-0804 | Range: Air Fittings & Piping
This push-in male elbow turns 8mm OD air tube through 90° onto a 1/4″ BSP male threaded port. The tube pushes into the collet by hand for an instant tool-free seal, letting you route air neatly around corners and into tight spaces on tools, cylinders and manifolds.
8mm Push-In
1/4″ BSP Male
90° Elbow
One-Touch
Compressed Air
Suitable For
Compressed Air Lines
Air Cylinders & Valves
Tight-Access Plumbing
Manifolds
Key Features & Benefits
- 90° turn — takes the 8mm tube around a right angle so the line can run hard up against a wall, frame or machine without a sharp tube bend.
- One-touch push-in — the 8mm tube pushes into the collet and locks instantly — no spanners or clamps on the tube side.
- 1/4″ BSP male thread — screws into a matching female port; PTFE-tape the thread for a leak-free seal under pressure.
- Swivel routing — the elbow body lets the tube be angled to suit, then locks once the tube is seated.
When to Use This Fitting
Use part 20-M005-0804 where 8mm air tube needs to turn 90° onto a 1/4″ BSP male port in a tight spot — at a cylinder, valve or tool inlet. PTFE-tape the male thread, screw it home, then push the tube fully into the collet.
Push-In Male Elbow Range — Sizes Available
| Part No. | Tube OD | Thread / Type |
|---|---|---|
| 20-M005-0604 | 6mm | 1/4″ BSP |
| 21-M005-0602 | 6mm | 1/8″ BSP |
| 20-M005-0804 ★ | 8mm | 1/4″ BSP |
| 20-M005-1004 | 10mm | 1/4″ BSP |
★ You are viewing the highlighted fitting. Other sizes in this push-in range are also available.
Browse our wide range of air fittings & piping at Alltools Geelong.
