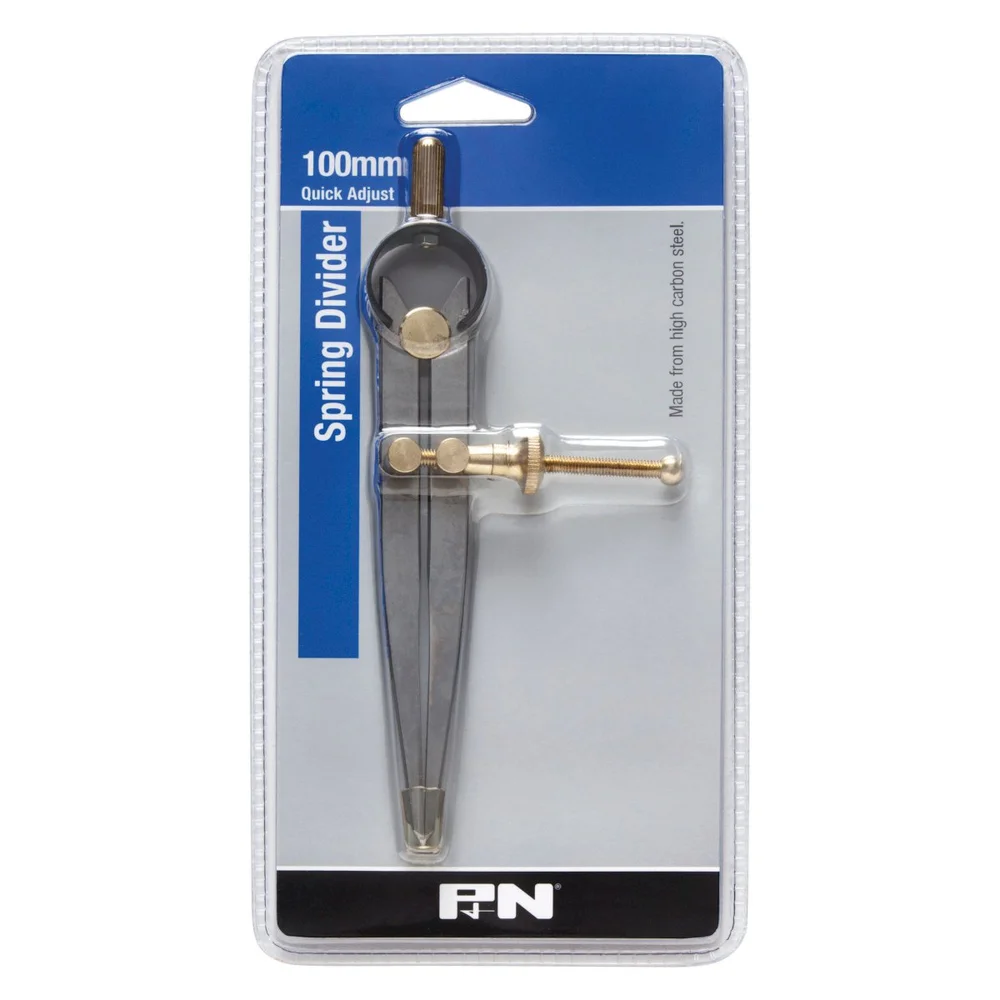

P&N Quick-Adjust Spring Divider — 100mm (4″)
Part No: 267MTQ104 | Barcode: 9311744438495 | Series: Workshop Spring Dividers
P&N’s quick-adjust spring divider gives tradespeople a precise, repeatable way to mark out arcs, transfer distances and scribe layouts on metal or timber. The carbon-steel legs and knurled adjustment screw hold a setting cleanly without slipping, and the sprung joint snaps back to the set width every time you release the legs.
100mm Legs
Carbon Steel
Quick-Adjust Screw
Sprung Joint
Sharp Scribing Points
Compatible Applications
Steel & Alloys
Aluminium
Timber
Sheet Metal
Plastics
Key Features & Benefits
- Quick-adjust screw bar — set the dimension by hand, then fine-tune with the knurled nut so you land on the exact measurement without removing the divider from the work.
- Hardened carbon-steel construction — retains its setting under repeated use and keeps the scribing points sharp on steel, alloy and timber.
- Sprung joint with large bearing surface — legs return to the set width cleanly and resist sideways deflection when you press into the work.
- Top loop handle — comfortable to pivot and step-off arcs without fatigue during repetitive marking-out tasks.
- 100mm (4″) leg length — suits close-in marking, small layouts and tight workshop spaces.
When to Use the 267MTQ104
Reach for the 267MTQ104 100mm divider when you need to step off a dimension, scribe arcs or transfer distances on steel, aluminium or timber. This 100mm size is best for close, detailed marking on smaller parts — if you work on plate or long stock, look at the 150mm or 200mm variants below.
Pro Tip: When marking curved arcs on painted or oily steel, wipe the work with methylated spirits first and give the points a quick hone on an oilstone — a crisp scribe line transfers clearly to cut or grinder and saves cleanup at the fitting-up stage.
Authorised Australian Dealer — This product is sourced directly from P&N Tools Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Leg Length | Imperial | Barcode |
|---|---|---|---|
| 267MTQ104 ★ | 100mm | 4″ | 9311744438495 |
| 267MTQ106 | 150mm | 6″ | 9311744438501 |
| 267MTQ108 | 200mm | 8″ | 9311744438518 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
