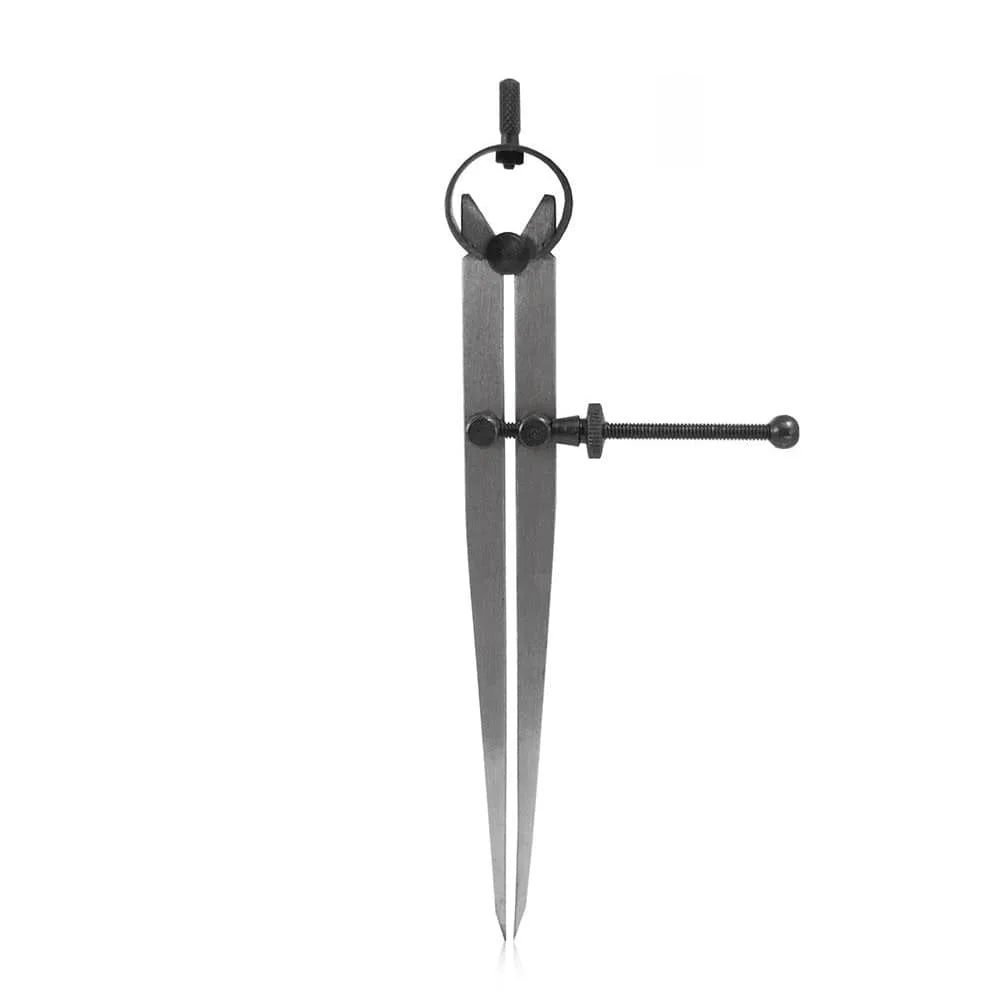

Intech Spring Divider — 300mm (12″)
Part No: PRSCD300 | Barcode: 9333608005056 | Series: Intech Spring Dividers
Intech’s PRSCD spring divider gives tradespeople a precise way to scribe arcs, step off dimensions and transfer distances across steel, aluminium and timber. Two hardened points and the sprung joint hold a setting cleanly, while the fine-adjust screw lets you dial in the exact distance to tenths of a millimetre.
300mm Legs
Fabricated Steel
Spring Joint
Fine-Adjust Screw
Two Hardened Points
Compatible Work
Steel & Alloys
Aluminium
Timber
Sheet Metal
Fabrication Layout
Key Features & Benefits
- Two hardened points — scribe clean arcs, circles and transfer distances cleanly on steel, alloy and timber; both points stay sharp under repeated use.
- Spring joint with fine-adjust screw — set the distance once and the spring holds the dimension as you step across the work without the legs drifting.
- Large bearing surface on fulcrum stud — prevents sideways deflection when pressing the point into scale or paint for a clean scribe line.
- Fabricated-steel legs — strong, rigid construction that holds alignment under repeated marking-out.
- Workshop layout staple — step off bolt-hole pitches, scribe circles for plasma cuts, and transfer distances from a rule for consistent layout.
When to Use the PRSCD300
Reach for the PRSCD300 300mm spring divider when you need to step off a repeated distance, scribe an arc, or transfer a dimension — bolt pitch layouts on flanges, circle marking for oxy or plasma cuts, stepping off timber stock for repeated cuts. The 300mm size gives real reach for large plate layouts, structural fabrication and long step-offs. For closer work the 100mm, 150mm and 250mm sizes are easier to handle at the bench.
Pro Tip: When stepping off a long dimension, walk the divider heel-over-toe rather than sliding it — each step pivots on one point while the other swings to the next position. This keeps the full distance accurate over many steps; sliding accumulates error as the points drag along the work.
Product Specifications
| Part No. | Leg Length | Imperial | Barcode |
|---|---|---|---|

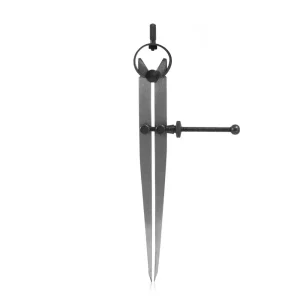

| PRSCD100 | 100mm | 4″ | 9333608005018 |
| PRSCD150 | 150mm | 6″ | 9333608005025 |
| PRSCD250 | 250mm | 10″ | 9333608005049 |
| PRSCD300 ★ | 300mm | 12″ | 9333608005056 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
