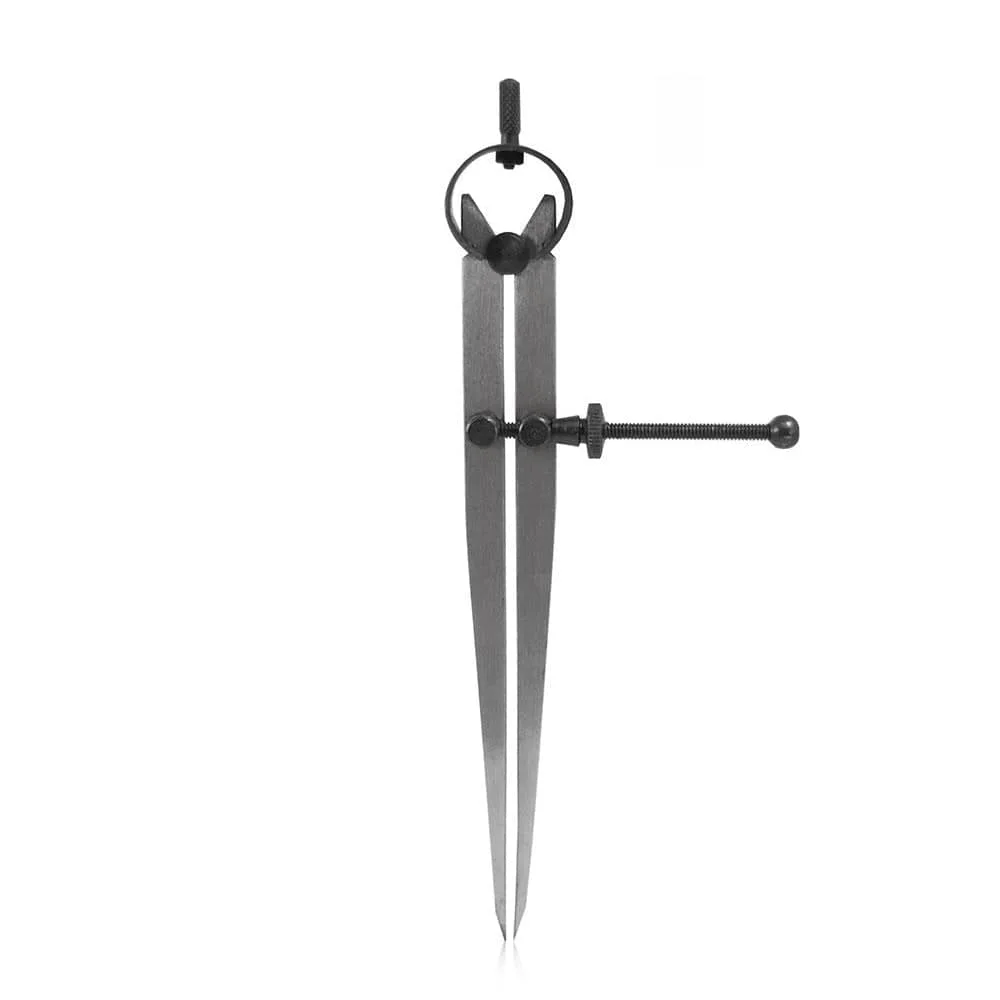

Intech Spring Divider — 150mm (6″)
Part No: PRSCD150 | Barcode: 9333608005025 | Series: Intech Spring Dividers
Intech’s PRSCD spring divider gives tradespeople a precise way to scribe arcs, step off dimensions and transfer distances across steel, aluminium and timber. Two hardened points and the sprung joint hold a setting cleanly, while the fine-adjust screw lets you dial in the exact distance to tenths of a millimetre.
150mm Legs
Fabricated Steel
Spring Joint
Fine-Adjust Screw
Two Hardened Points
Compatible Work
Steel & Alloys
Aluminium
Timber
Sheet Metal
Fabrication Layout
Key Features & Benefits
- Two hardened points — scribe clean arcs, circles and transfer distances cleanly on steel, alloy and timber; both points stay sharp under repeated use.
- Spring joint with fine-adjust screw — set the distance once and the spring holds the dimension as you step across the work without the legs drifting.
- Large bearing surface on fulcrum stud — prevents sideways deflection when pressing the point into scale or paint for a clean scribe line.
- Fabricated-steel legs — strong, rigid construction that holds alignment under repeated marking-out.
- Workshop layout staple — step off bolt-hole pitches, scribe circles for plasma cuts, and transfer distances from a rule for consistent layout.
When to Use the PRSCD150
Reach for the PRSCD150 150mm spring divider when you need to step off a repeated distance, scribe an arc, or transfer a dimension — bolt pitch layouts on flanges, circle marking for oxy or plasma cuts, stepping off timber stock for repeated cuts. The 150mm size is the workshop go-to for general layout — balanced reach and control for most marking-out tasks. Step down to 100mm for small parts; up to 250mm or 300mm for larger plate work.
Pro Tip: When stepping off a long dimension, walk the divider heel-over-toe rather than sliding it — each step pivots on one point while the other swings to the next position. This keeps the full distance accurate over many steps; sliding accumulates error as the points drag along the work.
Product Specifications
| Part No. | Leg Length | Imperial | Barcode |
|---|---|---|---|
| PRSCD100 | 100mm | 4″ | 9333608005018 |
| PRSCD150 ★ | 150mm | 6″ | 9333608005025 |
| PRSCD250 | 250mm | 10″ | 9333608005049 |
| PRSCD300 | 300mm | 12″ | 9333608005056 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
