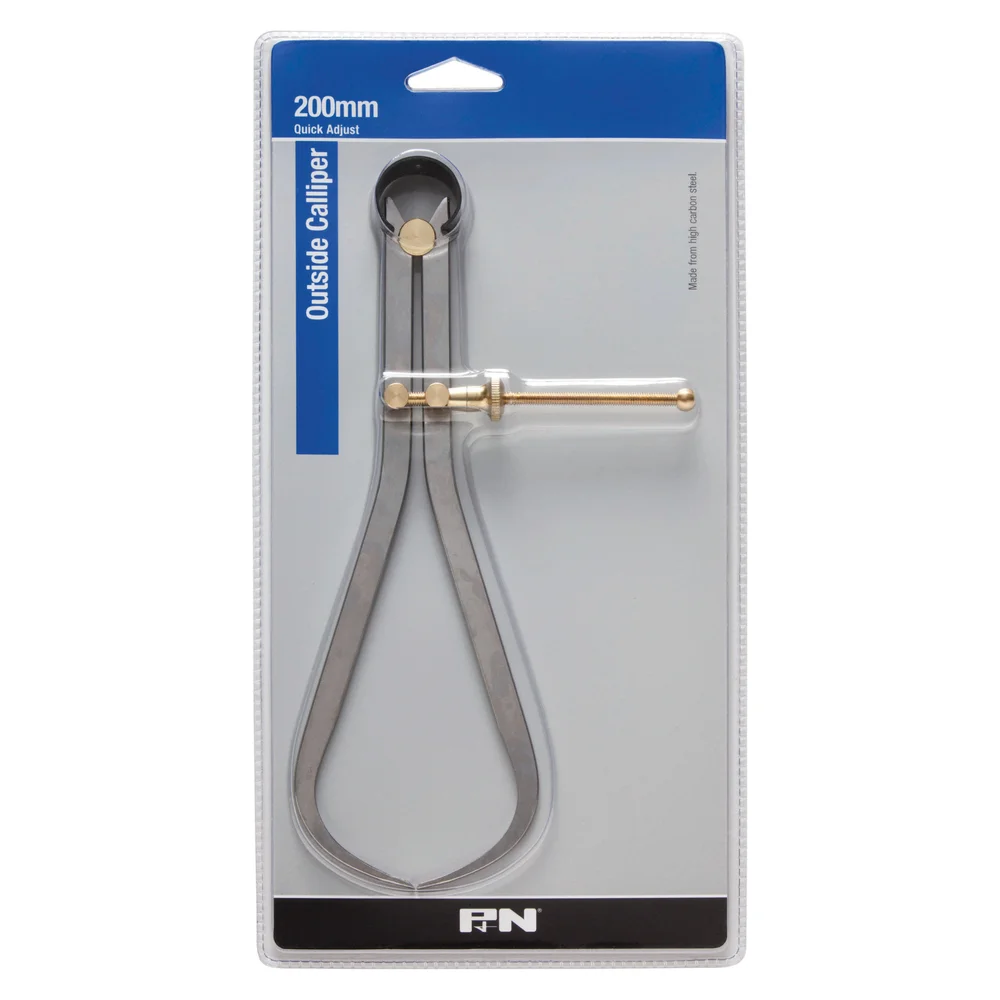

P&N Quick-Adjust Outside Caliper — 200mm (8″)
Part No: 267MTQ208 | Barcode: 9311744438488 | Series: P&N Workshop Outside Calipers
P&N’s 200mm outside caliper is built for measuring external diameters on shafts, turned work and round stock with precision and repeatability. The carbon-steel legs and quick-adjust screw let you dial in the exact dimension and hold it cleanly across multiple parts without re-setting.
200mm Legs
Carbon Steel
Quick-Adjust Screw
Curved Outside Legs
Top Loop Handle
Compatible Work
Round Stock
Turned Parts
Shafts & Axles
Tube & Pipe
General Engineering
Key Features & Benefits
- Quick-adjust screw bar — set the OD by hand then fine-tune with the knurled nut to reach the exact dimension without slipping off the workpiece.
- Curved outside-caliper legs — profile shaped to sit cleanly on a round OD without rocking, giving consistent contact at the diameter plane.
- Hardened carbon-steel construction — holds its setting under repeated use and resists leg flex on larger diameters.
- Comfortable top loop handle — easy to rock across the workpiece to confirm max diameter during inspection.
- P&N workshop heritage — Australian precision-tool brand with a reputation for dependable measuring instruments.
When to Use the 267MTQ208
Reach for the 267MTQ208 200mm outside caliper when you need to check or transfer an external diameter — lathe turning, shaft inspection, bar stock sizing, or bearing-fit dimension transfer. The 200mm size opens up for larger shafts and bigger bar stock work. For measuring bores of the same parts, pair with a P&N inside caliper (267MTQ306/308).
Pro Tip: Compare the caliper setting against a micrometer or gauge block for the actual number — the caliper is a transfer tool, not a reading instrument. Once set, it’s the fastest way to check multiple parts on a production run without re-measuring each with the mic.
Authorised Australian Dealer — This product is sourced directly from P&N Tools Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Leg Length | Imperial | Barcode |
|---|---|---|---|
| 267MTQ206 | 150mm | 6″ | 9311744438471 |
| 267MTQ208 ★ | 200mm | 8″ | 9311744438488 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
