Intech Tools

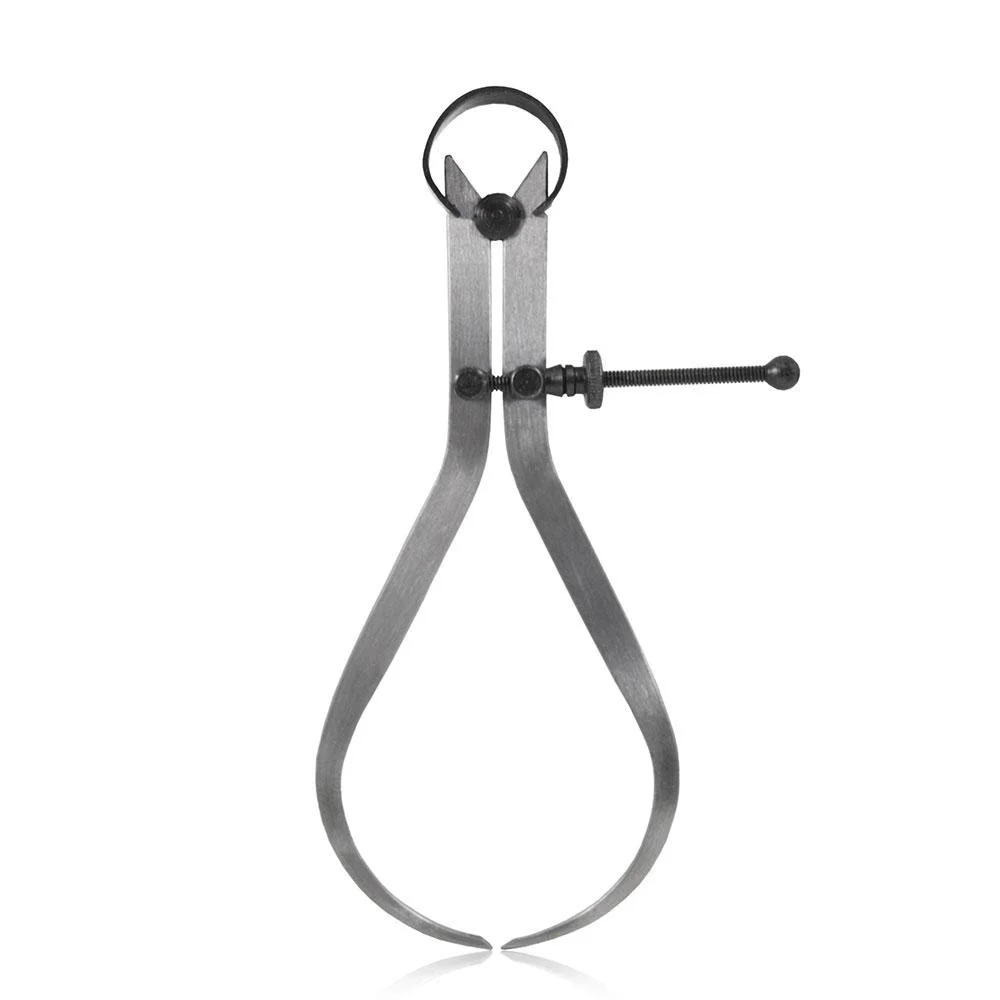

Intech Outside Spring Caliper — 200mm (8″)
Part No: PRSCO200 | Barcode: 9333608005216 | Series: Intech Spring Calipers — Outside
Intech’s PRSCO outside spring caliper is a workshop classic for measuring outside diameters on round stock, shafts and turned work. The fabricated-steel legs and spring joint give repeatable, drift-free settings — set once with the adjustment nut and the caliper holds its dimension as you check part after part.
200mm Legs
Fabricated Steel
Spring Joint
Screw Adjustment
Large Fulcrum Bearing
Compatible Work
Round Stock
Turned Parts
Shafts & Axles
Tube & Pipe
General Engineering
Key Features & Benefits
- Spring-joint precision setting — the spring returns the legs to the set dimension after release, so you can check multiple parts against the same reference without re-setting.
- Large bearing surface on fulcrum stud — prevents sideways deflection of the legs under pressure, keeping readings consistent when transferring from a standard or micrometer.
- Fabricated-steel construction — strong, rigid legs stand up to daily workshop use and resist flex when reaching over larger diameters.
- Fine adjustment screw — dial in the exact dimension to tenths of a millimetre without the quick-release slip of plain-joint calipers.
- Curved outside legs — shaped to sit cleanly against a round workpiece without rocking on the OD.
When to Use the PRSCO200
Reach for the PRSCO200 200mm outside caliper when you need to verify outside diameters on turned or round work, or transfer a dimension from a rule or micrometer to the workpiece. The 200mm size is the everyday workshop caliper — enough reach for shafts and mid-sized turned parts without being unwieldy. The 100mm suits smaller stock; the 250mm and 300mm open up for larger diameters.
Pro Tip: Set an outside caliper from a known reference (a micrometer or gauge block) and check it across the diameter at two or three points around the workpiece — variation tells you the part is tapered or out-of-round, not just the wrong diameter. This quick comparison catches setup errors on the lathe before you finish-cut.
Product Specifications
| Part No. | Leg Length | Imperial | Barcode |
|---|---|---|---|
| PRSCO100 | 100mm | 4″ | 9333608005193 |
| PRSCO200 ★ | 200mm | 8″ | 9333608005216 |
| PRSCO250 | 250mm | 10″ | 9333608005223 |
| PRSCO300 | 300mm | 12″ | 9333608005230 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
