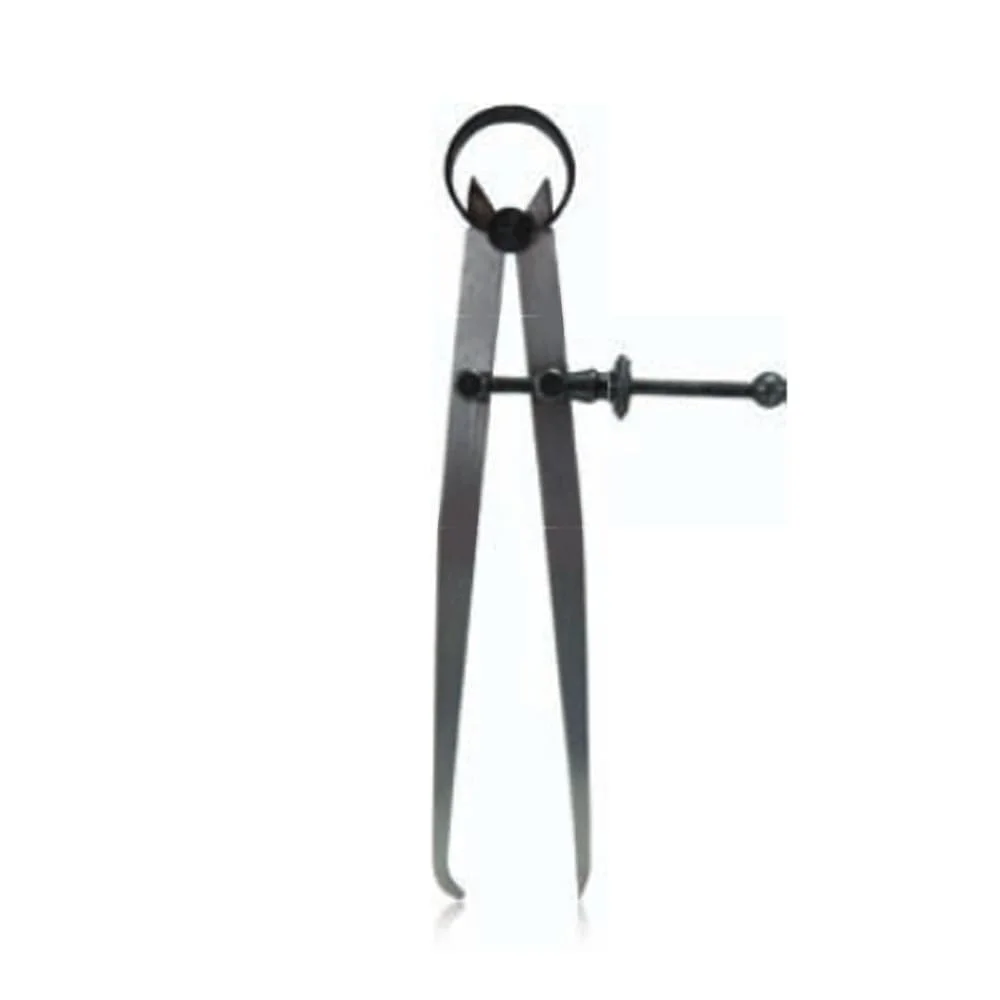

Intech Jenny (Odd-Leg) Caliper — 250mm (10″)
Part No: PRSCJ250 | Barcode: 9333608005308 | Series: Intech Spring Calipers — Jenny / Odd Leg
Intech’s PRSCJ jenny caliper (also called an odd-leg caliper) has one straight scribing point and one curved reference leg, letting you mark lines a fixed distance from an edge or scribe parallel to a curved surface. It’s the go-to marking-out tool for laying down centrelines on round stock and stepping off consistent offsets on plate.
250mm Legs
Fabricated Steel
Spring Joint
Sharp Scribing Point
Curved Reference Leg
Compatible Work
Round Stock
Plate & Sheet
Fabrication Layout
Centrelining
Sheet Metal
Key Features & Benefits
- One curved reference leg + one straight scribing point — run the curved leg along an edge or around a cylindrical surface while the point scribes a parallel line at the set offset.
- Spring joint with fine-adjust screw — holds the offset setting cleanly so you can mark out a full workpiece without the distance drifting.
- Fabricated-steel legs — rigid enough to scribe through mill scale and paint without flex that would throw the offset out.
- Hardened scribing point — cuts a clean line on steel, aluminium or timber and stays sharp through repeated use.
- Essential for centrelining round stock — step in from each quadrant of the bar end to find the centre point for drilling or turning.
When to Use the PRSCJ250
Reach for the PRSCJ250 jenny caliper when you need to scribe a line parallel to an edge or curved surface — marking centrelines on bar stock, stepping off plate-edge offsets for hole patterns, or laying out parallel cut lines on sheet metal. The 250mm size gives reach for larger plate and longer offset distances.
Pro Tip: To find the centre of a round bar end, scribe four arcs — one from each quadrant with the curved leg on the outside and the point set to half the approximate diameter. The arcs form a small box in the middle; its centre is the centre of the bar, and you can centre-punch it directly for drilling or turning between centres.
Product Specifications
| Part No. | Leg Length | Imperial | Barcode |
|---|---|---|---|
| PRSCJ150 | 150mm | 6″ | 9333608005285 |
| PRSCJ250 ★ | 250mm | 10″ | 9333608005308 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
