Beaver

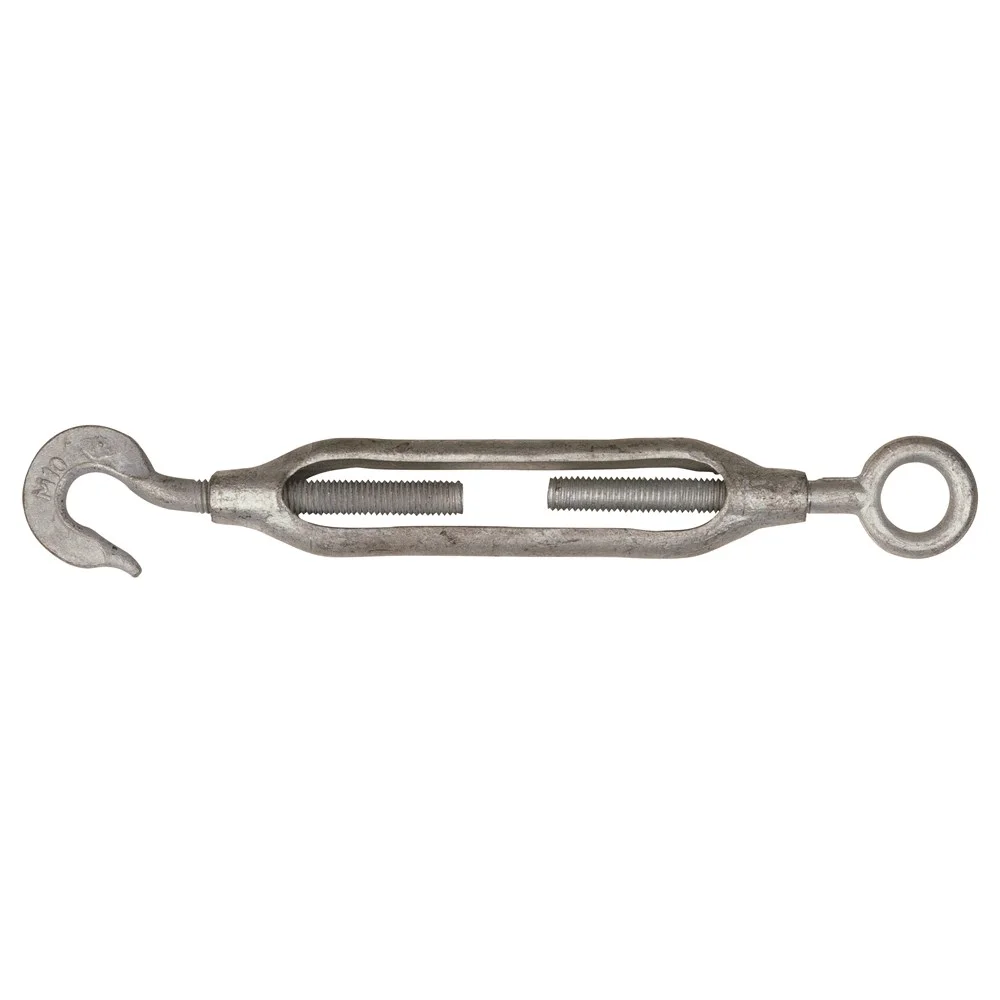

Beaver Commercial Hook/Eye Turnbuckle — 13mm Galvanised
Part No: 323213 | Barcode: 30668
Beaver commercial forged hook/eye turnbuckle in 13mm size with hot-dipped galvanised finish. Features hook end for direct attachment to anchor points and an eye end for connection via shackle or link. Designed for straight or inline tension applications with wire rope and chain assemblies. Not suitable for lifting.
13mm
Hot Dip Galvanised
Forged Steel
Open 415mm
Closed 265mm
Suitable For
Wire Tensioning
Fencing
Guy Wire Rigging
General Rigging
Key Features & Benefits
- Forged steel construction — heavy-duty body provides reliable strength for tensioning applications.
- Hot-dipped galvanised finish — superior corrosion protection for outdoor and exposed installations.
- Adjustable tension — rotating the body adjusts length between 265mm (closed) and 415mm (open) for precise tensioning.
- Commercial grade — suitable for fencing, guy wires, balustrades, and general-purpose tensioning.
When to Use This Turnbuckle
The 323213 turnbuckle is used for inline tensioning of 13mm wire rope, chain, or rod in fencing, guy wire, and general rigging applications. Turn the body to shorten or lengthen the assembly, adjusting tension. Dimensions allow ±10% tolerance. Not suitable for overhead lifting — use rated rigging screws for lifting applications.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Beaver Australia, with local support and service.
Product Specifications
| Part No. | Size (mm) | Open (mm) | Closed (mm) | Wt/100 (kg) |
|---|---|---|---|---|
| 323206 | 6 | 225 | 153 | 8 |
| 323208 | 8 | 250 | 161 | 14 |
| 323210 | 10 | 330 | 220 | 26 |
| 323213 ★ | 13 | 415 | 265 | 50 |
| 323216 | 16 | 520 | 335 | 100 |
| 323220 | 20 | 595 | 400 | 168 |
| 323223 | 22 | 700 | 440 | 246 |
| 323225 | 25 | 720 | 480 | 256 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
