Cejn

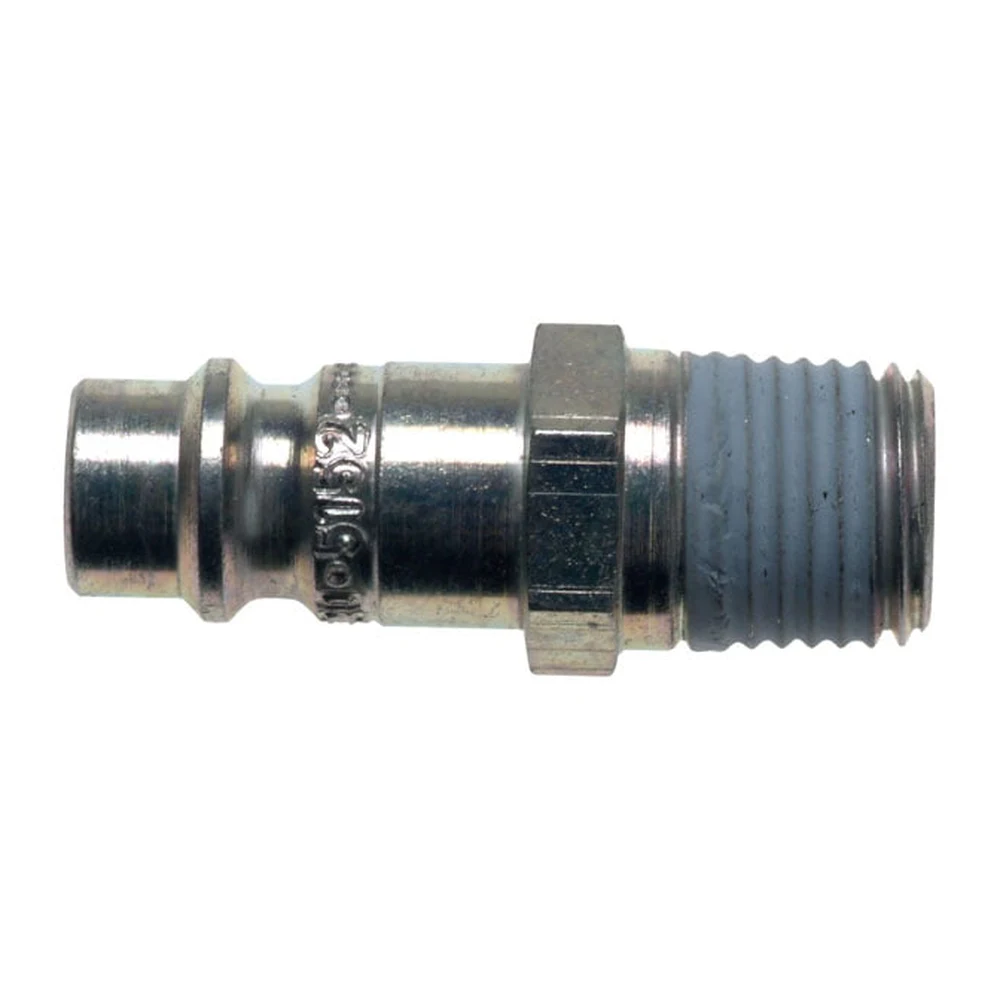

Cejn 320 Euro Air Fitting Adaptor — 1/4″ BSP Male (59-3480)
Part No: 59-3480 | Barcode: 16916 | Profile: Cejn 320 (Euro)
The Cejn 59-3480 is a Cejn 320 Euro air-line adaptor with a 1/4″ BSP Male connection, used to convert a Cejn 320 (Euro)-pattern air coupling or plug onto a threaded or hose-tail air line on workshop compressed-air systems. Profile: Cejn 320 (Euro).
Cejn 320 Euro
Adaptor (Nipple)
1/4″ BSP Male
1/4″ Size
One-Hand Connect
Suitable For
Compressed Air Lines
Air Tools & Nailers
Workshop Air Reticulation
Blow Guns & Tyre Inflators
Key Features & Benefits
- Cejn 320 (Euro) profile — the Cejn 320 series follows the European 7.4/7.6mm profile, so it mates with other Euro-pattern couplers and plugs (Rectus, Parker and similar) — dropping straight into your existing air system.
- Quick-change adaptor — lets you fit the right thread or hose tail to a coupler or plug without re-plumbing the air line.
- 1/4″ BSP Male thread — screws directly to compressor outlets, manifolds, FRLs and air-tool inlets.
- Genuine air-line componentry — matched to the rest of the Cejn 320 Euro-profile airline range for reliable sealing under shop air pressure.
When to Use This Fitting
Reach for the Cejn 59-3480 when you need to adapt a Cejn 320 (Euro) air line to a 1/4″ BSP Male connection — for example fitting a coupler or plug to a compressor outlet, manifold, hose tail or air tool. Match it to the Cejn 320 (Euro)-pattern couplers and plugs in the range below so the whole air system stays on one compatible profile.
Pro Tip: Air-coupler profiles are not interchangeable — Ryco, Cejn/Euro, Nitto and ARO patterns all look similar but will not seat together. Keep your whole shop on the one Cejn 320 (Euro) pattern so every plug mates with every socket; if you run mixed profiles, use a clearly labelled adaptor at the change-over point.
Authorised Australian Dealer — This is a genuine Cejn air-line fitting, backed by Australian supply and local support from Cejn Australia.
Product Specifications
| Part No. | Brand / System | Type | Connection |
|---|---|---|---|
| 59-3480 ★ | Cejn / Cejn 320 | Adaptor (Nipple) | 1/4″ BSP Male |
| 59.3483 | Cejn / Cejn 320 | Adaptor (Nipple) | 1/4″ BSP Female |
| 59.3488 | Cejn / Cejn 320 | Coupler (Socket) | 3/8″ Hose Tail |
| 59-3492 | Cejn / Cejn 320 | Coupler (Socket) | 3/8″ Hose Tail |
| 59-3497 | Cejn / Cejn 320 | Coupler (Socket) | 1/4″ BSP Male |
★ You are viewing the highlighted item. Other Cejn 320 (Euro)-pattern couplers, plugs and adaptors are also available — mix and match within the same profile.
