Description
Excision

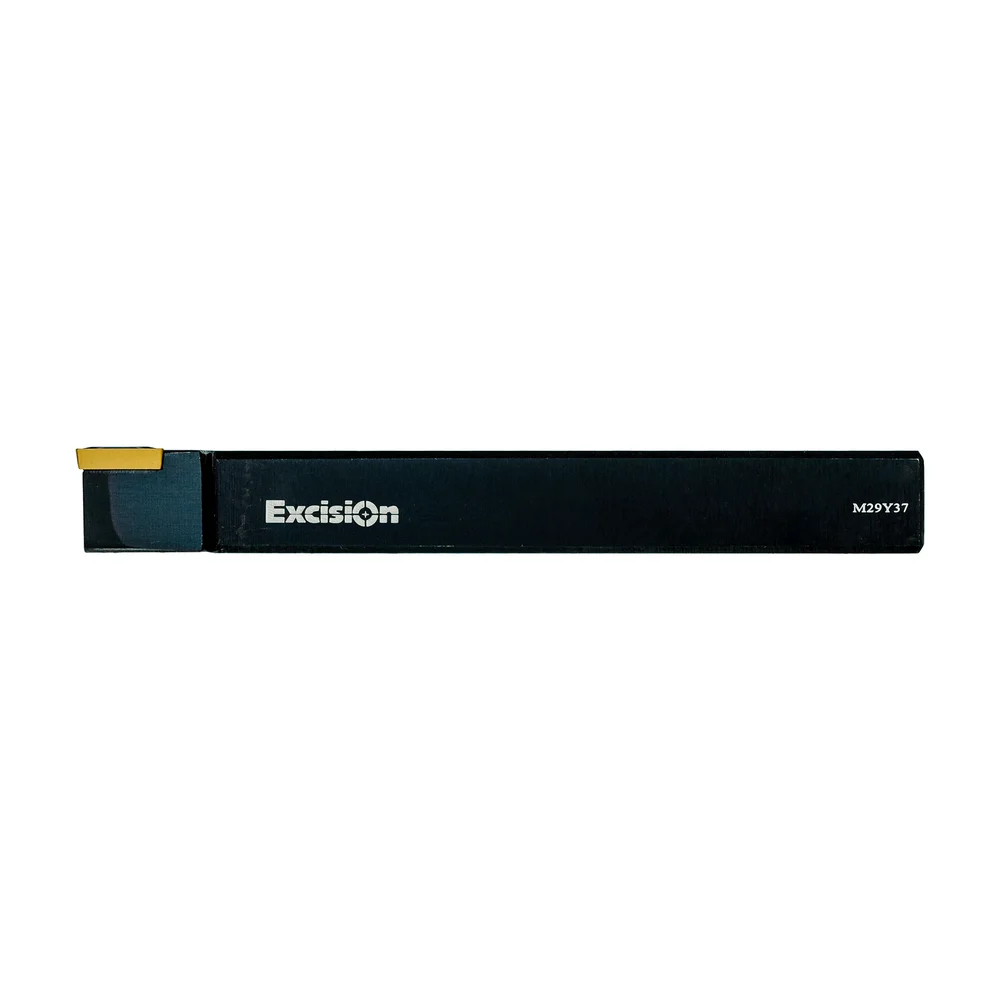

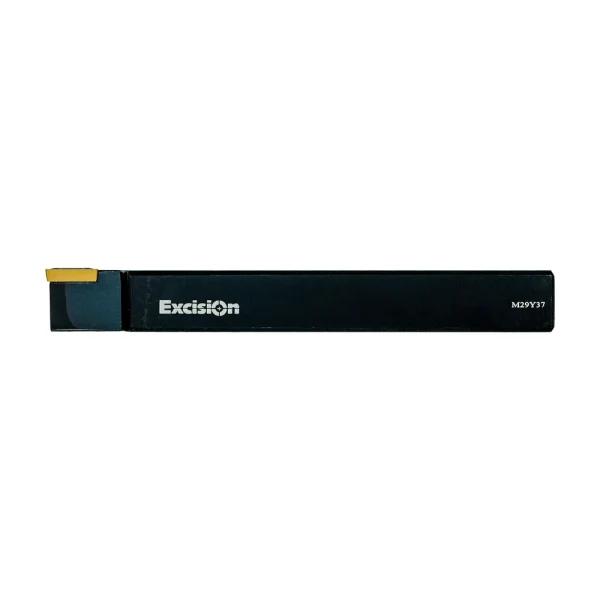

Excision STGC Right Hand Turning Tool Holder — 12mm Shank (STGCR-1212H11)
Part No: 781211211R | Barcode: 9341363315075 | ISO: STGCR-1212H11
Excision STGCR-1212H11 right-hand turning tool holder for the workshop lathe — a 12mm square-shank ISO-standard holder accepting TCMT110204 / TCMT110208 indexable carbide inserts. Solid steel body with precision insert seat for repeatable tip location.
12mm Shank
Right Hand
ISO STGC
Accepts TCMT110204
Steel Body
Key Features & Benefits
- ISO STGC pattern — Standard insert pocket — accepts any compliant TCMT110204 / TCMT110208 insert from Excision or other ISO suppliers.
- Right hand cutting — Built for turning towards the chuck (right hand).
- 12mm square shank — Sized to drop straight into common 4-way and quick-change tool posts on hobby and light-industrial lathes.
- Suitable for low-power lathes — Geometry and rake suit smaller workshop machines without bogging the spindle.
- Australian supplier support — Backed by Excision Australia (Melbourne) — stocked locally with replacement parts available.
When to Use This STGC Holder
Use Excision part 781211211R (STGCR-1212H11) when you need a right-hand 12mm ISO-STGC turning tool holder for indexable TCMT110204 / TCMT110208 carbide inserts. Suits hobby and light-industrial lathes. Inserts sold separately.
Authorised Australian Dealer — This product is sourced directly from Excision Australia, an Australian engineering tools supplier based in Melbourne, and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| H | 12mm |
| B | 12mm |
| LF | 100mm |
| LH | 17mm |
| WF | 16mm |
| Brand | Excision |
| Series | STGC |
| Holder ISO designation | STGCR-1212H11 |
| Hand | Right hand |
| Shank size | 12mm square |
| Compatible inserts | TCMT110204 / TCMT110208 |
| Insert pocket | ISO standard |
| Country | Australian-supplied (Excision, Melbourne) |
| Part number | 781211211R |
| Barcode | 9341363315075 |
