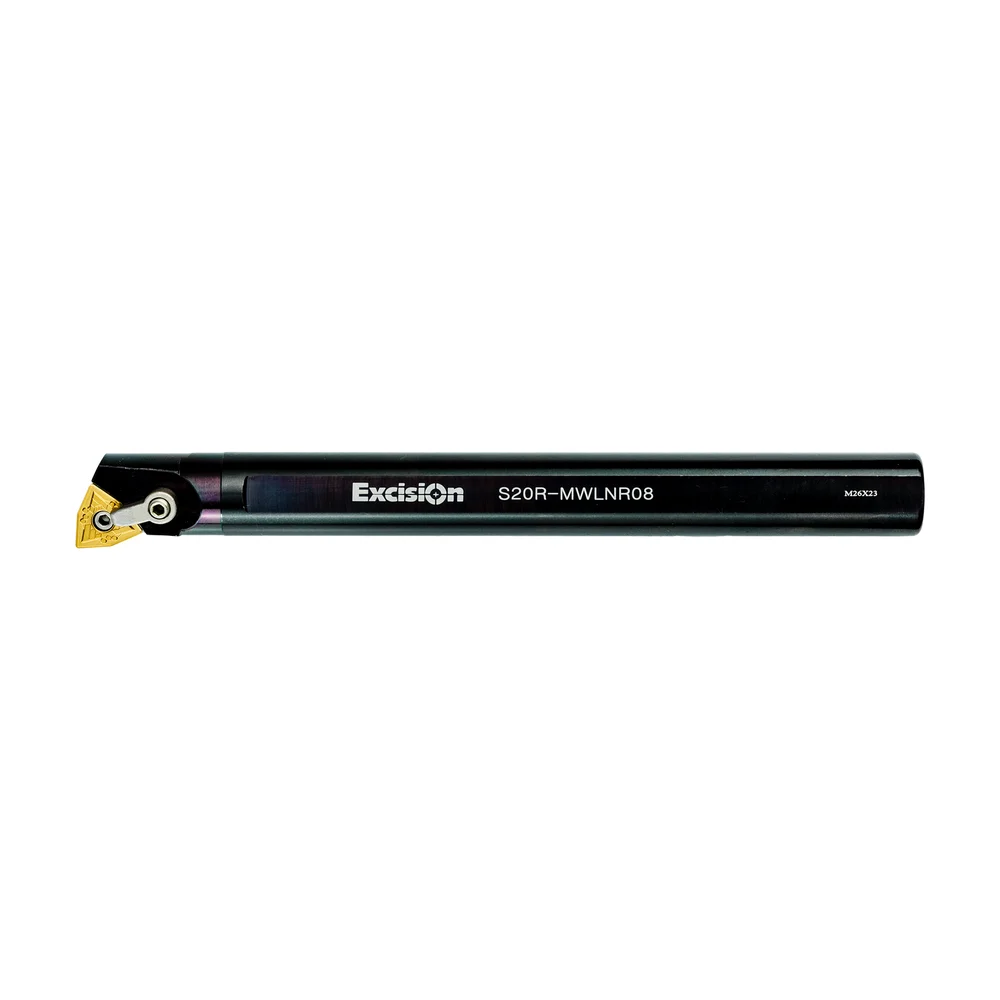

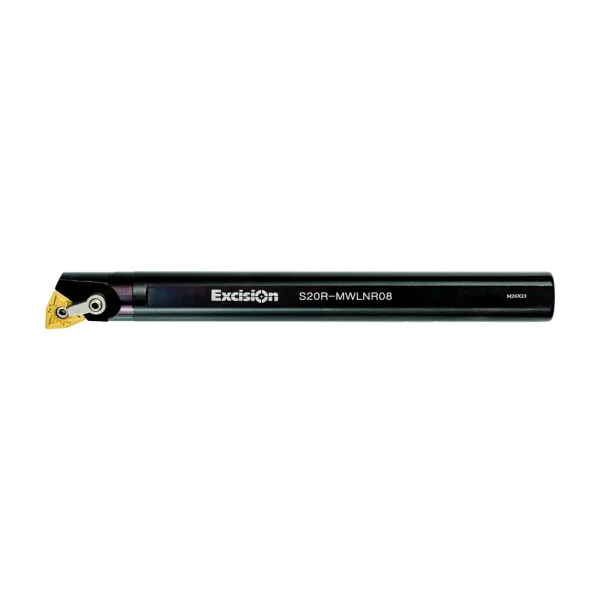

Excision Boring Bar 20mm — S20R-MWLNR08
Part No: 783122008 | Barcode: 9341363315143 | ISO: S20R-MWLNR08
Excision S20R-MWLNR08 boring bar for internal turning and hole finishing on the workshop lathe — a 20mm-diameter solid steel bar accepting WNMG080404 / WNMG080408 indexable carbide inserts. Right-hand cutting; the precision insert seat keeps the tip stable in the bore.
20mm Bar
ISO S20R
Accepts WNMG080404
Right Hand
Internal Turning
Key Features & Benefits
- ISO S20R-MWLNR08 designation — Standard pocket — takes any compliant WNMG080404 / WNMG080408 insert from Excision or other ISO suppliers.
- Internal turning ready — Designed to enter cast or pre-drilled bores for boring, finishing and shoulder turning operations.
- Solid steel body — One-piece bar resists deflection at the tip when set with the recommended overhang.
- Suitable for low-power lathes — Tip geometry and rake suit smaller workshop machines without stalling the cut.
- Australian supplier support — Backed by Excision Australia (Melbourne) — local stock with replacement parts available.
When to Use This Boring Bar
Use Excision part 783122008 (S20R-MWLNR08) when you need a 20mm boring bar for indexable WNMG080404 / WNMG080408 carbide inserts. Best results when the bar is clamped with the minimum overhang the job allows — extra stick-out costs surface finish quickly. Inserts sold separately.
Authorised Australian Dealer — This product is sourced directly from Excision Australia, an Australian engineering tools supplier based in Melbourne, and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| DCON | 20mm |
| LF | 200mm |
| Brand | Excision |
| Bar ISO designation | S20R-MWLNR08 |
| Shank diameter | 20mm |
| Hand | Right hand |
| Compatible inserts | WNMG080404 / WNMG080408 |
| Application | Internal turning / boring |
| Country | Australian-supplied (Excision, Melbourne) |
| Part number | 783122008 |
| Barcode | 9341363315143 |
