Harlingen
Harlingen 4-Piece Indexable Carbide Boring Bar Set — H-11-383-T19
Part No: H-11-383-T19 | Barcode: 9346967106821 | Brand: Harlingen

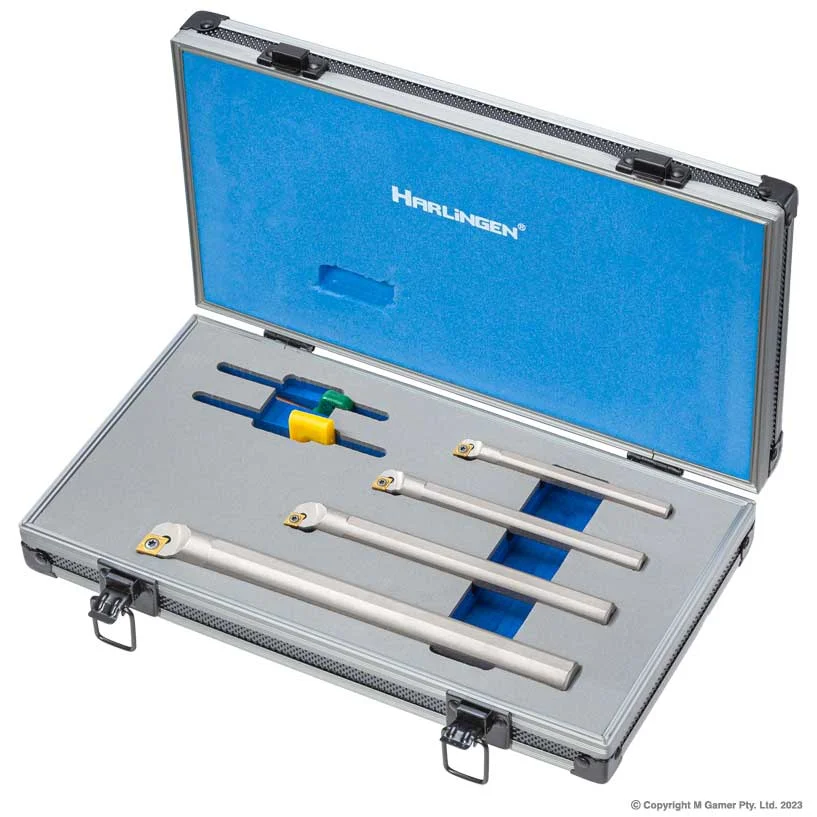

Four nickel-plated indexable carbide boring bars in Ø8mm, 10mm, 12mm and 16mm shanks for precision internal turning on metal lathes. Supplied with TiN micro-grain CCMT inserts for cast iron, general-purpose steel and stainless steel work.
4 Boring Bars
Ø8 / 10 / 12 / 16 mm
Indexable CCMT Inserts
TiN Micro-Grain Carbide
Nickel-Plated
Cast Iron / Steel / Stainless
Compatible Materials
Cast Iron
General-Purpose Steel
Stainless Steel
Key Features & Benefits
- Four shank sizes covered — Ø8 × 100mm, Ø10 × 125mm, Ø12 × 150mm and Ø16 × 200mm bars handle short reach through to deep bores in one set.
- Indexable CCMT inserts — Quick-rotate insert tips reduce downtime — the smaller bars take CCMT060204 and the 16mm bar takes CCMT09T304.
- Nickel-plated finish — Resists chip welding and corrosion in the toolbox, keeping bars true between jobs.
- TiN micro-grain carbide tooling — Holds an edge longer than HSS and runs at higher surface speeds without softening.
- Right-hand SCLCR geometry — Ground for general-purpose internal turning on conventional and CNC lathes.
When to Use This Tool
Reach for H-11-383-T19 when you need a single set that covers small to mid-range internal turning — through-holes, blind bores and shouldered IDs from roughly Ø10mm up to Ø25mm+. Suits hobby and trade lathe owners who don’t want to chase individual bars and inserts.
Authorised Australian Distributor — This product is sourced via Australia’s Harlingen distributor Gamer Industries and is backed by full Australian warranty and local support.
Product Specifications
| Bar Code | ISO Designation | Shank × Length | Insert |
|---|---|---|---|
| S08H-SCLCR06 | S08H-SCLCR06 | Ø8 × 100 mm | CCMT060204 |
| S10K-SCLCR06 | S10K-SCLCR06 | Ø10 × 125 mm | CCMT060204 |
| S12M-SCLCR06 | S12M-SCLCR06 | Ø12 × 150 mm | CCMT060204 |
| S16R-SCLCR09 | S16R-SCLCR09 | Ø16 × 200 mm | CCMT09T304 |
Browse our full range of boring bars at Alltools Geelong.
