Description
Intech Tools

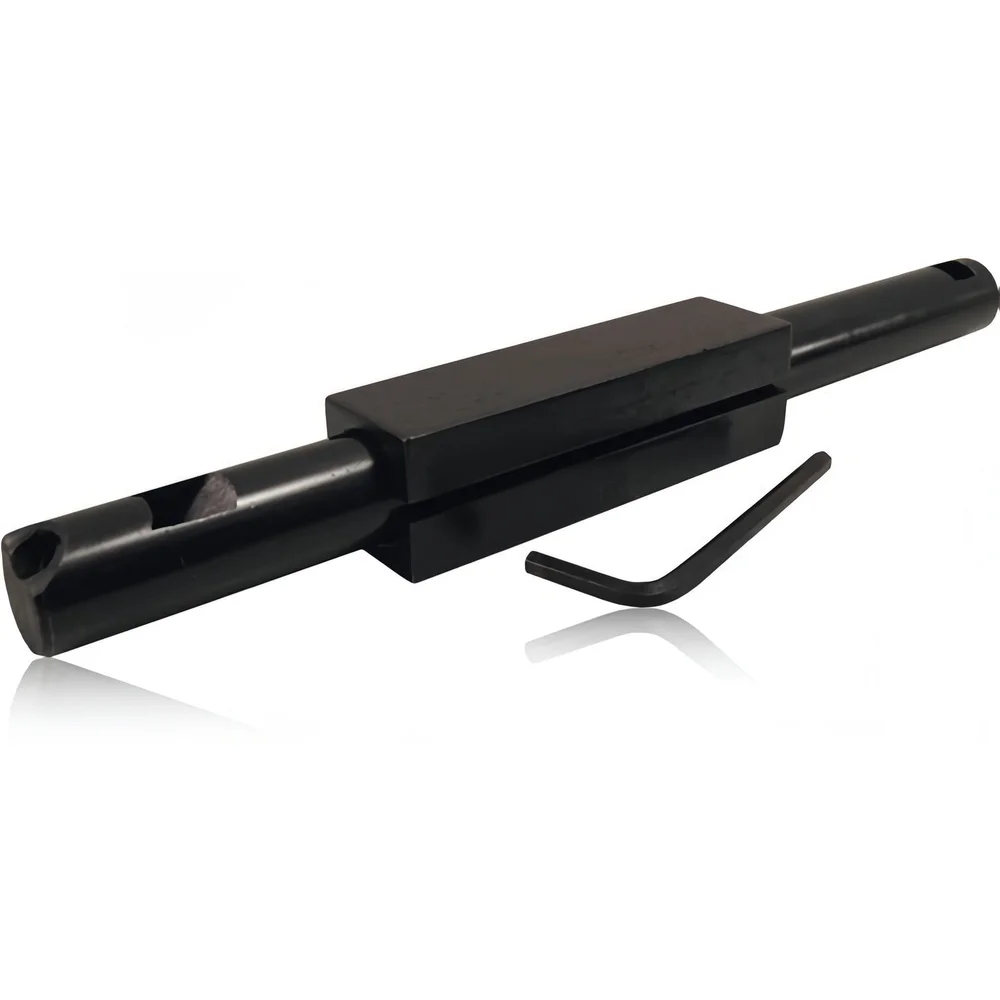

Intech Boring Bar — 1/8″ Toolbit, 9.5mm Shank
Part No: LTBB1/8 | Barcode: 9333608003021 | Brand: Intech Tools
The Intech LTBB1/8 is a precision boring bar machined from high-grade steel and designed to accept standard 1/8″ HSS or carbide toolbits. The dual-end design — 90° on one face, 45° on the other — covers most internal turning approaches without changing tools. Supplied with a hex key for toolbit clamping and length adjustment.
1/8″ Toolbit
9.5mm Shank
High-Grade Steel
90° / 45° Angles
Hex Key Included
Key Features & Benefits
- Dual approach angles — 90° end for square shoulders and 45° end for chamfers and facing means one bar covers two common operations.
- Accepts HSS or carbide toolbits — pair with high-speed steel for general work or carbide for harder materials and faster feeds.
- Adjustable toolbit length — slide the bit out further for deeper bores or pull it back for rigidity on shallow work.
- Toolbit rotation in holder — rotate the bit to dial in the cutting angle without re-grinding.
- 9.5mm steel shank — fits standard quick-change tool posts and 4-way turret holders sized for 1/8″ or close metric equivalent.
- Hex key supplied — everything needed to mount and adjust the bit is in the box.
When to Use This Boring Bar
Reach for the LTBB1/8 when you need to enlarge an existing drilled hole, true up an internal bore, or cut an internal chamfer on a lathe. The 1/8″ toolbit size suits hobbyist and trade lathes — choose a smaller bar for fine internal work in tight bores and a larger bar for stiffness on deeper or heavier cuts.
Product Specifications
| Part No. | Shank Dia. (mm) | Toolbit Size | Barcode |
|---|---|---|---|
| LTBB1/8 ★ | 9.5 | 1/8″ | 9333608003021 |
| LTBB3/16 | 11 | 3/16″ | 9333608003038 |
| LTBB1/4 | 14 | 1/4″ | 9333608003045 |
| LTBB5/16 | 16 | 5/16″ | 9333608003052 |
| LTBB3/8 | 22 | 3/8″ | — |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
Browse our full range of boring bars at Alltools Geelong.
