Beaver

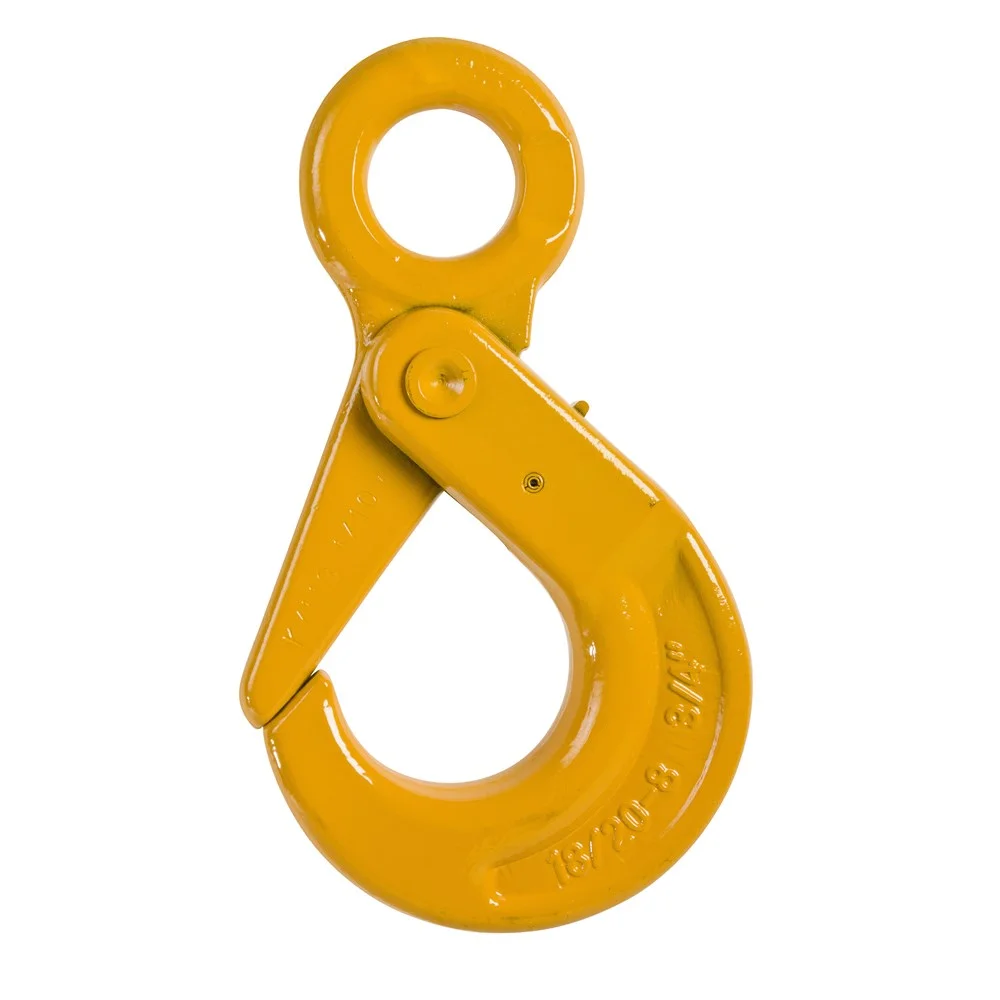

Beaver G80 Eye Self-Locking Hook — 7–8mm Lifting Chain
Part No: 885707Y | Barcode: 885707Y
Beaver Grade 80 eye self-locking hook for 7–8mm lifting chain with a working load limit of 2.0 tonnes. Manufactured from heat-treated alloy steel. Compliant with AS 3776.
Grade 80
7–8mm Chain
WLL 2.0t
Alloy Steel
AS 3776
0.84 kg
Suitable For
Overhead Lifting
Chain Slings
Crane Rigging
Heavy Lifting
Key Features & Benefits
- Grade 80 heat-treated alloy steel — provides maximum strength for overhead lifting applications with reliable performance under heavy loads.
- Self-locking safety latch — spring-loaded mechanism automatically closes when loaded, preventing accidental chain disengagement.
- Eye attachment — direct connection to chain links or master links for compact lifting assemblies.
- Distinguishing marks — clearly stamped identification for easy inspection and traceability.
- AS 3776 compliant — meets Australian standards for lifting components.
When to Use This Hook
The 885707Y is designed for 7–8mm Grade 80 lifting chain with a working load limit of 2.0 tonnes. The self-locking latch automatically secures the load connection. Ideal for chain sling assemblies and crane rigging where accidental hook release must be prevented. Inspect the latch mechanism before each lift.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Beaver Australia, with local support and service.
Product Specifications
| Part No. | Chain Size (mm) | WLL (t) | Weight (kg) |
|---|---|---|---|
| 885706Y | 6 | 1.1 | 0.50 |
| 885707Y ★ | 7–8 | 2.0 | 0.84 |
| 885710Y | 10 | 3.2 | 1.575 |
| 885713Y | 13 | 5.3 | 3.12 |
| 885716Y | 16 | 8.0 | 5.875 |
| 885720Y | 20 | 12.5 | 8.50 |
| 885722Y | 22 | 15.0 | 14.30 |
| 885726Y | 26 | 21.2 | 18.00 |
| 885732Y | 32 | 31.5 | 44.50 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
