Beaver 885710Y — g80 eye self locking hook available at Alltools Geelong. Shop our full g80 eye self locking hook range in Geelong.
Beaver

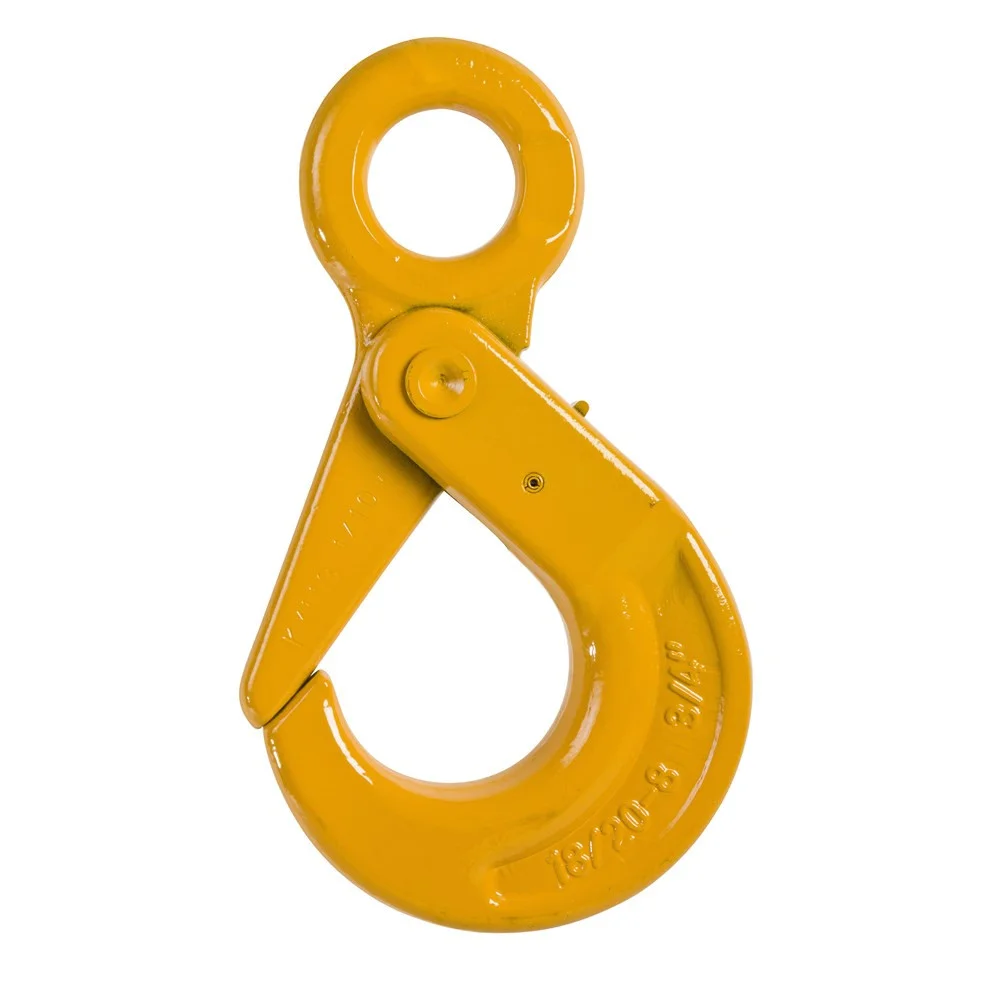

Beaver G80 Eye Self-Locking Hook — 10mm Lifting Chain
Part No: 885710Y | Barcode: 9322297002774
Beaver Grade 80 eye self-locking hook for 10mm lifting chain with a working load limit of 3.2 tonnes. Manufactured from heat-treated alloy steel with a spring-loaded safety latch that automatically closes when the hook is loaded, preventing accidental chain release during lifting operations.
Grade 80
10mm Chain
WLL 3.2t
Self-Locking Latch
Alloy Steel
1.575 kg
Suitable For
Overhead Lifting
Chain Slings
Crane Rigging
Heavy Lifting
Key Features & Benefits
- Grade 80 heat-treated alloy steel — provides maximum strength for overhead lifting applications with reliable performance under heavy loads.
- Self-locking safety latch — spring-loaded mechanism automatically closes when the hook is loaded, preventing accidental disengagement of the chain or load.
- Eye attachment — direct connection to chain links or master links, providing a compact and strong termination point for lifting assemblies.
- Distinguishing marks — clearly stamped identification for easy inspection and traceability, supporting safe lifting practices and compliance.
- Quality tested — each hook undergoes testing throughout the manufacturing process to ensure consistent performance and safety.
When to Use This Hook
The 885710Y self-locking eye hook is designed for 10mm Grade 80 lifting chain with a working load limit of 3.2 tonnes. The self-locking latch provides an additional layer of safety over standard eye hooks by automatically securing the load connection. Ideal for chain sling assemblies, crane rigging, and any overhead lifting application where accidental hook release must be prevented. Always inspect the latch mechanism before each lift.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Beaver Australia, with local support and service.
Product Specifications
| Part No. | Chain Size (mm) | WLL (t) | Weight (kg) |
|---|---|---|---|
| 885706Y | 6 | 1.1 | 0.50 |
| 885707Y | 7–8 | 2.0 | 0.84 |
| 885710Y ★ | 10 | 3.2 | 1.575 |
| 885713Y | 13 | 5.3 | 3.12 |
| 885716Y | 16 | 8.0 | 5.875 |
| 885720Y | 20 | 12.5 | 8.50 |
| 885722Y | 22 | 15.0 | 14.30 |
| 885726Y | 26 | 21.2 | 18.00 |
| 885732Y | 32 | 31.5 | 44.50 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
