Accud Long Feeler Gauge — 200mm, 20-Blade, 0.05–1.00mm
Part No: AC-914-100-20 | Barcode: 9346967026761 | Series: Accud 913/914/915 Long Feeler Gauges

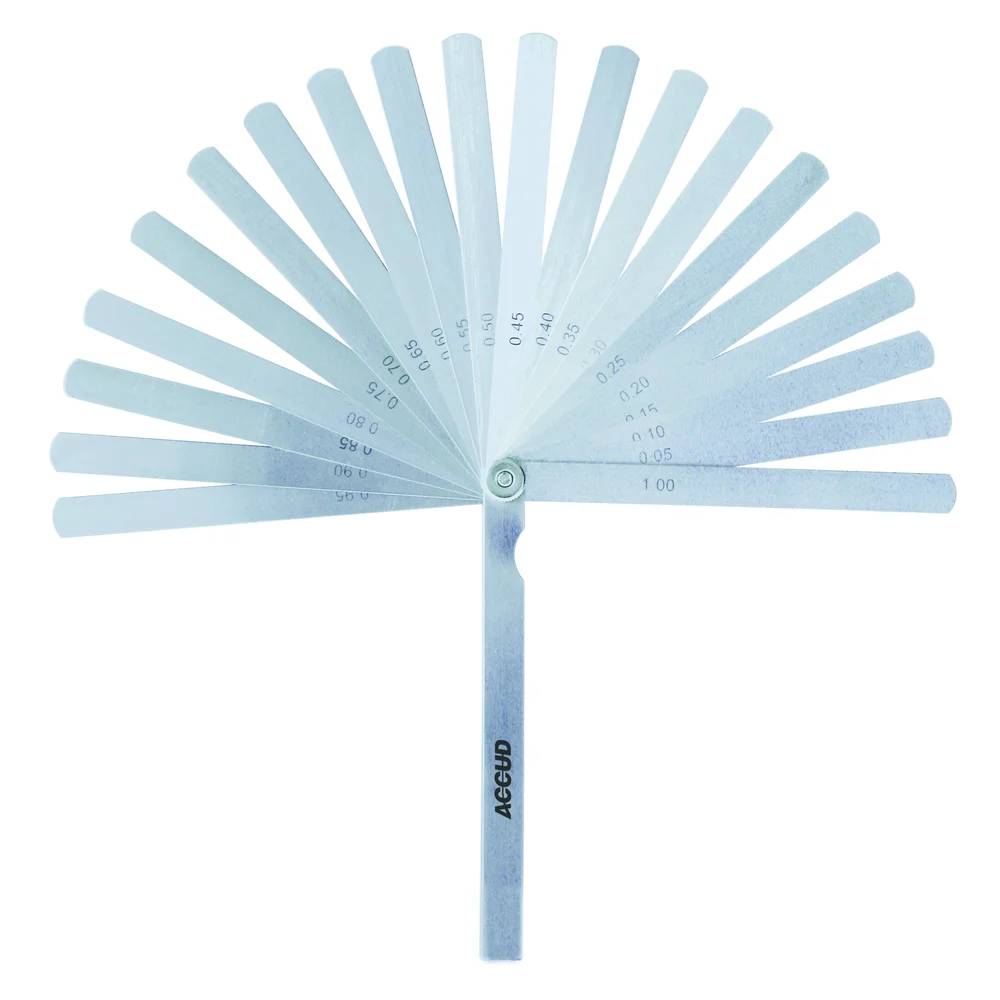

The Accud AC-914-100-20 is a 200mm long feeler gauge with 20 stainless-steel blades spanning 0.05mm to 1.00mm in 0.05mm steps. Built to DIN2275 with etched blade markings that won’t wear off, the 200mm length reaches deep into mid-depth machine gaps — larger engine blocks and clutch assemblies where 150mm blades fall short.
200mm Blade Length
20 Blades
0.05–1.00mm
0.05mm Steps
DIN2275
Stainless Steel
Blade Sizes Included
0.05–0.30mm (6 blades)
0.35–0.60mm (6 blades)
0.65–0.90mm (6 blades)
0.95 & 1.00mm (2 blades)
Key Features & Benefits
- 20 blades from 0.05 to 1.00mm — half the steps of a 10-blade set, giving you the right blade for tighter spec calls without stacking.
- 200mm long blades — deep reach into mid-depth machine gaps — larger engine blocks and clutch assemblies where 150mm blades fall short; where shorter blades can’t touch the contact surface this length gets you there cleanly.
- DIN2275 accuracy — ±(3+T/80)µm per blade; certified to the German precision standard for repeatable clearance measurement.
- Stainless-steel construction — resists oil and coolant corrosion in engine and machine environments.
- Etched blade markings — thickness stamped into each blade; won’t wipe off in solvent.
- Clamping pivot screw — isolate a single blade and fold the others away when working in a confined space.
When to Use the AC-914-100-20
Reach for the AC-914-100-20 when standard 200mm feeler gauge is what the job calls for — valve clearance on larger engines, machine slide-way fits where the gap sits deep inside the machine, or precision spindle setup where shorter blades can’t span to the contact faces. For shallower gaps see the AC-913 (150mm); for deeper still, the AC-915 (300mm).
Pro Tip: The right blade slides into the gap with a light drag — not loose, not forced. If it won’t enter, step down one blade and try again; if it slides freely with no drag, step up. Stacking two blades is acceptable when the exact size isn’t in the set, but one blade is always more reliable than a stack.
Product Specifications
| Part No. | Length | Blades | Range | Barcode |
|---|---|---|---|---|
| AC-913-100-20 | 150mm | 20 | 0.05-1.00mm | 9346967026754 |
| AC-914-100-20 ★ | 200mm | 20 | 0.05-1.00mm | 9346967026761 |
| AC-915-100-20 | 300mm | 20 | 0.05-1.00mm | 9346967026778 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
