Accud Taper Gauge — 1–15mm Range
Part No: AC-962-015-05 | Barcode: 9346967026716 | Series: Accud 962 Taper Gauges

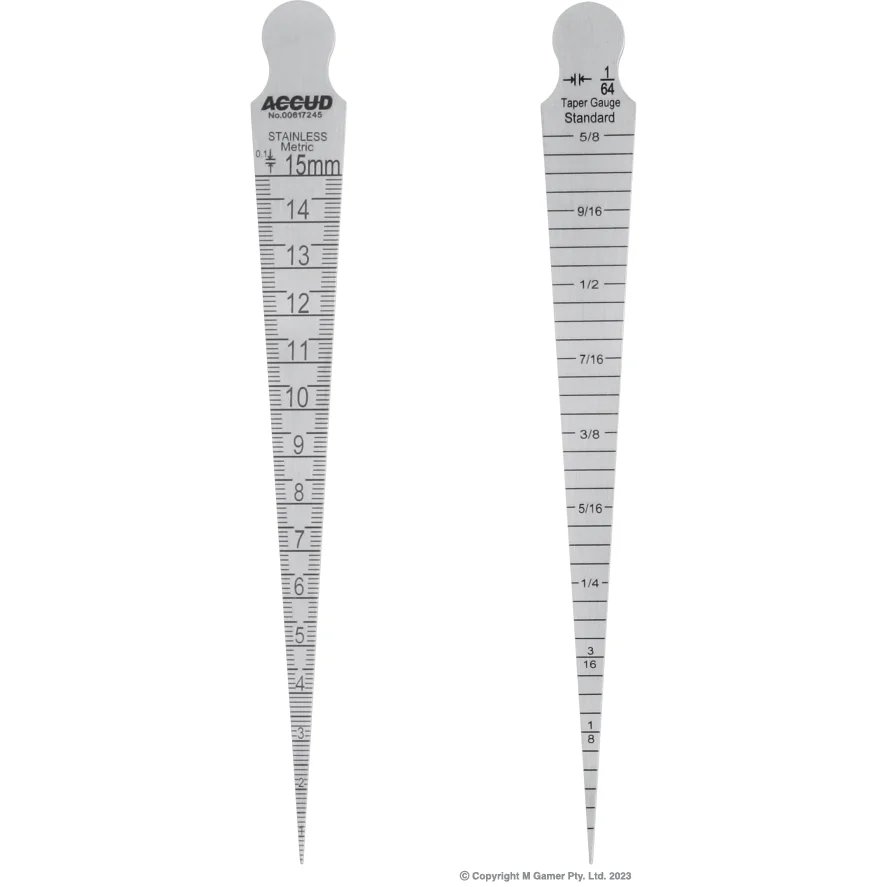

The Accud AC-962-015-05 is a stainless-steel taper gauge for fast go/no-go inspection of small hole diameters from 1mm to 15mm. Tapered stainless blade with engraved graduations reads the hole diameter directly at the depth the gauge just seats — faster than a caliper for machinist spot checks.
1–15mm Range
Stainless Steel
Engraved Scale
Single-Blade Taper
Pocket Size
Compatible Work
Drilled Holes
Reamed Holes
Hydraulic Orifice
Fastener Clearance
Small-Bore Inspection
Key Features & Benefits
- Tapered blade principle — drop the gauge into the hole under its own weight; the depth it seats at reads the hole diameter directly.
- Stainless-steel construction — resists coolant and workshop corrosion; holds its calibration for years.
- Engraved graduations — cut into the steel, not printed; solvent-proof and readable through years of use.
- Pocket-sized convenience — slips into a shop apron; the tool you reach for when a caliper is across the room.
- 1–15mm in a single blade — covers the common small-hole range found on fasteners, hydraulic orifices and precision drill sizes.
When to Use the AC-962-015-05
Reach for the AC-962 taper gauge when you need a fast diameter check on a small hole — verifying a drilled pilot for tapping, checking a reamed dowel hole, or qualifying hydraulic orifice sizes. Faster than reaching for a caliper, and more accurate for small holes where caliper jaws don’t contact cleanly. For larger holes or sub-millimetre resolution use a dial bore gauge (AC-251) or telescopic gauge set (AC-951).
Pro Tip: Let the taper gauge drop into the hole under its own weight — pushing it down reads the hole as bigger than it is because the gauge wedges rather than seats. If it doesn’t drop freely, the hole is smaller than the reading position suggests. Re-ream or re-drill if go/no-go matters.
Product Specifications
| Part No. | Type | Size | Range | Barcode |
|---|---|---|---|---|
| AC-913-100-20 | Feeler 150mm | 20 blades | 0.05-1.00mm | 9346967026754 |
| AC-914-100-20 | Feeler 200mm | 20 blades | 0.05-1.00mm | 9346967026761 |
| AC-915-100-20 | Feeler 300mm | 20 blades | 0.05-1.00mm | 9346967026778 |
| AC-951-006-01 | Telescopic Gauge Set | 6 pcs | 8-150mm | 9346967026693 |
| AC-962-015-05 ★ | Taper Gauge | Single blade | 1-15mm | 9346967026716 |
★ You are viewing the highlighted variant. Other variants in this series are also available.
