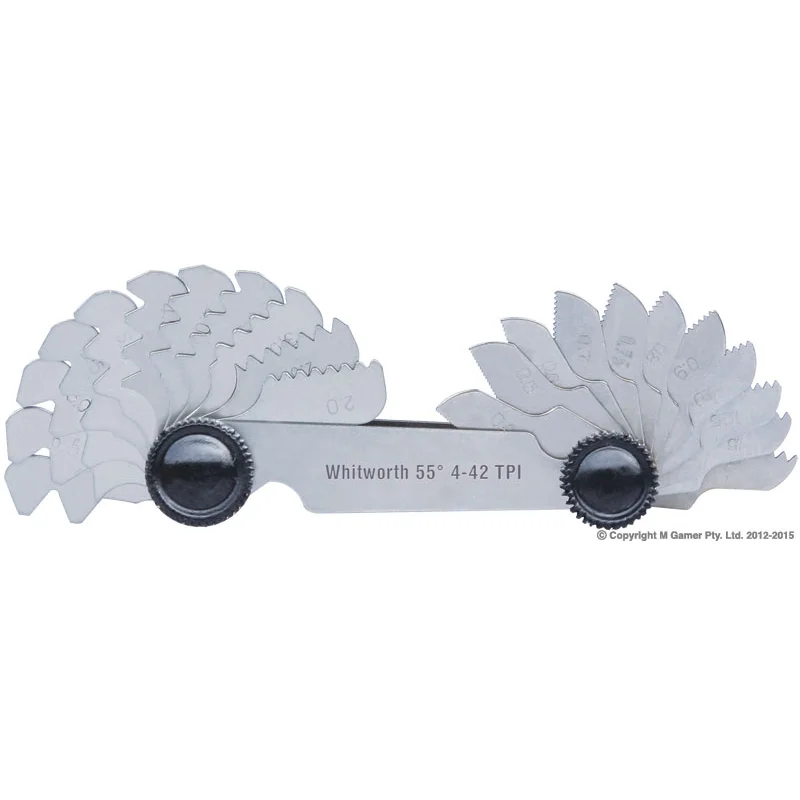

Accud Screw Pitch Gauge — 30 pc (UNC / UNF / Whitworth)
Part No: AC-924-042-30 | Barcode: 9346967027553 | Series: Accud 922/924/925 Pitch Gauges
The Accud AC-924-042-30 is a 30 pc fold-out screw-pitch gauge covering UNC / UNF / Whitworth threads. Hardened stainless-steel blades with stamped pitch markings — identify an unknown thread by matching the blade profile to the thread in seconds, rather than hunting through taps and dies. Imperial and Whitworth coverage for classic British machinery and US-spec fasteners.
Thread Standards Covered
Key Features & Benefits
- 30 pc hardened blades — each leaf is stamped with its pitch or TPI; identification is a visual match rather than guesswork.
- Stainless-steel construction — resists rust in the toolbox; blades hold their tooth profile under repeated comparison against hardened threads.
- Full UNC / UNF / Whitworth coverage — spans the workshop range in a single pocket tool; no hunting across multiple gauges.
- Centre clamping screw — isolate a single blade when working on internal threads or awkward angles.
- Workshop essential — core identification tool for matching mystery fasteners to taps, dies or replacement hardware.
When to Use the AC-924-042-30
Product Specifications
| Part No. | Type | Pieces | Standard | Range | Barcode |
|---|---|---|---|---|---|
| AC-922-006-24 | Screw Pitch | 24 pc | ISO Metric | 6.0-0.25mm | 9346967027423 |
| AC-924-042-30 ★ | Screw Pitch | 30 pc | UNC / UNF / Whitworth | 42-4 TPI | 9346967027553 |
| AC-925-062-52 | Screw Pitch Combined | 52 pc | Metric + Imperial | 6.0-0.25mm, 62-4 TPI | 9346967027447 |
★ You are viewing the highlighted variant. Other variants in this series are also available.
