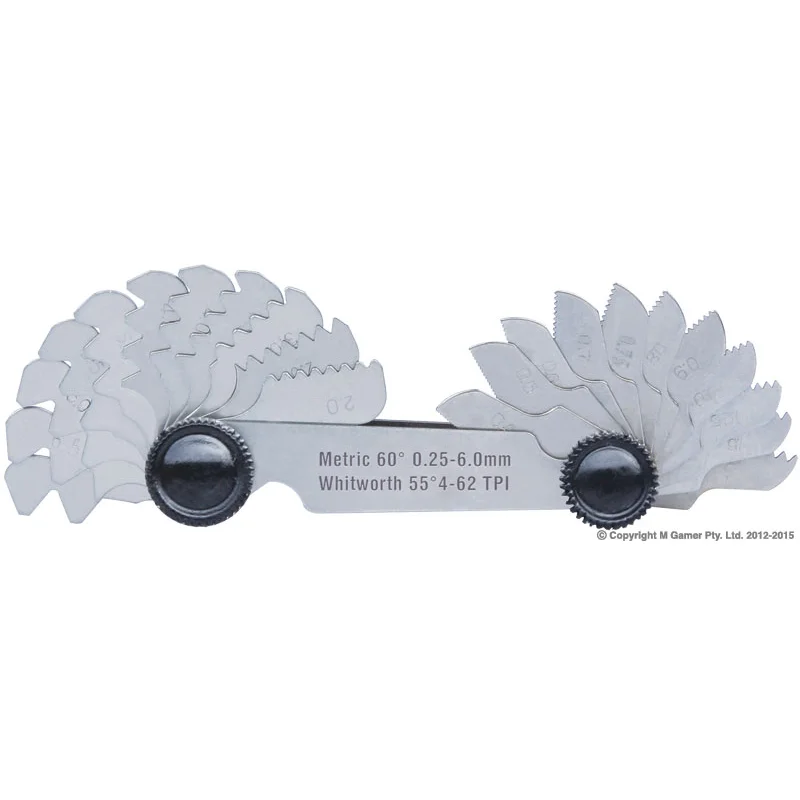

Accud Screw Pitch Gauge — 52 pc (Metric + Imperial)
Part No: AC-925-062-52 | Barcode: 9346967027447 | Series: Accud 922/924/925 Pitch Gauges
The Accud AC-925-062-52 is a 52 pc fold-out screw-pitch gauge covering Metric + Imperial threads. Hardened stainless-steel blades with stamped pitch markings — identify an unknown thread by matching the blade profile to the thread in seconds, rather than hunting through taps and dies. Combined metric and imperial coverage in one tool — the most versatile option.
52 pc Blades
Metric + Imperial
Range: 6.0-0.25mm, 62-4 TPI
Hardened Stainless
Stamped Markings
Thread Standards Covered
Metric + Imperial
External Threads
Internal Threads
Key Features & Benefits
- 52 pc hardened blades — each leaf is stamped with its pitch or TPI; identification is a visual match rather than guesswork.
- Stainless-steel construction — resists rust in the toolbox; blades hold their tooth profile under repeated comparison against hardened threads.
- Full Metric + Imperial coverage — spans the workshop range in a single pocket tool; no hunting across multiple gauges.
- Centre clamping screw — isolate a single blade when working on internal threads or awkward angles.
- Workshop essential — core identification tool for matching mystery fasteners to taps, dies or replacement hardware.
When to Use the AC-925-062-52
Reach for the AC-925-062-52 when you’ve got an unknown thread to identify — a fastener without a box, a tapped hole to match a screw to, or a stripped thread to size before re-cutting. The 52-blade combined gauge covers both metric and Whitworth threads in one tool — the most versatile for mixed-heritage workshops.
Pro Tip: The correct blade seats cleanly across the full thread with no rocking. A near-match will seat in the centre but rock at the ends — that means you’ve picked the wrong pitch. Try blades on either side of your best guess and the right one announces itself by sitting flat across every tooth.
Product Specifications
| Part No. | Type | Pieces | Standard | Range | Barcode |
|---|---|---|---|---|---|
| AC-922-006-24 | Screw Pitch | 24 pc | ISO Metric | 6.0-0.25mm | 9346967027423 |
| AC-924-042-30 | Screw Pitch | 30 pc | UNC / UNF / Whitworth | 42-4 TPI | 9346967027553 |
| AC-925-062-52 ★ | Screw Pitch Combined | 52 pc | Metric + Imperial | 6.0-0.25mm, 62-4 TPI | 9346967027447 |
★ You are viewing the highlighted variant. Other variants in this series are also available.
