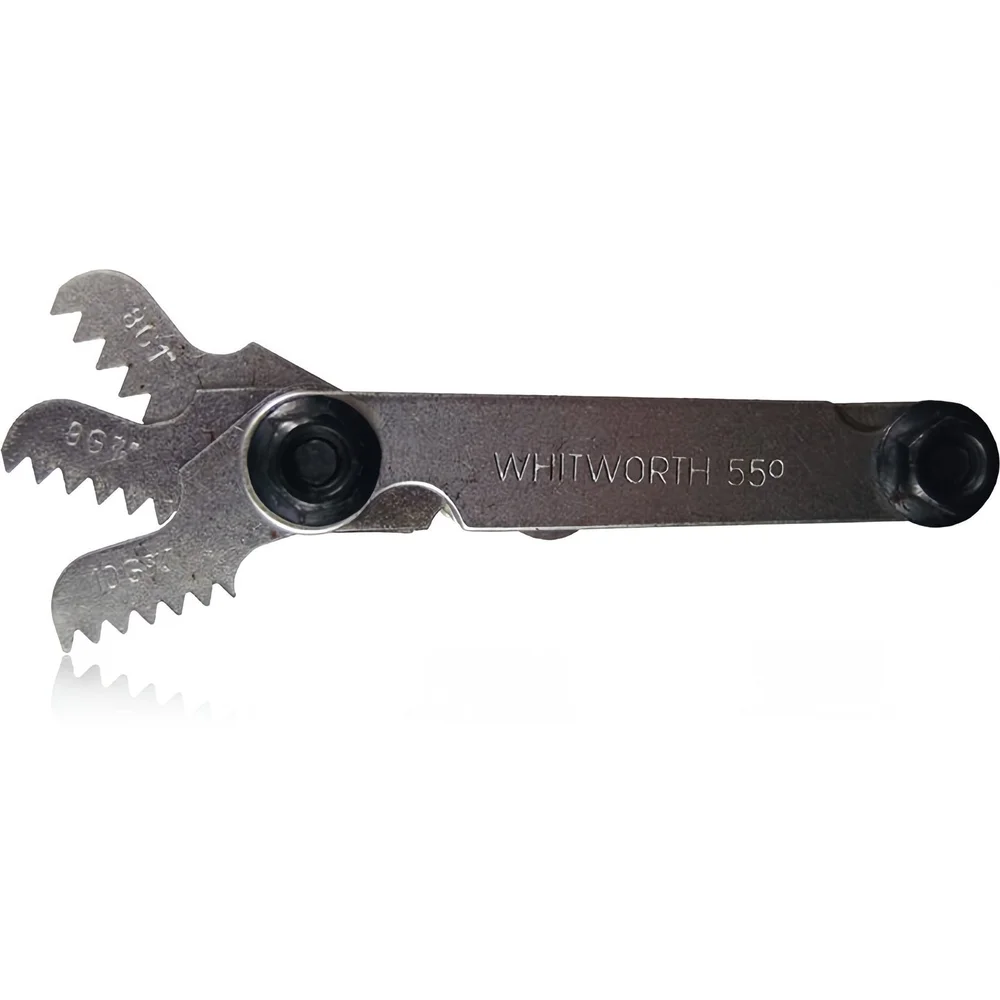

Intech Imperial Thread Pitch Gauge — 28 Blade, Whitworth & Unified
Part No: MTSPGW28 | Barcode: 9333608007524 | Series: Intech Screw Pitch Gauges
The Intech MTSPGW28 is a 28-blade imperial thread-pitch gauge for identifying BSW (Whitworth), BSF, UNC and UNF threads by TPI. Each tool-steel blade is stamped with its threads-per-inch, so matching a mystery fastener or tapped hole is a quick visual comparison rather than trial-and-error with taps and dies.
28 Blades
4–62 TPI
BSW / Whitworth
UNC / UNF
Tool Steel
Thread Standards Covered
BSW (Whitworth)
BSF (Whitworth Fine)
UNC (Unified Coarse)
UNF (Unified Fine)
Key Features & Benefits
- 28 clearly marked blades — each leaf carries its threads-per-inch value stamped for easy identification against an external thread or tapped hole.
- Wide TPI coverage (4–62 TPI) — spans everything from heavy coarse threads on structural bolts through to fine-pitch instrument and machine-screw threads.
- Tool-steel blades — hold their tooth profile under repeated use; won’t deform when pressed against a hardened thread.
- Centre-pivot handle — blades fold out individually and lock with a centre screw so you can isolate a single leaf for awkward internal threads.
- Compatible with vintage and classic machinery — ideal for matching Whitworth and BSF threads common on older British, Australian and agricultural equipment.
When to Use the MTSPGW28
Use the MTSPGW28 when you’re identifying an imperial thread — Whitworth and BSF on older British-heritage machinery, or UNC/UNF on American-spec equipment. For ISO metric threads, use the MTSPGM24 metric gauge instead. The MTSPGW28 is an imperial-only gauge; if you want both standards in one tool, consider P&N’s 52-blade combined MC/BSW gauge.
Pro Tip: Whitworth and Unified threads both come in coarse and fine variants with similar TPI counts — count carefully and look at the thread-flank angle: Whitworth is 55° and Unified is 60°. If the blade matches the TPI but not the flank profile, you’re looking at the wrong standard.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Intech Tools, with local support and service through Alltools Geelong.
Product Specifications
| Part No. | Standard | Blade Count | Range | Barcode |
|---|---|---|---|---|
| MTSPGM24 | ISO Metric | 24 | 0.25–6.0mm | 9333608007531 |
| MTSPGW28 ★ | Imperial / Whitworth | 28 | 4–62 TPI (BSW/UNC/UNF) | 9333608007524 |
★ You are viewing the highlighted variant. Other variants in this series are also available.
