HAFCO-METALMASTER

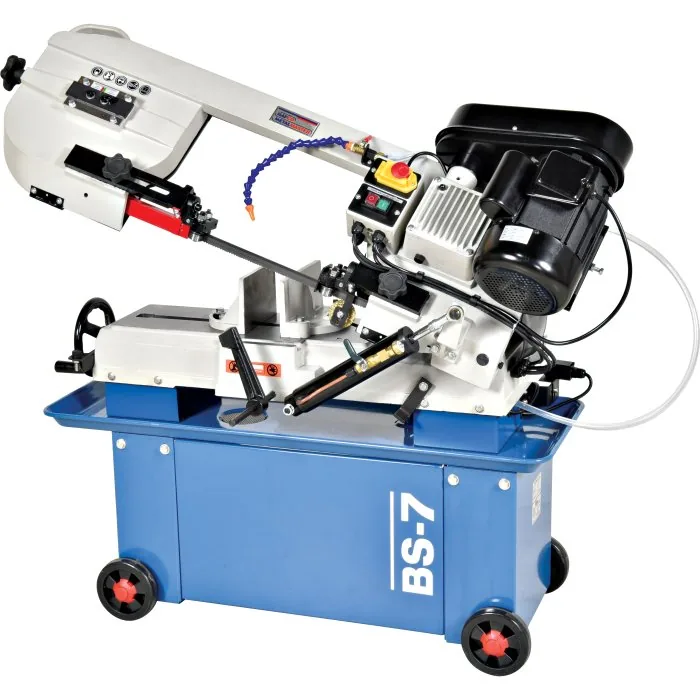

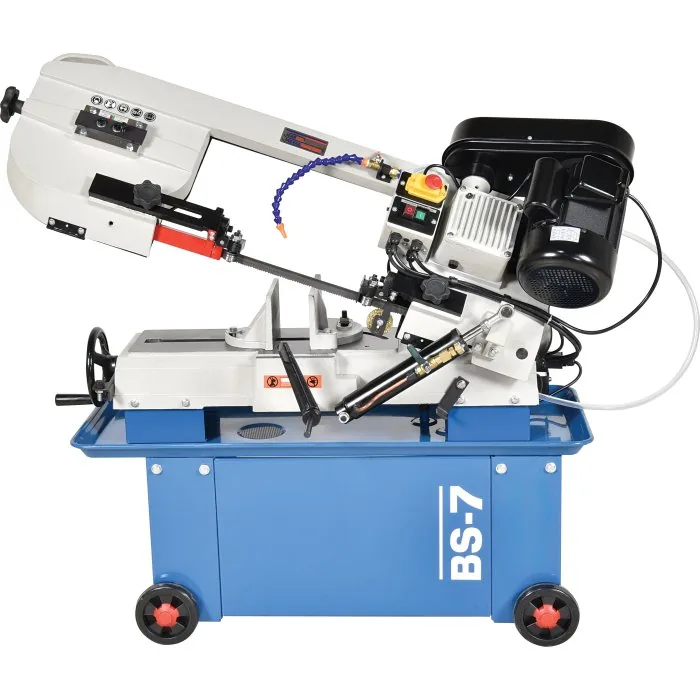

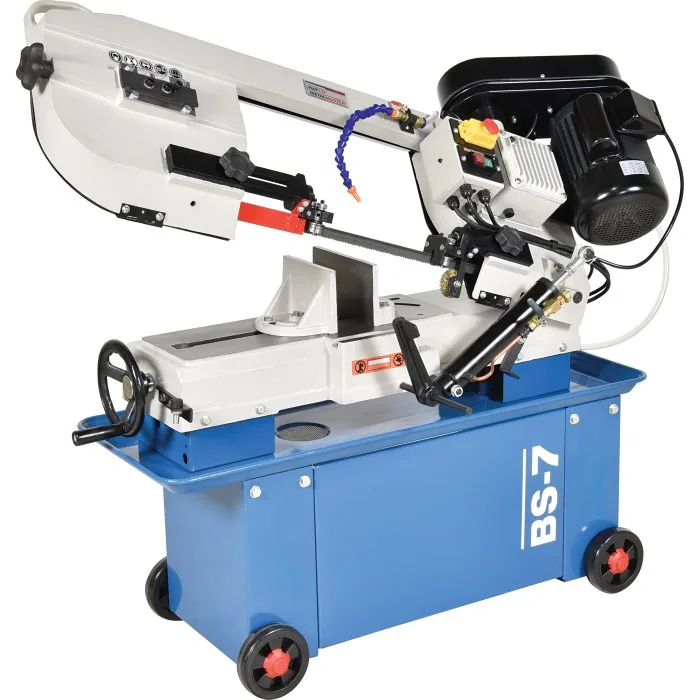

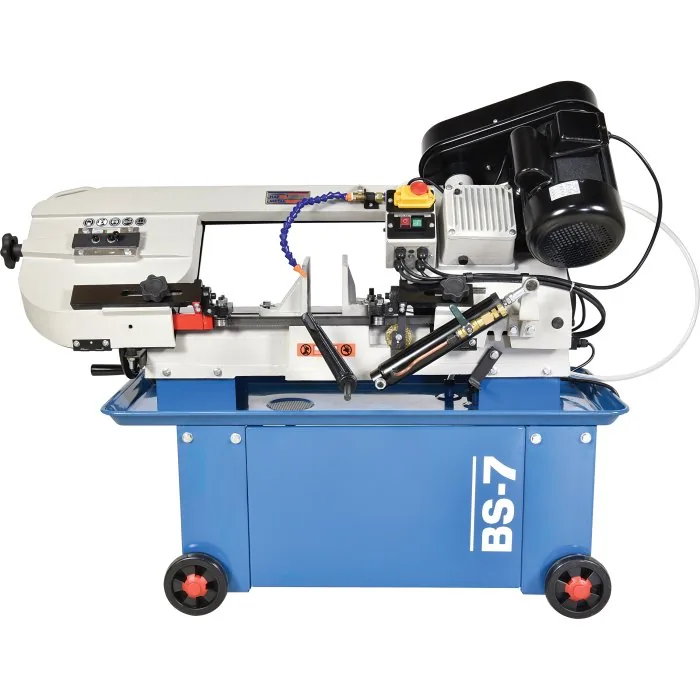

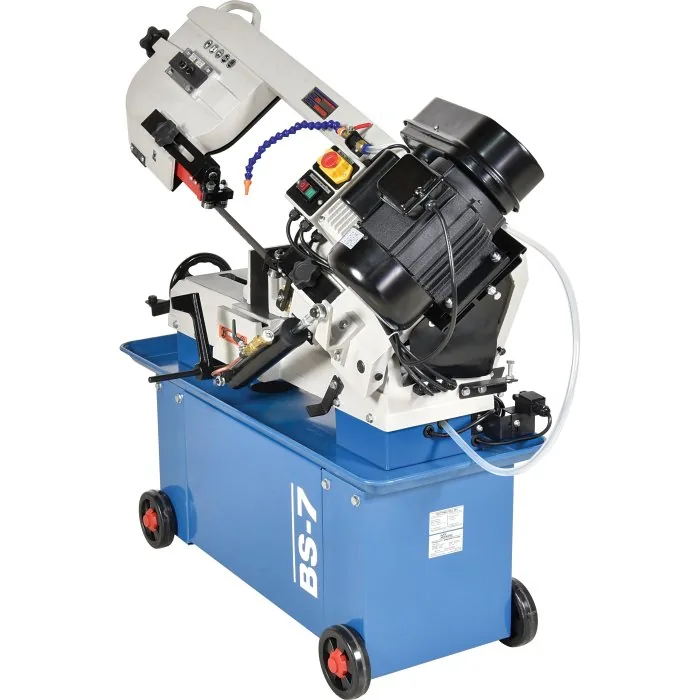

Metal Cutting Band Saw – Swivel Vice — BS-7, Mitre Cuts Up To 45º & Includes Hydraulic Downfeed Control 300 x 180mm (W x H) Rectangle Capacity
Part No: B007 | Barcode: 9344195343728 | Model: BS-7
HAFCO-METALMASTER BS-7 Metal Cutting Band Saw – Swivel Vice (Mitre Cuts Up To 45º & Includes Hydraulic Downfeed Control 300 x 180mm (W x H) Rectangle Capacity). Looking for a 7” metal bandsaw that outshines the competition in quality and reliability? Our Metalmaster BS-7 is the perfect solution.
Model BS-7
300 x 180mm (W x H) Rectangle Capacity
Blade Steps / Speeds: 34, 41, 59, 98
Motor Power: 0.75 / 1
Voltage / Amperage: 240 / 10
Key Features & Benefits
- 300 x 180mm (W x H) rectangular capacity @ 90 Degrees

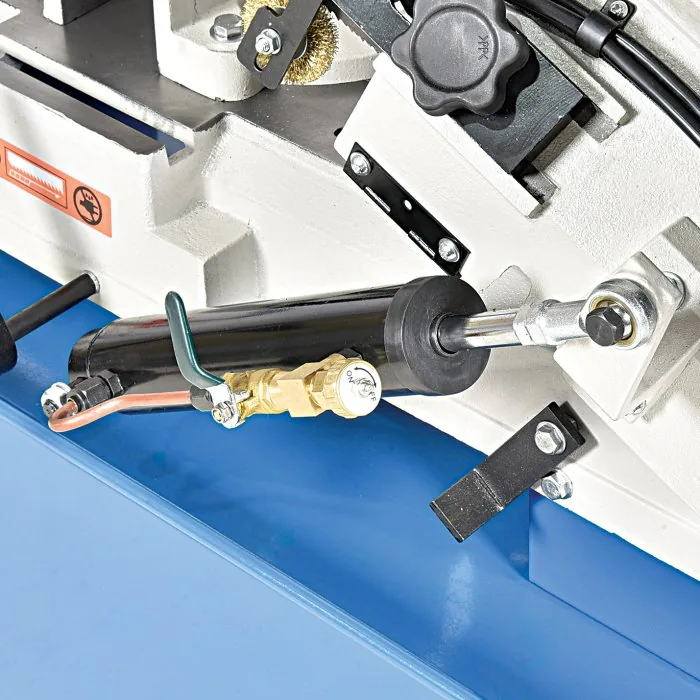

- Adjustable hydraulic cutting feed rate for multiple applications

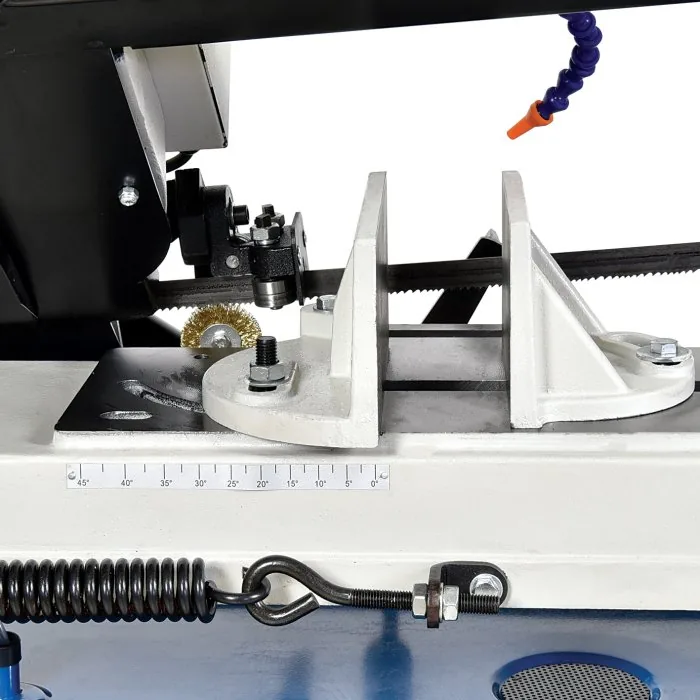

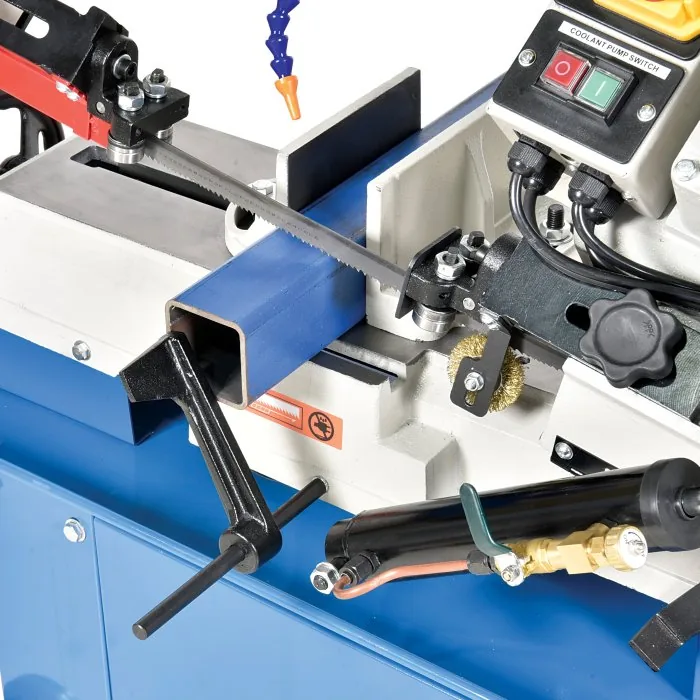

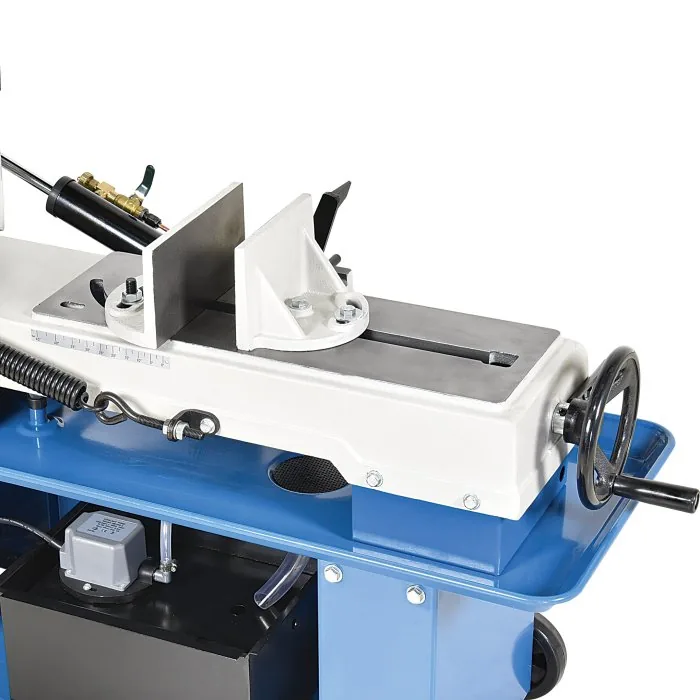

- Mitre cuts to 45º using calibrated vice

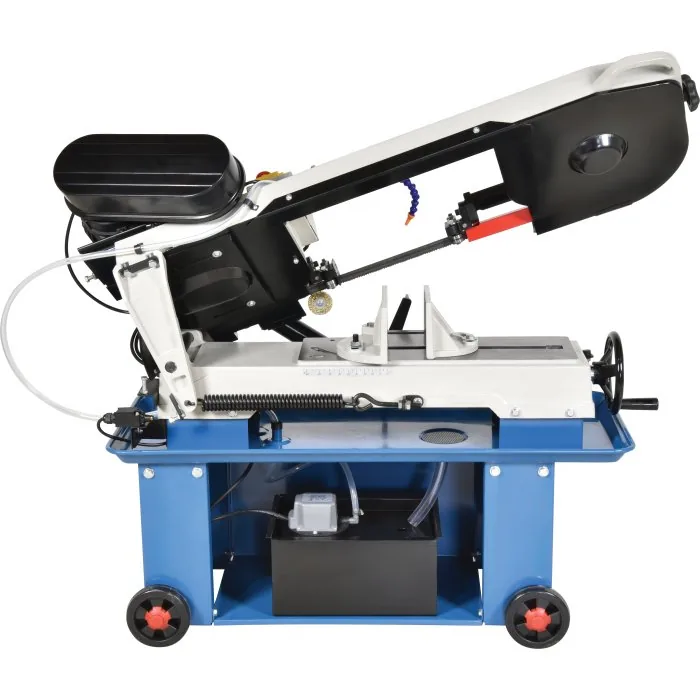

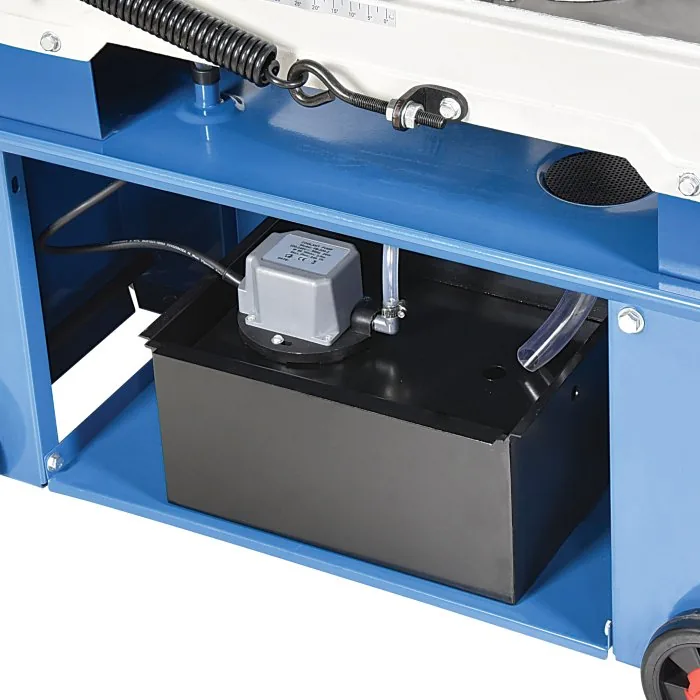

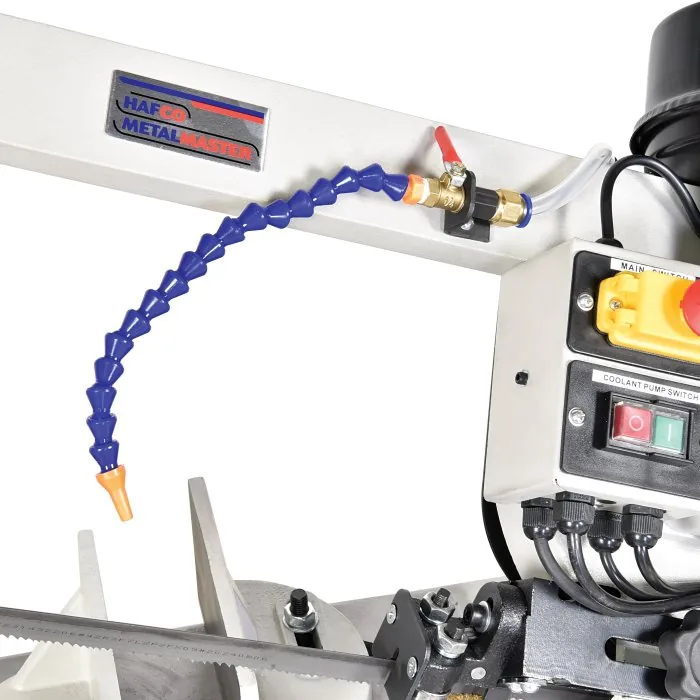

- Built-in coolant system with flow control valve

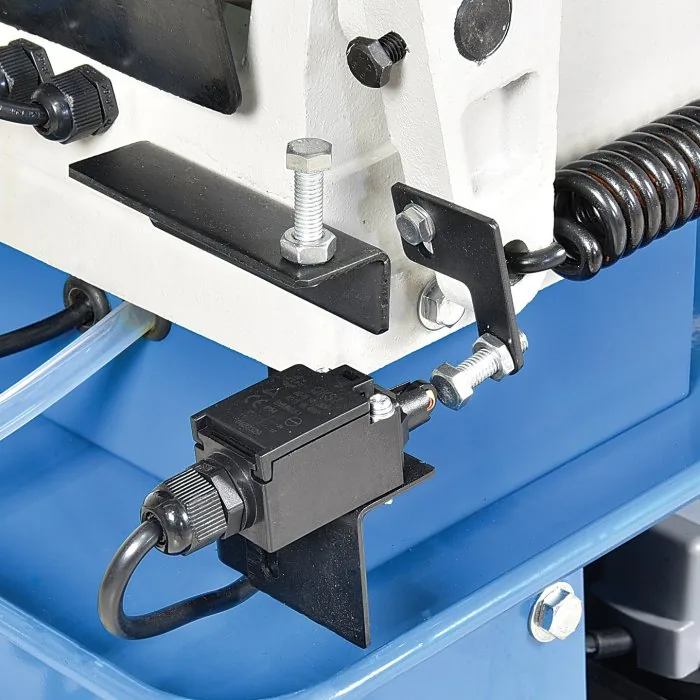

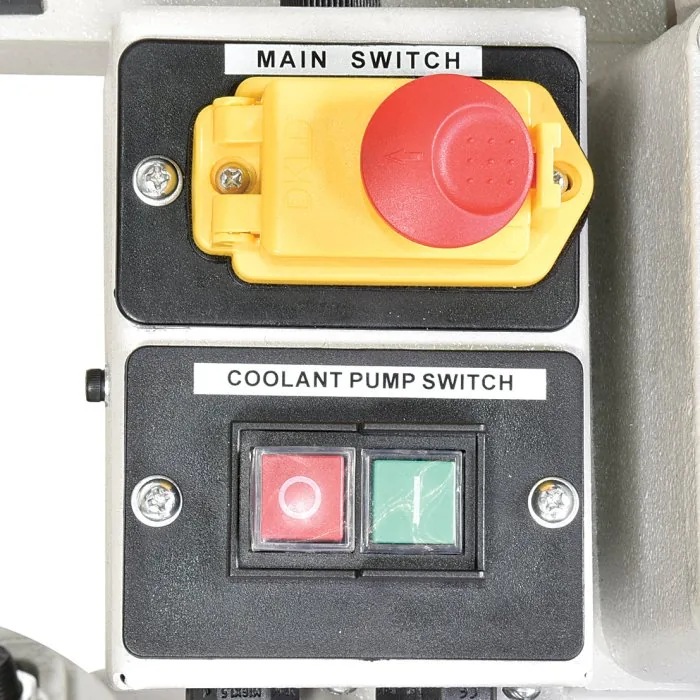

- Automatic electric cut-out switch stops machine when cut is complete

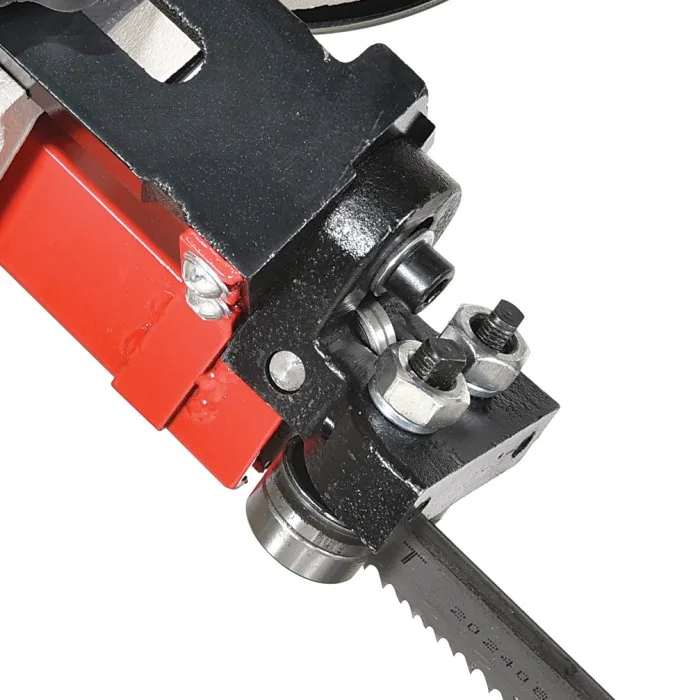

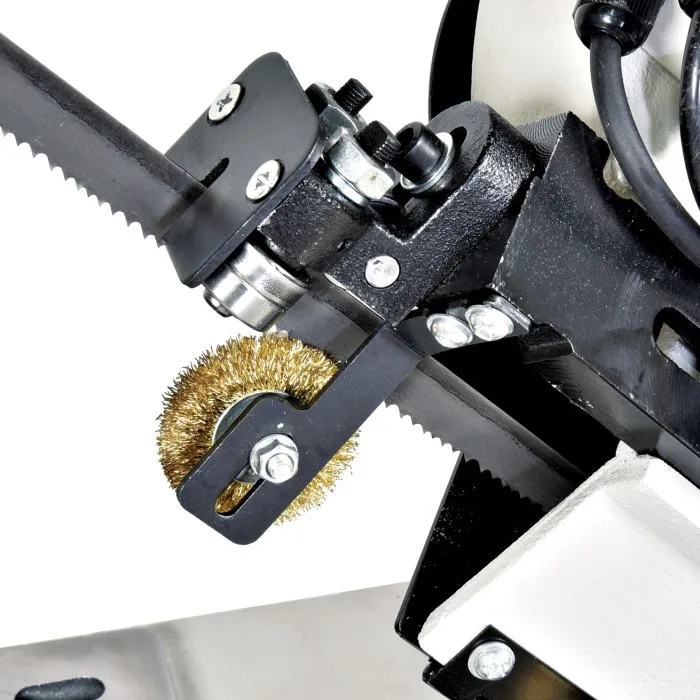

- Roller bearing blade guides provides accurate cutting

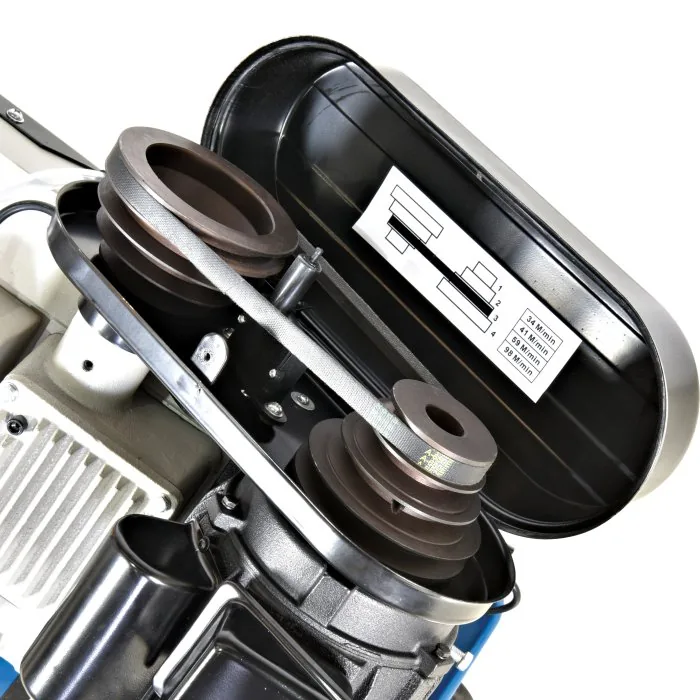

- 4 cutting speeds via step pulleys (34-41-59-98mpm)

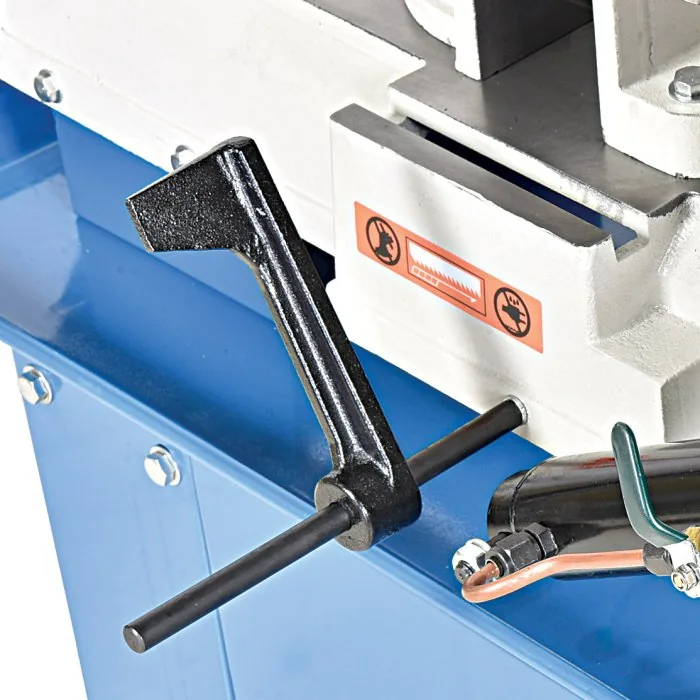

- Adjustable length stop for repetition cutting
- Portable – on wheels for ease of use

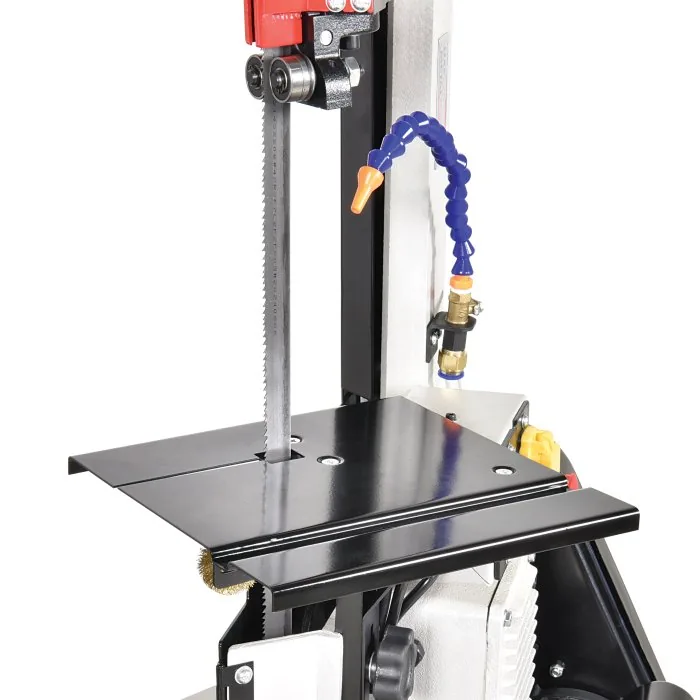

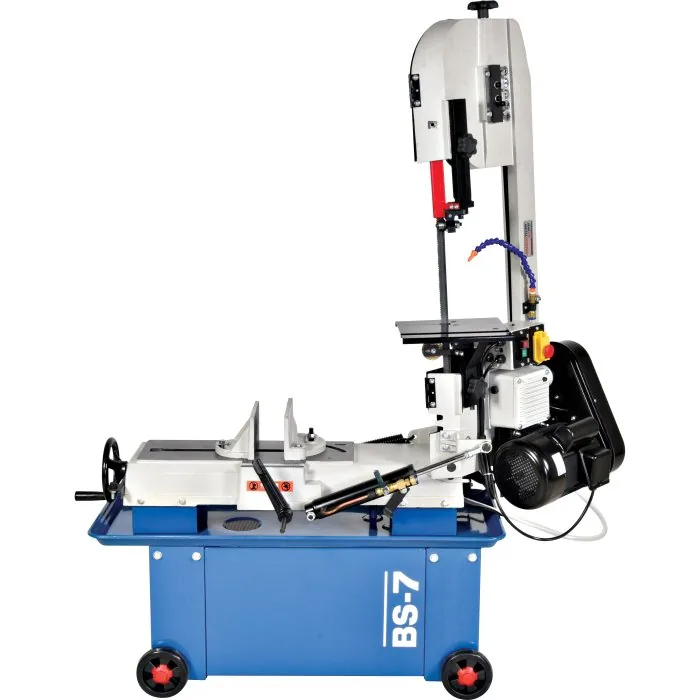

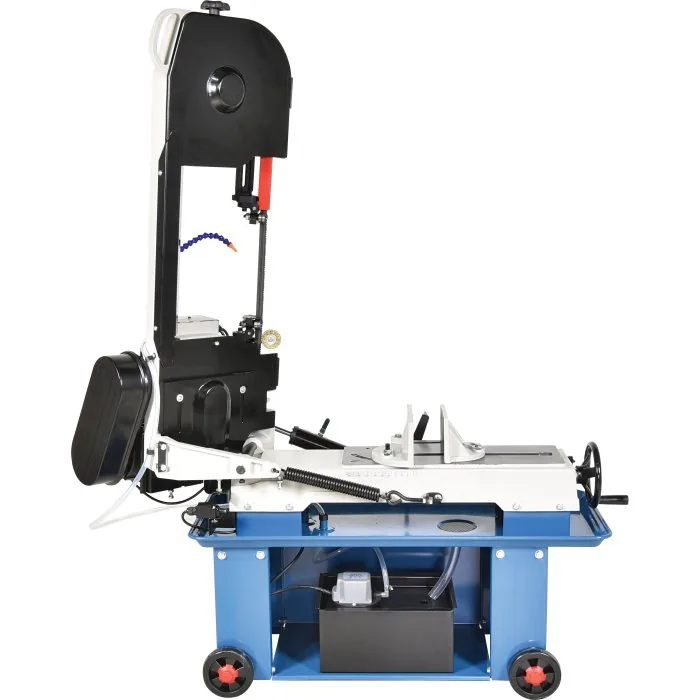

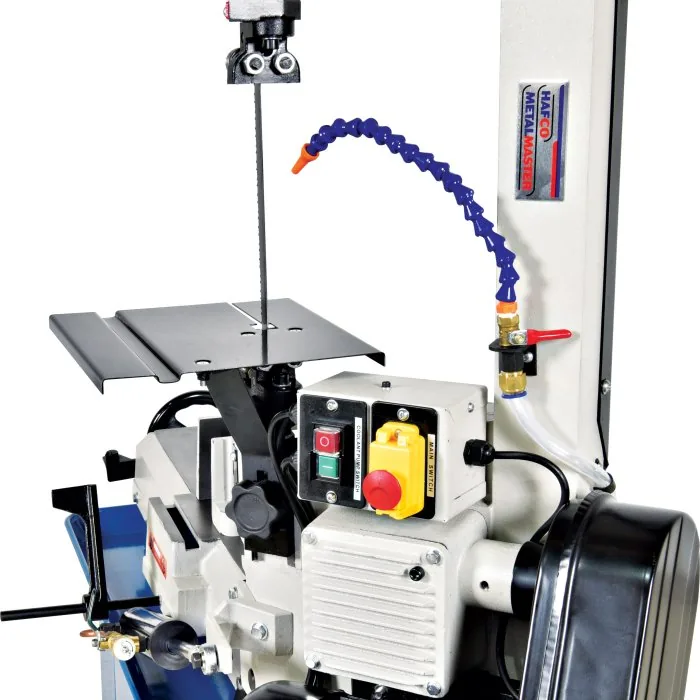

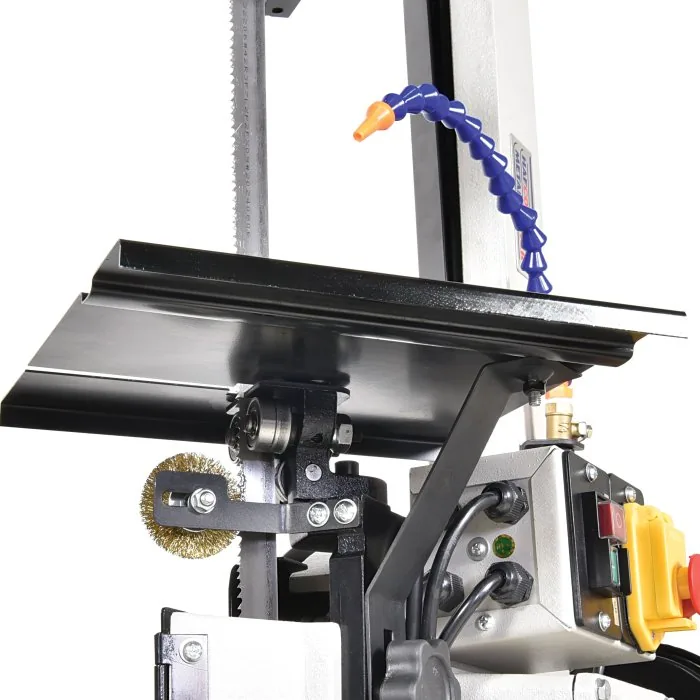

- Vertical cutting table included

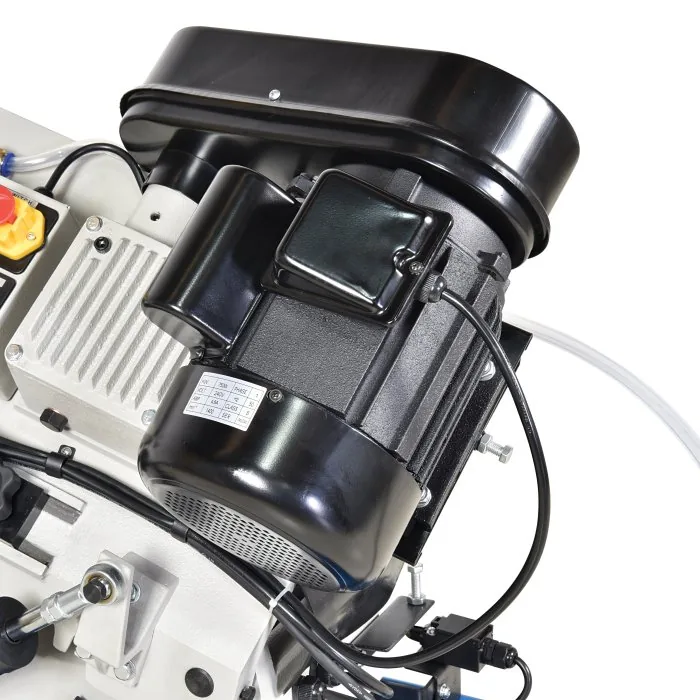

- Heavy-duty 0.75kW / 1hp 240V motor
About This Product
Looking for a 7” metal bandsaw that outshines the competition in quality and reliability? Our Metalmaster BS-7 is the perfect solution. While our competitors may offer similar-looking products at a lower price, our bandsaw’s superior craftsmanship and our company’s 90-year legacy in the industry set us apart. We have been delivering unmatched quality and durability for decades, ensuring that you invest in machinery that is built to last. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code B007) for collection in store.
In the Box
- 1 x blade
- Vertical cutting table
Product Specifications
| Specification | Detail |
|---|---|
| Operation Type | Fixed Head |
| Round @ 90º (mm) | 180 |
| Round @ 45º (mm) | 110 |
| Square @ 90º (mm) | 180 |
| Square @ 45º (mm) | 110 |
| Rectangle (W x H) @ 90º (mm) | 300 x 180 |
| Rectangle (W x H) @ 45º (mm) | 110 x 180 |
| Coolant System | Yes |
| Table Working Height (mm) | 550 |
| Cutting Head Beam Type | Manual |
| Cutting Head Beam Return | Manual Return |
| Cutting Head Down Feed Control | Adjustable Hydraulic |
| Vice Clamping Fixture | Manual |
| Blade Steps / Speeds (M/Min) | 34, 41, 59, 98 |
| Blade Size (L x W x T) (mm) | 2362 x 19 x 0.8 |
| Motor Power (kW / hp) | 0.75 / 1 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 166 |
