HAFCO-METALMASTER

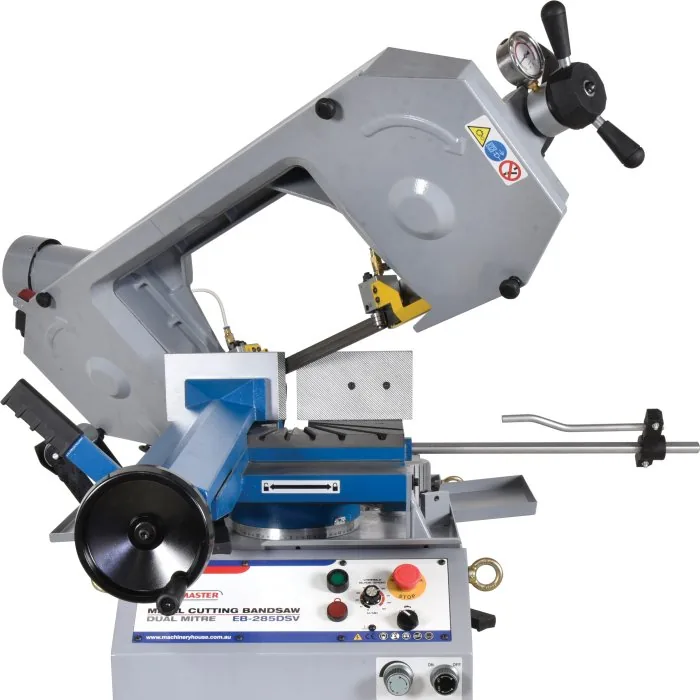

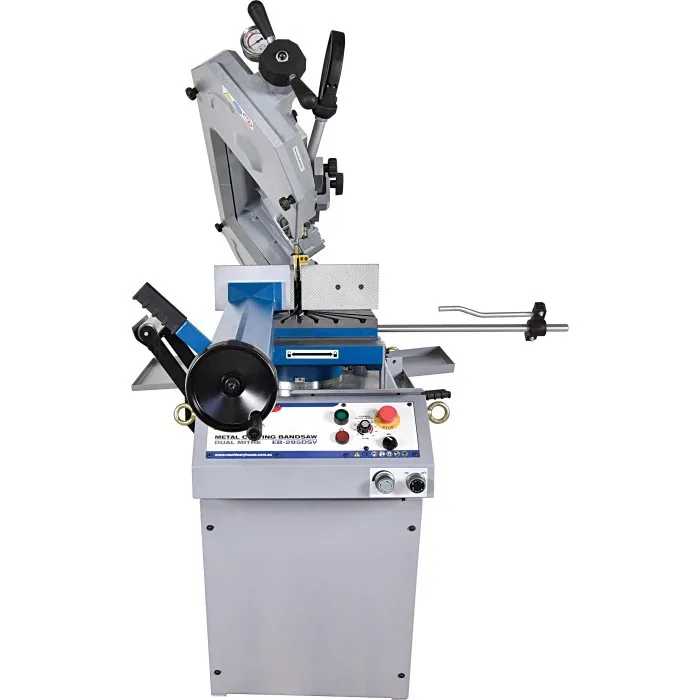

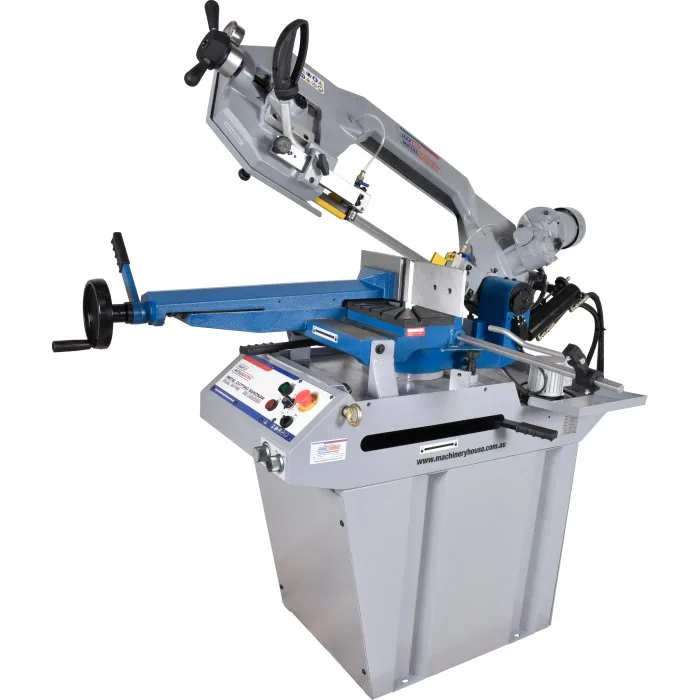

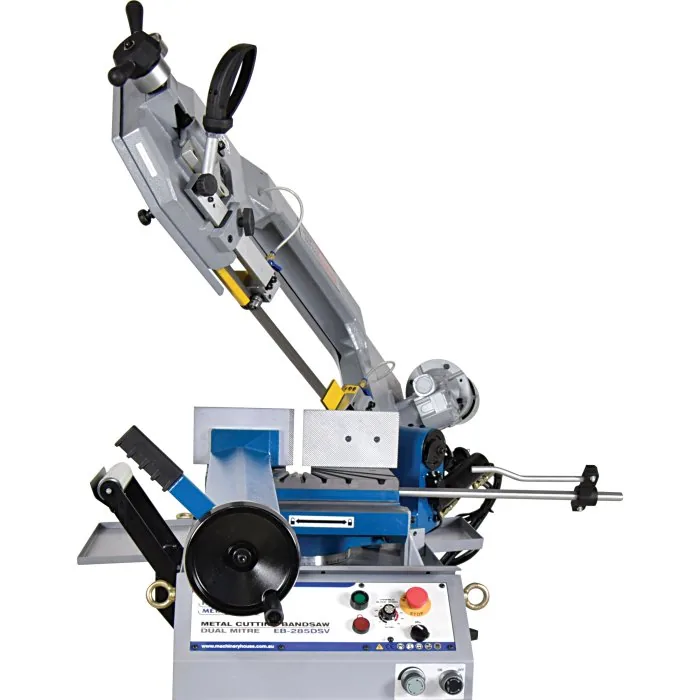

Swivel Head-Dual Mitre Metal Cutting Band Saw — EB-285DSV, Electronic Variable Blade Speed 20-90mpm, Dual Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control 265 x 200mm (W x H) Rectangle Capacity
Part No: B064V | Barcode: 9344195305412 | Model: EB-285DSV
HAFCO-METALMASTER EB-285DSV Swivel Head-Dual Mitre Metal Cutting Band Saw (Electronic Variable Blade Speed 20-90mpm, Dual Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control 265 x 200mm (W x H) Rectangle Capacity). Available to order through Alltools Geelong for collection in store.
Model EB-285DSV
265 x 200mm (W x H) Rectangle Capacity
Blade Steps / Speeds: Variable 20-90
Motor Power: 1.5 / 2
Voltage / Amperage: 240 / 10
Key Features & Benefits
- 265 x 200mm rectangular capacity
- Electronic variable blade speed, 240V motor
- Larger cutting capacity than conventional cold saws

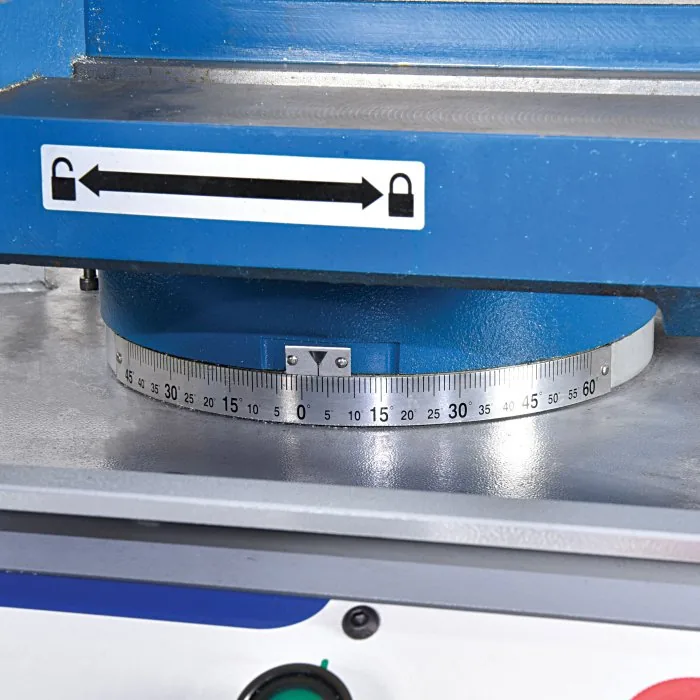

- Swivel head double mitre cut to 45º right & left, 60º right
- Quick action lock/release lever for swivel head
- Heavy-duty gear drive system

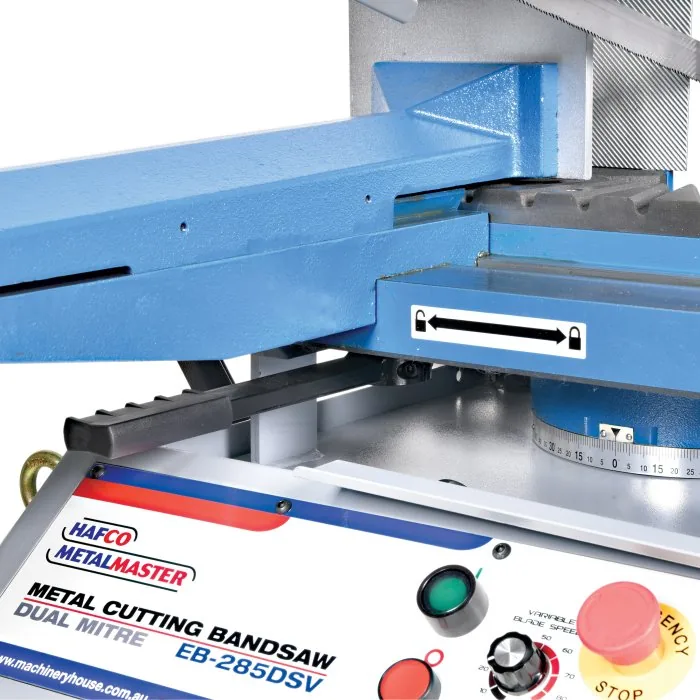

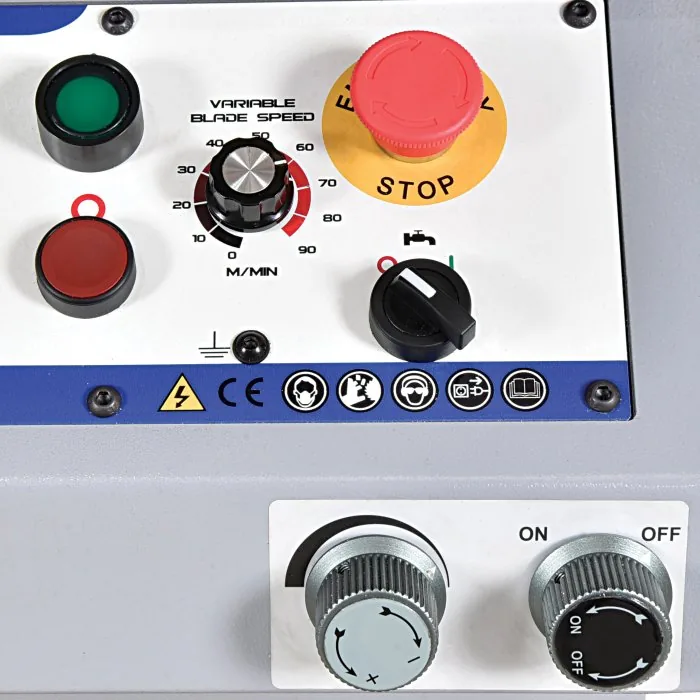

- Control panel mounted on stand for easy access

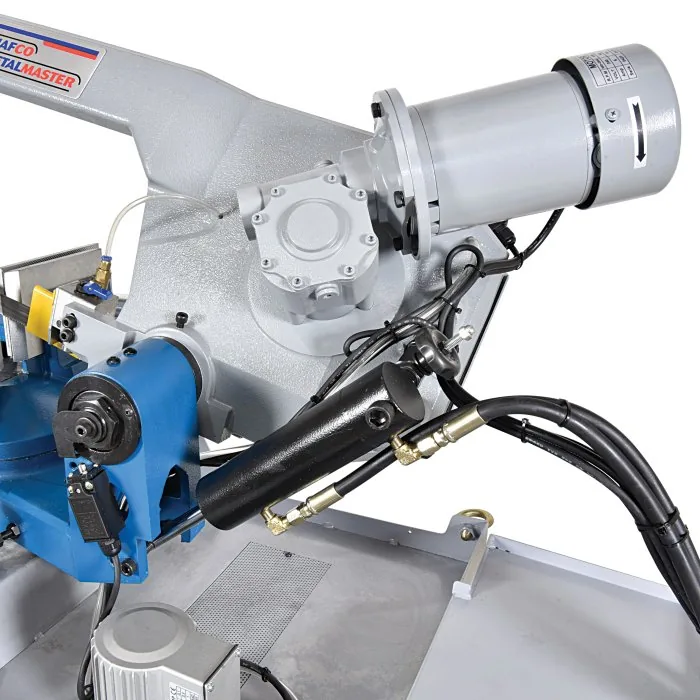

- Heavy duty hydraulic down feed cylinder

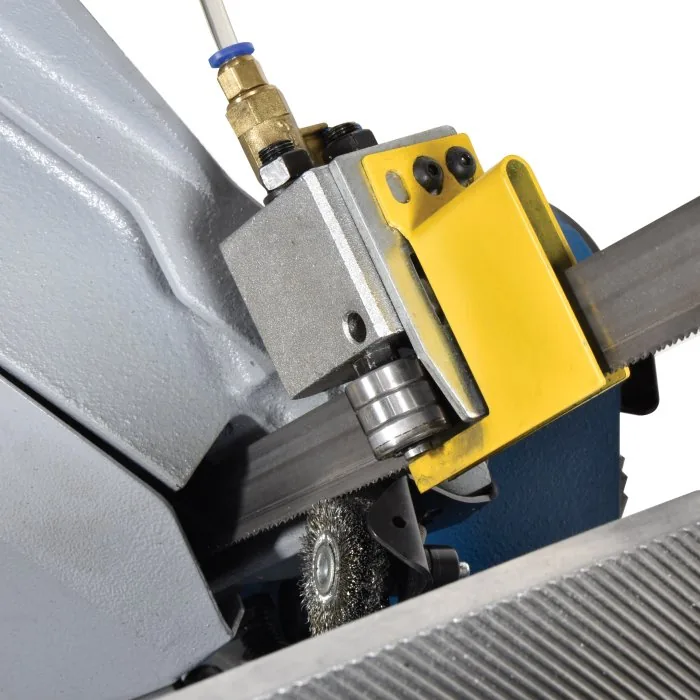

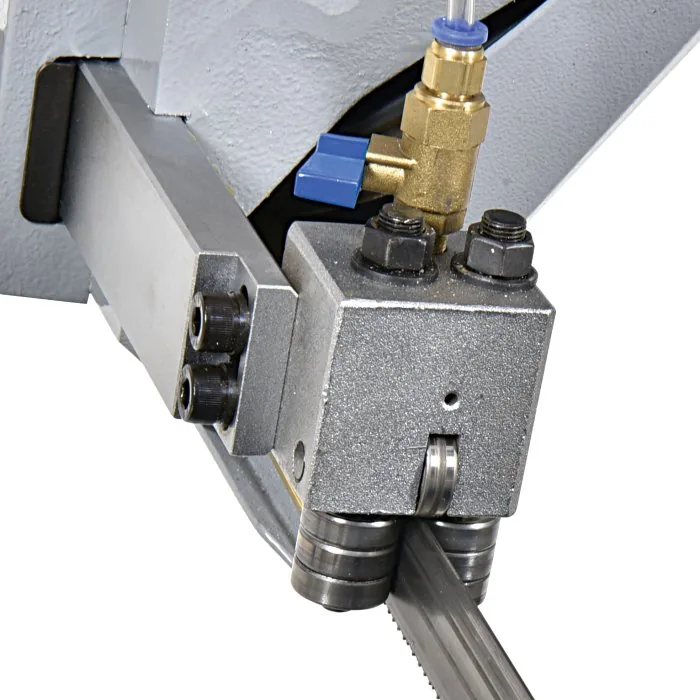

- Ball bearing blade guides ensures minimal blade clearance wear and increases blade life due to less friction
- Blade cleaning brush incorporated into blade guide system
- Quick-action lock/release vice

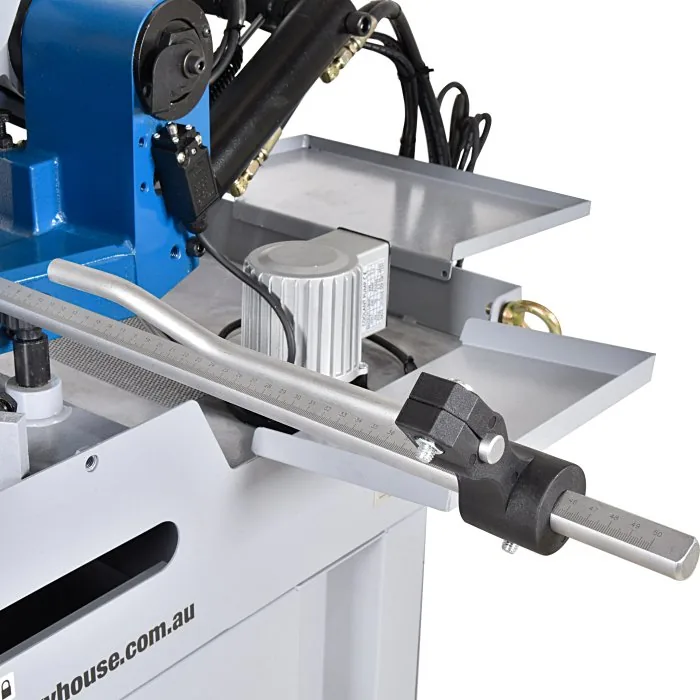

- Adjustable length stop for repetition cutting

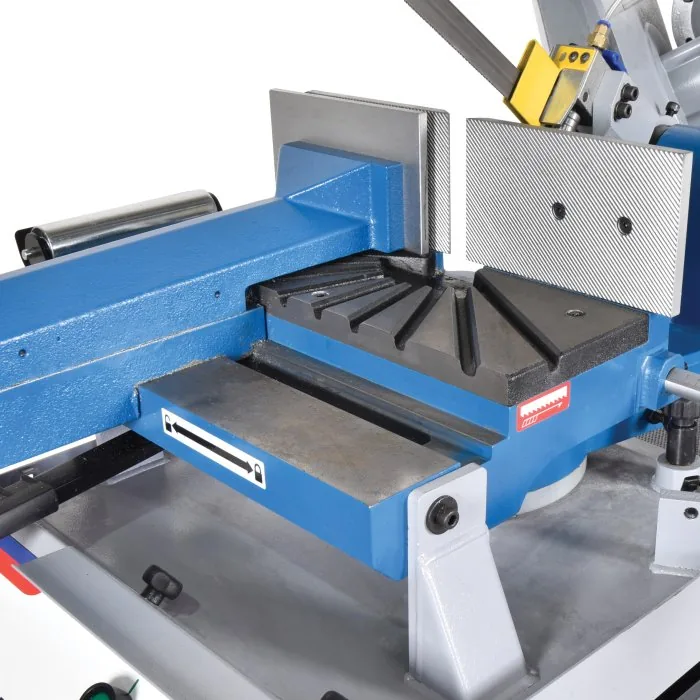

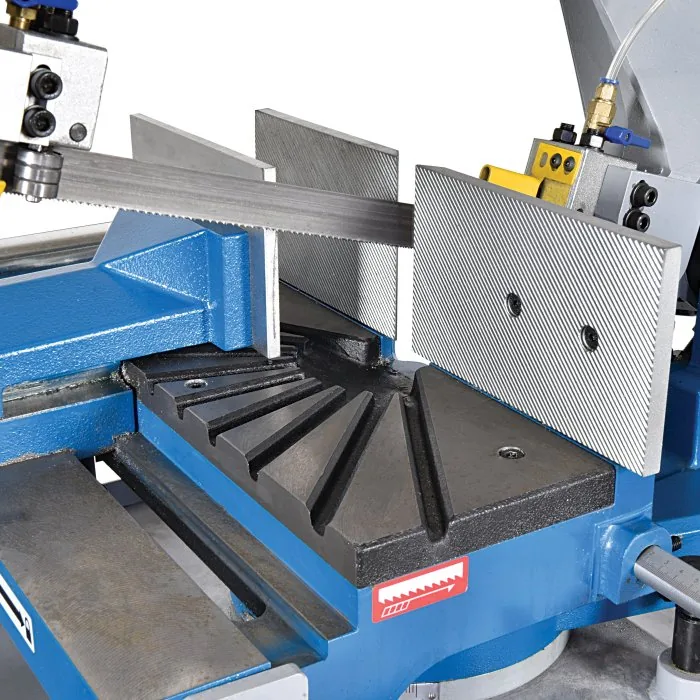

- Unique sliding vice design for dual mitre operation

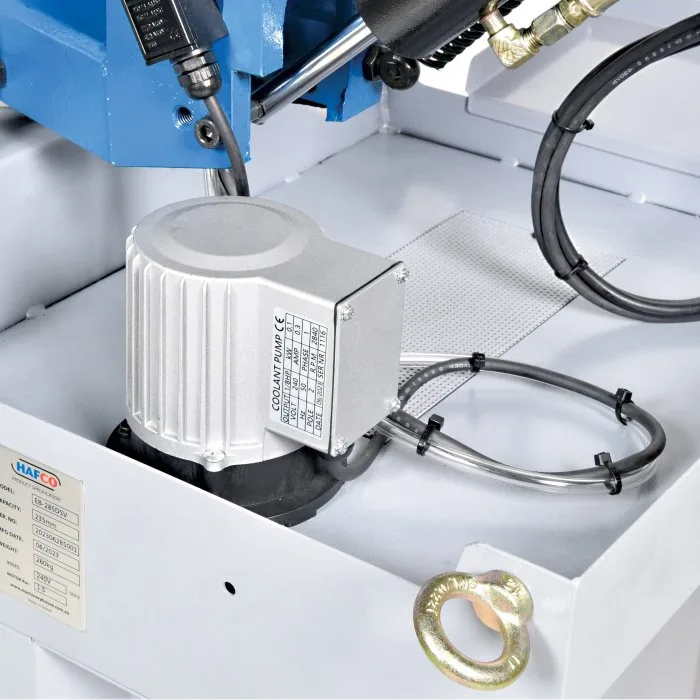

- Coolant system for cutting efficiency and blade life

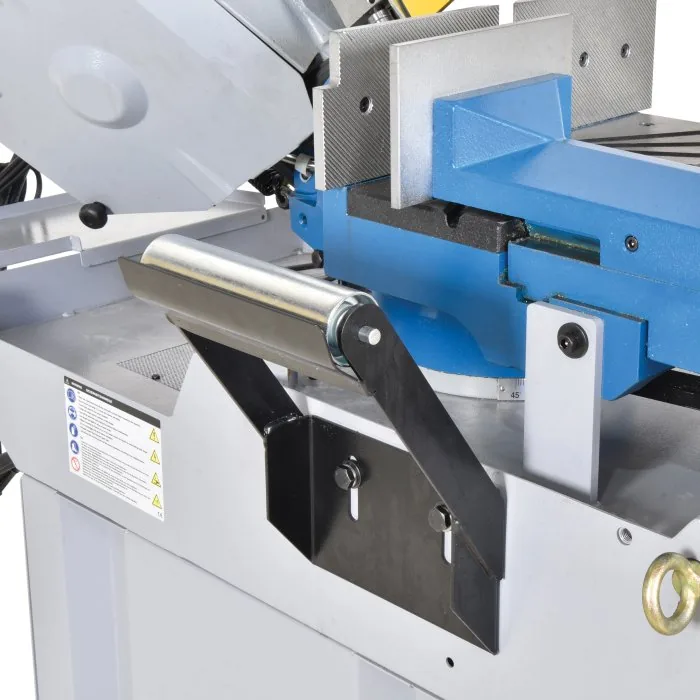

- Material support roller for long stock

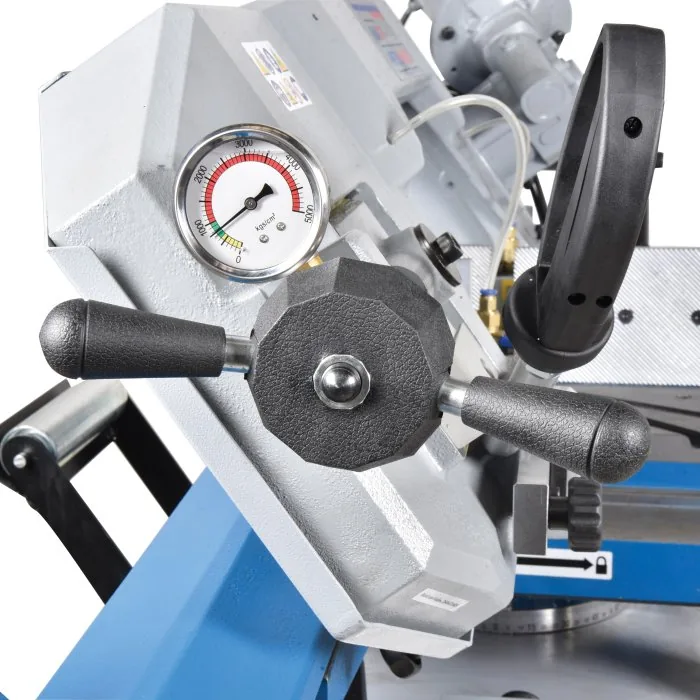

- User friendly blade tension system with gauge
- Vibration free, low noise operation ensures clean & high precision cuts
- Machine stand with integrated coolant tank as standard
About This Product
Swivel Head-Dual Mitre Metal Cutting Band Saw (Electronic Variable Blade Speed 20-90mpm, Dual Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control 265 x 200mm (W x H) Rectangle Capacity). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code B064V) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Operation Type | Swivel Head – Dual Mitre |
| Round @ 90º (mm) | 235 |
| Round @ 45º (mm) | 190 |
| Round @ 60º (mm) | 120 |
| Square @ 90º (mm) | 225 |
| Square @ 45º (mm) | 185 |
| Square @ 60º (mm) | 120 |
| Rectangle (W x H) @ 90º (mm) | 265 x 200 |
| Rectangle (W x H) @ 45º (mm) | 180 x 200 |
| Rectangle (W x H) @ 60º (mm) | 115 x 120 |
| Coolant System | Yes |
| Table Working Height (mm) | 990 |
| Cutting Head Beam Type | Manual |
| Cutting Head Beam Return | Manual Return |
| Cutting Head Down Feed Control | Adjustable Hydraulic |
| Vice Clamping Fixture | Manual – Quick Action |
| Blade Steps / Speeds (M/Min) | Variable 20-90 |
| Blade Size (L x W x T) (mm) | 2645 x 27 x 0.9 |
| Motor Power (kW / hp) | 1.5 / 2 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 260 |
