HAFCO-WOODMASTER

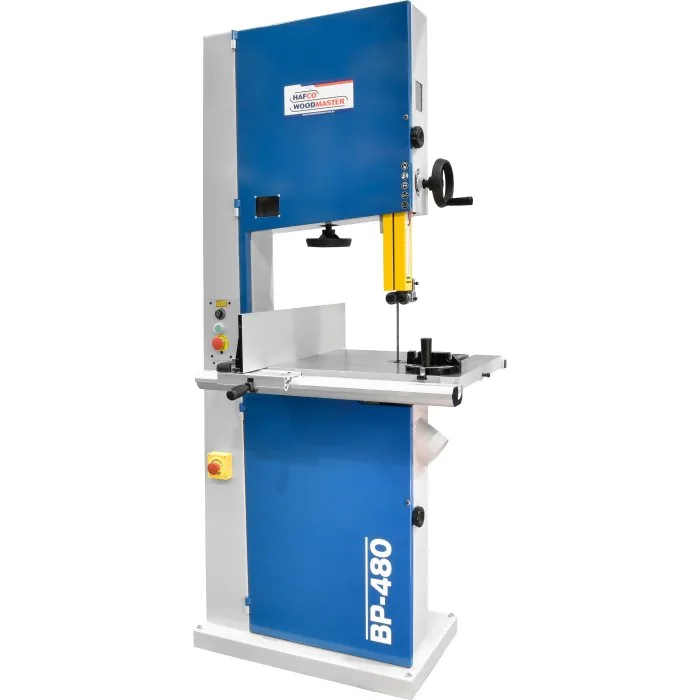

Wood Band Saw — BP-480 CE, 2 Blade Speeds – 488 & 1010m/min & Includes Magnetic Safety Brake System – 415V 465mm Throat Depth x 310mm Height Capacity
Part No: W4346 | Barcode: 9344195030178 | Model: BP-480 CE
HAFCO-WOODMASTER BP-480 CE Wood Band Saw (2 Blade Speeds – 488 & 1010m/min & Includes Magnetic Safety Brake System – 415V 465mm Throat Depth x 310mm Height Capacity). Safety is paramount, with CE-compliant features including a 2-second blade stopping time, interlocked blade guard doors, a magnetic NVR power switch,…
Model BP-480 CE
Throat Capacity: 465 mm
Height Capacity: 310 mm
Table Size: 480 x 682 mm
Motor Power: 1.5 / 2 [with Brake System]
Voltage / Amperage: 415 / 3.3
Key Features & Benefits
- Quality Taiwanese manufacture
- Powerful 2hp – 415V braked motor – CE Safety Compliant
- Keyed brake release enhances safety during blade changes
- 465mm throat capacity
- Extra high cutting capacity – 310mm

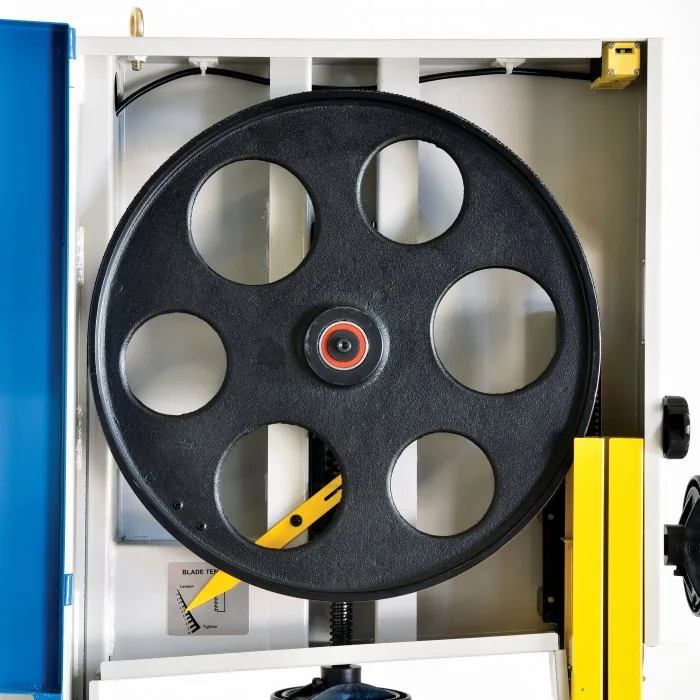

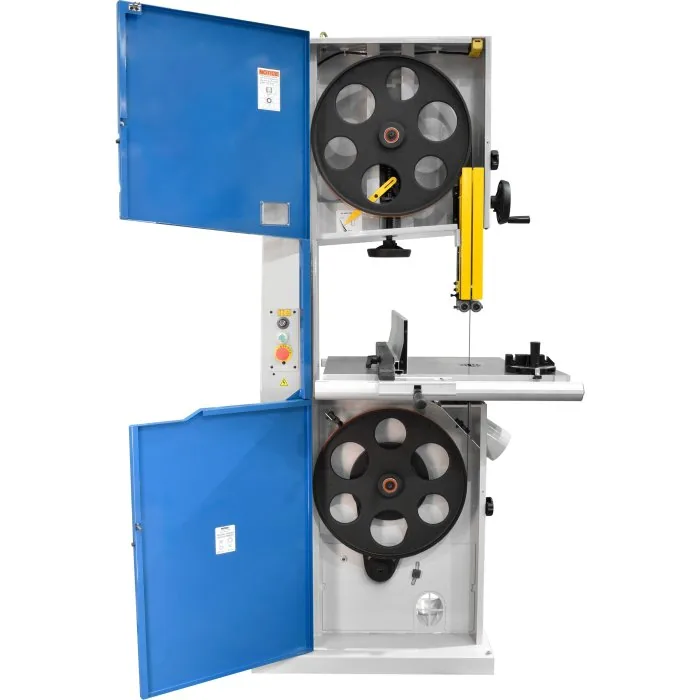

- Ø480mm heavy duty cast iron wheels
- Two blade speeds 488/1010m/min

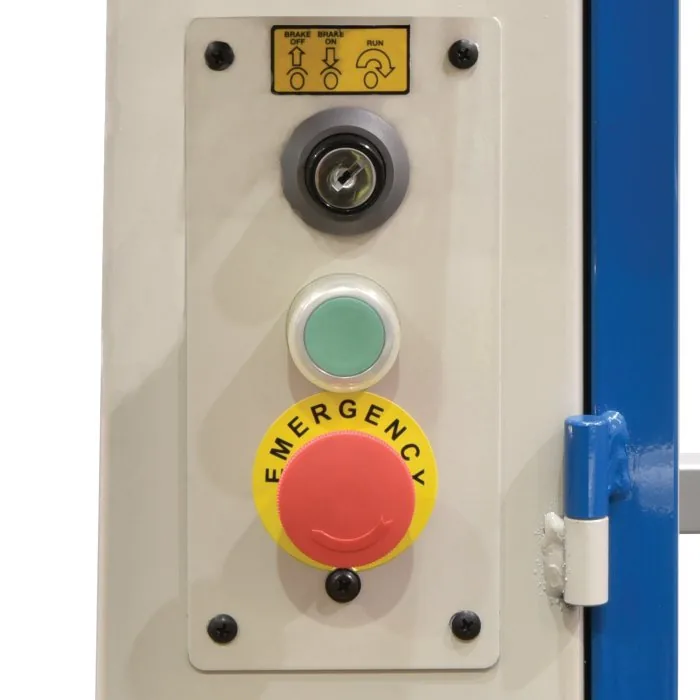

- Magnetic NVR on/off switch
- Emergency stop switch

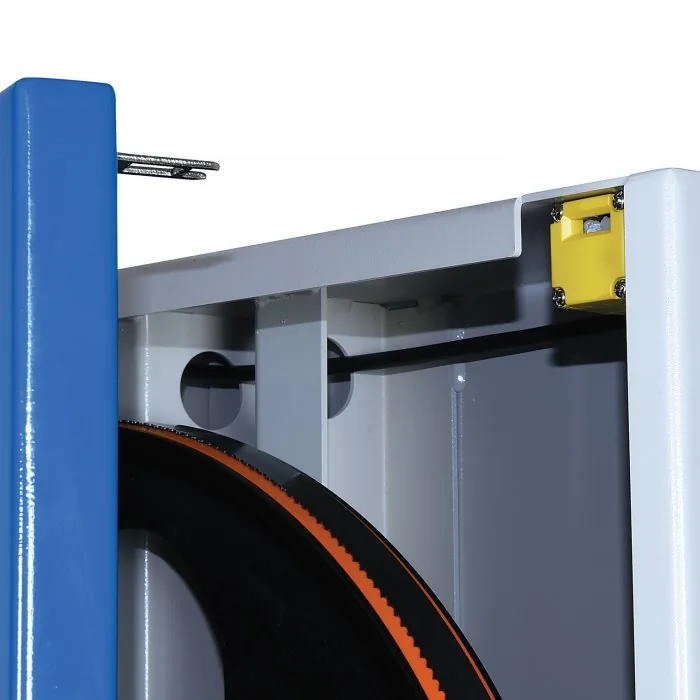

- Micro-switch protection on hinged blade guard doors

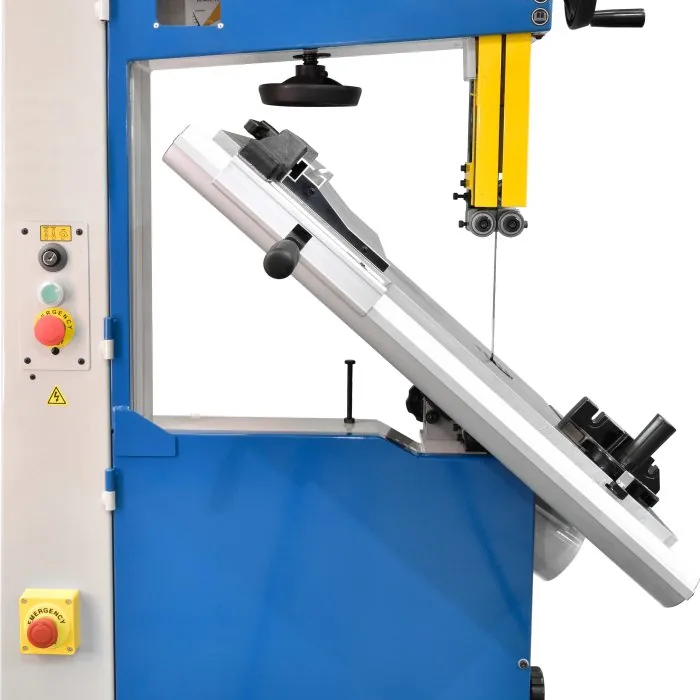

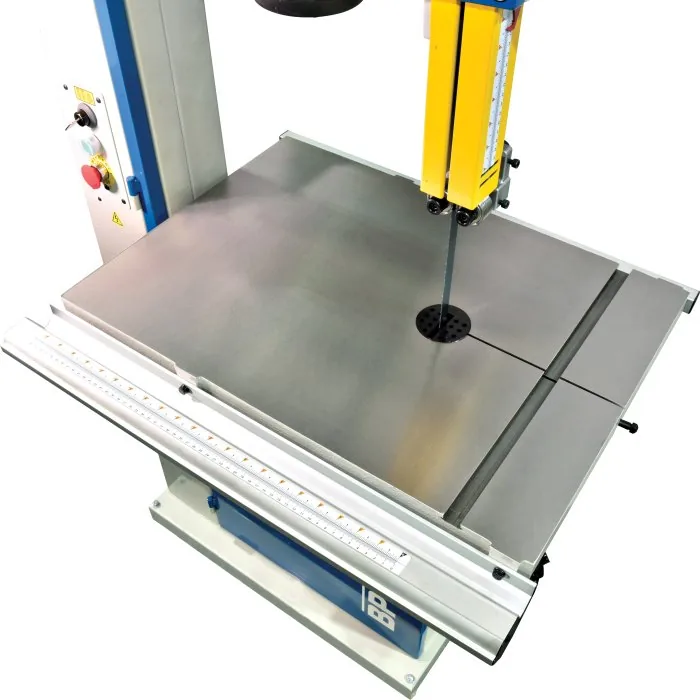

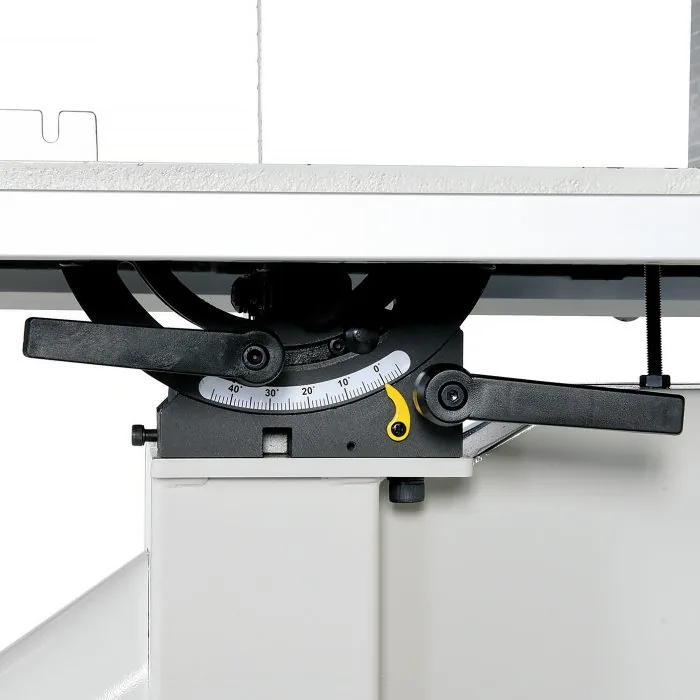

- Large cast iron table tilts to -5° to +45°

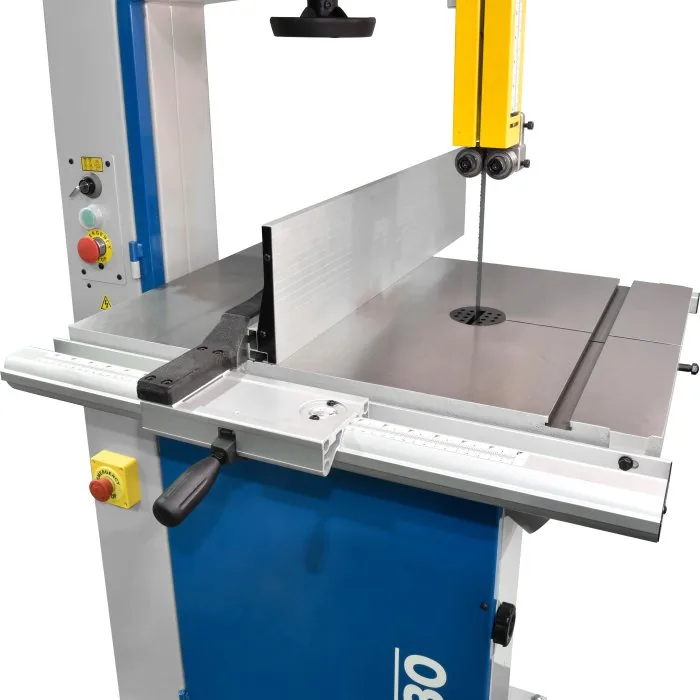

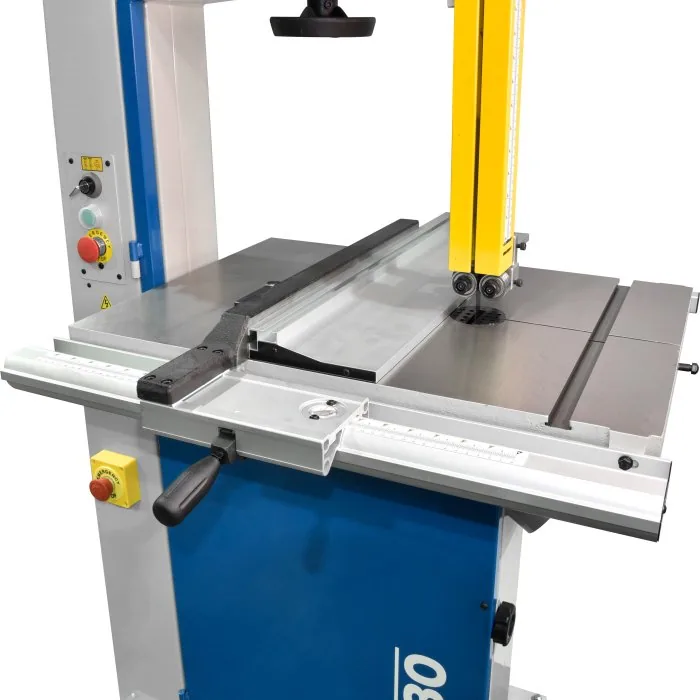

- High / Low ripping fence – 150mm & 12mm

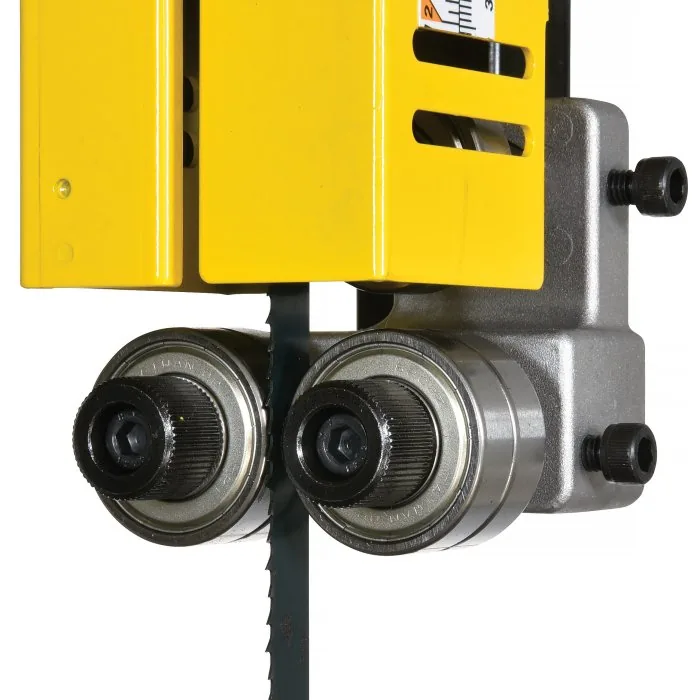

- Double ball bearing guides with grooved rear thrust bearing for maximum blade support

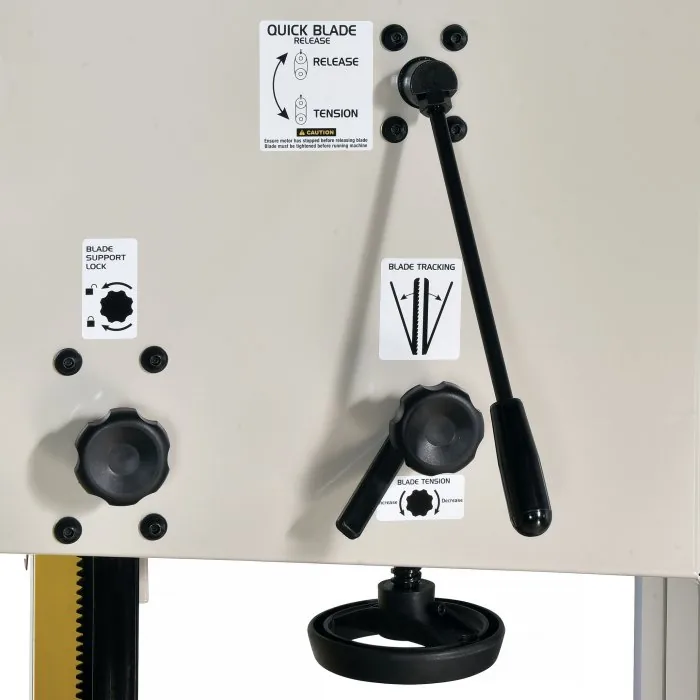

- Quick-action blade tension

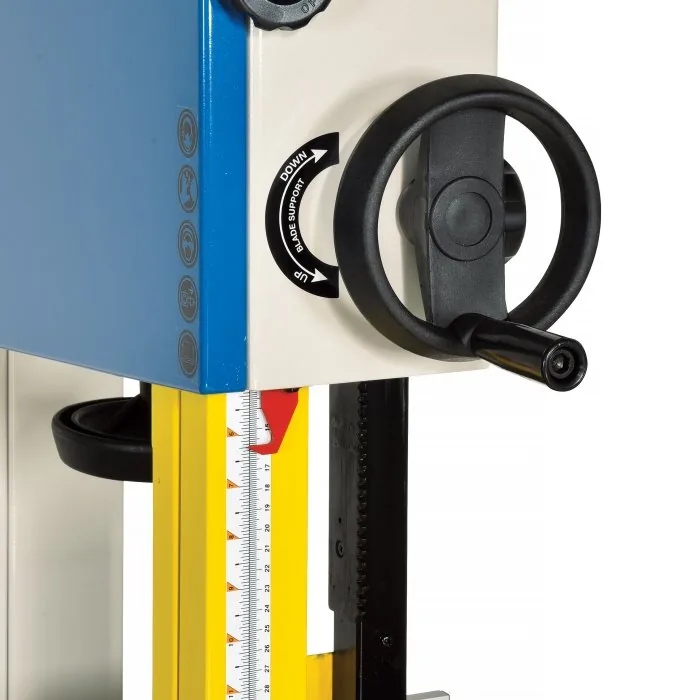

- Rack & pinion adjustment on top blade guide

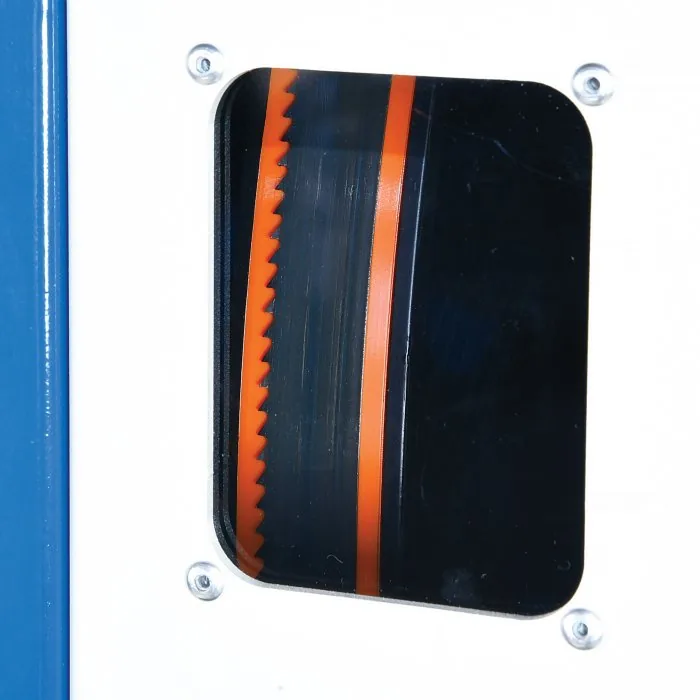

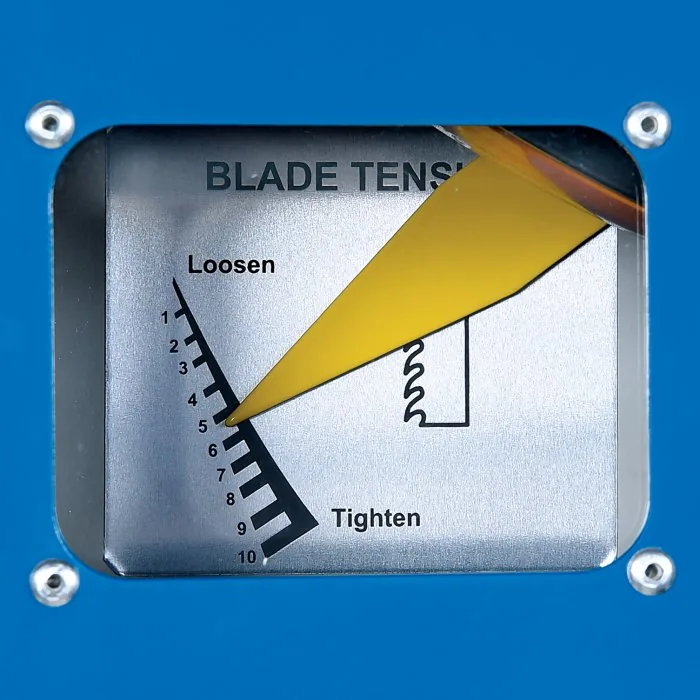

- Two viewing windows make blade tracking and tensioning possible while the machine is running

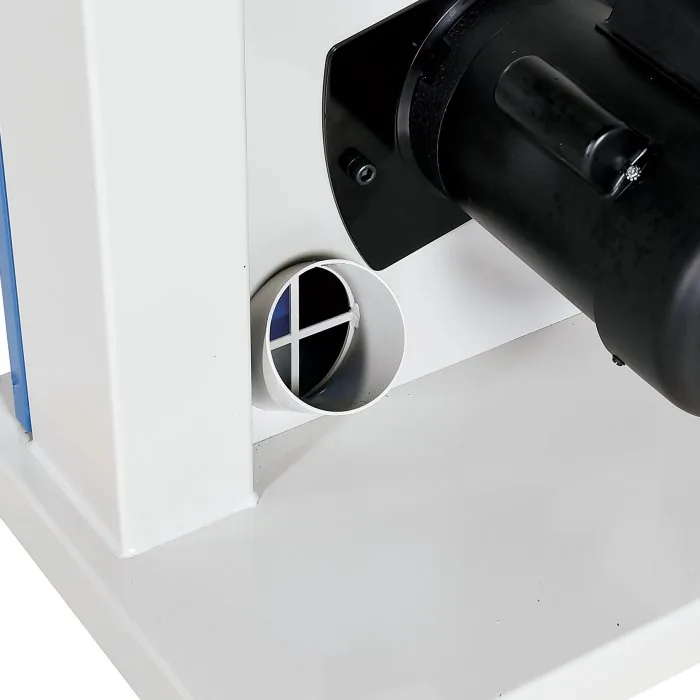

- Twin Ø100mm (4″) dust ports for efficient dust extraction
About This Product
Safety is paramount, with CE-compliant features including a 2-second blade stopping time, interlocked blade guard doors, a magnetic NVR power switch, an emergency stop switch, and a keyed motor brake release for safe blade changes. Balanced Ø480mm cast iron blade wheels minimise vibration for smoother operation, while two blade speeds (488 & 1010m/min) ensure versatility for both large and small tasks. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W4346) for collection in store.
In the Box
- High / Low ripping fence

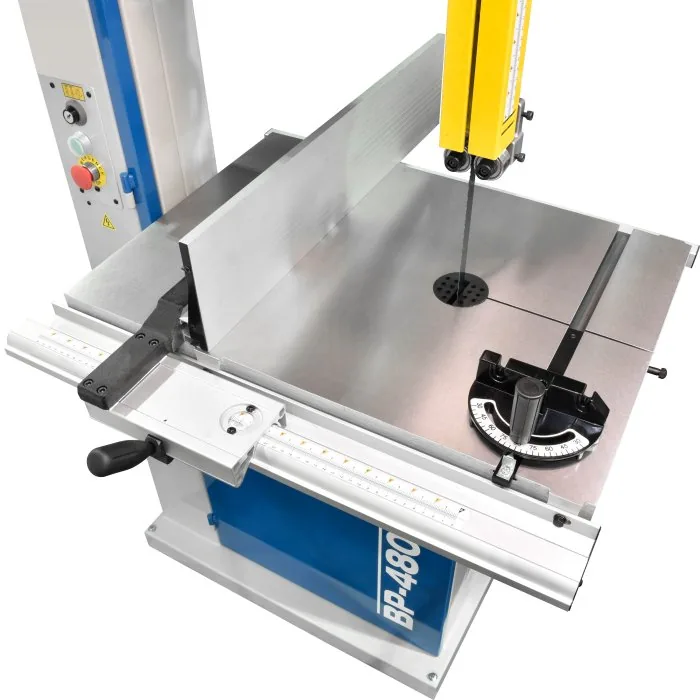

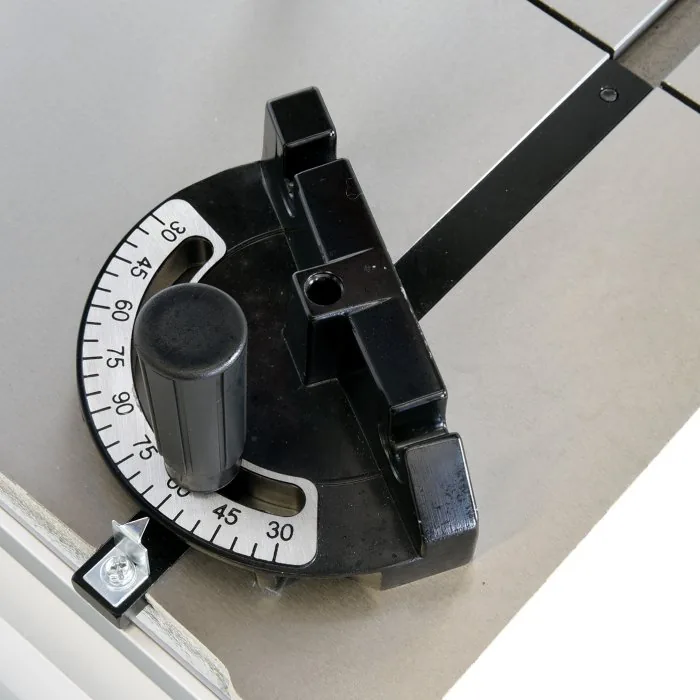

- Mitre gauge
- 6TPI, Blade – 3630 x 19 x 0.65mm
Product Specifications
| Specification | Detail |
|---|---|
| Wheel Diameter (Ø) (mm) | 480 |
| Throat Capacity (mm) | 465 |
| Height Capacity (mm) | 310 |
| Table Size (mm) | 480 x 682 |
| Frame Type | Steel |
| Motor Power (kW / hp) | 1.5 / 2 [with Brake System] |
| Voltage / Amperage (V / amp) | 415 / 3.3 |
| Blade Code (Suits) | W434A, W434B |
| Blade Size (L x W x T) (mm) | 3630 x 19 x 0.65 |
| Floor Space (W x D x H) (mm) | 960 x 850 x 1935 |
| Nett Weight (kg) | 180.5 |
