HAFCO-METALMASTER

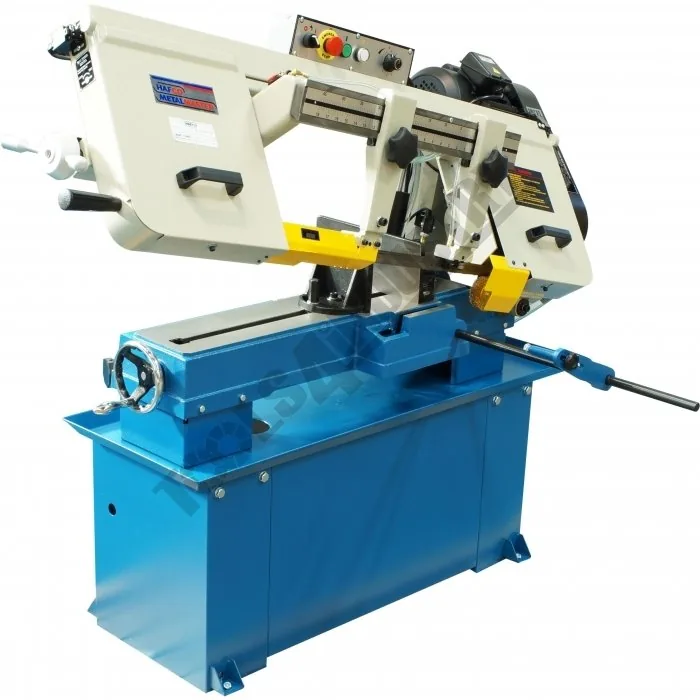

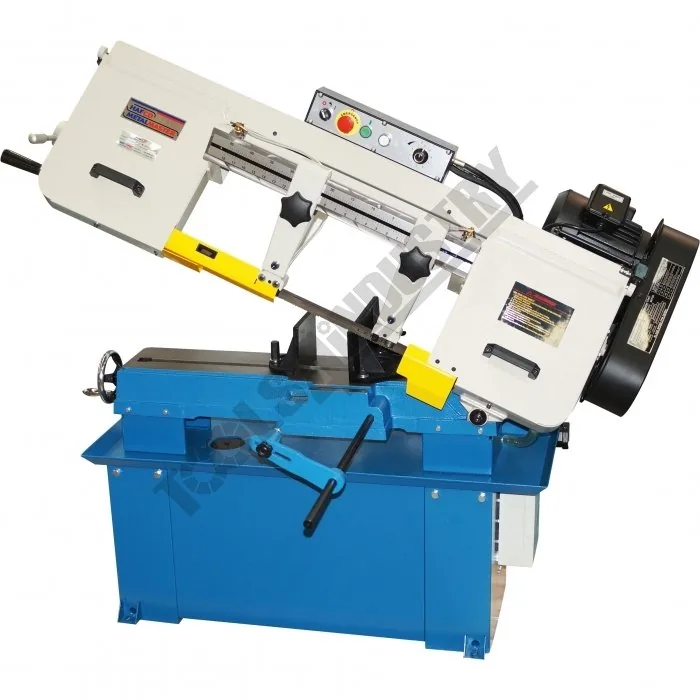

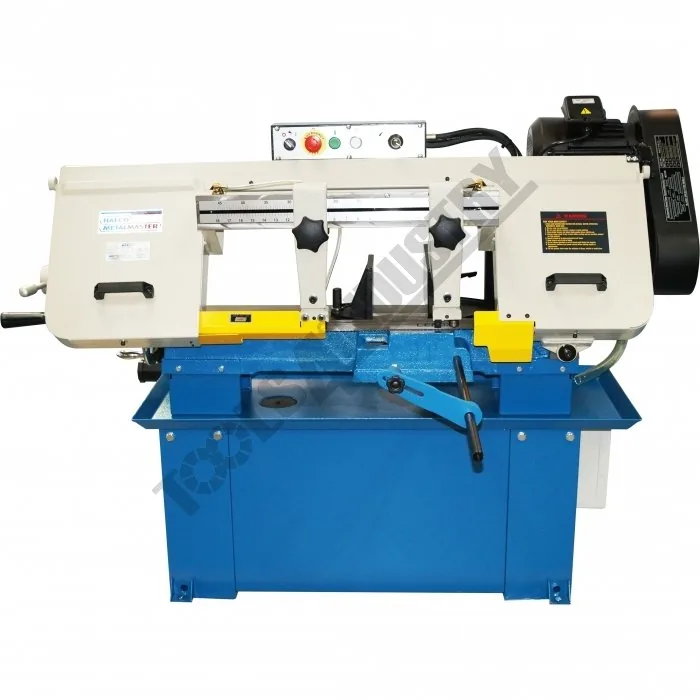

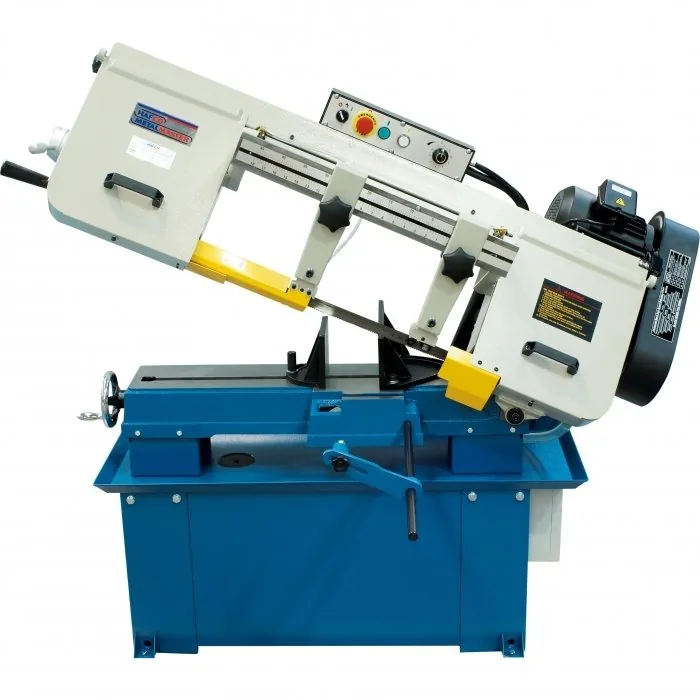

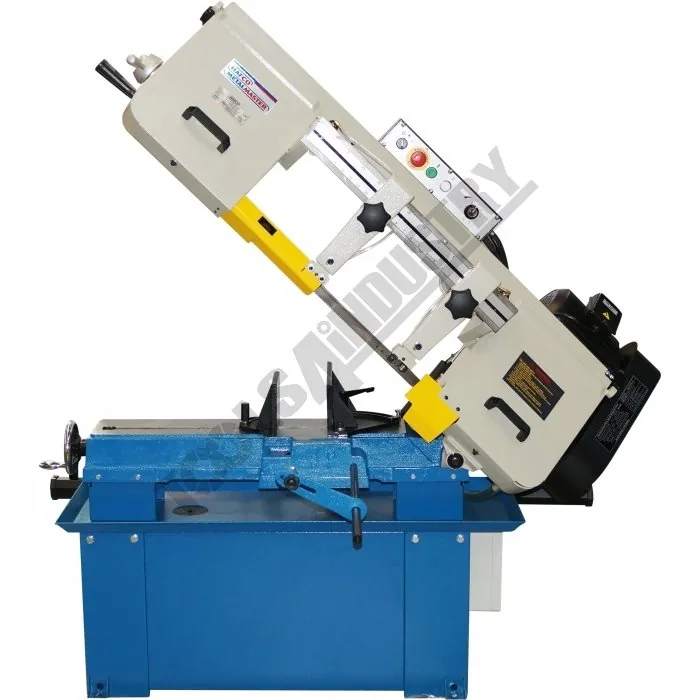

Metal Cutting Band Saw – Swivel Vice — BS-916A, Mitre Cuts Up To 45º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control 350 x 228mm (W x H) Rectangle Capacity
Part No: B015 | Barcode: 9344195023767 | Model: BS-916A
HAFCO-METALMASTER BS-916A Metal Cutting Band Saw – Swivel Vice (Mitre Cuts Up To 45º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control 350 x 228mm (W x H) Rectangle Capacity). The BS-916A is a largest 240 volt band saw suitable for the medium/heavy fabrication and general engineering workshops. It…
Model BS-916A
350 x 228mm (W x H) Rectangle Capacity
Blade Steps / Speeds: 29-50-73-96
Motor Power: 1.1 / 1.5
Voltage / Amperage: 240 / 15
Key Features & Benefits
- 350 x 228mm (W x H) rectangular capacity
- Adjustable hydraulic feed cutting rate for multiple applications

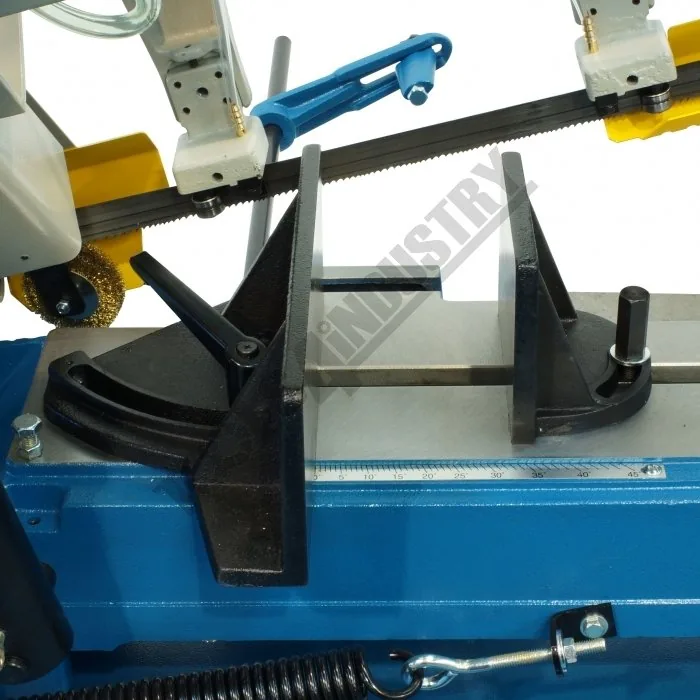

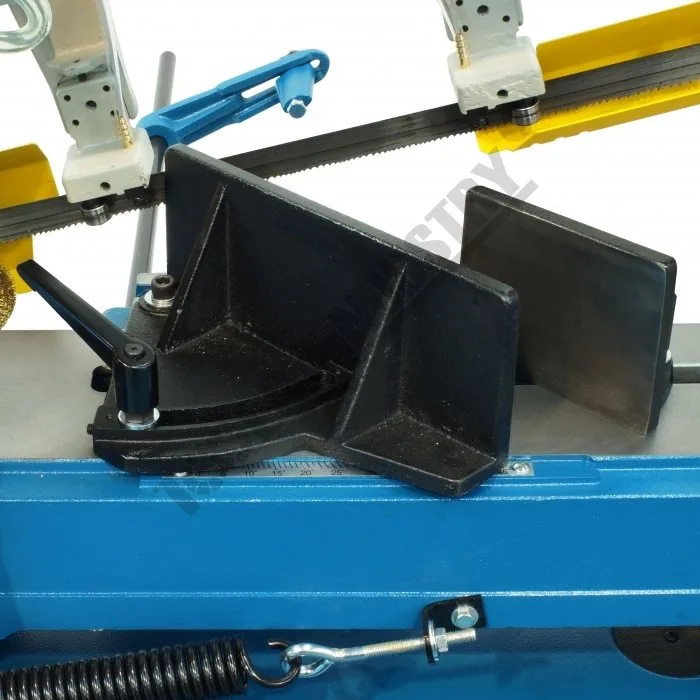

- Mitre cuts to 45º using calibrated vice

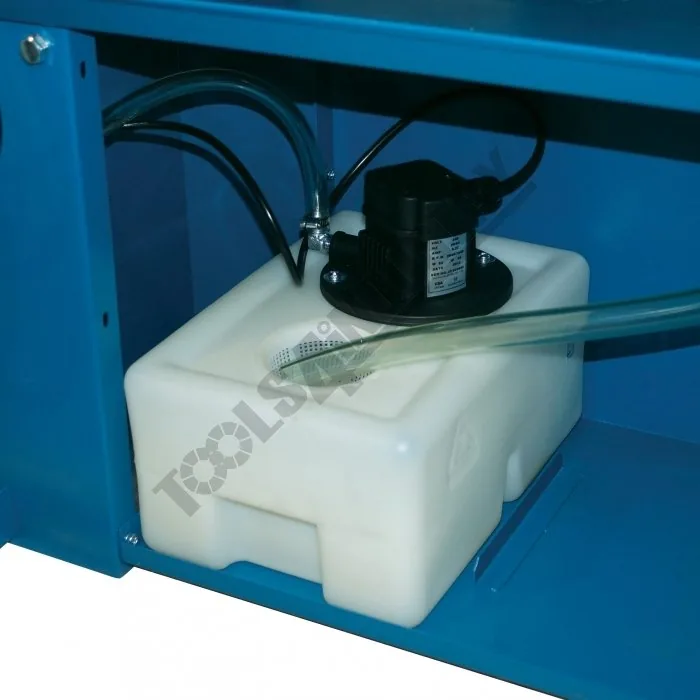

- Built-in coolant system for maximum cutting efficiency

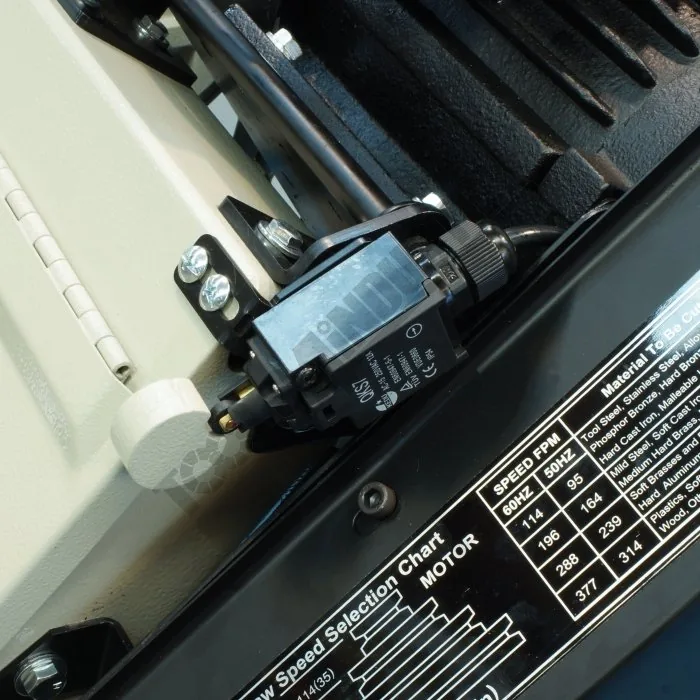

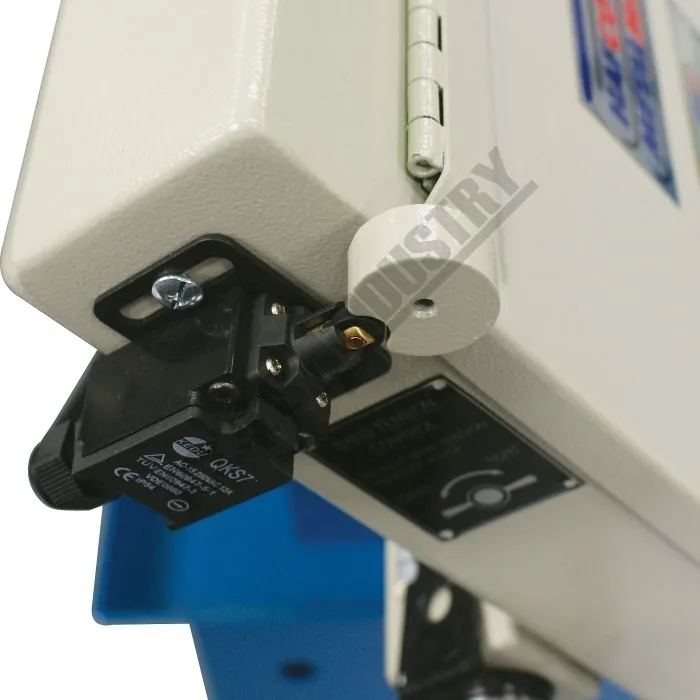

- Limit switch stops machine when cut is complete

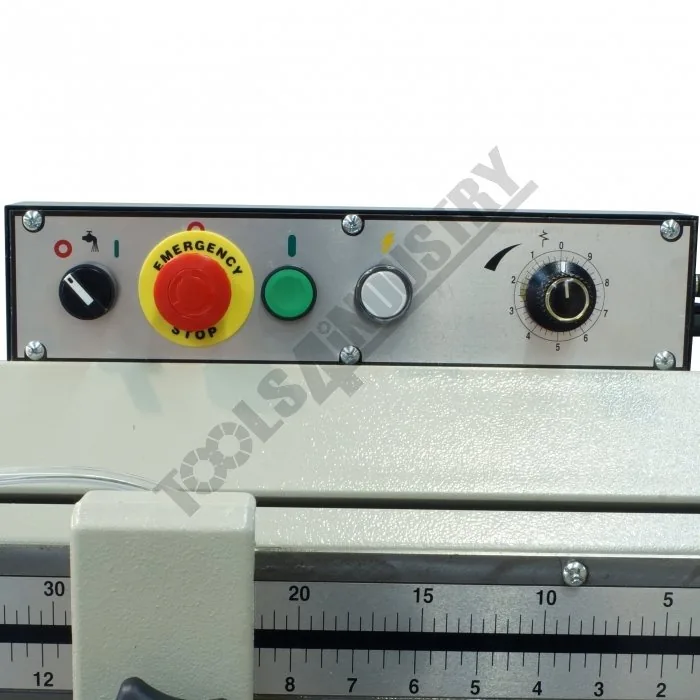

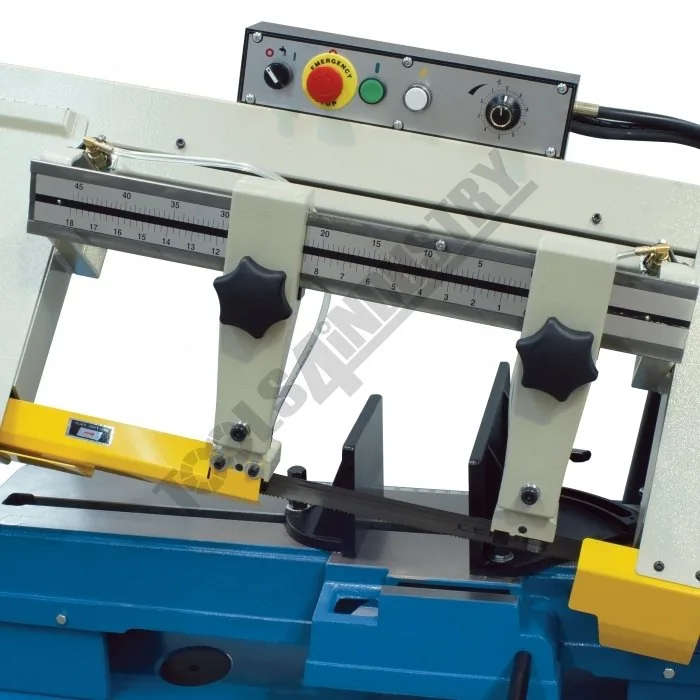

- Control panel located on top of arm for easy use

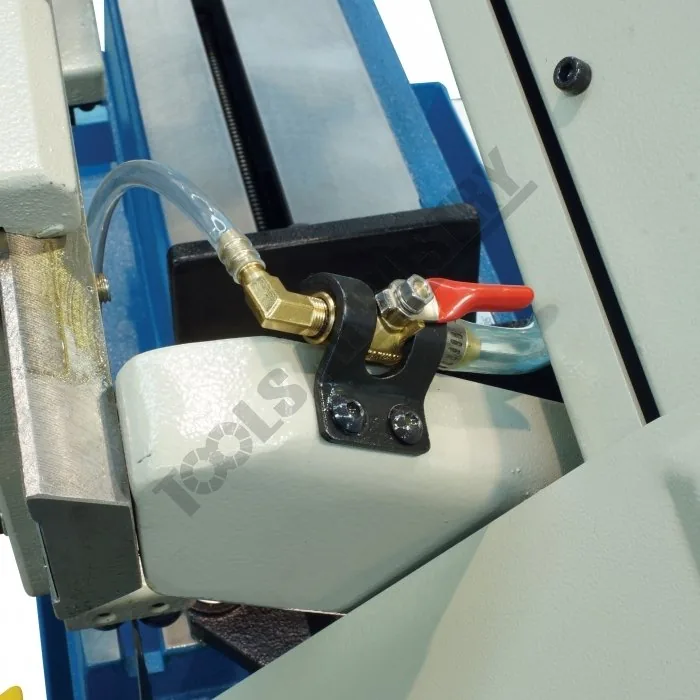

- Coolant system with flow control valve
- Cast iron frame with heavy duty fabricated base
- Quick action material clamping system

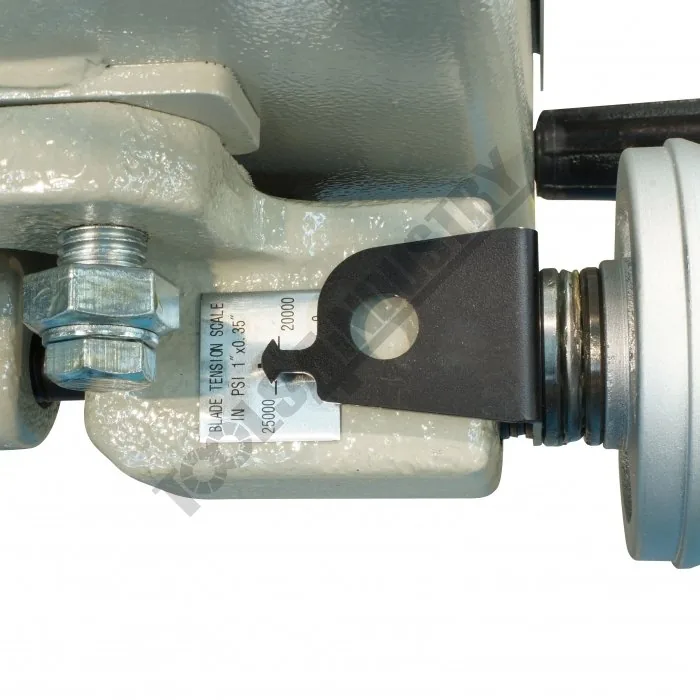

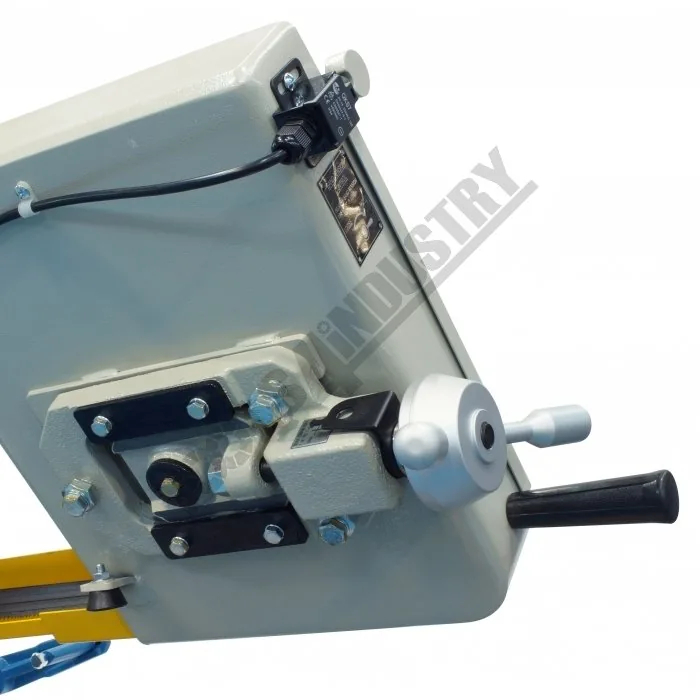

- Blade tension lever with scale for optimum settings

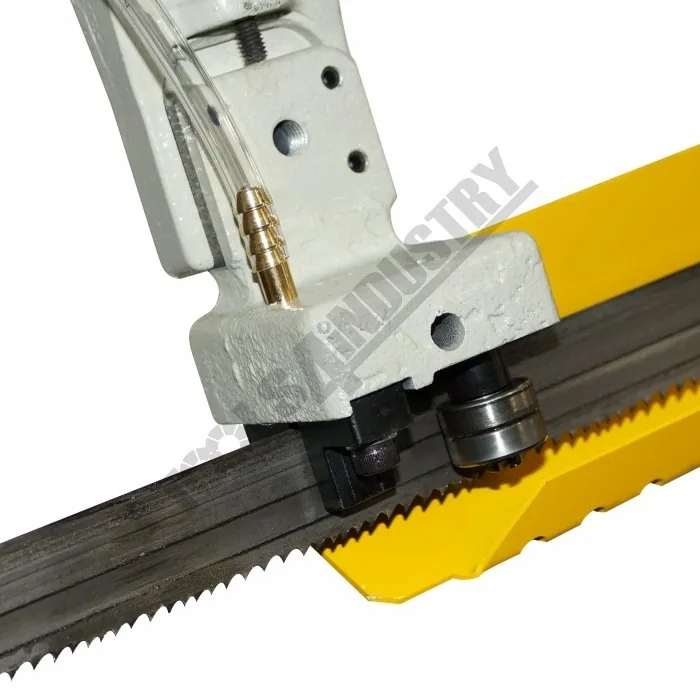

- Combination roller bearing & carbide blade guides

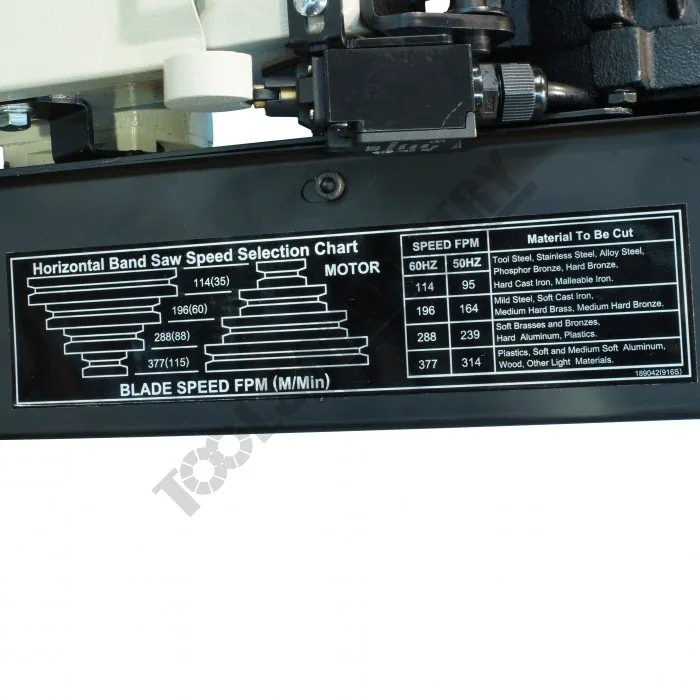

- Adjustable 4-speed pulley drive system enabling 29-50-73-96 M/Min cutting speeds

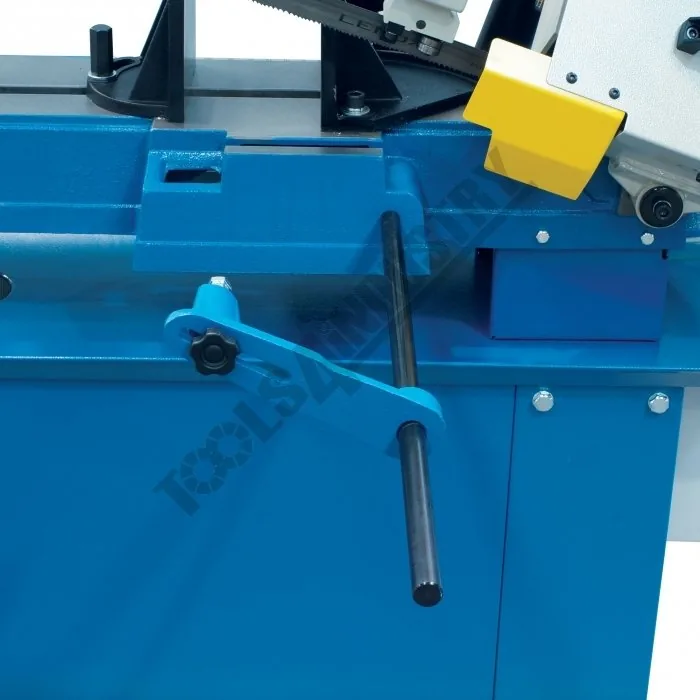

- Adjustable length stop for repetition cutting
- Automatic electric cut-out switch

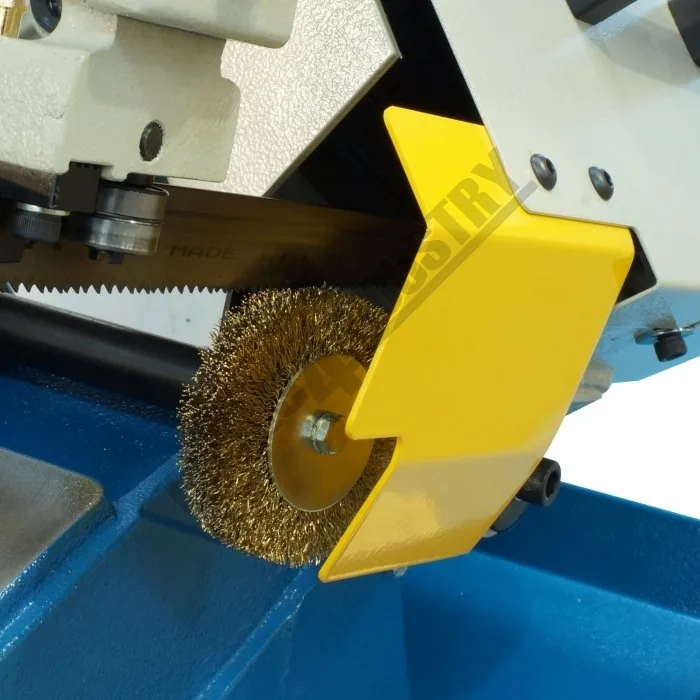

- Wire wheel brush to clean swarf from blade
- Heavy-duty gearbox drive
- Heavy-duty 1.1kW 240V fully enclosed fan-cooled motor
About This Product

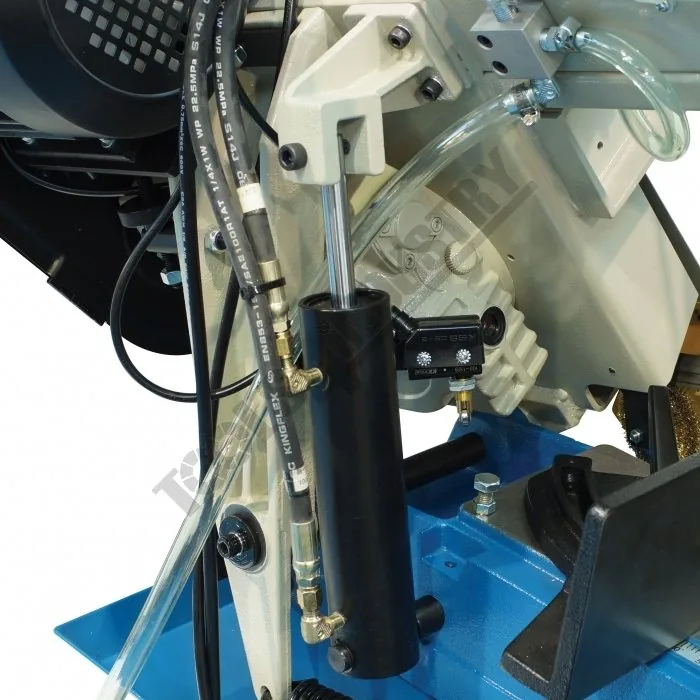

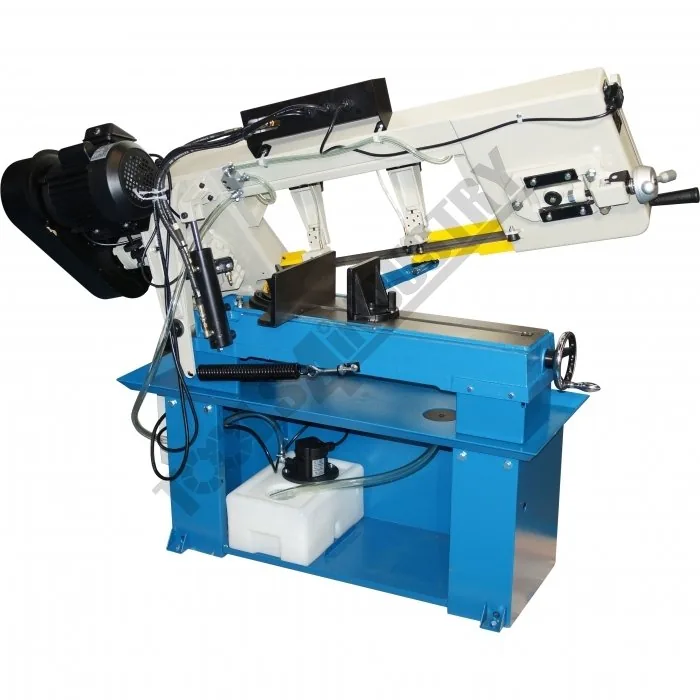

The BS-916A is a largest 240 volt band saw suitable for the medium/heavy fabrication and general engineering workshops. It features increased motor power, four blade speeds, double row ball bearing blade guides, a built-in coolant system, quick action sliding vice and greatly increased cutting capacity The downward cutting pressure is controlled by a fully adjustable hydraulic damper with an on/off valve and there is an automatic cut-off at the end of the cut. The vice rotates for mitre cutting and there is an adjustable material stop for consistent repeat length cutting. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code B015) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Operation Type | Fixed Head |
| Round @ 90º (mm) | 228 |
| Round @ 45º (mm) | 180 |
| Square @ 90º (mm) | 228 |
| Square @ 45º (mm) | 150 |
| Rectangle (W x H) @ 90º (mm) | 350 x 228 |
| Rectangle (W x H) @ 45º (mm) | 240 x 180 |
| Coolant System | Yes |
| Table Working Height (mm) | 675 |
| Cutting Head Beam Type | Manual |
| Cutting Head Beam Return | Manual Return |
| Cutting Head Down Feed Control | Adjustable Hydraulic |
| Vice Clamping Fixture | Manual |
| Blade Steps / Speeds (M/Min) | 29-50-73-96 |
| Blade Size (L x W x T) (mm) | 2908 x 27 x 0.9 |
| Motor Power (kW / hp) | 1.1 / 1.5 |
| Voltage / Amperage (V / amp) | 240 / 15 |
| Nett Weight (kg) | 290 |
