HAFCO-WOODMASTER

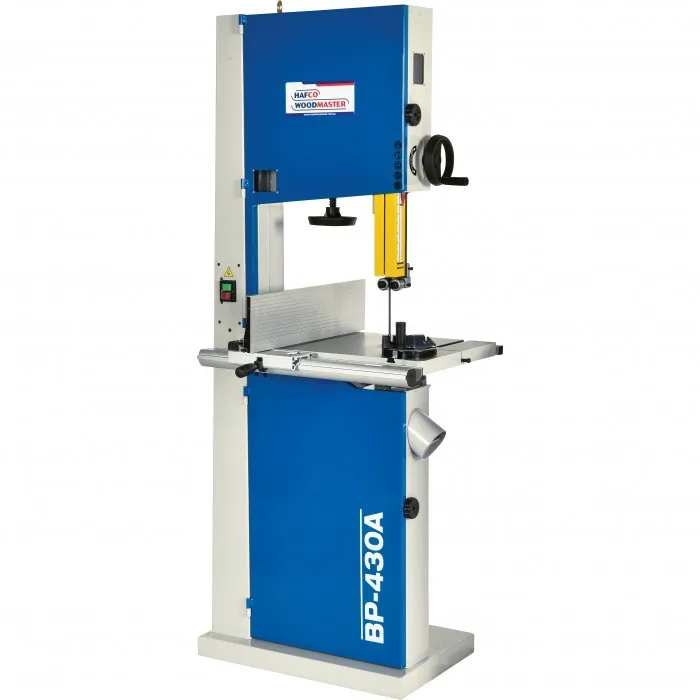

Wood Band Saw — BP-430A, 2 Blade Speeds – 488 & 1010m/min & Includes Automatic Electronic Motor Braking System 415mm Throat Depth x 310mm Height Capacity
Part No: W4330 | Barcode: 9344195252464 | Model: BP-430A
HAFCO-WOODMASTER BP-430A Wood Band Saw (2 Blade Speeds – 488 & 1010m/min & Includes Automatic Electronic Motor Braking System 415mm Throat Depth x 310mm Height Capacity). A wood bandsaw is probably the most versatile machine in any workshop and often the first machine used when preparing timber. This BP-430A…
Model BP-430A
Throat Capacity: 415 mm
Height Capacity: 310 mm
Table Size: 585 x 435 with Extension mm
Voltage / Amperage: 240 / 10
Key Features & Benefits
- Quality Taiwanese manufacture
- 415mm throat capacity
- Extra high cutting capacity – 310mm
- Powerful 2hp – 240V motor
- Automatic electronic motor braking system to quickly stop blade

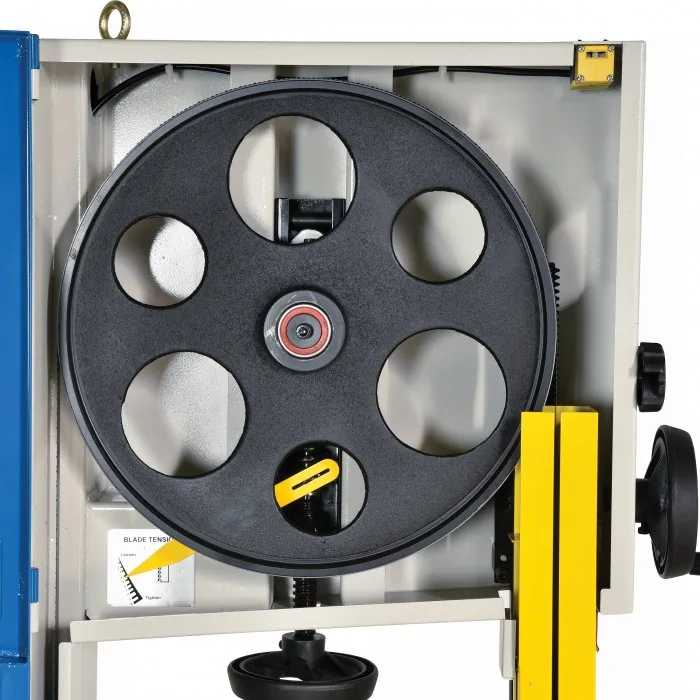

- Ø430mm (17″) heavy duty cast iron wheels, balanced for performance
- Two blade speeds 488/1010m/min

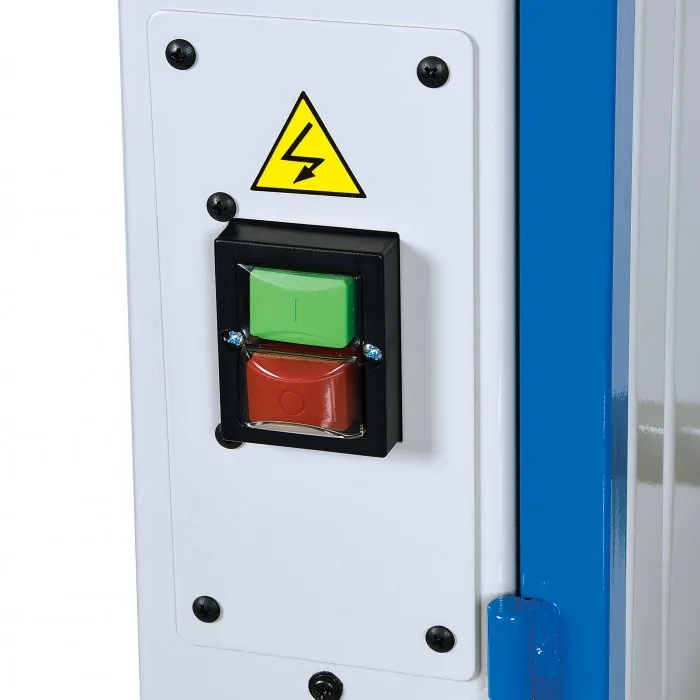

- Magnetic NVR on/off switch

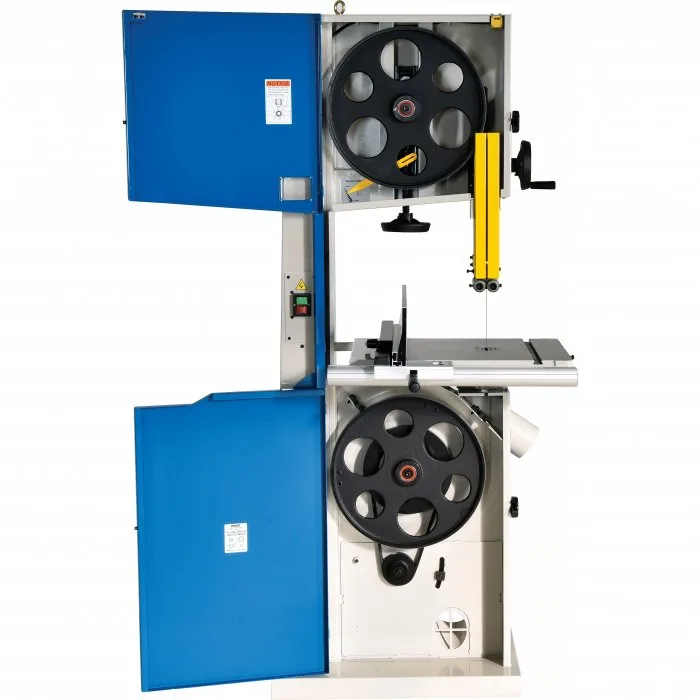

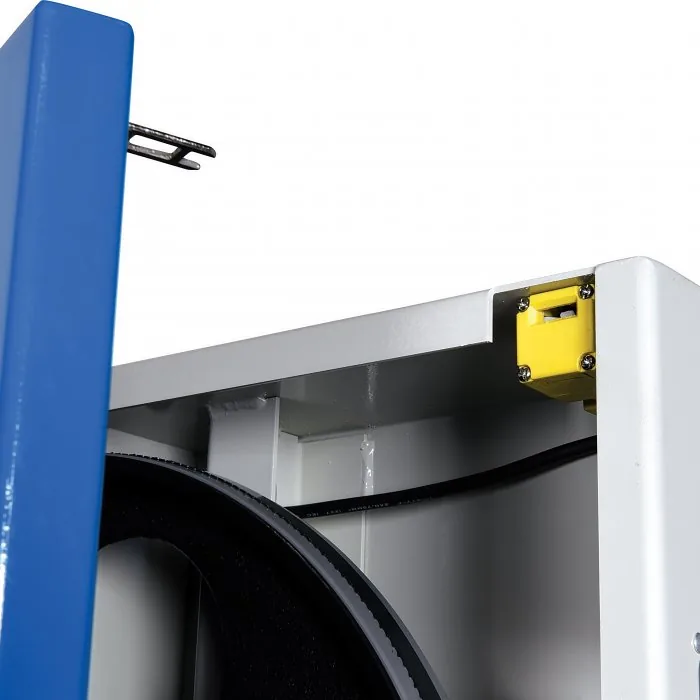

- Micro-switch protection on hinged blade guard doors

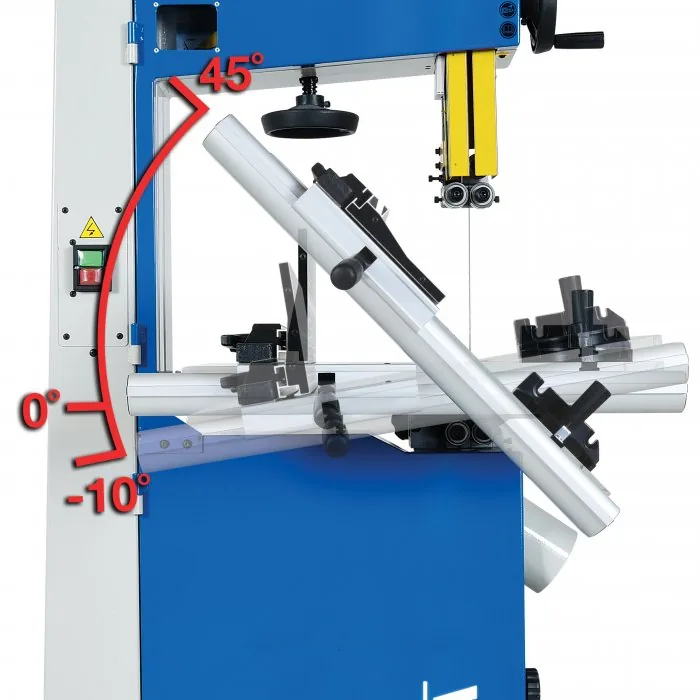

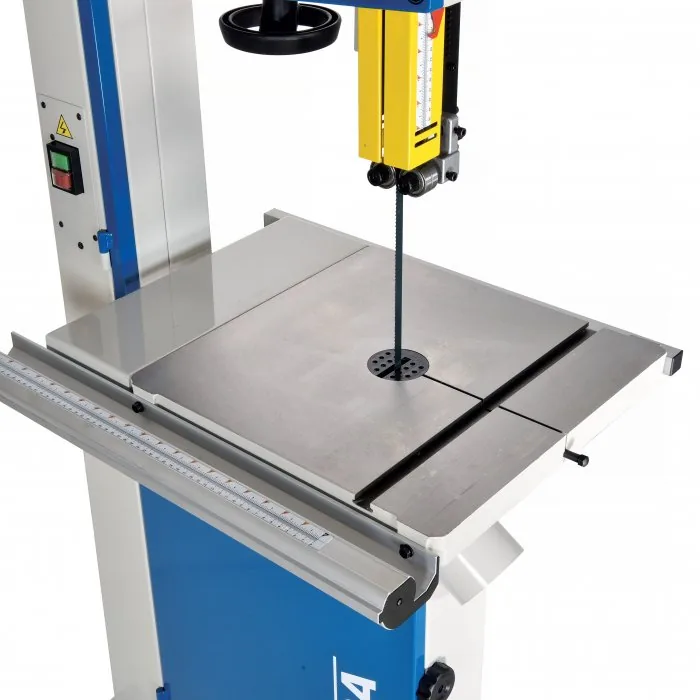

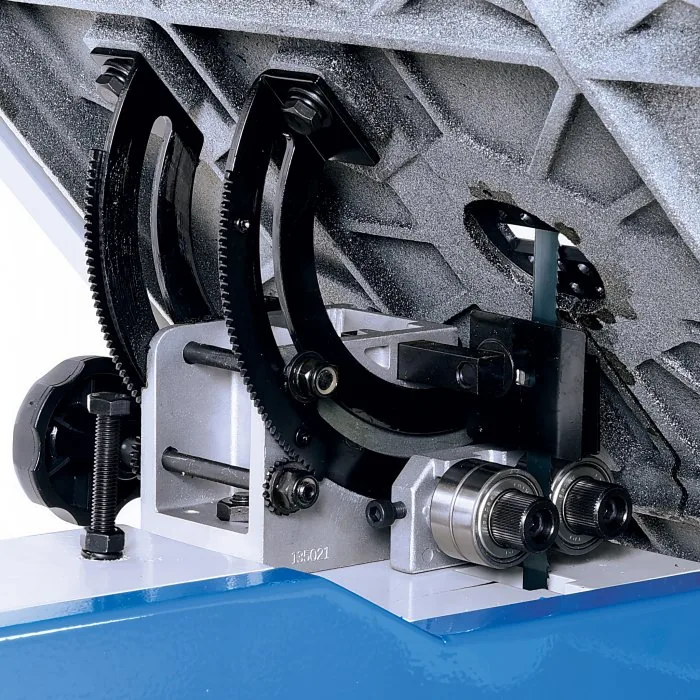

- Large cast iron table tilts to -10° to +45°

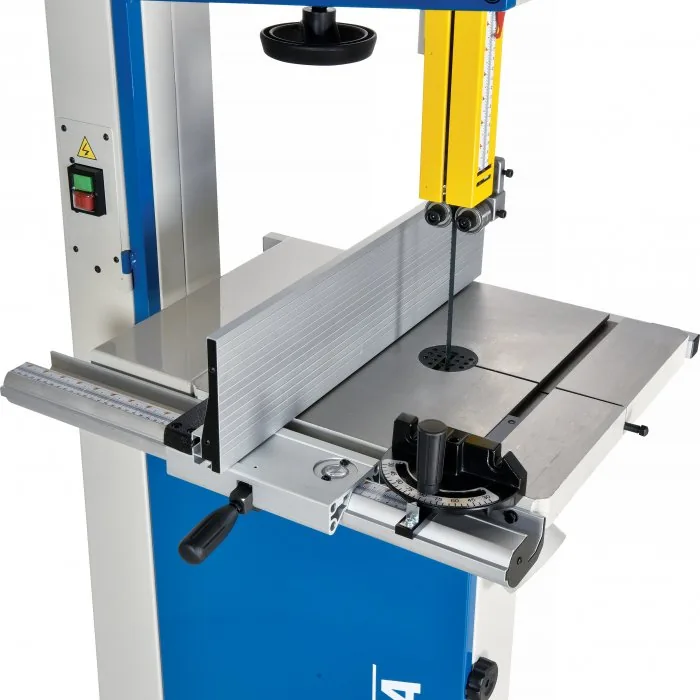

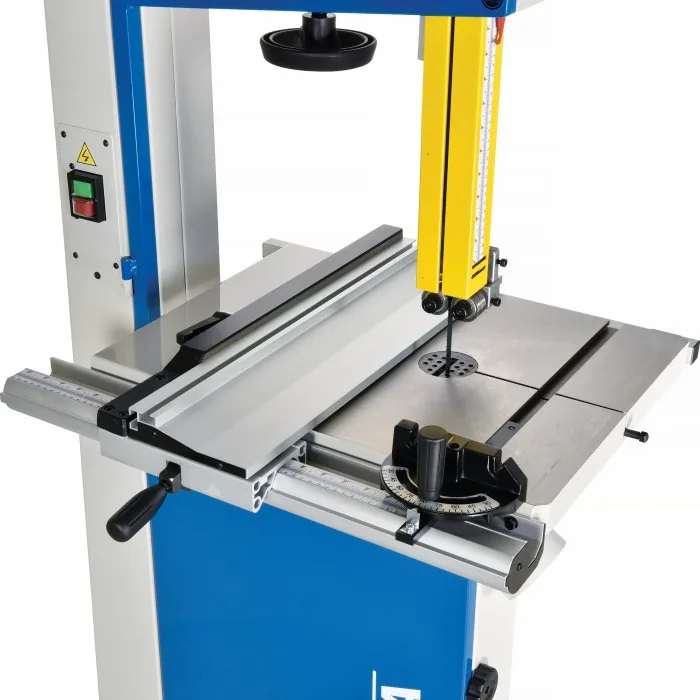

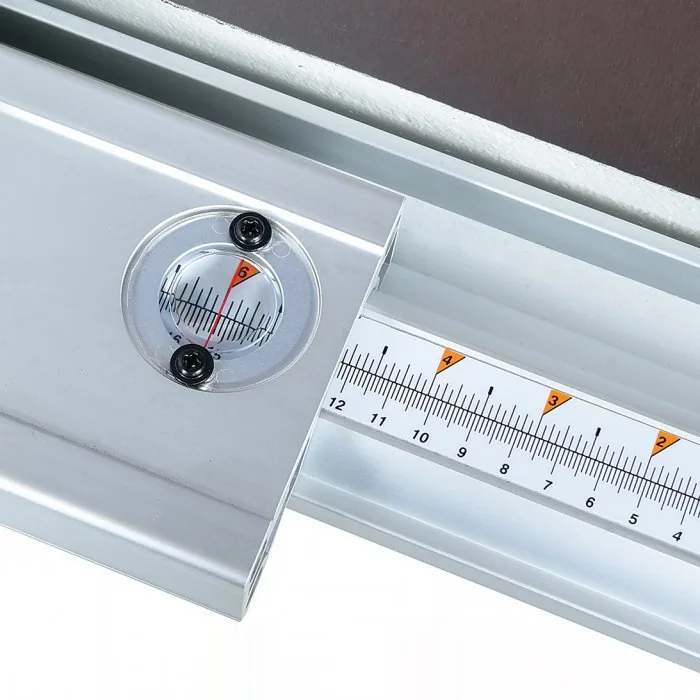

- Aluminium extruded High / Low ripping fence – 150mm & 12mm

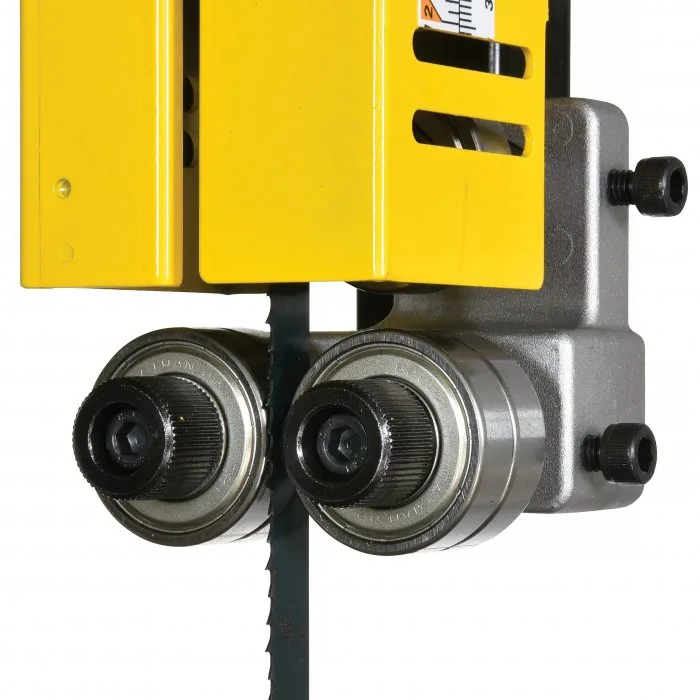

- Double ball bearing guides with grooved rear thrust bearing for maximum blade support

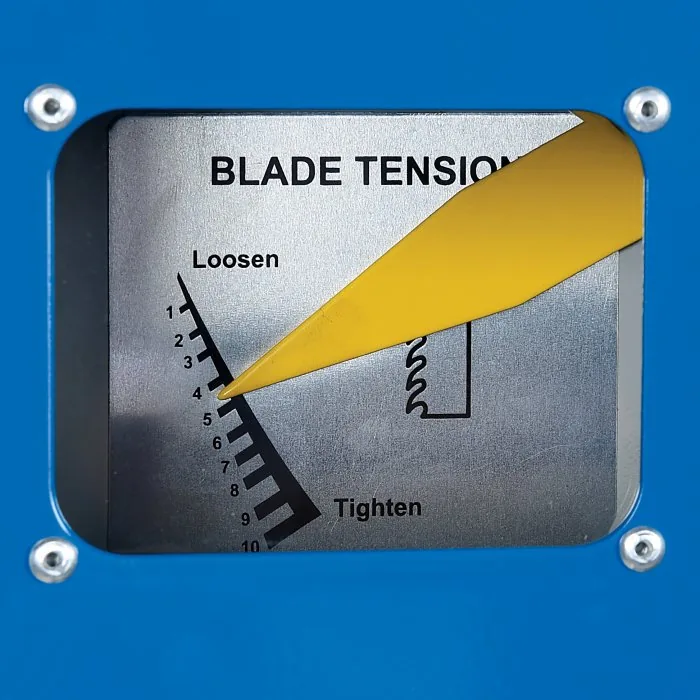

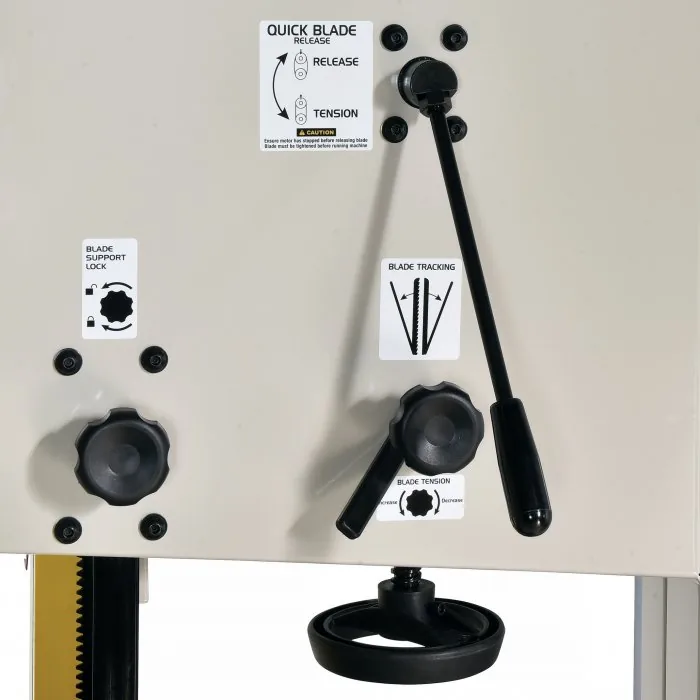

- Quick-action blade tension

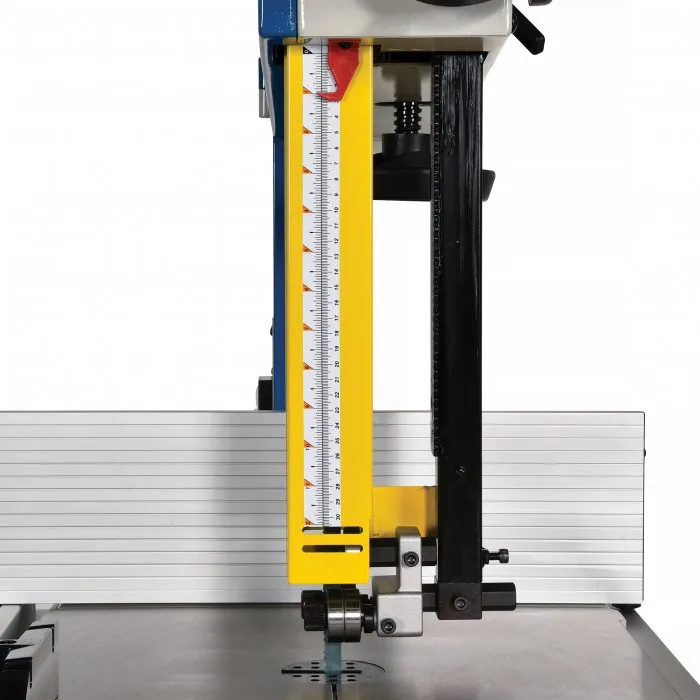

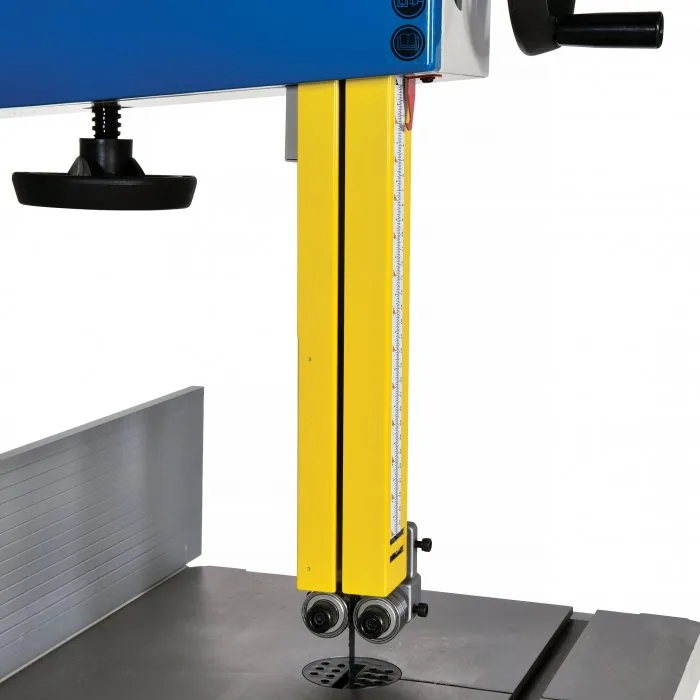

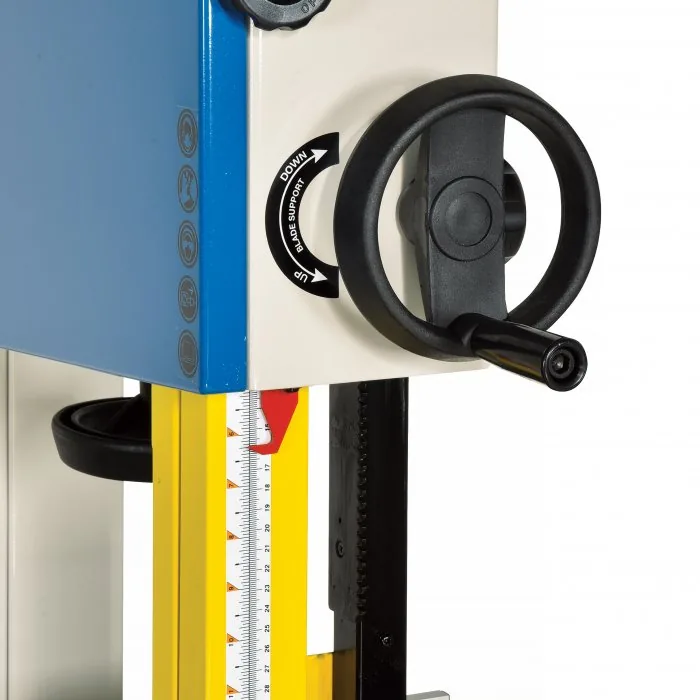

- Rack & pinion adjustment on top blade guide

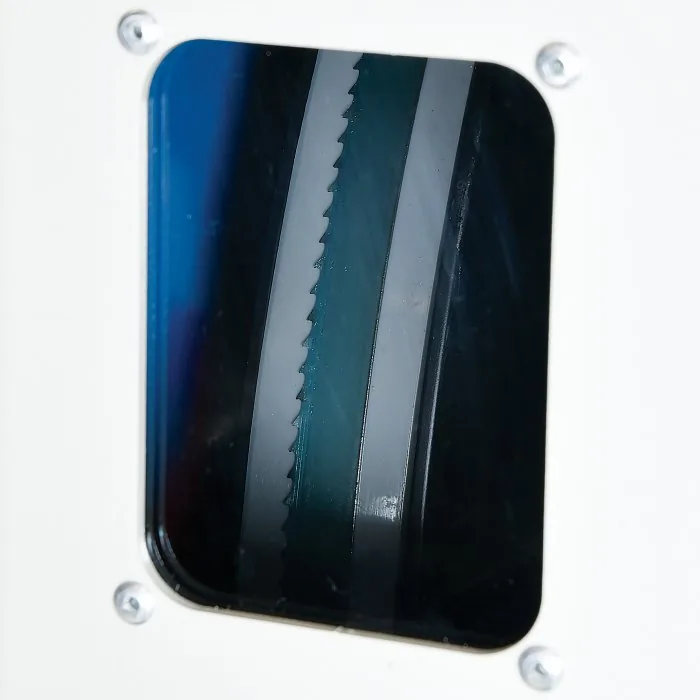

- Two viewing windows make blade tracking and tensioning possible while the machine is running
- Twin Ø100mm (4″) dust ports for efficient dust extraction
- CE safety standard compliant
About This Product
A wood bandsaw is probably the most versatile machine in any workshop and often the first machine used when preparing timber. This BP-430A bandsaw now includes a electronic safety motor brake system to quickly stop the blade, and a powerful 1500W – 2hp 240V motor, large cutting capacities and all manufactured to quality standards we expect of our range of machines. The BP-430A manufactured in Taiwan offers excellent safety features including interlocked blade guard doors, safety magnetic nvr power switch, 2 x height option fence, twin extraction ports and is all compliant to CE standard. A rigid welded steel chassis cast iron table and heavy-duty ball bearing blade guides are included, along with a rigid rip fence and precision mitre fence. An often overlooked feature is the ease of changing the blade; The BP-430A has a quick release blade tensioning lever which substantially speeds up the process of blade changing. Two belt speeds offer the right speed of 488 & 1010m/min. for cutting either a large or small job. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W4330) for collection in store.
In the Box
- Aluminium extruded High / Low ripping fence

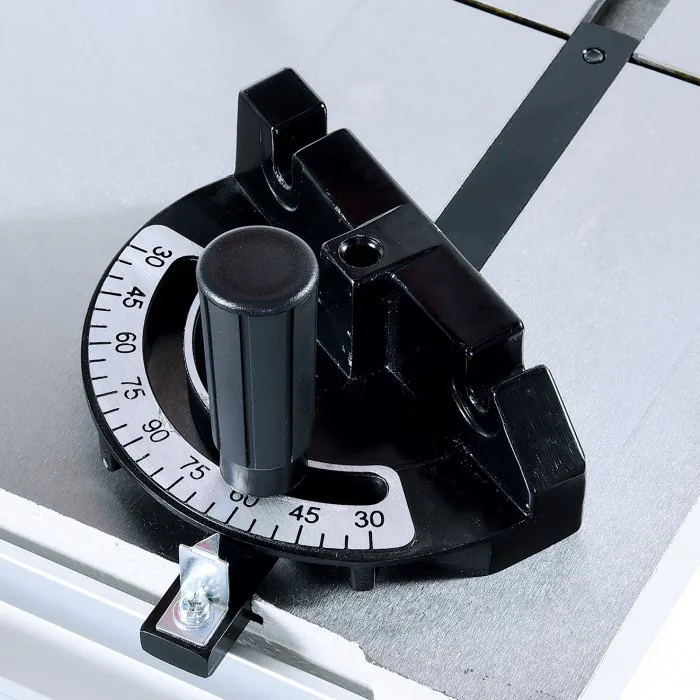

- Mitre gauge
- 6TPI, Blade – 3345 x 16 x 0.65mm
Product Specifications
| Specification | Detail |
|---|---|
| Wheel Diameter (Ø) (mm) | 430 |
| Throat Capacity (mm) | 415 |
| Height Capacity (mm) | 310 |
| Table Size (mm) | 585 x 435 with Extension |
| Frame Type | Steel |
| Motor Power (kW / hp) | 1.5 / 2 (Electronic Brake System) |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Blade Code (Suits) | W433A, W433B, W433C |
| Blade Size (L x W x T) (mm) | 3345 x 16 x 0.80 |
| Floor Space (W x D x H) (mm) | 850 x 830 x 1860 |
| Nett Weight (kg) | 181 |
