Description
TOOLMASTER
3MT Live Centre Extended Point — Taiwanese Precision Quality 3500rpm, 400kg Load Capacity
Part No: C057 | Barcode: 9344195183324
TOOLMASTER 3MT Live Centre Extended Point (Taiwanese Precision Quality 3500rpm, 400kg Load Capacity). Toolmaster live centre’s are fitted with needle, thrust and ball bearings suitable for medium to high speed lathes with heavy loads. The shaft is made from alloy steel heat treated to HRC 60° providing high…
Taiwanese Precision Quality
3500rpm, 400kg Load Capacity
Maximum Speed: 3500 rpm
Maximum Load Capacity: 400 kg
Key Features & Benefits

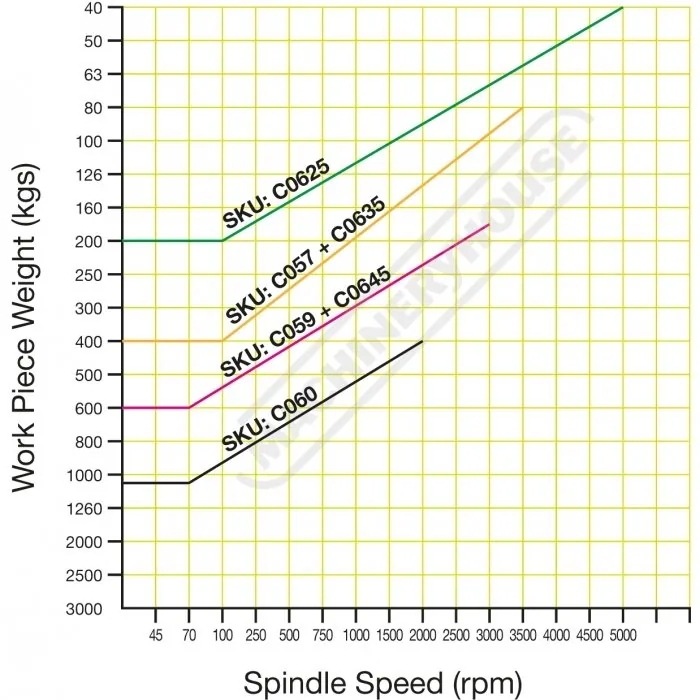

- Maximum speed 3500rpm @ 80kg
- Maximum load 400kg @ 100rpm
- Hardened to HRC 60º
- Made from alloy steel
- Assembled with thrust, needle & ball bearings
About This Product
Toolmaster live centre’s are fitted with needle, thrust and ball bearings suitable for medium to high speed lathes with heavy loads. The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C057) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Taper (MT) | 3MT |
| Point Type | Extended |
| Maximum Speed (rpm) | 3500 |
| Maximum Load Capacity (kg) | 400 |
| Angle θ (deg) | 60 |
| A (mm) | 46 |
| B (mm) | 44 |
| C | 86 |
| D | 41 |
| D1 | 25 |
| d | 10 |
| L (mm) | 176 |
| Nett Weight (kg) | 0.84 |
