TOOLMASTER

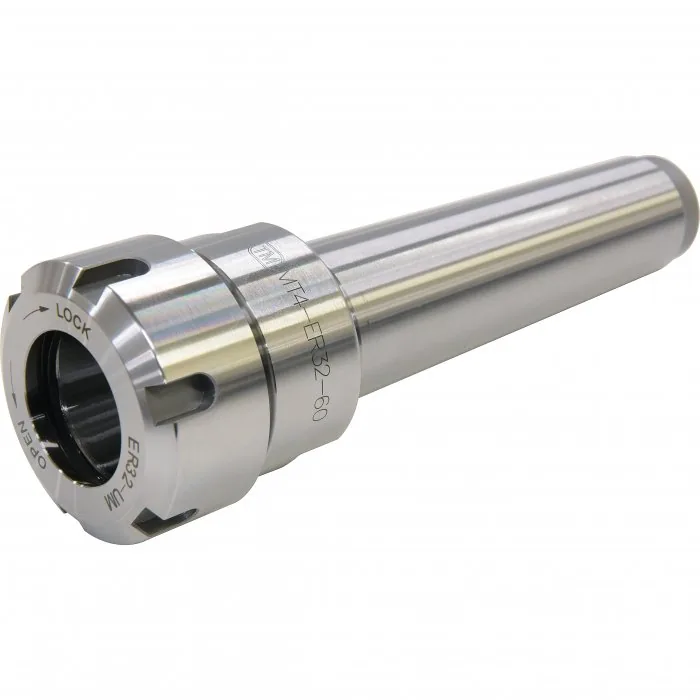

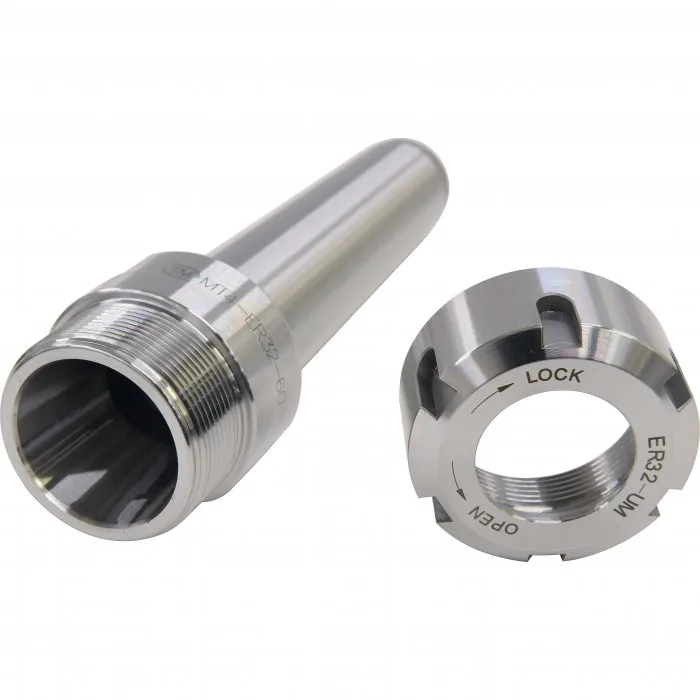

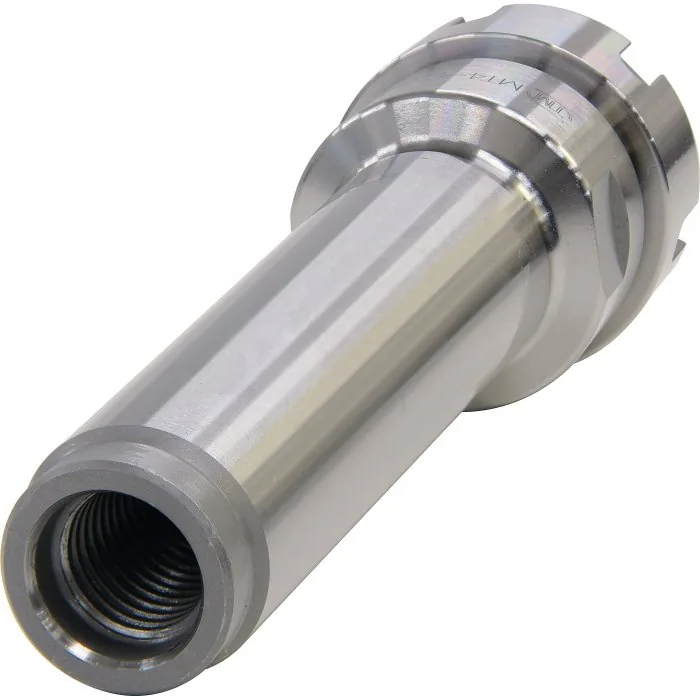

Collet Chuck – 4MT X ER32 — Ø2-Ø20mm
Part No: C1056 | Barcode: 9344195215353 | Model: 4MT x ER32
TOOLMASTER 4MT x ER32 Collet Chuck – 4MT X ER32 (Ø2-Ø20mm). All ER collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 – 85% taper contact) Maintain a high level of accuracy.
Model 4MT x ER32
Ø2-Ø20mm
Maximum Capacity: 20 mm
Key Features & Benefits
- Precision Ground
- Rated to 10,000rpm
About This Product
All ER collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 – 85% taper contact) Maintain a high level of accuracy. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C1056) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Collet Type | ER32 |
| Maximum Capacity (mm) | 20 |
| Taper (J) | 4MT |
| Draw Bar (G) | M16 |
| L (mm) | 50 |
| ØD (mm) | 50 |
| Nett Weight (kg) | 0.9 |
