TOOLMASTER

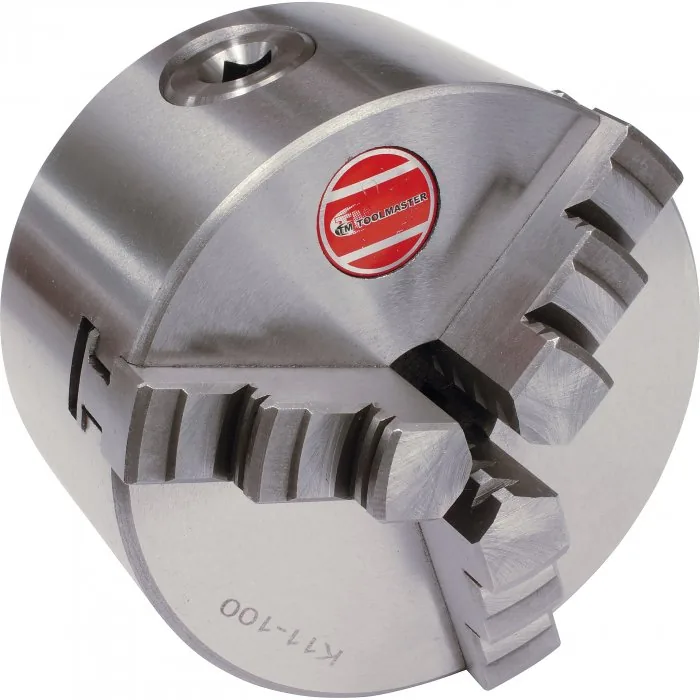

3 Jaw Self Centring Lathe Chuck — K11 SERIES, Ø100mm Back Plate Mount
Part No: C200 | Barcode: 9344195006111 | Model: K11 SERIES
TOOLMASTER K11 SERIES 3 Jaw Self Centring Lathe Chuck (Ø100mm Back Plate Mount). K11 Series cast iron body lathe chucks are built to GB/T 4346.2-2002 standard, and supplied with one piece standard and reverse jaws.
Model K11 SERIES
Ø100mm

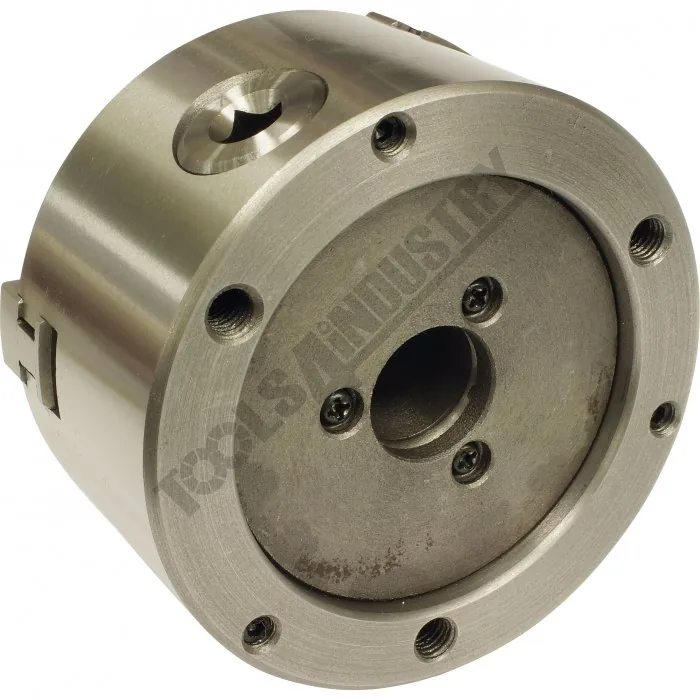

Back Plate Mount
Speed: 3500 rpm
About This Product
K11 Series cast iron body lathe chucks are built to GB/T 4346.2-2002 standard, and supplied with one piece standard and reverse jaws. World-class and industry leader in manufacturing manual lathe chucks for over 30 years. ToolMaster precision tolerance lathe chucks are ISO 9001-2000 approved, and ensure high quality with accuracy testing on every chuck. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C200) for collection in store.

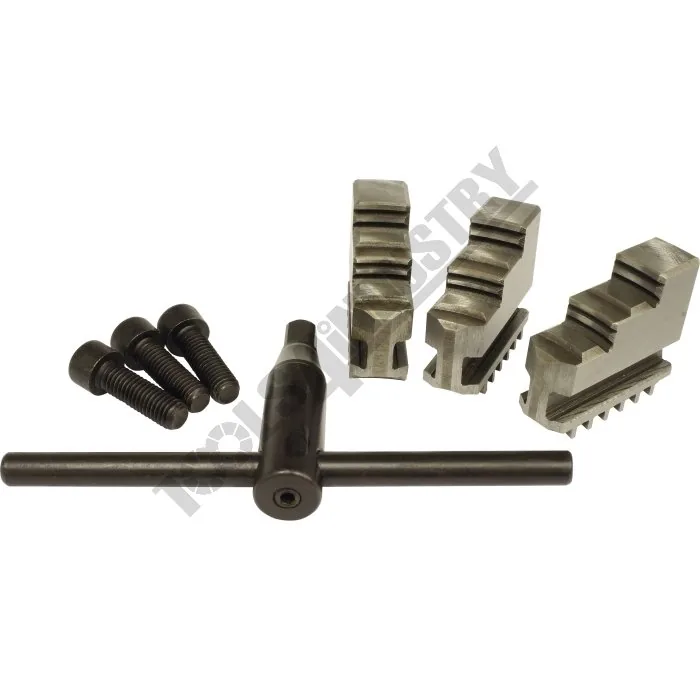

In the Box
- Outside jaws
- Inside jaws
- Mounting screws
- Chuck key
Product Specifications
| Specification | Detail |
|---|---|
| Mounting Type | Back Plate Mount |
| Chuck Size (mm) | Ø100 |
| Outside Jaw (mm) | 2 – 30 |
| Inside Jaw (mm) | 30 – 80 |
| Speed (rpm) | 3500 |
| D1 (mm) | 72 |
| D2 (mm) | 84 |
| D3 (bore) (mm) | 22 |
| H (mm) | 74.5 |
| H1 (mm) | 55 |
| h (lowercase) (mm) | 3.5 |
| z-d (mm) | 3 x M8 |
| Nett Weight (kg) | 3.5 |
