TOOLMASTER

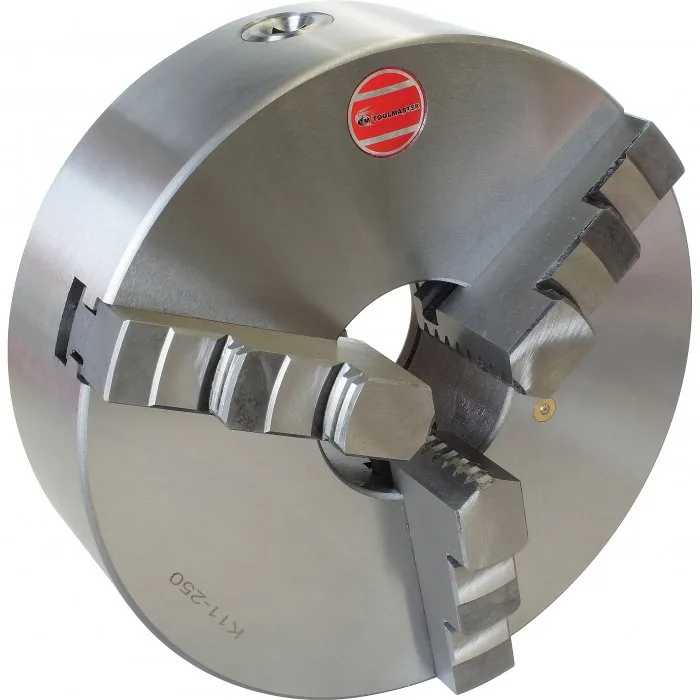

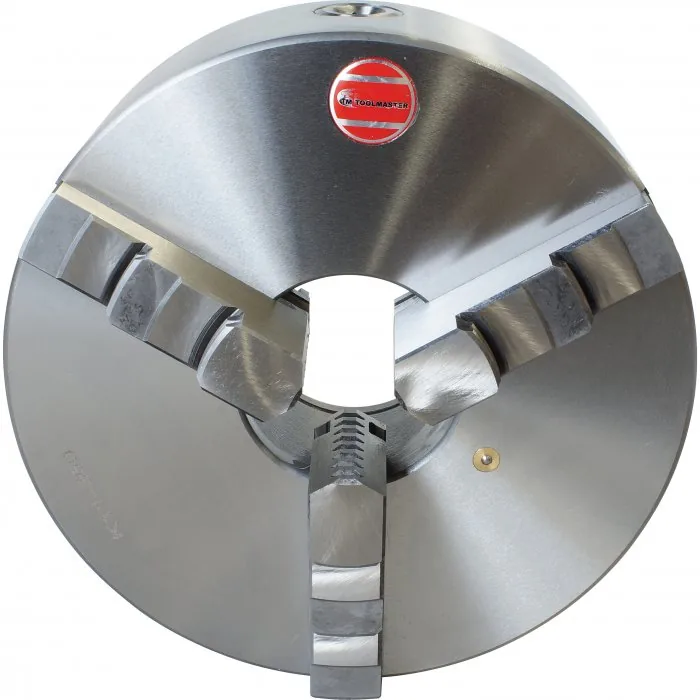

3 Jaw Self Centring Lathe Chuck — K11 SERIES, Ø250mm Back Plate Mount
Part No: C206 | Barcode: 9344195006159 | Model: K11 SERIES
TOOLMASTER K11 SERIES 3 Jaw Self Centring Lathe Chuck (Ø250mm Back Plate Mount). K11 Series cast iron body lathe chucks are built to GB/T 4346.2-2002 standard, and supplied with one piece standard and reverse jaws.
Model K11 SERIES
Ø250mm
Back Plate Mount
Speed: 1600 rpm
About This Product
K11 Series cast iron body lathe chucks are built to GB/T 4346.2-2002 standard, and supplied with one piece standard and reverse jaws. World-class and industry leader in manufacturing manual lathe chucks for over 30 years. ToolMaster precision tolerance lathe chucks are ISO 9001-2000 approved, and ensure high quality with accuracy testing on every chuck. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C206) for collection in store.
In the Box
- Outside jaws
- Inside jaws
- Mounting screws
- Chuck key
Product Specifications
| Specification | Detail |
|---|---|
| Mounting Type | Back Plate Mount |
| Chuck Size (mm) | Ø250 |
| Outside Jaw (mm) | 6 – 110 |
| Inside Jaw (mm) | 90 – 250 |
| Speed (rpm) | 1600 |
| D1 (mm) | 206 |
| D2 (mm) | 226 |
| D3 (bore) (mm) | 80 |
| H (mm) | 120 |
| H1 (mm) | 80 |
| h (lowercase) (mm) | 5 |
| z-d (mm) | 3 x M12 |
| Nett Weight (kg) | 26 |
