TOOLMASTER

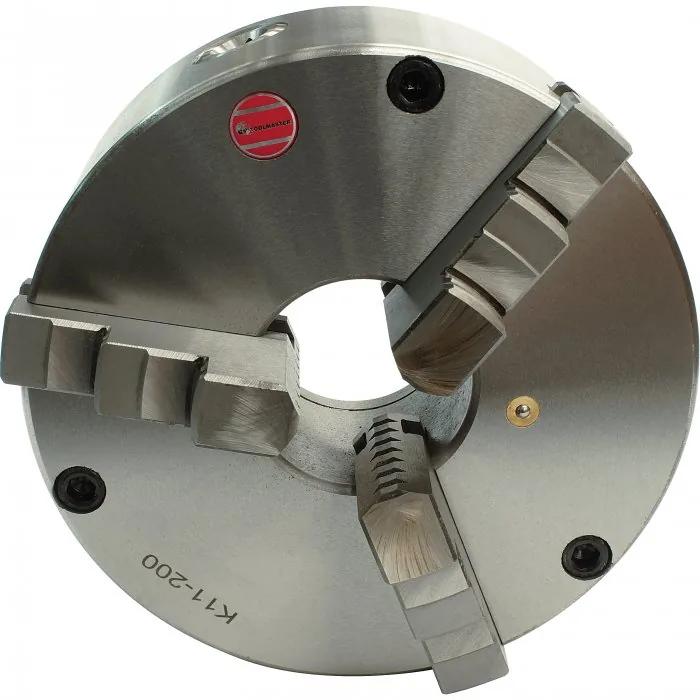

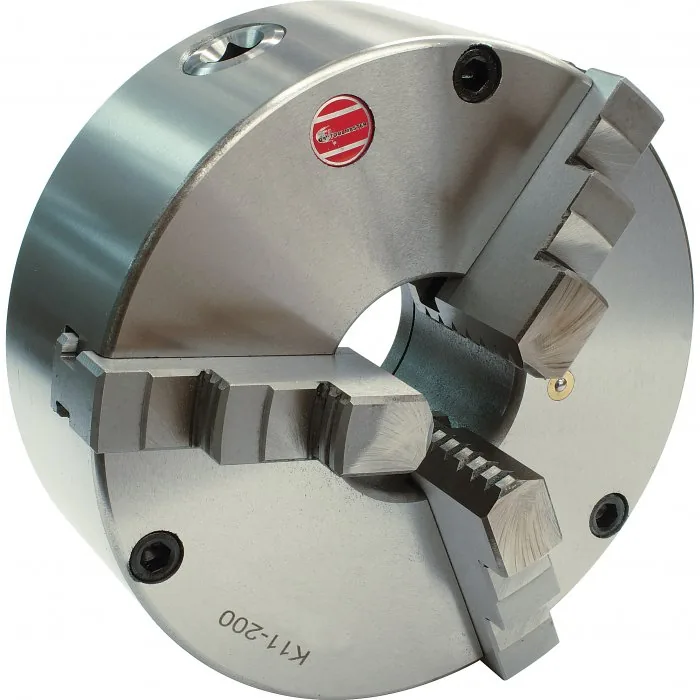

3 Jaw Self Centring Lathe Chuck — K11 SERIES, Ø200mm Front Mount
Part No: C281 | Barcode: 9344195012723 | Model: K11 SERIES
TOOLMASTER K11 SERIES 3 Jaw Self Centring Lathe Chuck (Ø200mm Front Mount). K11 Series front mount cast iron body lathe chucks are built to GB/T 4346.2-2002 standard, and supplied with one piece standard and reverse jaws.
Model K11 SERIES
Ø200mm

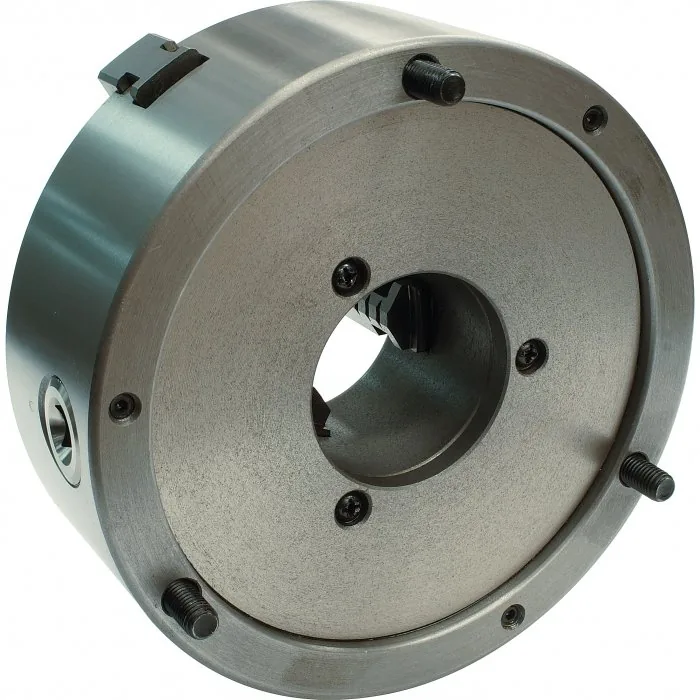

Front Mount
Speed: 2000 rpm
Key Features & Benefits
- Ideal for Rotary Tables
About This Product
K11 Series front mount cast iron body lathe chucks are built to GB/T 4346.2-2002 standard, and supplied with one piece standard and reverse jaws. World-class and industry leader in manufacturing manual lathe chucks for over 30 years. ToolMaster precision tolerance lathe chucks are ISO 9001-2000 approved, and ensure high quality with accuracy testing on every chuck. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C281) for collection in store.

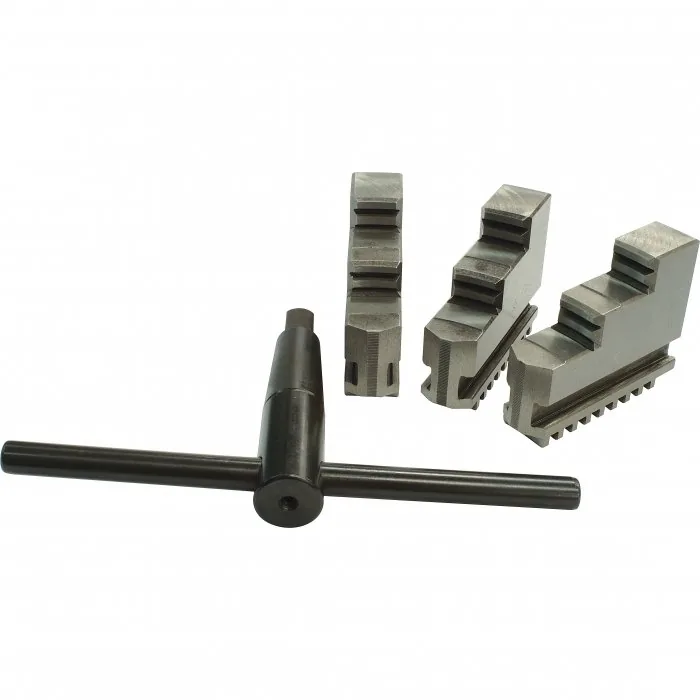

In the Box
- Outside jaws
- Inside jaws
- Mounting screws
- Chuck key
Product Specifications
| Specification | Detail |
|---|---|
| Mounting Type | Front Mount |
| Chuck Size (mm) | Ø200 |
| Outside Jaw (mm) | 4 – 85 |
| Inside Jaw (mm) | 65 – 200 |
| Speed (rpm) | 2000 |
| D1 (mm) | 165 |
| D2 (mm) | 180 |
| D3 (bore) (mm) | 65 |
| H (mm) | 109 |
| H1 (mm) | 75 |
| h (lowercase) (mm) | 5 |
| z-d (mm) | 3 x M10 |
| Nett Weight (kg) | 19.3 |
